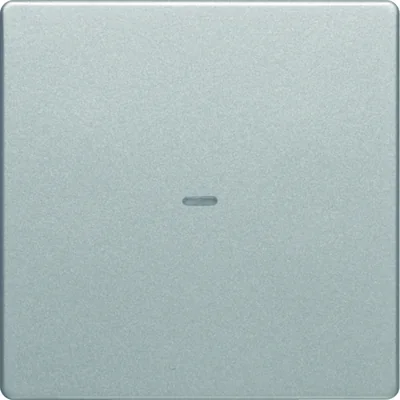

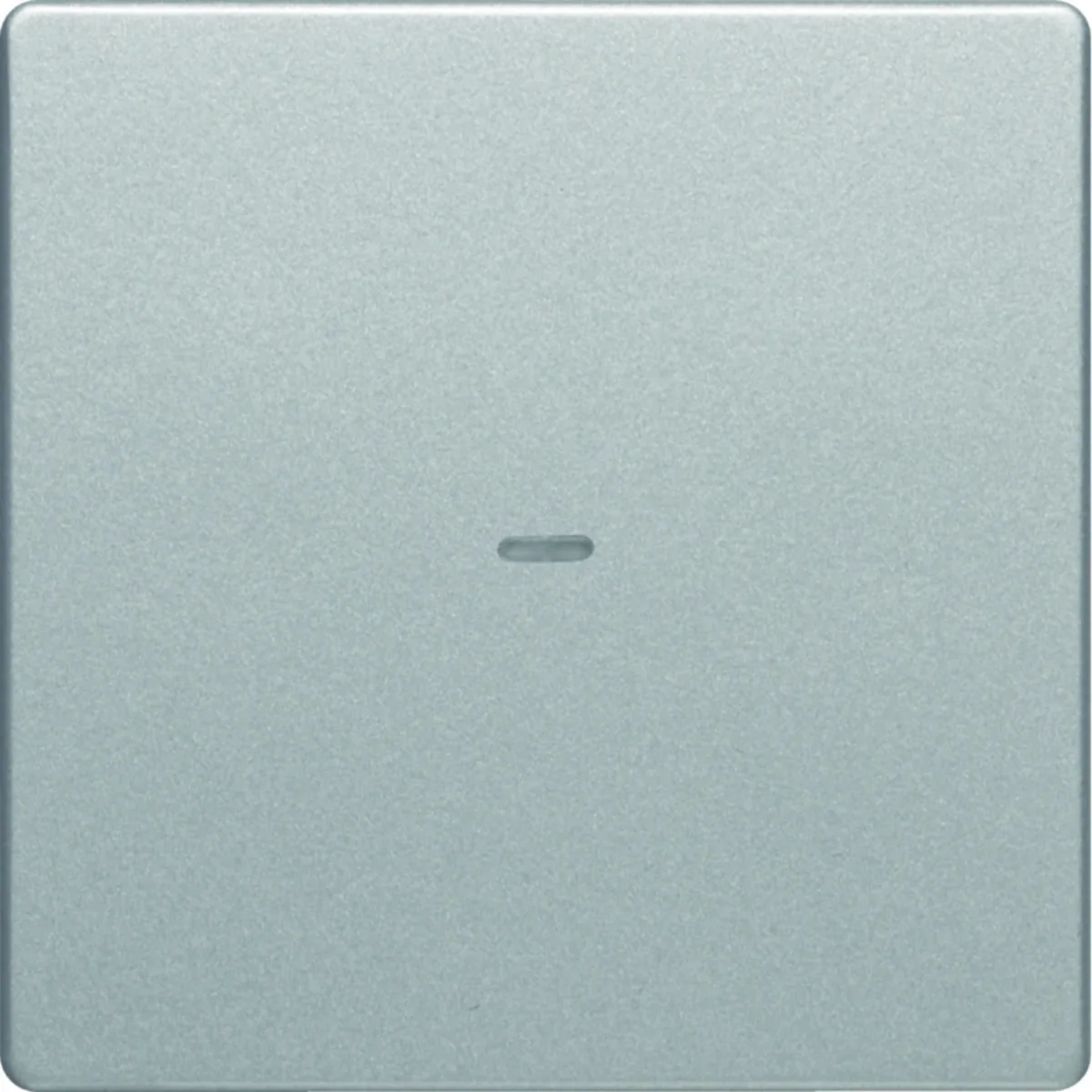

KNX EASY Q.1/Q.3 Rocker with lens for 1-gang push-button module aluminum velvet 80960221

local index:
AIK163HAGE
Catalog No:
80960221
EAN code:
4011334449478
Manufacturer: HAGER
Halogen free: Yes
Material: Thermoplastic
Installation: Flush-mounted
Price:
10,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switch with a lens for the single-gang push-button module from the KNX easy series:

  • user interfaces can be configured to operate one or two-level
  • with programming button and red programming LED
  • with built-in bus port
  • bus connection via connection terminals
  • main design line: KNX - Berker Q.1/Q.3

Series characteristics:

KNX easy by KNX easy is a new building automation system that is easy to use application in private residential buildings. KNX easy is not only an innovative, fast and inexpensive solution - it is above all a very simple tool. New hardware or costly ETS software are unnecessary. With KNX easy, all you need is the easy server, a mobile device (tablet) and the Easy Tool app. Now you can set up simple and effective building control. KNX easy is a speed of operation that reduces the time you need to spend on programming. The advantages of using an intelligent building control system make its purchase a profitable investment even for an average household. What's more, its modular nature allows you to expand at any time, but you can plan it for your customers in advance and help them reduce costs.

Technical data

  • Halogen free
    Yes
  • Installation
    Flush-mounted
  • Surface
    Velvet
  • Level of security
    IP20
  • Surface finish
    Lacquered
  • Bus current consumption (data transmission) [mA]
    10
  • Material
    Thermoplastic
  • Power consumption [W]
    0.108
  • Family
    KNX EASY
  • Operating temperature range [°C]
    from -5 to 45
  • Operating voltage via DC bus [V]
    21 - 32
  • PKWIU
    27.12.40.0

Other technical data

  • Model
    One-part rocker
  • Utilization
    Other
  • Type of fastening
    Clamp mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • With exchangeable lens/symbol
    No
  • Scannable symbol/barrier free
    No
  • Suitable for touch sensor connector for bus system
    Yes
  • Monitoring window/light outlet
    Yes
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Aluminium
  • With label area
    No
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 86 pcs. 2752 pcs.
Weight (kg) 0,010 0,021 2,211 90,753
Width (m) 0,055 0,083 0,300 0,800
Length (m) 0,009 0,033 0,225 1,050
Depth (m) 0,055 0,083 0,400 1,200
