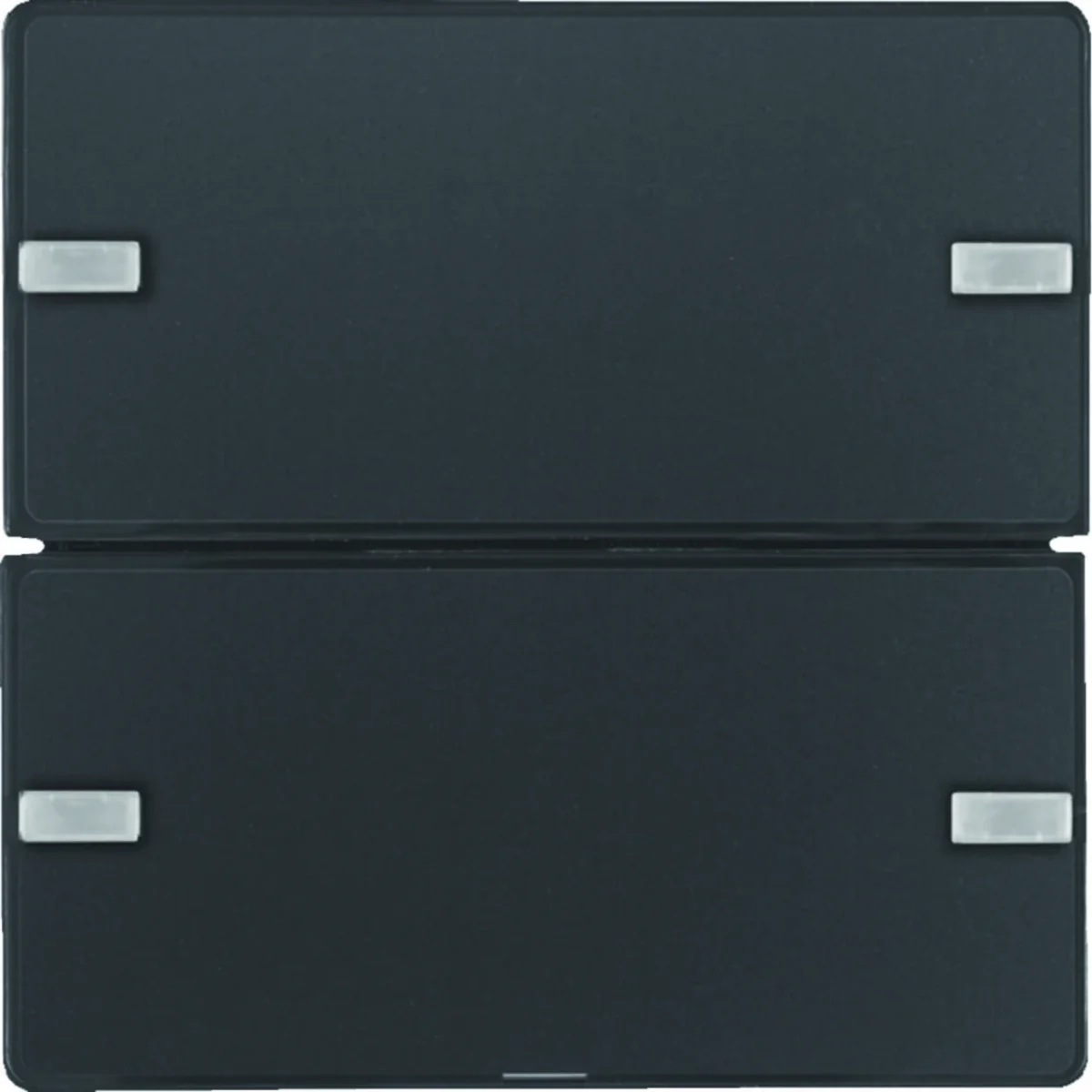

KNX EASY Q.1/Q.3 2-gang button with inscription field, anthracite 80142326

local index:
AIK255HAGE
Catalog No:
80142326
EAN code:
3250617153393
Manufacturer: HAGER
Halogen free: NO
Number of buttons: 2
Color: Graphite
Price:
102,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double pushbutton with description field, KNX easy series:

  • with room temperature sensor
  • possibility configuration of user interfaces for one- or two-level operation
  • function to send 1 and 2 byte values for dimming, illuminance and temperature
  • with a white operating status LED
  • connection: to the flush-mounted bus port
  • security: alarm telegram after removal from the bus port, 1 bit, 1 byte
  • main project line: KNX - Berker Q.1/Q.3< /li>
  • only to be used in conjunction with bus port 8004 00 01!

Series characteristics:

KNX easy from building automation system providing an easy-to-use application in private residential buildings. KNX easy is not only an innovative, fast and inexpensive solution - it is above all a very simple tool. New hardware or costly ETS software are unnecessary. With KNX easy, all you need is the easy server, a mobile device (tablet) and the Easy Tool app. Now you can set up simple and effective building control. KNX easy is a speed of operation that reduces the time you need to spend on programming. The advantages of using an intelligent building control system make its purchase a profitable investment even for an average household. What's more, its modular nature allows you to expand at any time, but you can plan it for your customers in advance and help them reduce costs.

Technical data

  • Halogen free
    NO
  • Color
    Graphite
  • Installation
    Flush-mounted
  • Surface
    Velvet
  • Level of security
    IP20
  • Operating temperature range [°C]
    from -5 to 45
  • Accurate color
    Anthracite
  • PKWIU
    27.12.31.0
  • Number of buttons
    2
  • Material
    Thermoplastic
  • Power consumption [W]
    0.15
  • Family
    KNX EASY
  • Width [mm]
    58.7
  • Surface finish
    Lacquered
  • Bus current consumption (data transmission) [mA]
    20

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • With anti-theft/dismantling protection
    Yes
  • Number of actuation points
    4
  • With LED indication
    Yes
  • With display
    No
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • With room temperature controller
    Yes
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    No
  • Number of buttons
    2
  • With label area
    Yes
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Anthracite
  • Transparent
    No
  • With IR sensor
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 32 pcs. 1024 pcs.
Weight (kg) 0,066 0,100 5,370 239,800
Width (m) 0,058 0,080 0,300 0,800
Length (m) 0,034 0,050 0,335 1,800
Depth (m) 0,059 0,155 0,405 1,200
