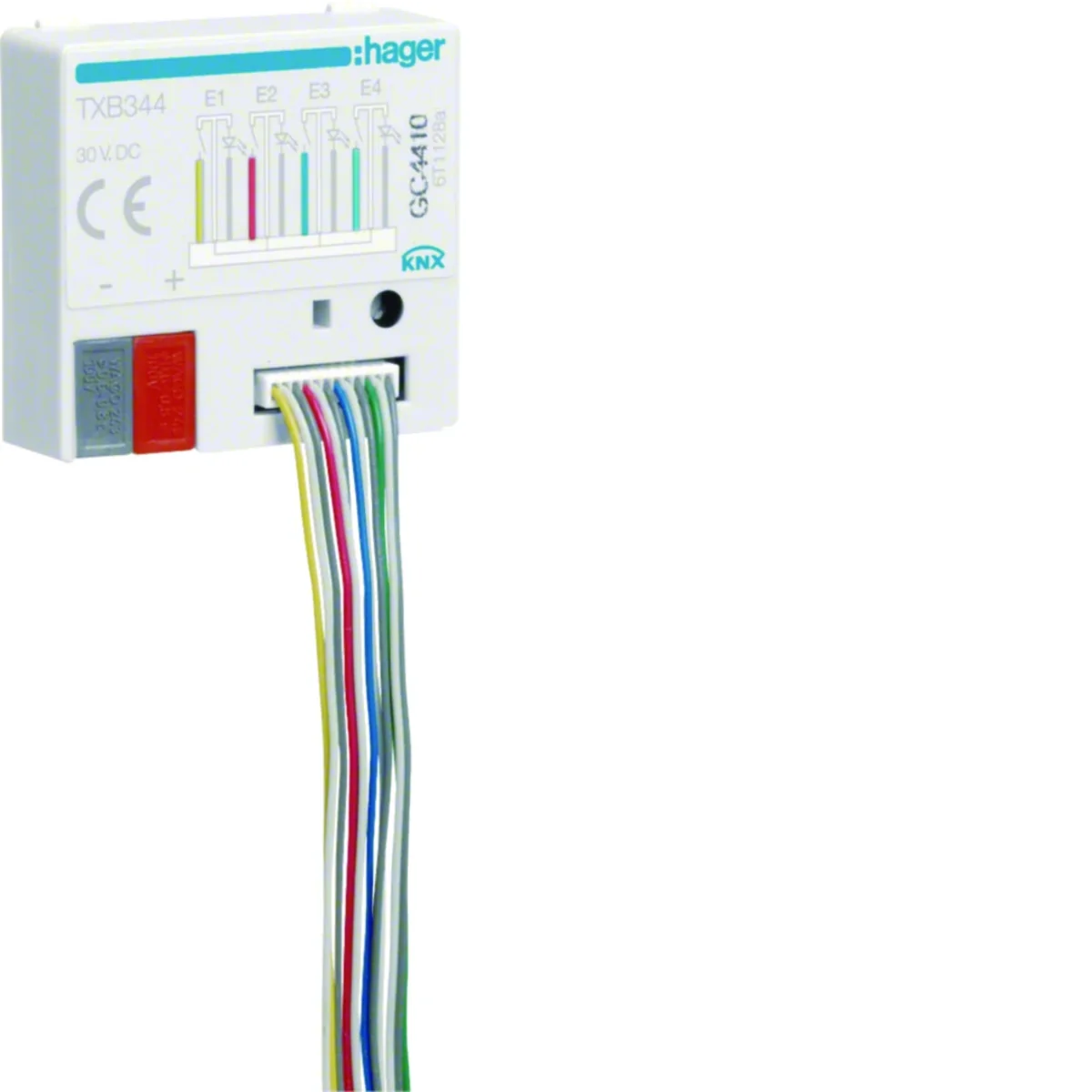

KNX easy Push-button input with LED control output, 4-inputs + 4-outputs TXB344
local index:
AIK025HAGE
Catalog No:
TXB344
EAN code:
3250616049055
Price:
171,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KNX easy Push-button input with LED control output, 4-inputs + 4-outputs
Technical data
-
Halogen freeNO
-
ColorGray
-
InstallationFlush-mounted
-
Level of securityIP20
-
Height [mm]35
-
DC supply voltage [V]thirty
-
storage temperature [°C]from -20 to 70
-
Conductor cross-section (wire) [mm²]0.75 - 2.5
-
Depth [mm]12
-
MaterialPolyamide
-
FamilyKNX EASY
-
Width [mm]38
-
Operating temperature range [°C]from 0 to 45
-
Operating voltage via DC bus [V]21 - 32
-
Wire cross-section (cord) [mm²]0.75 - 2.5
-
PKWIU26.30.23.0
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
With bus connectionYes
-
LED controllingYes
-
Number of inputs4
-
Type of voltage (input voltage)DC
-
Degree of protection (IP)IP20
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodFlush-mounted
-
Bus module detachableNo
-
With LED indicationYes
-
Input voltage5 ... 5 V
-
External signal voltage necessaryYes
-
Min. depth of built-in installation box40 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. | 2592 pcs. |
| Weight (kg) | 0,014 | 0,035 | 4,160 | 122,840 |
| Width (m) | 0,080 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,023 | 0,025 | 0,215 | 1,050 |
| Depth (m) | 0,094 | 0,095 | 0,360 | 1,200 |
