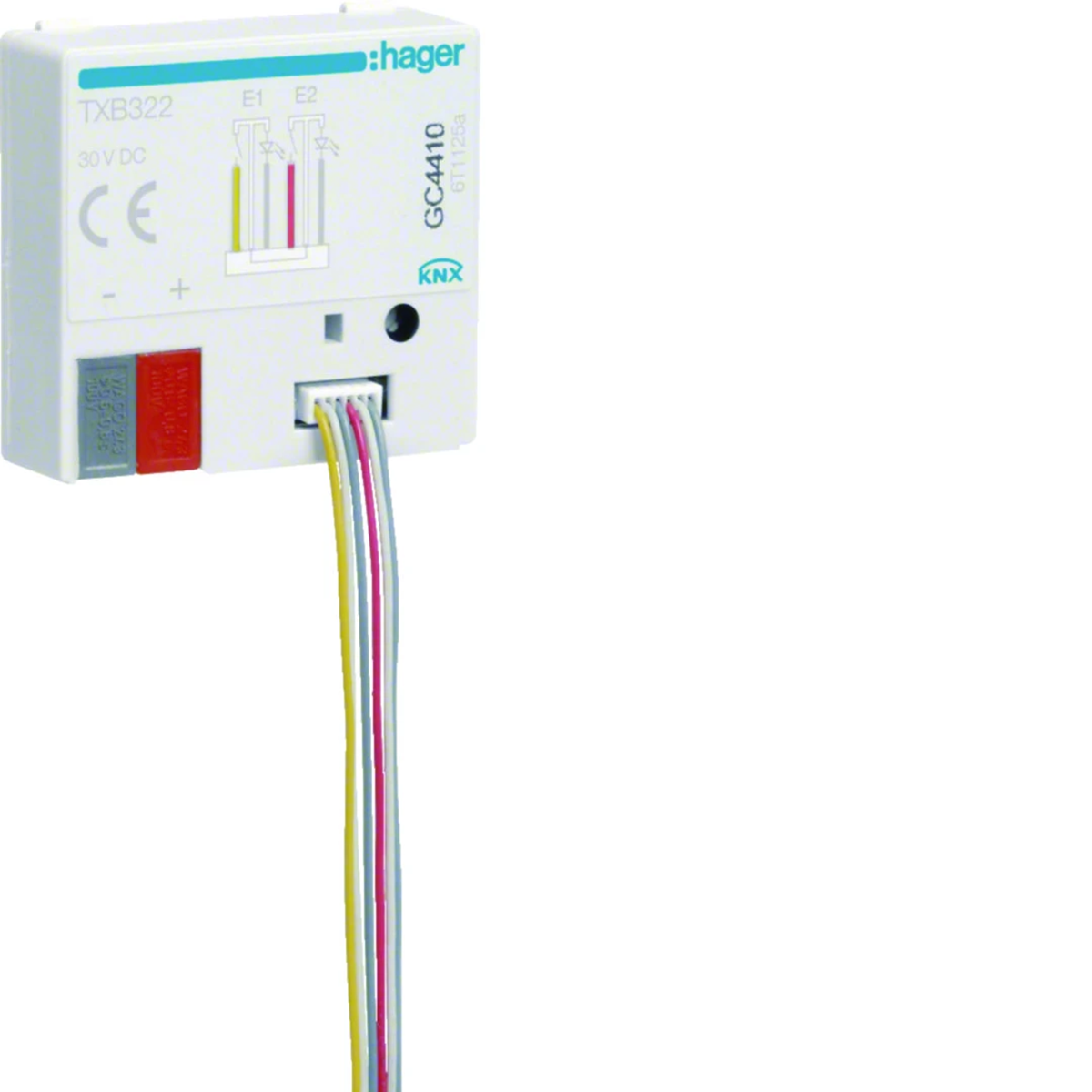

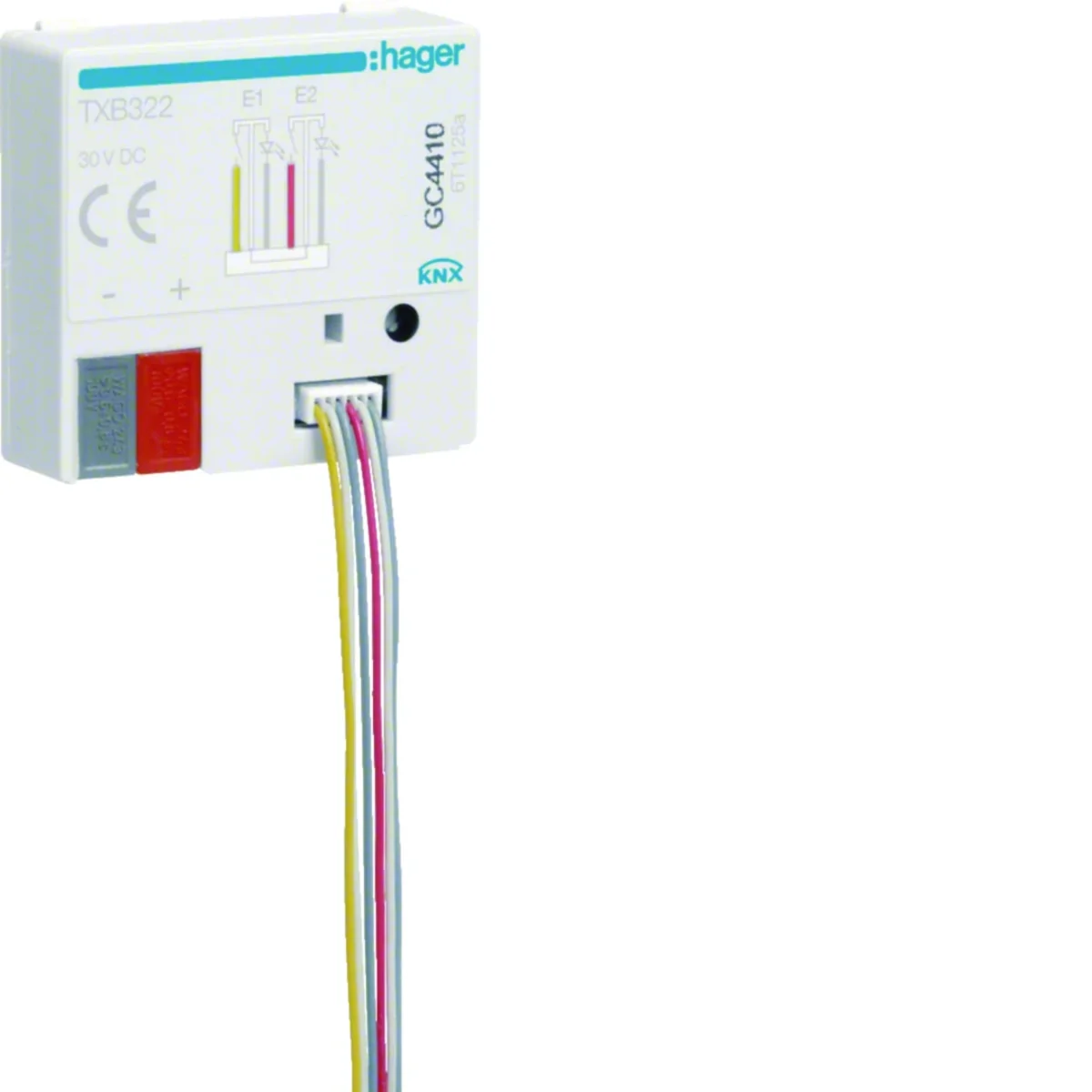

KNX easy Push-button input with LED control output, 2-inputs + 2-outputs TXB322
local index:
AIK024HAGE
Catalog No:
TXB322
EAN code:
3250616049079
Price:
105,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KNX easy Push-button input with LED control output, 2-inputs + 2-outputs
Technical data
-
Halogen freeNO
-
ColorGray
-
InstallationFlush-mounted
-
Level of securityIP20
-
Height [mm]35
-
DC supply voltage [V]thirty
-
storage temperature [°C]from -20 to 70
-
Conductor cross-section (wire) [mm²]0.75 - 2.5
-
Depth [mm]12
-
MaterialPolyamide
-
FamilyKNX EASY
-
Width [mm]38
-
Operating temperature range [°C]from 0 to 45
-
Operating voltage via DC bus [V]21 - 32
-
Wire cross-section (cord) [mm²]0.75 - 2.5
-
PKWIU26.30.23.0
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
With bus connectionYes
-
LED controllingYes
-
Number of inputs2
-
Type of voltage (input voltage)DC
-
Degree of protection (IP)IP20
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodFlush-mounted
-
Bus module detachableNo
-
With LED indicationYes
-
Input voltage5 ... 5 V
-
External signal voltage necessaryYes
-
Min. depth of built-in installation box40 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. | 2592 pcs. |
| Weight (kg) | 0,014 | 0,035 | 4,020 | 119,480 |
| Width (m) | 0,020 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,095 | 0,025 | 0,220 | 1,050 |
| Depth (m) | 0,080 | 0,095 | 0,360 | 1,200 |
