KNX easy KNX solenoid valve TX501
local index:
AIK013HAGE
Catalog No:
TX501
EAN code:
3250616045019
Price:
542,31 €
gross / set
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity set
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

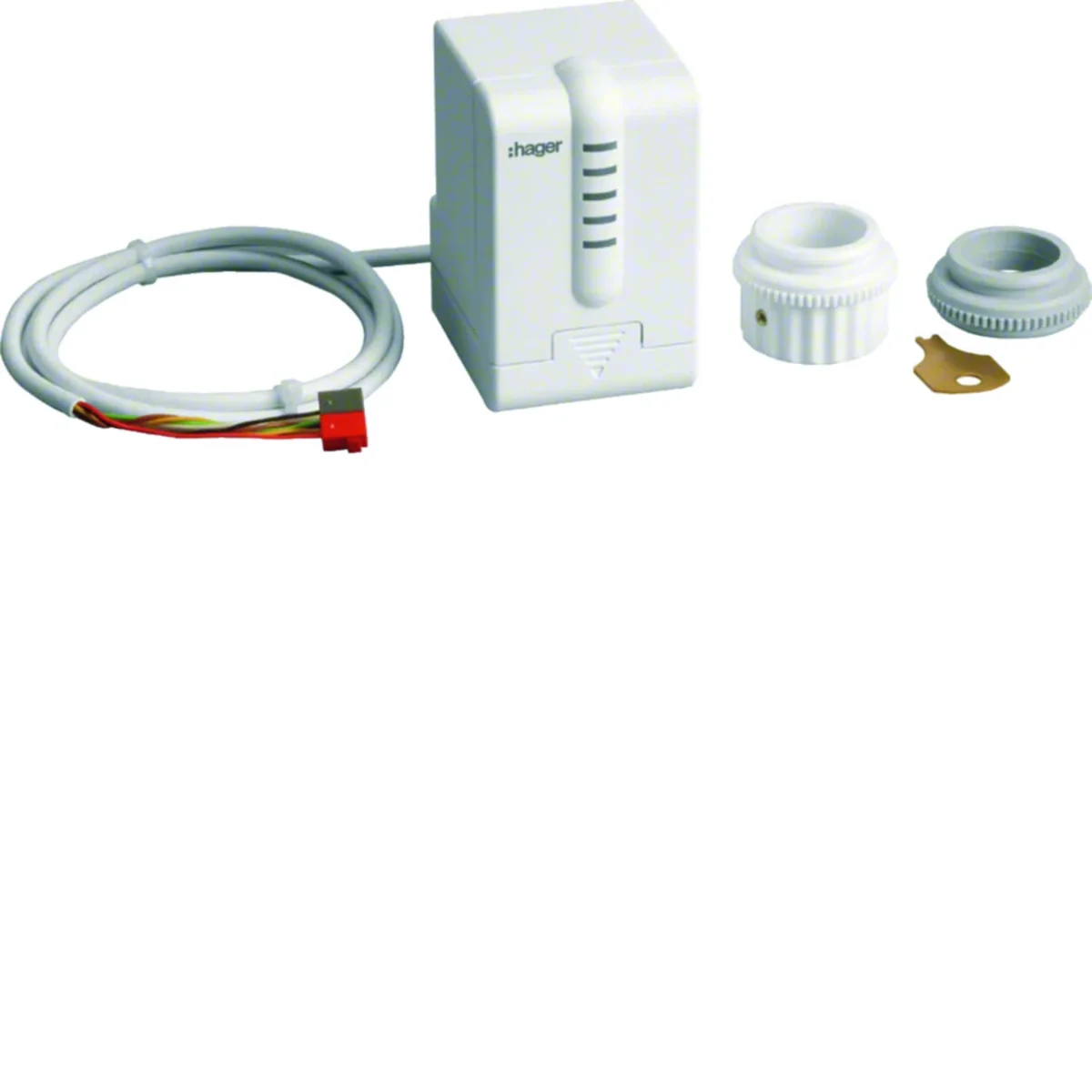

KNX easy KNX solenoid valve
Technical data
-
Halogen freeNO
-
ColorWhite
-
Width [mm]50
-
Operating temperature range [°C]from 0 to 50
-
Operating voltage via DC bus [V]21 - 32
-
Manual controlNO
-
PKWIU26.51.85.0
-
Depth [mm]65
-
FixingClamps
-
Height [mm]84
-
DC supply voltage [V]thirty
-
Bus current consumption (data transmission) [mA]10
-
storage temperature [°C]from -20 to 60
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
With bus connectionYes
-
Buttons for manual operation at the driveNo
-
Nominal voltage30 V
-
Degree of protection (IP)IP21
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodOther
-
Temperature control with built-in continuous controlNo
-
Temperature and stroke indicationYes
-
Voltage supply over busYes
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 set | 1 set | 24 set | 576 set |
| Weight (kg) | 0,264 | 0,265 | 6,655 | 182,720 |
| Width (m) | 0,050 | 0,085 | 0,310 | 0,800 |
| Length (m) | 0,080 | 0,095 | 0,235 | 1,126 |
| Depth (m) | 0,065 | 0,120 | 0,360 | 1,200 |
