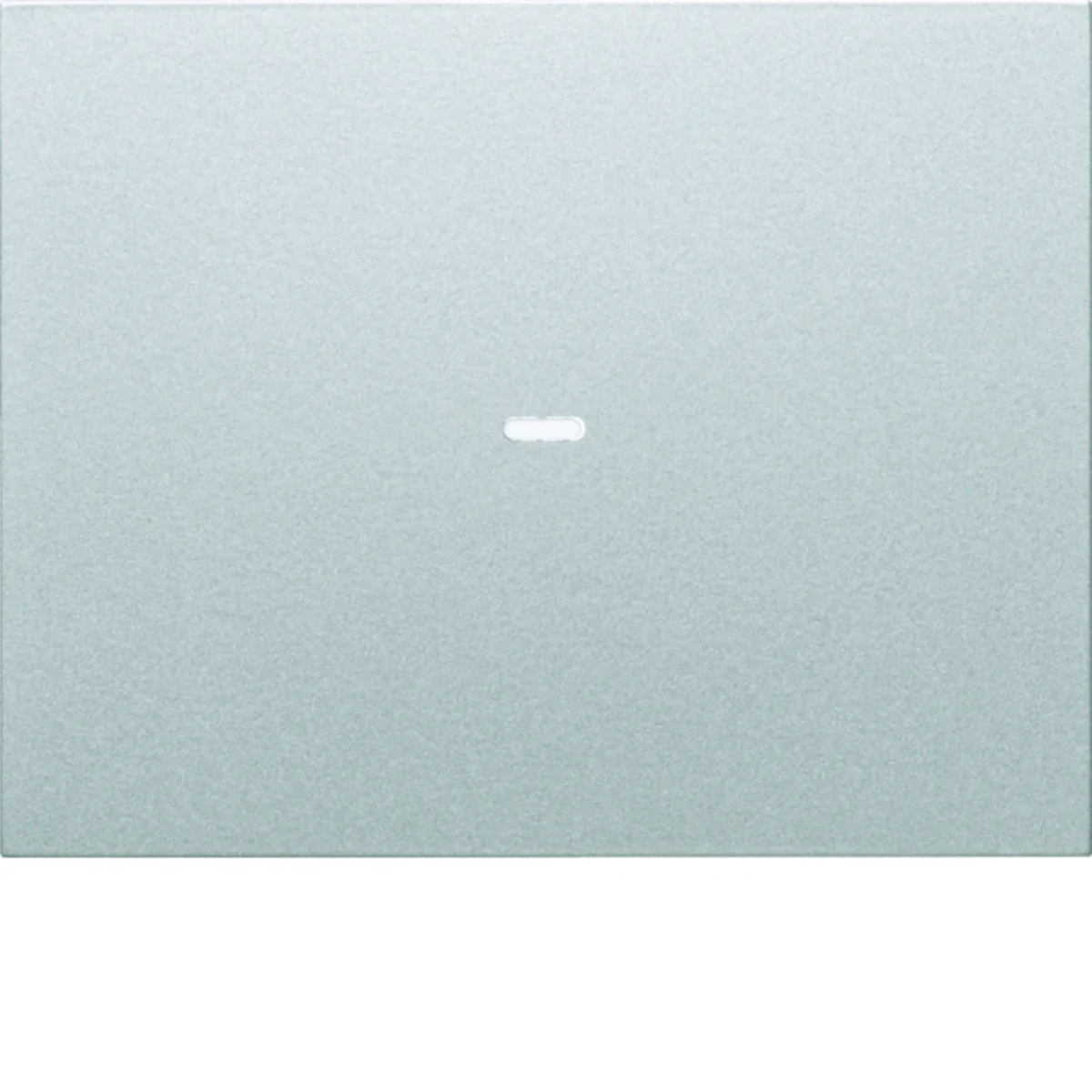

KNX EASY K.1/K.5 Rocker with lens for 1-gang push-button module aluminum matt 80960271

Indeks lokalny:
AIK166HAGE
Nr katalogowy:
80960271
Kod EAN:
3250617152747
Producent: HAGER
Halogen free: Yes
Material: Plastic | Metal
Installation: Flush-mounted
Cena:
19,64 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 10 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

Switch with a lens for the single-gang push-button module from the KNX easy series:

  • user interfaces can be configured to operate one or two-level
  • with programming button and red programming LED
  • with built-in bus port
  • bus connection via connection terminals
  • main design line: KNX - Berker K.1/K.5

Series characteristics:

KNX easy by KNX easy is a new building automation system that provides simple to use application in private residential buildings. KNX easy is not only an innovative, fast and inexpensive solution - it is above all a very simple tool. New hardware or costly ETS software are unnecessary. With KNX easy, all you need is the easy server, a mobile device (tablet) and the Easy Tool app. Now you can set up simple and effective building control. KNX easy is a speed of operation that reduces the time you need to spend on programming. The advantages of using an intelligent building control system make its purchase a profitable investment even for an average household. What's more, its modular nature allows you to expand at any time, but you can plan it for your customers in advance and help them reduce costs.

Dane techniczne

  • Halogen free
    Yes
  • Installation
    Flush-mounted
  • Surface
    Matt
  • Level of security
    IP20
  • Surface finish
    Lacquered
  • Bus current consumption (data transmission) [mA]
    10
  • Material
    Plastic Metal
  • Power consumption [W]
    0.108
  • Family
    KNX EASY
  • Operating temperature range [°C]
    from -5 to 45
  • Operating voltage via DC bus [V]
    21 - 32
  • PKWIU
    27.12.40.0

Pozostałe dane techniczne

  • Model
    One-part rocker
  • Utilization
    Other
  • Type of fastening
    Clamp mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • With exchangeable lens/symbol
    No
  • Scannable symbol/barrier free
    No
  • Suitable for touch sensor connector for bus system
    Yes
  • Monitoring window/light outlet
    Yes
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Aluminium
  • With label area
    No
  • Suitable for degree of protection (IP)
    IP20

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Karton Pakiet Paleta
Ilość 1 szt. 86 szt. 2752 szt.
Waga (kg) 0,010 0,940 30,270
Szerokość (m) 0,080 0,300 0,800
Długość (m) 0,030 0,220 1,050
Głębokość (m) 0,080 0,400 1,200
