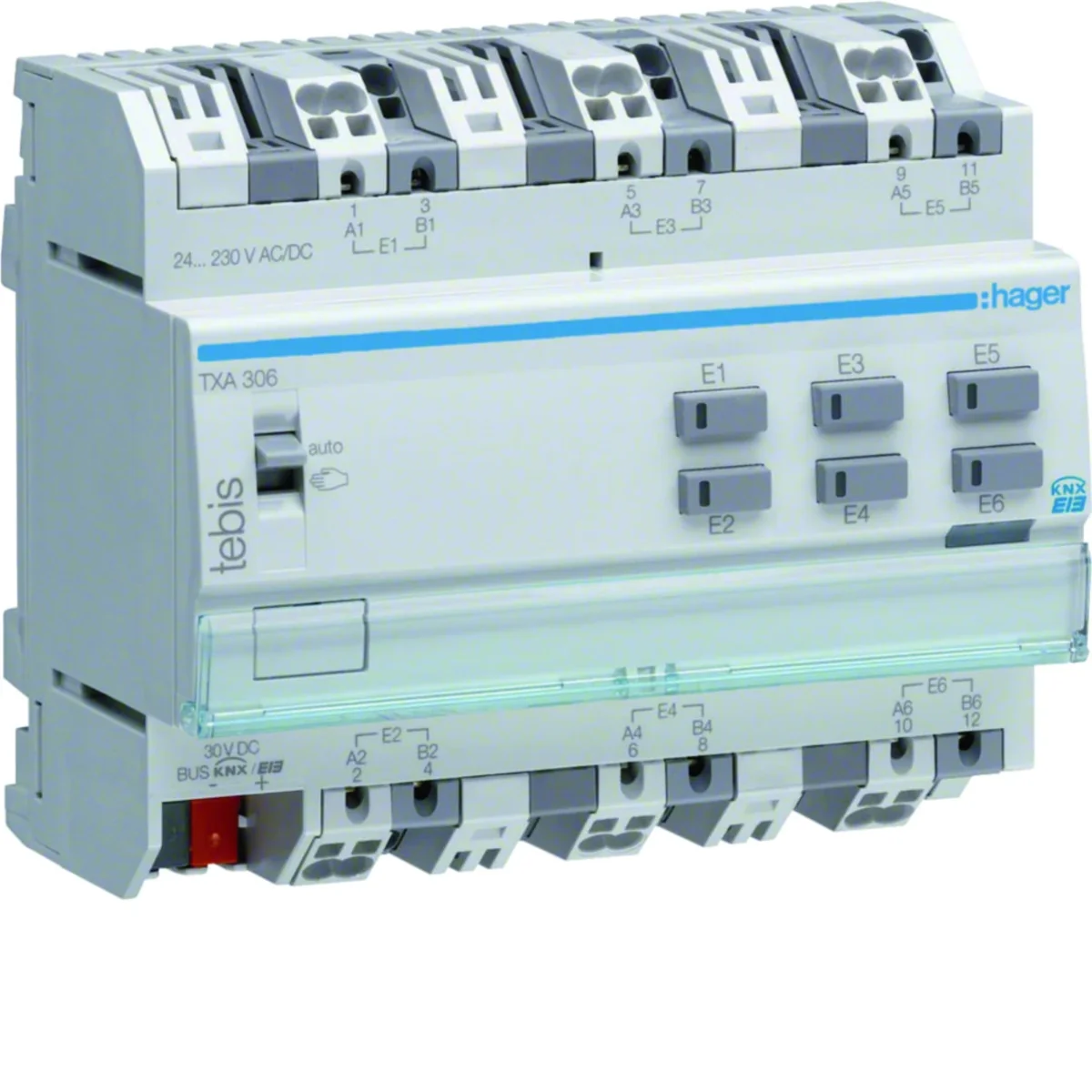

KNX easy Binary input 6-fold universal TXA306

local index:
AIK019HAGE
Catalog No:
TXA306
EAN code:
3250616049260
Manufacturer: HAGER
Length [mm]: 70
Depth [mm]: 60
Color: Gray
Price:
500,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Binary input 6-fold, universal, KNX easy series:

Functions

< ul>
  • suitable for various external cables
  • Controls and indicators

    • manual operation mode can be activated via selector switch
    • manual operation of each channel by push button with integrated status LED; KNX function is then blocked
    • with illuminated programming button

    Series characteristics:

    KNX easy from the company is a new system building automation for an easy-to-use application in private residential buildings. KNX easy is not only an innovative, fast and inexpensive solution - it is above all a very simple tool. New hardware or costly ETS software are unnecessary. With KNX easy, all you need is the easy server, a mobile device (tablet) and the Easy Tool app. Now you can set up simple and effective building control. KNX easy is a speed of operation that reduces the time you need to spend on programming. The advantages of using an intelligent building control system make its purchase a profitable investment even for an average household. What's more, its modular nature allows you to expand at any time, but you can plan it for your customers in advance and help them reduce costs.

    Technical data

    • Length [mm]
      70
    • Color
      Gray
    • Installation
      On the TH-35 rail
    • Level of security
      IP20
    • Width [mm]
      106
    • Height [mm]
      90
    • Number of modules
      6
    • Operating voltage via DC bus [V]
      21 - 32
    • Wire cross-section (cord) [mm²]
      0.75 - 2.5
    • PKWIU
      26.30.23.0
    • Depth [mm]
      60
    • Material
      Plastic
    • Family
      KNX EASY
    • power loss [W]
      0.2
    • Connection type
      Quick Connect
    • Operating temperature range [°C]
      from 0 to 45
    • DC supply voltage [V]
      thirty
    • storage temperature [°C]
      from -20 to 70
    • Conductor cross-section (wire) [mm²]
      0.75 - 2.5

    Other technical data

    • Bus system KNX
      Yes
    • Bus system radio frequent
      No
    • Bus system Powernet
      No
    • Radio frequent bidirectional
      No
    • Width in number of modular spacings
      6
    • Bus module detachable
      No
    • With LED indication
      Yes
    • Input voltage
      230 ... 230 V
    • External signal voltage necessary
      No
    • Bus system KNX-RF (Radio Frequent)
      No
    • Bus system LON
      No
    • Other bus systems
      None
    • Mounting method
      DRA (DIN-rail adapter)
    • With bus connection
      Yes
    • LED controlling
      No
    • Number of inputs
      6
    • Type of voltage (input voltage)
      AC/DC
    • Degree of protection (IP)
      IP20

    Bulk packaging

    A kind of package Karton Pakiet Paleta
    Quantity 1 pcs. 1 pcs. 24 pcs. 576 pcs.
    Weight (kg) 0,279 0,315 8,050 216,200
    Width (m) 0,097 0,095 0,310 0,800
    Length (m) 0,081 0,085 0,245 1,050
    Depth (m) 0,119 0,115 0,360 1,200
