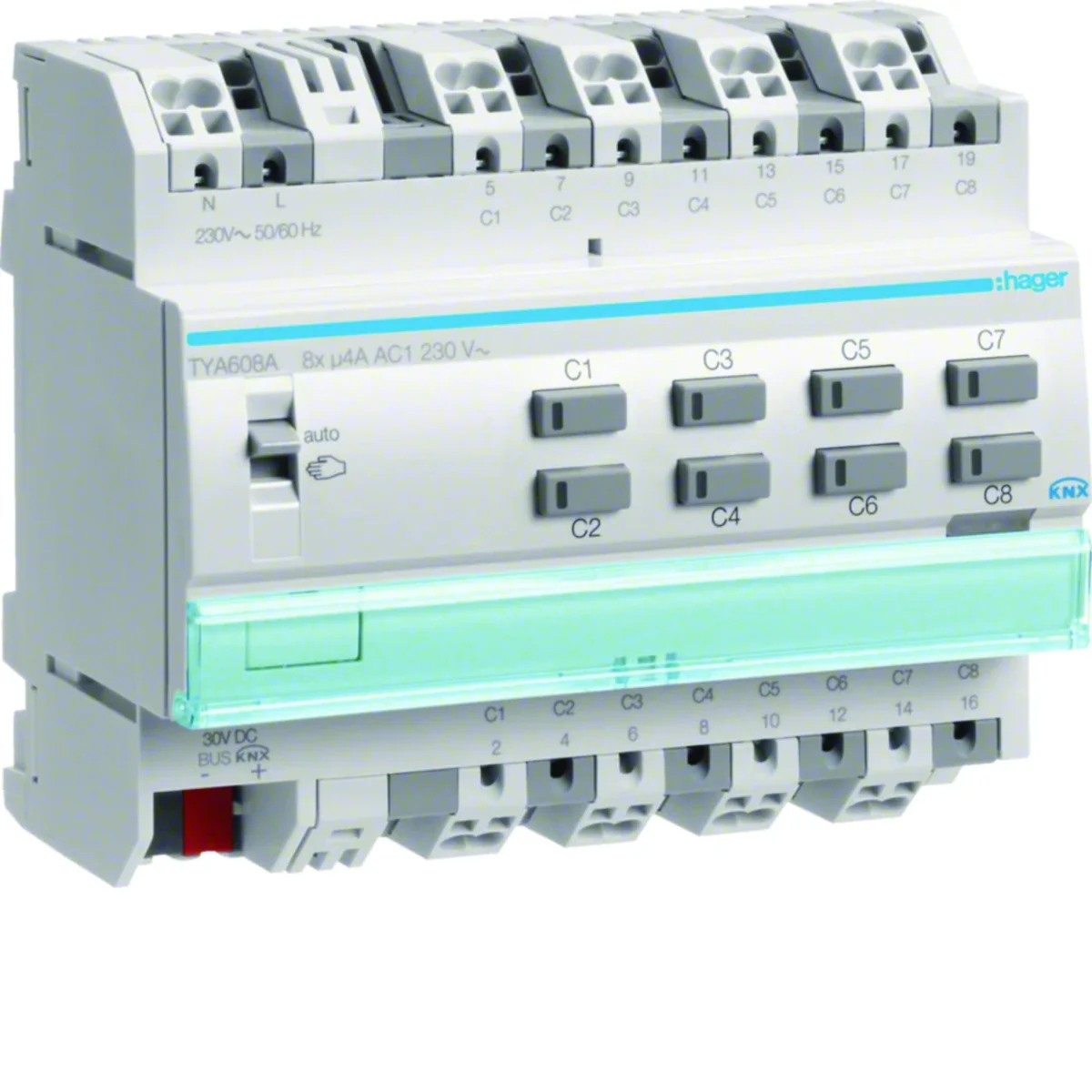

KNX Binary output 8-fold 4A 6-module TYA608A

local index:
AIK054HAGE
Catalog No:
TYA608A
EAN code:
3250616059740
Manufacturer: HAGER
Depth [mm]: 65
Color: Gray
Contact type: 8 NO
Price:
492,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switching/shutter controller from the KNX System series.

Functions:

    < li> suitable for switching various external cables
  • with the possibility of any combination of driving and switching functions
  • with the function of positioning the position of the blinds and the position of the slats
  • with security functions, for wind, rain, alarm
  • with sun protection
  • for drywall

Controls and indicators:

  • optical indicator
  • modular
  • manual operation of each channel by means of a button (one-level operation)
  • Status LED integrated in manual button
  • Manual buttons for on/off (up/down) and on/off. bus functions for each channel
  • with illuminated programming button

Connection:

  • with built-in bus port
  • bus connection via connection terminals

Series characteristics:

The economic use of buildings is becoming more and more important, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Technical data

  • Depth [mm]
    65
  • Contact type
    8 NO
  • Level of security
    IP20
  • Connection type
    Quick Connect
  • Rated output voltage [V]
    230
  • Accurate color
    light gray
  • Maximum bulb power [W]
    800
  • Operating voltage via DC bus [V]
    21 - 32
  • Manual control
    Yes
  • storage temperature [°C]
    from -20 to 70
  • Conventional transformers [VA]
    800
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    27.33.11.0
  • Color
    Gray
  • Family
    KNX
  • power loss [W]
    2
  • Operating temperature range [°C]
    from -5 to 45
  • Number of modules
    6
  • DC supply voltage [V]
    thirty
  • Maximum operating current [A]
    4
  • Bus current consumption (data transmission) [mA]
    15
  • Beacon
    Yes
  • Electronic transformers [W]
    800
  • Number of outputs
    8
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Width in number of modular spacings
    6
  • With LED indication
    Yes
  • Output power
    800 W
  • Max. number of switching contacts
    8
  • Rated current
    4 A
  • Different phases connectable
    Yes
  • Bus module detachable
    No
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    DRA (DIN-rail adapter)
  • Local operation/hand operation
    Yes
  • Max. switching power
    6400 W
  • Suitable for C-load
    No
  • Max. switching current
    4 A
  • Rated operating voltage
    230 ... 230 V
  • With bus connection
    Yes
  • Modular expandability
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 12 pcs. 288 pcs.
Weight (kg) 0,000 0,480 6,190 171,560
Width (m) 0,012 0,100 0,310 0,800
Length (m) 0,009 0,080 0,215 1,050
Depth (m) 0,001 0,150 0,355 1,200
