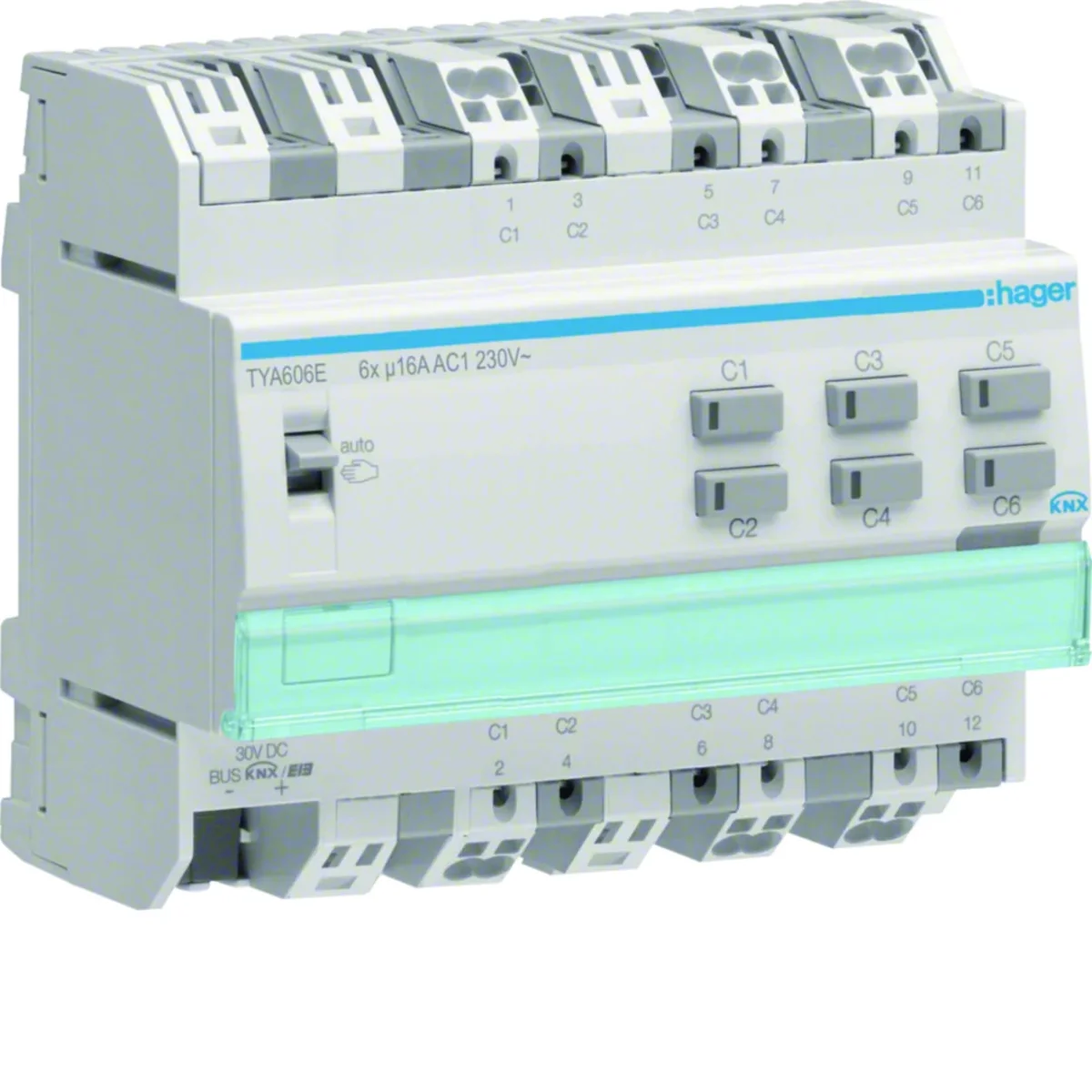

KNX Binary output 6-fold 16A capacitive load 4-module TYA606E

local index:
AIK053HAGE
Catalog No:
TYA606E
EAN code:
3250616059917
Manufacturer: HAGER
Halogen free: NO
Rated frequency [Hz]: 60
Depth [mm]: 65
Price:
559,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switching/shutter controller C-load capacitive load, KNX System series.

Functions:

  • suitable for switching various external cables
  • with the possibility of any combination of drive and switching functions
  • with the function of positioning the position of blinds and slats
  • < li> with protection functions, e.g. for wind, rain, alarm
  • with sun protection
  • for plasterboard walls

Controls and indicators:

  • beacon
  • modular
  • manual operation of each channel with a button (one-level operation)
  • Status LED integrated in manual push button
  • Manual push buttons for on/off (up/down) and on/off. bus functions for each channel
  • with illuminated programming button

Connection:

  • with built-in bus port
  • bus connection via connection terminals

Series characteristics:

The economic use of buildings is becoming more and more important, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Technical data

  • Halogen free
    NO
  • Depth [mm]
    65
  • Rated current [A]
    16
  • Family
    KNX
  • power loss [W]
    6
  • Connection type
    Quick Connect
  • Operating temperature range [°C]
    from -5 to 45
  • Rated output voltage [V]
    230
  • Accurate color
    light gray
  • Maximum bulb power [W]
    2300
  • Operating voltage via DC bus [V]
    21 - 32
  • Connection type
    With plug-in terminals
  • Beacon
    Yes
  • Electronic transformers [W]
    1380
  • Number of outputs
    6
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5
  • Rated frequency [Hz]
    60
  • Color
    Gray
  • Contact type
    6 NO
  • Level of security
    IP20
  • Width [mm]
    105
  • Height [mm]
    90
  • Rated switching voltage [V]
    230
  • Number of modules
    6
  • DC supply voltage [V]
    thirty
  • Maximum operating current [A]
    16
  • Bus current consumption (data transmission) [mA]
    6
  • Manual control
    Yes
  • storage temperature [°C]
    from -20 to 70
  • Conventional transformers [VA]
    1600
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    27.33.11.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Width in number of modular spacings
    6
  • With LED indication
    Yes
  • Output power
    2300 W
  • Max. number of switching contacts
    6
  • Rated current
    16 A
  • Different phases connectable
    Yes
  • Bus module detachable
    No
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    DRA (DIN-rail adapter)
  • Local operation/hand operation
    Yes
  • Max. switching power
    9775 W
  • Suitable for C-load
    Yes
  • Max. switching current
    16 A
  • Rated operating voltage
    230 ... 230 V
  • With bus connection
    Yes
  • Modular expandability
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,351 0,390 9,795 258,080
Width (m) 0,069 0,095 0,315 0,800
Length (m) 0,090 0,080 0,250 1,050
Depth (m) 0,106 0,120 0,365 1,200
