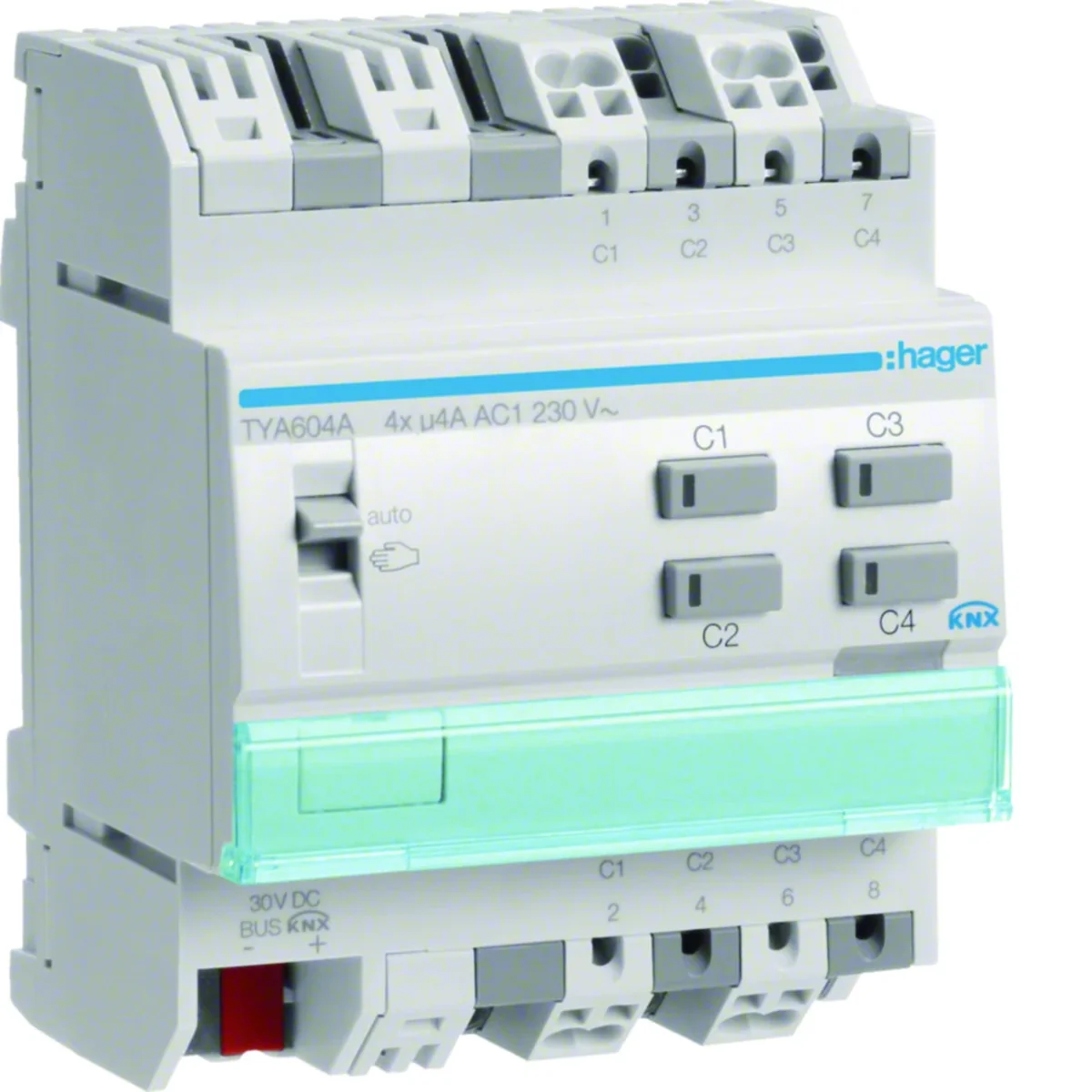

KNX Binary output 4-fold 4A 4-module TYA604A

Switching/shutter controller from the KNX System series.

Functions:

< li> suitable for switching various external cables
• with the possibility of any combination of driving and switching functions
• with the function of positioning the position of the blinds and the position of the slats
• with security functions, for wind, rain, alarm
• with sun protection
• for drywall

Controls and indicators:

• optical indicator
• modular
• manual operation of each channel by means of a button (one-level operation)
• Status LED integrated in manual button
• Manual buttons for on/off (up/down) and on/off. bus functions for each channel
• with illuminated programming button

Connection:

• with built-in bus port
• bus connection via connection terminals

Series characteristics:

The economic use of buildings is becoming more and more important, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.
