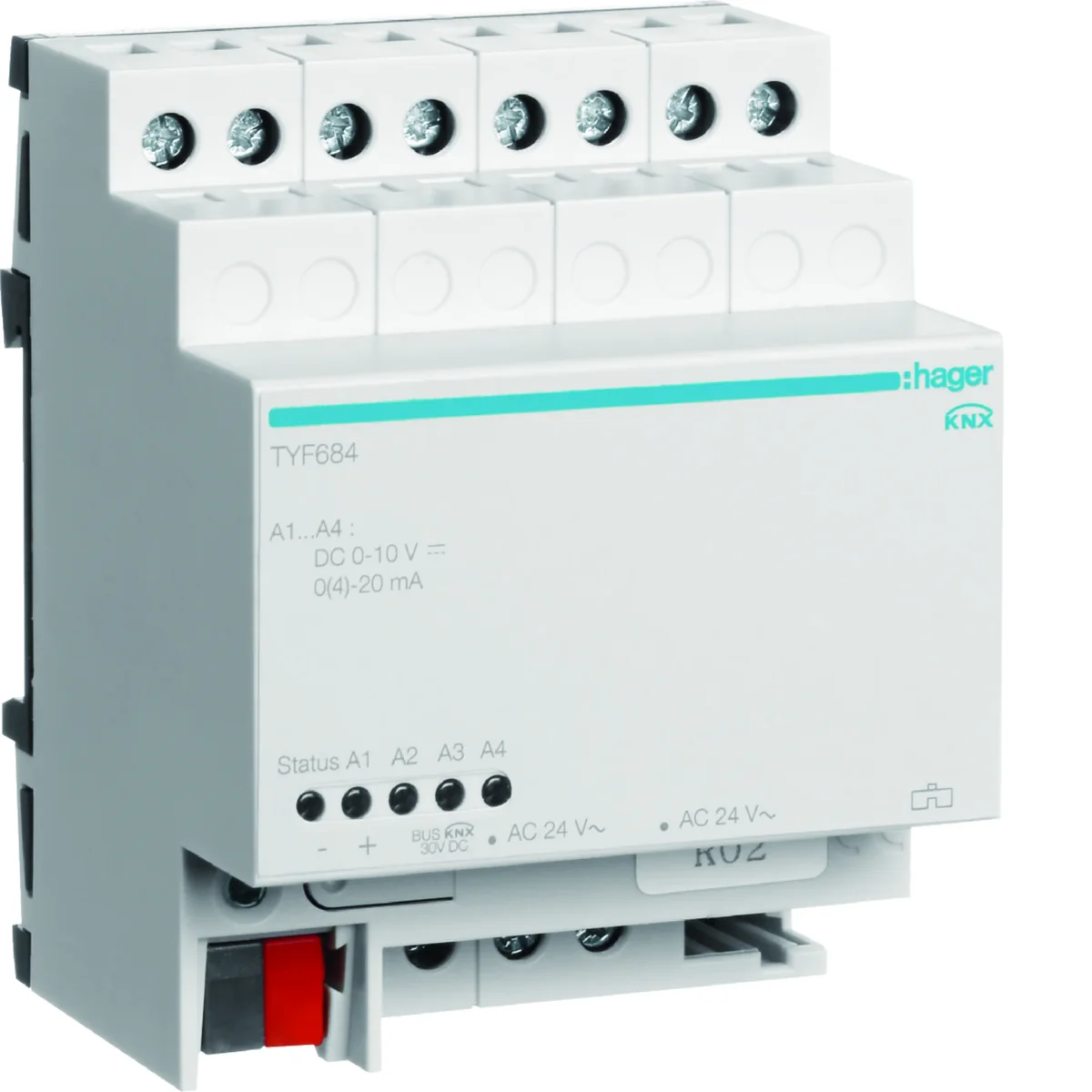

KNX Analogue output 4-fold TYF684
local index:
AIK063HAGE
Catalog No:
TYF684
EAN code:
3250616059962
Price:
719,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KNX Analogue output 4-fold
Technical data
-
Halogen freeNO
-
Level of securityIP20
-
Width [mm]72
-
Height [mm]90
-
Number of modules4
-
Connection typeWith screw terminals
-
storage temperature [°C]from -25 to 70
-
Conductor cross-section (wire) [mm²]0.5 - 4
-
Depth [mm]70
-
power loss [W]7.4
-
Connection typeWith a screw
-
Operating temperature range [°C]from -5 to 45
-
Operating voltage via DC bus [V]21 - 32
-
BeaconYes
-
Number of outputs4
-
PKWIU26.30.23.0
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Mounting methodDRA (DIN-rail adapter)
-
ModelBase module
-
With bus connectionYes
-
Output current20 ... 20 mA
-
Degree of protection (IP)IP20
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsTebis TX
-
Width in number of modular spacings4
-
With LED indicationYes
-
Number of outputs4
-
Output voltage0 ... 10 V
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 24 pcs. | 576 pcs. |
| Weight (kg) | 0,180 | 0,225 | 5,780 | 161,720 |
| Width (m) | 0,070 | 0,095 | 0,310 | 0,800 |
| Length (m) | 0,090 | 0,085 | 0,215 | 1,050 |
| Depth (m) | 0,072 | 0,100 | 0,360 | 1,200 |
