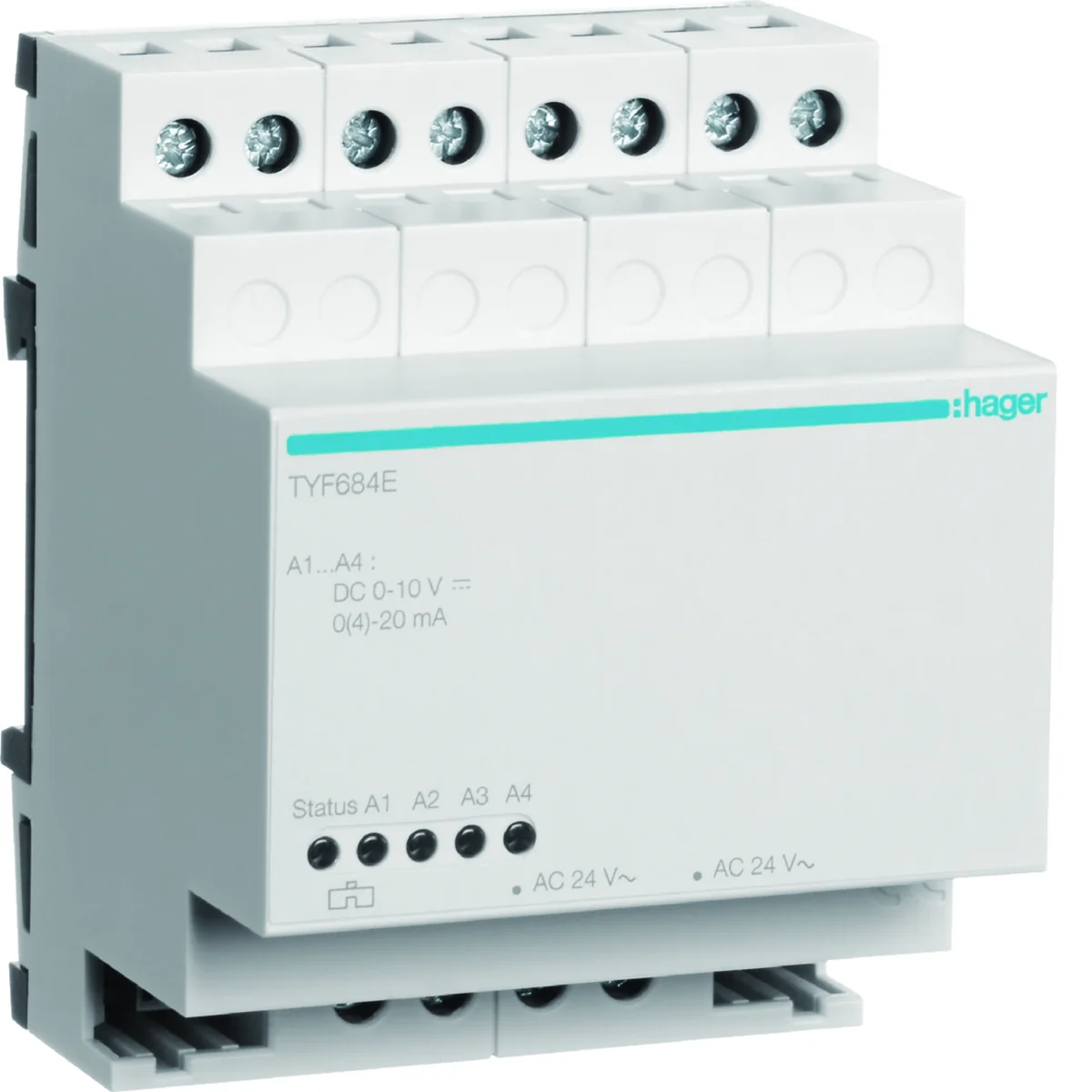

KNX Analog output expansion module, 4-gang TYF684E

local index:
AIK064HAGE
Catalog No:
TYF684E
EAN code:
3250616059955
Manufacturer: HAGER
Halogen free: NO
Depth [mm]: 70
Level of security: IP20
Price:
587,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

KNX Analog output expansion module, 4-gang

Technical data

  • Halogen free
    NO
  • Level of security
    IP20
  • Width [mm]
    72
  • Operating temperature range [°C]
    from -5 to 45
  • Operating voltage via DC bus [V]
    21 - 32
  • Beacon
    Yes
  • Number of outputs
    4
  • PKWIU
    26.30.23.0
  • Depth [mm]
    70
  • power loss [W]
    2.9
  • Height [mm]
    90
  • Number of modules
    4
  • Connection type
    With screw terminals
  • storage temperature [°C]
    from -25 to 70
  • Conductor cross-section (wire) [mm²]
    0.5 - 4

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • Model
    Expansion
  • With bus connection
    Yes
  • Output current
    20 ... 20 mA
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Tebis TX
  • Width in number of modular spacings
    4
  • With LED indication
    Yes
  • Number of outputs
    4
  • Output voltage
    0 ... 10 V

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,162 0,210 5,510 157,240
Width (m) 0,070 0,097 0,315 0,800
Length (m) 0,090 0,079 0,216 1,014
Depth (m) 0,072 0,099 0,365 1,200
