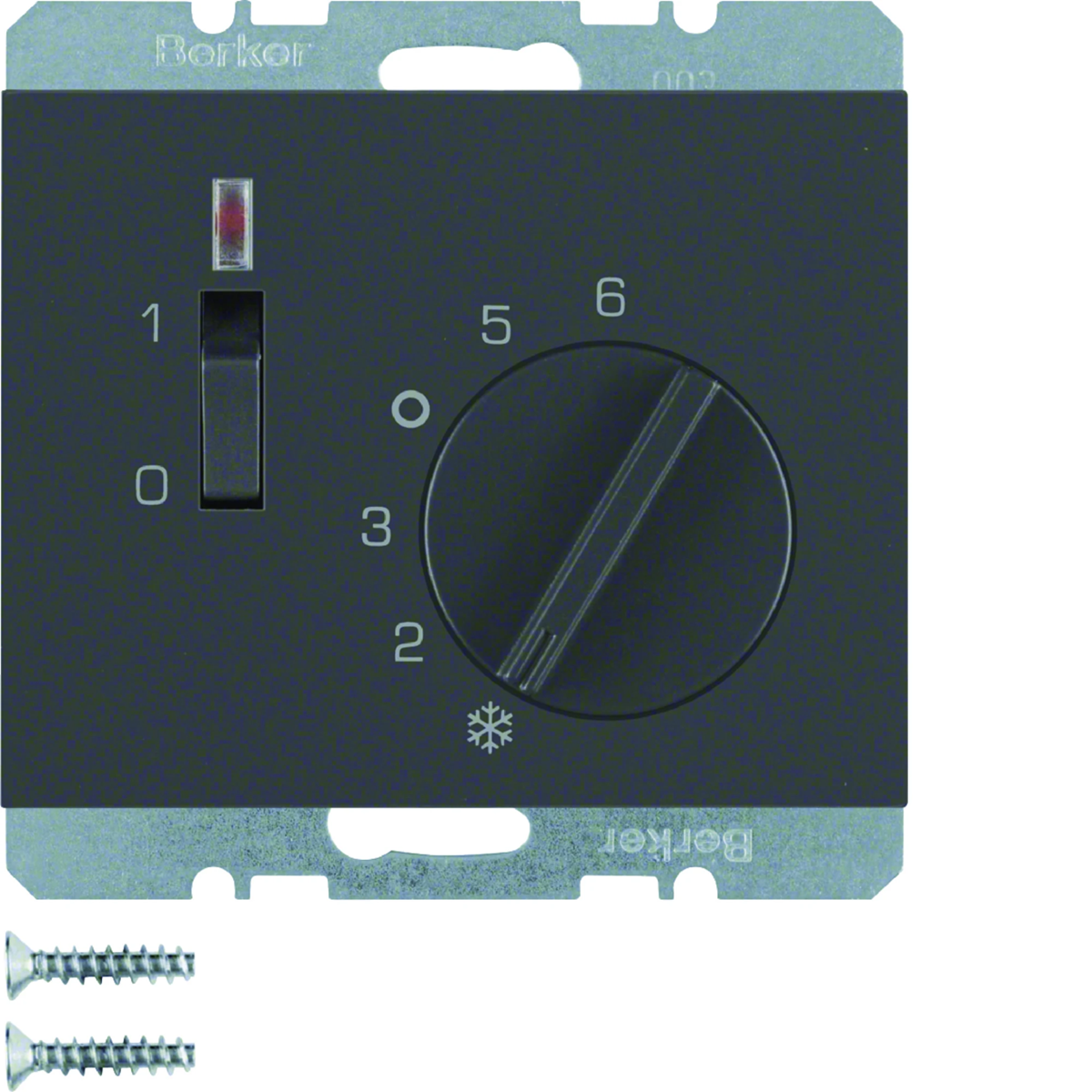

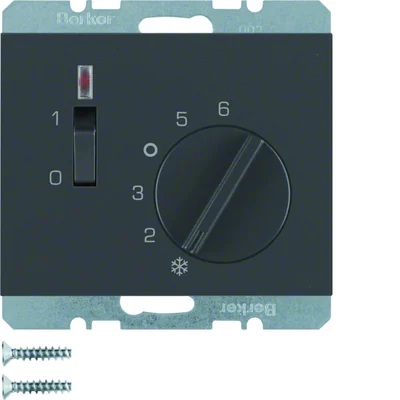

K.1 Room temperature controller 24V with make contact, central element and connector anthracite 20317106

Name: K.1 Room temperature controller 24V with make contact, central element and connector anthracite
Brand: BERKER
SKU: APT061BERK
Price: 137.39 PLN

local index:

APT061BERK

Catalog No:

20317106

EAN code:

4011334309895

K.1 Room temperature controller 24V with make contact, central element and connector anthracite

Click on the photo to enlarge

Manufacturer: BERKER

Rated voltage [V]: 24

DC rated voltage [V]: 24

Rated current [A]: 4

See full description

Price:

137,39 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Room temperature controller with NO contact and central element, series BerkerK.1.

with a switch and a LED indicating activation
with a separate connection for the night mode
for plasterboard walls
e.g. for valve drives closed in a de-energized state< /li>
rated voltage: 24V AC/DC

Technical data

Rated voltage [V]

24
Rated current [A]

4
Switching temperature difference [K]

≈ 0.5
AC rated voltage [V]

24
PKWIU

26.51.70.0

DC rated voltage [V]

24
Family

K.1
Temperature range [°C]

5-30
Connection type

With plug-in terminals

Other technical data

Model

On/Off
Differential value

0.5 ... 0.5 K
Sensor/feeler type

Bimetal
Degree of protection (IP)

IP20
RAL-number

7021
Width

71 mm
Class of the temperature control

I

Thermal feedback

Series
Temperature readable

No
Mounting method

Flush-mounted
Colour

Anthracite
Height

71 mm
Depth

45 mm

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,102	0,127	4,837	174,774
Width (m)	0,071	0,084	0,300	0,800
Length (m)	0,045	0,070	0,225	1,050
Depth (m)	0,071	0,085	0,400	1,200
