JUMPFLEX separation transmitter with I/I,U/U amplification 857-412

local index:
APE002WAGO
Catalog No:
857-412
EAN code:
4045454471309

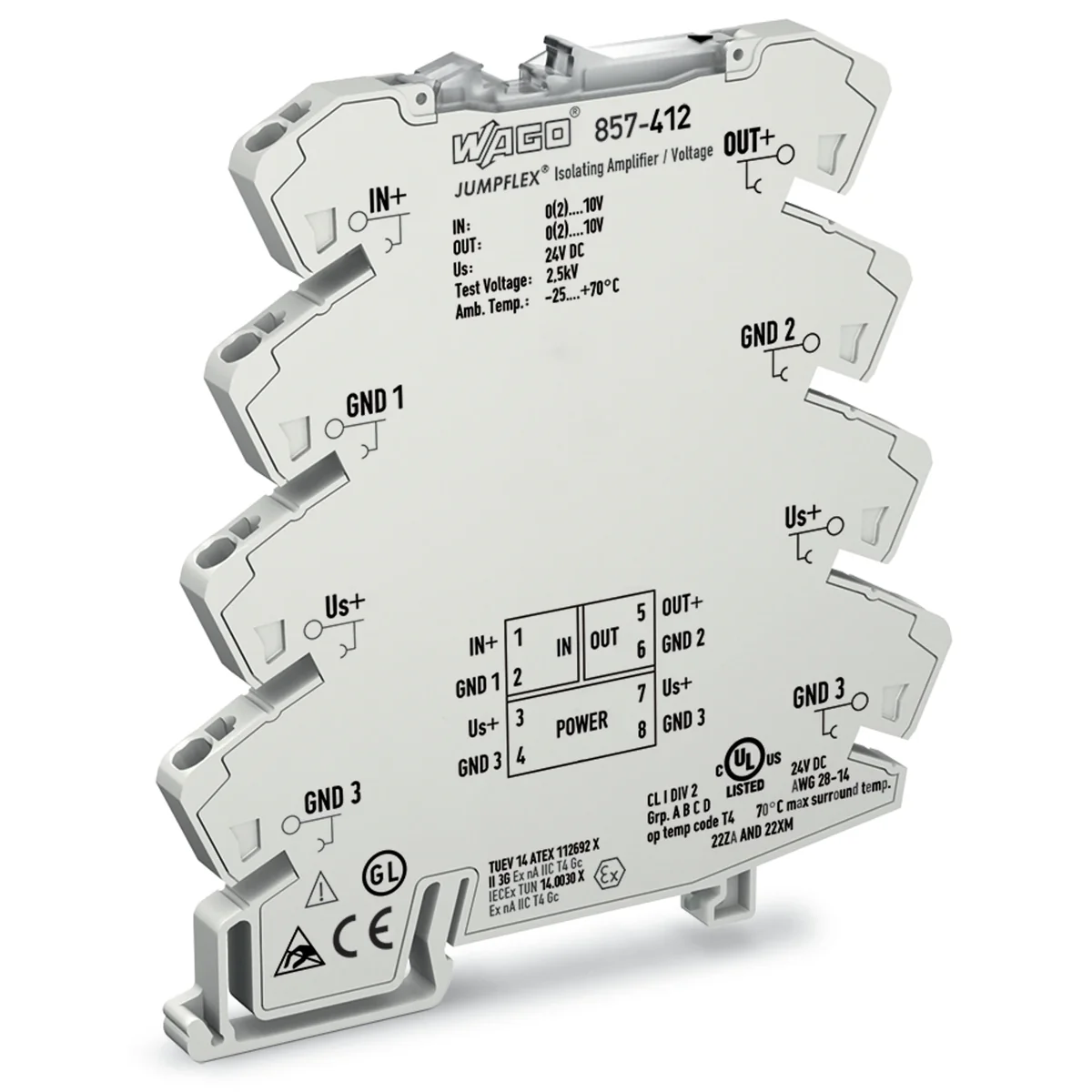

JUMPFLEX separation transmitter with I/I,U/U amplification
JUMPFLEX separation transmitter with I/I,U/U amplification

Click on the photo to enlarge

Manufacturer: WAGO ELWAG
Number of sockets: 8
Color: Gray
Number of potentials: 8
See full description
Price:
134,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging

Product description

JUMPFLEX - separation transducers amplifier with separation, non-configurable for voltage signals

Technical data

  • Number of sockets
    8
  • Number of potentials
    8
  • Rated voltage [V]
    24
  • Gauge [AWG]
    12-28
  • Series
    857
  • Supply voltage range [V]
    16.8 - 31.2
  • Color
    Gray
  • Test voltage [kV]
    2.5kV AC / 50Hz / 1 min
  • Current consumption at 24 V DC [mA]
    25
  • Clamp type
    CAGE CLAMP S clamp
  • How to install the cable
    Angular
  • Accurate color
    light gray

Other technical data

  • Type of power supply
    Other
  • Rated supply voltage DC
    16.8 ... 31.2 V
  • Number of input ranges -100 mV ... +100 mV
    0
  • Number of input ranges -500 mV ... +500 mV
    0
  • Number of input ranges -2 V ... +2 V
    0
  • Number of input ranges -5 V ... +5 V
    0
  • Number of input ranges -20 V ... +20 V
    0
  • Number of input ranges 0 mV ... 100 mV
    0
  • Number of input ranges 0 mV ... 300 mV
    0
  • Number of input ranges 0 V ... 1 V
    0
  • Number of input ranges 0 V ... 2.5 V
    0
  • Number of input ranges 0 V ... 10 V
    1
  • Number of input ranges 0 V ... 24 V
    0
  • Number of input ranges 1 V ... 5 V
    0
  • Number of input ranges +5 V ... -5 V
    0
  • Number of input ranges 5 V ... 0 V
    0
  • Number of input ranges 10 V ... 0 V
    0
  • Number of input ranges 0 mA ... 5 mA
    0
  • Number of input ranges 0 mA ... 20 mA
    0
  • Number of input ranges -5 mA ... +5 mA
    0
  • Number of input ranges -20 mA ... +20 mA
    0
  • Number of input ranges 20 mA ... 4 mA
    0
  • Number of output ranges -100 mV ... +100 mV
    0
  • Number of output ranges -500 mV ... +500 mV
    0
  • Number of output ranges -2 V ... +2 V
    0
  • Number of output ranges -5 V ... +5 V
    0
  • Number of output ranges -20 V ... +20 V
    0
  • Number of output ranges 0 mV ... 100 mV
    0
  • Number of output ranges 0 mV ... 300 mV
    0
  • Number of output ranges 0 V ... 1 V
    0
  • Number of output ranges 0 V ... 2.5 V
    0
  • Number of output ranges 0 V ... 10 V
    1
  • Number of output ranges 0 V ... 24 V
    0
  • Number of output ranges 1 V ... 5 V
    0
  • Number of output ranges +5 V ... -5 V
    0
  • Number of output ranges 5 V ... 0 V
    0
  • Number of output ranges 10 V ... 0 V
    0
  • Number of output ranges 0 mA ... 5 mA
    0
  • Number of output ranges 0 mA ... 20 mA
    0
  • Number of output ranges -5 mA ... +5 mA
    0
  • Number of output ranges -20 mA ... +20 mA
    0
  • Number of output ranges 20 mA ... 4 mA
    0
  • Malfunction message output
    No
  • Galvanic separation between inputs
    Yes
  • Galvanic separation between output to output
    No

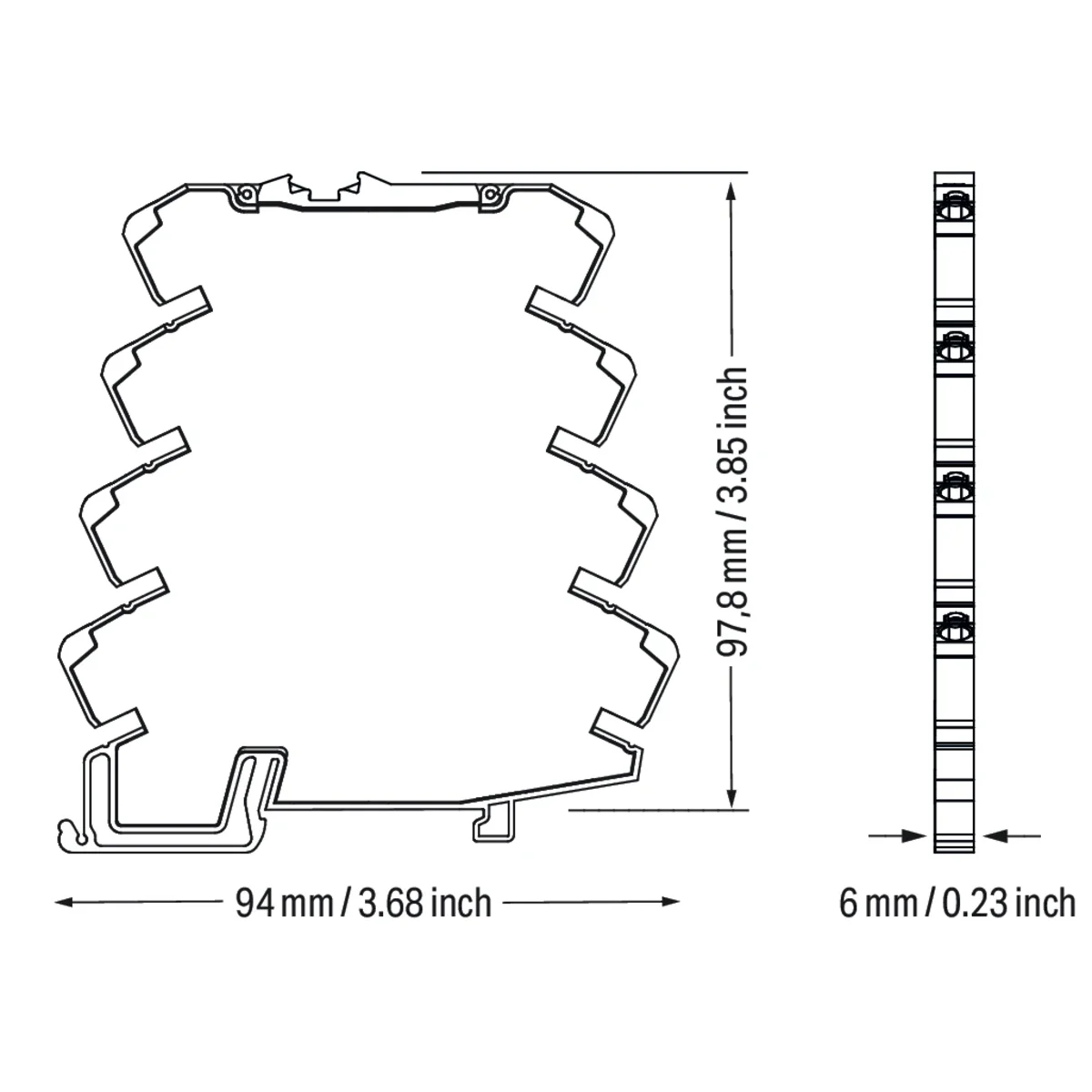

  • Height
    96 mm
  • Depth
    94 mm
  • Operating temperature
    -25 ... 70 °C
  • Construction type of device
    Other
  • Mounting method
    Snap mounting support rail
  • Rated operating frequency
    100 ... 100 Hz
  • Number of input ranges -60 mV ... +60 mV
    0
  • Number of input ranges -300 mV ... +300 mV
    0
  • Number of input ranges -1 V ... +1 V
    0
  • Number of input ranges -2.5 V ... +2.5 V
    0
  • Number of input ranges -10 V ... +10 V
    0
  • Number of input ranges 0 mV ... 60 mV
    0
  • Number of input ranges 0 mV ... 200 mV
    0
  • Number of input ranges 0 mV ... 500 mV
    0
  • Number of input ranges 0 V ... 2 V
    0
  • Number of input ranges 0 V ... 5 V
    0
  • Number of input ranges 0 V ... 20 V
    0
  • Number of input ranges 0 V ... 30 V
    0
  • Number of input ranges 2 V ... 10 V
    1
  • Number of input ranges +10 V ... -10 V
    0
  • Number of input ranges 5 V ... 1 V
    0
  • Number of input ranges 10 V ... 2 V
    0
  • Number of input ranges 0 mA ... 10 mA
    0
  • Number of input ranges 4 mA ... 20 mA
    0
  • Number of input ranges -10 mA ... +10 mA
    0
  • Number of input ranges 20 mA ... 0 mA
    0
  • Number of output ranges -60 mV ... +60 mV
    0
  • Number of output ranges -300 mV ... +300 mV
    0
  • Number of output ranges -1 V ... +1 V
    0
  • Number of output ranges -2.5 V ... +2.5 V
    0
  • Number of output ranges -10 V ... +10 V
    0
  • Number of output ranges 0 mV ... 60 mV
    0
  • Number of output ranges 0 mV ... 200 mV
    0
  • Number of output ranges 0 mV ... 500 mV
    0
  • Number of output ranges 0 V ... 2 V
    0
  • Number of output ranges 0 V ... 5 V
    0
  • Number of output ranges 0 V ... 20 V
    0
  • Number of output ranges 0 V ... 30 V
    0
  • Number of output ranges 2 V ... 10 V
    1
  • Number of output ranges +10 V ... -10 V
    0
  • Number of output ranges 5 V ... 1 V
    0
  • Number of output ranges 10 V ... 2 V
    0
  • Number of output ranges 0 mA ... 10 mA
    0
  • Number of output ranges 4 mA ... 20 mA
    0
  • Number of output ranges -10 mA ... +10 mA
    0
  • Number of output ranges 20 mA ... 0 mA
    0
  • Number of channels
    1
  • Inherently safe according to EN 60947-5-6 NAMUR
    No
  • Galvanic separation between input and output
    Yes
  • Galvanic separation between supply voltage and all other current circuits
    Yes
  • Width
    6 mm
  • Load
    600 ... 2000 Ω
  • Temperature drift
    0.01 %/K
  • Type of electric connection
    Spring clamp connection
  • Degree of protection (IP)
    IP20

Manufacturer details

Bulk packaging

A kind of package Torebka
Quantity 1 pcs.
Weight (kg) 0,061
Volume (m3) 0,000
Width (m) 0,130
Length (m) 0,120
Depth (m) 0,020
