el12 Automation Relays and drivers Other automation elements

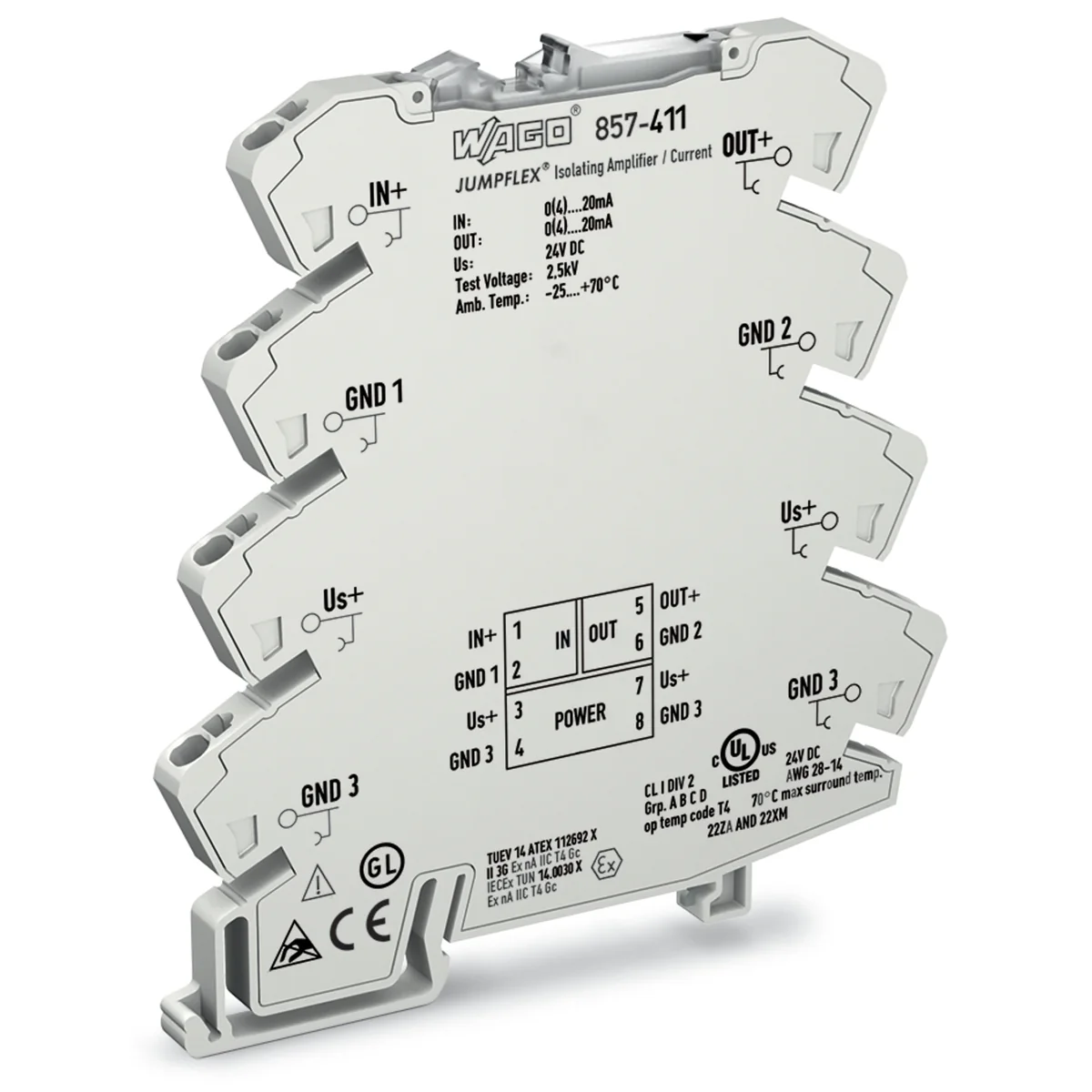

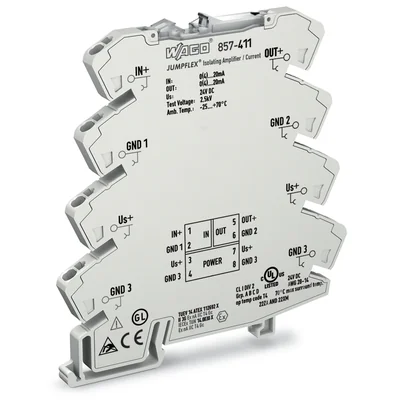

Isolating transducer with amplification, current input signal, current output signal, supply voltage 24 V DC, width 6 mm, 2.50 mm² 857-411

Lokaler Index:
API085WAGO
Katalognummer:
857-411
EAN-Code:
4045454471224
Isolating transducer with amplification, current input signal, current output signal, supply voltage 24 V DC, width 6 mm, 2.50 mm²
Isolating transducer with amplification, current input signal, current output signal, supply voltage 24 V DC, width 6 mm, 2.50 mm²
Isolating transducer with amplification, current input signal, current output signal, supply voltage 24 V DC, width 6 mm, 2.50 mm²
Isolating transducer with amplification, current input signal, current output signal, supply voltage 24 V DC, width 6 mm, 2.50 mm²
Isolating transducer with amplification, current input signal, current output signal, supply voltage 24 V DC, width 6 mm, 2.50 mm²
Isolating transducer with amplification, current input signal, current output signal, supply voltage 24 V DC, width 6 mm, 2.50 mm²

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: WAGO ELWAG
Preis:
579,05 zł
gross / stk.
(inklusive MwSt 23%)
bis zu 4 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Technische Daten Hersteller-Details Großpackungen

Technische Daten

Weitere technische Daten

  • Type of power supply
    Other
  • Rated supply voltage DC
    16.8 ... 31.2 V
  • Number of input ranges -100 mV ... +100 mV
    0
  • Number of input ranges -500 mV ... +500 mV
    0
  • Number of input ranges -2 V ... +2 V
    0
  • Number of input ranges -5 V ... +5 V
    0
  • Number of input ranges -20 V ... +20 V
    0
  • Number of input ranges 0 mV ... 100 mV
    0
  • Number of input ranges 0 mV ... 300 mV
    0
  • Number of input ranges 0 V ... 1 V
    0
  • Number of input ranges 0 V ... 2.5 V
    0
  • Number of input ranges 0 V ... 10 V
    0
  • Number of input ranges 0 V ... 24 V
    0
  • Number of input ranges 1 V ... 5 V
    0
  • Number of input ranges +5 V ... -5 V
    0
  • Number of input ranges 5 V ... 0 V
    0
  • Number of input ranges 10 V ... 0 V
    0
  • Number of input ranges 0 mA ... 5 mA
    0
  • Number of input ranges 0 mA ... 20 mA
    1
  • Number of input ranges -5 mA ... +5 mA
    0
  • Number of input ranges -20 mA ... +20 mA
    0
  • Number of input ranges 20 mA ... 4 mA
    0
  • Number of output ranges -100 mV ... +100 mV
    0
  • Number of output ranges -500 mV ... +500 mV
    0
  • Number of output ranges -2 V ... +2 V
    0
  • Number of output ranges -5 V ... +5 V
    0
  • Number of output ranges -20 V ... +20 V
    0
  • Number of output ranges 0 mV ... 100 mV
    0
  • Number of output ranges 0 mV ... 300 mV
    0
  • Number of output ranges 0 V ... 1 V
    0
  • Number of output ranges 0 V ... 2.5 V
    0
  • Number of output ranges 0 V ... 10 V
    0
  • Number of output ranges 0 V ... 24 V
    0
  • Number of output ranges 1 V ... 5 V
    0
  • Number of output ranges +5 V ... -5 V
    0
  • Number of output ranges 5 V ... 0 V
    0
  • Number of output ranges 10 V ... 0 V
    0
  • Number of output ranges 0 mA ... 5 mA
    0
  • Number of output ranges 0 mA ... 20 mA
    1
  • Number of output ranges -5 mA ... +5 mA
    0
  • Number of output ranges -20 mA ... +20 mA
    0
  • Number of output ranges 20 mA ... 4 mA
    0
  • Malfunction message output
    No
  • Galvanic separation between inputs
    Yes
  • Galvanic separation between output to output
    No

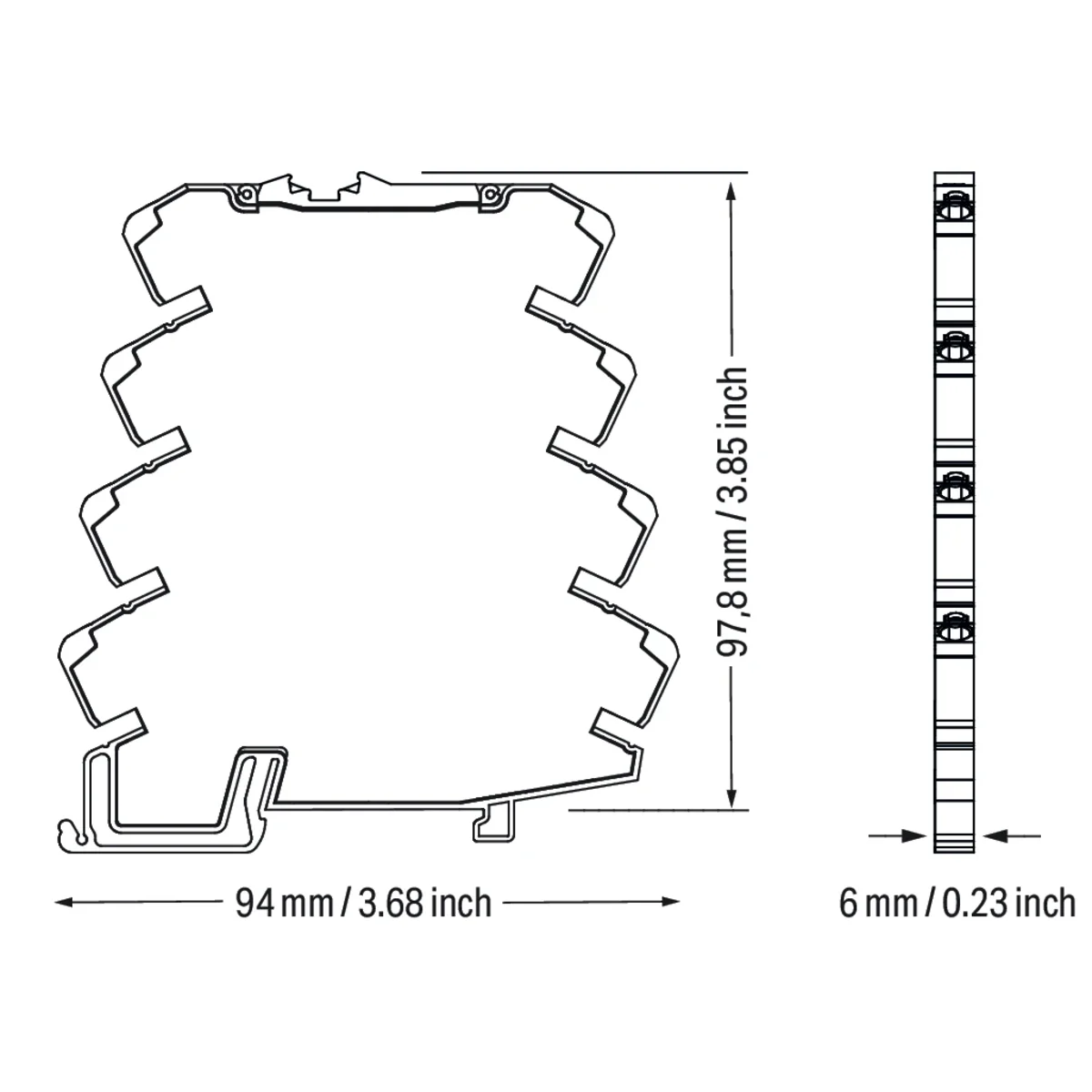

  • Height
    94 mm
  • Depth
    94 mm
  • Operating temperature
    -25 ... 70 °C
  • Type of electric connection
    Spring clamp connection
  • Degree of protection (IP)
    IP20
  • Rated operating frequency
    100 ... 100 Hz
  • Number of input ranges -60 mV ... +60 mV
    0
  • Number of input ranges -300 mV ... +300 mV
    0
  • Number of input ranges -1 V ... +1 V
    0
  • Number of input ranges -2.5 V ... +2.5 V
    0
  • Number of input ranges -10 V ... +10 V
    0
  • Number of input ranges 0 mV ... 60 mV
    0
  • Number of input ranges 0 mV ... 200 mV
    0
  • Number of input ranges 0 mV ... 500 mV
    0
  • Number of input ranges 0 V ... 2 V
    0
  • Number of input ranges 0 V ... 5 V
    0
  • Number of input ranges 0 V ... 20 V
    0
  • Number of input ranges 0 V ... 30 V
    0
  • Number of input ranges 2 V ... 10 V
    0
  • Number of input ranges +10 V ... -10 V
    0
  • Number of input ranges 5 V ... 1 V
    0
  • Number of input ranges 10 V ... 2 V
    0
  • Number of input ranges 0 mA ... 10 mA
    0
  • Number of input ranges 4 mA ... 20 mA
    0
  • Number of input ranges -10 mA ... +10 mA
    0
  • Number of input ranges 20 mA ... 0 mA
    0
  • Number of output ranges -60 mV ... +60 mV
    0
  • Number of output ranges -300 mV ... +300 mV
    0
  • Number of output ranges -1 V ... +1 V
    0
  • Number of output ranges -2.5 V ... +2.5 V
    0
  • Number of output ranges -10 V ... +10 V
    0
  • Number of output ranges 0 mV ... 60 mV
    0
  • Number of output ranges 0 mV ... 200 mV
    0
  • Number of output ranges 0 mV ... 500 mV
    0
  • Number of output ranges 0 V ... 2 V
    0
  • Number of output ranges 0 V ... 5 V
    0
  • Number of output ranges 0 V ... 20 V
    0
  • Number of output ranges 0 V ... 30 V
    0
  • Number of output ranges 2 V ... 10 V
    0
  • Number of output ranges +10 V ... -10 V
    0
  • Number of output ranges 5 V ... 1 V
    0
  • Number of output ranges 10 V ... 2 V
    0
  • Number of output ranges 0 mA ... 10 mA
    0
  • Number of output ranges 4 mA ... 20 mA
    1
  • Number of output ranges -10 mA ... +10 mA
    0
  • Number of output ranges 20 mA ... 0 mA
    0
  • Number of channels
    1
  • Inherently safe according to EN 60947-5-6 NAMUR
    No
  • Galvanic separation between input and output
    Yes
  • Galvanic separation between supply voltage and all other current circuits
    Yes
  • Width
    6 mm
  • Load
    600 ... 2000 Ω
  • Temperature drift
    0.01 %/K
  • Mounting method
    Snap mounting support rail

Hersteller-Details

  • Hersteller
    WAGO GmbH & Co. KG
  • Adresse
    32423 Minden Hansastraße 27 Niemcy
  • E-Mail
    wago.elwag@wago.com

Großpackungen

Eine Art Paket Torebka
Menge 1 stk.
Gewicht (kg) 0,052
Volumen (m3) 0,000
Breite (m) 0,006
Länge (m) 0,094
Tiefe (m) 0,098
