el12 Automation Relays and drivers Other automation elements

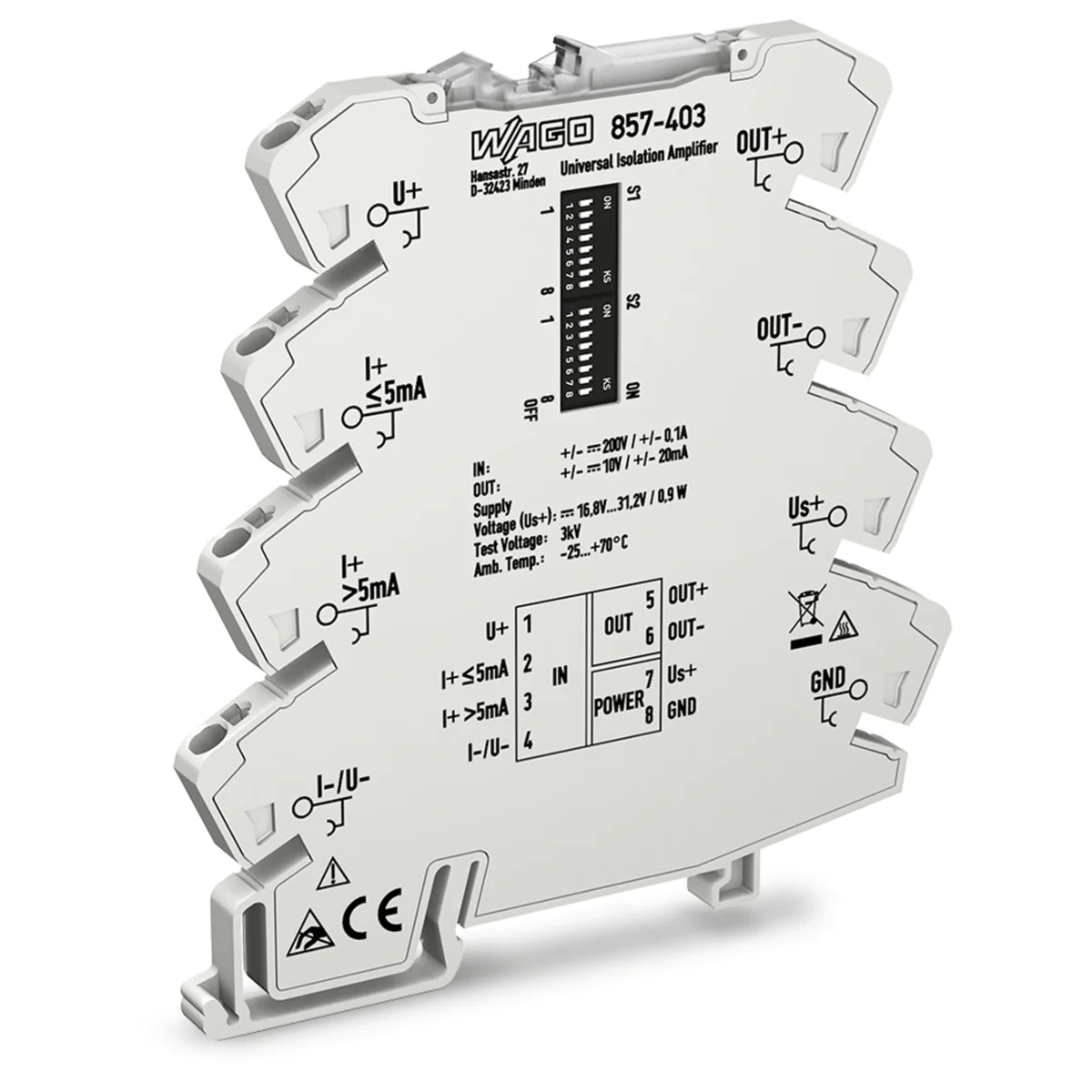

Isolating transducer with amplification; current and voltage input signal; bipolar current and voltage output signal; configuration via DIP switches; supply voltage 24 V DC; width 6 mm; 2.50 mm² 857-403

Índice local:
API001WAGO
Número de catálogo:
857-403
Código EAN:
4066966111668
Isolating transducer with amplification; current and voltage input signal; bipolar current and voltage output signal; configuration via DIP switches; supply voltage 24 V DC; width 6 mm; 2.50 mm²
Isolating transducer with amplification; current and voltage input signal; bipolar current and voltage output signal; configuration via DIP switches; supply voltage 24 V DC; width 6 mm; 2.50 mm²
Isolating transducer with amplification; current and voltage input signal; bipolar current and voltage output signal; configuration via DIP switches; supply voltage 24 V DC; width 6 mm; 2.50 mm²
Isolating transducer with amplification; current and voltage input signal; bipolar current and voltage output signal; configuration via DIP switches; supply voltage 24 V DC; width 6 mm; 2.50 mm²
Isolating transducer with amplification; current and voltage input signal; bipolar current and voltage output signal; configuration via DIP switches; supply voltage 24 V DC; width 6 mm; 2.50 mm²
Isolating transducer with amplification; current and voltage input signal; bipolar current and voltage output signal; configuration via DIP switches; supply voltage 24 V DC; width 6 mm; 2.50 mm²

Haga clic en la foto para ampliar

Fabricante: WAGO ELWAG
Precio:
1 257,99 zł
gross / uds.
(IVA incluido 23%)
2 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Datos técnicos Detalles del fabricante Empaquetado a granel

Datos técnicos

Otros datos técnicos

  • Type of power supply
    Other
  • Rated supply voltage DC
    16.8 ... 31.2 V
  • Number of input ranges -100 mV ... +100 mV
    1
  • Number of input ranges -500 mV ... +500 mV
    1
  • Number of input ranges -2 V ... +2 V
    0
  • Number of input ranges -5 V ... +5 V
    1
  • Number of input ranges -20 V ... +20 V
    0
  • Number of input ranges 0 mV ... 100 mV
    1
  • Number of input ranges 0 mV ... 300 mV
    1
  • Number of input ranges 0 V ... 1 V
    1
  • Number of input ranges 0 V ... 2.5 V
    0
  • Number of input ranges 0 V ... 10 V
    1
  • Number of input ranges 0 V ... 24 V
    0
  • Number of input ranges 1 V ... 5 V
    1
  • Number of input ranges +5 V ... -5 V
    1
  • Number of input ranges 5 V ... 0 V
    0
  • Number of input ranges 10 V ... 0 V
    0
  • Number of input ranges 0 mA ... 5 mA
    0
  • Number of input ranges 0 mA ... 20 mA
    0
  • Number of input ranges -5 mA ... +5 mA
    1
  • Number of input ranges -20 mA ... +20 mA
    0
  • Number of input ranges 20 mA ... 4 mA
    0
  • Number of output ranges -100 mV ... +100 mV
    0
  • Number of output ranges -500 mV ... +500 mV
    0
  • Number of output ranges -2 V ... +2 V
    0
  • Number of output ranges -5 V ... +5 V
    1
  • Number of output ranges -20 V ... +20 V
    0
  • Number of output ranges 0 mV ... 100 mV
    0
  • Number of output ranges 0 mV ... 300 mV
    0
  • Number of output ranges 0 V ... 1 V
    0
  • Number of output ranges 0 V ... 2.5 V
    0
  • Number of output ranges 0 V ... 10 V
    1
  • Number of output ranges 0 V ... 24 V
    0
  • Number of output ranges 1 V ... 5 V
    1
  • Number of output ranges +5 V ... -5 V
    1
  • Number of output ranges 5 V ... 0 V
    0
  • Number of output ranges 10 V ... 0 V
    0
  • Number of output ranges 0 mA ... 5 mA
    0
  • Number of output ranges 0 mA ... 20 mA
    1
  • Number of output ranges -5 mA ... +5 mA
    0
  • Number of output ranges -20 mA ... +20 mA
    1
  • Number of output ranges 20 mA ... 4 mA
    0
  • Malfunction message output
    No
  • Galvanic separation between inputs
    Yes
  • Galvanic separation between output to output
    No

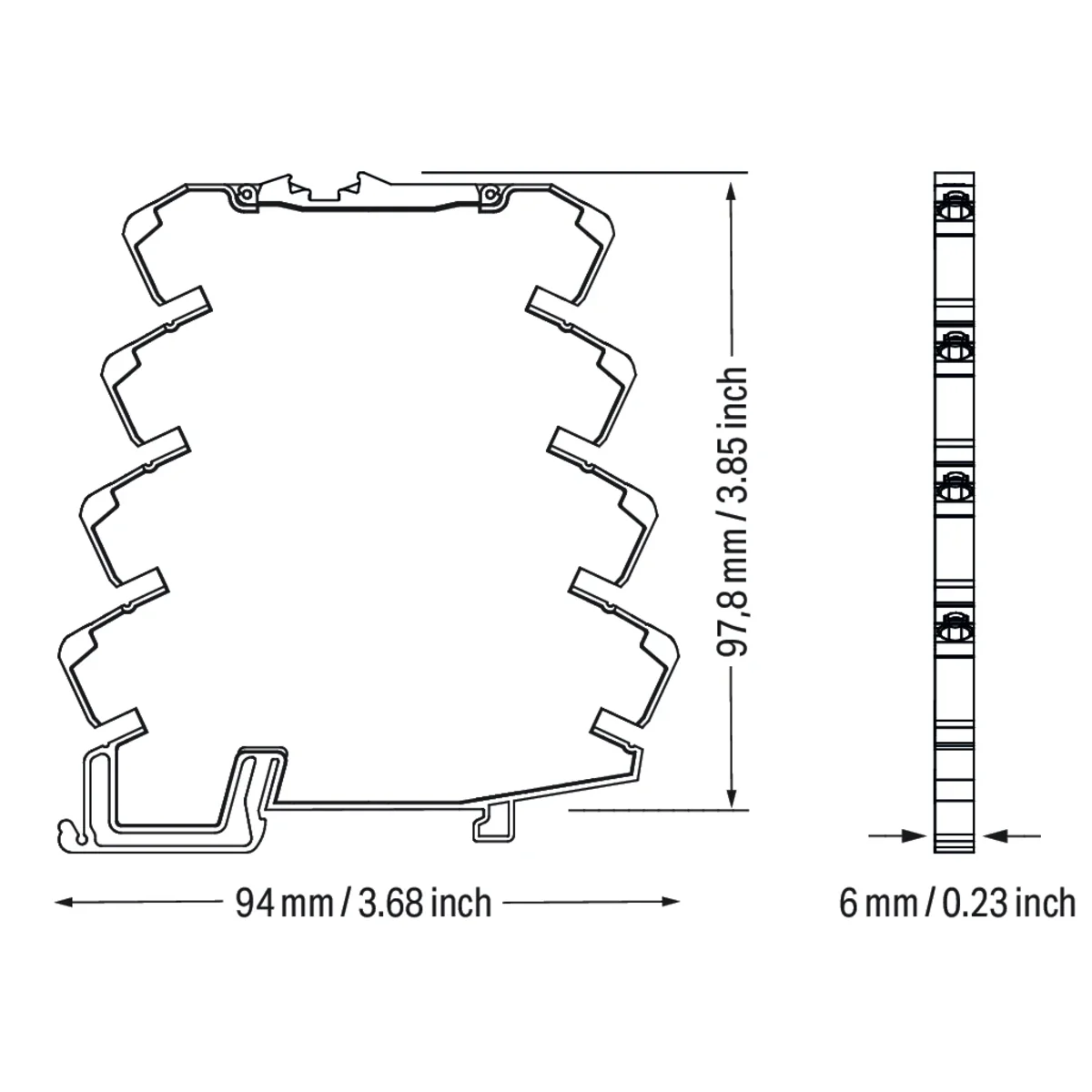

  • Height
    94 mm
  • Depth
    94 mm
  • Operating temperature
    -25 ... 70 °C
  • Type of electric connection
    Spring clamp connection
  • Degree of protection (IP)
    IP20
  • Rated operating frequency
    100 ... 5000 Hz
  • Number of input ranges -60 mV ... +60 mV
    0
  • Number of input ranges -300 mV ... +300 mV
    1
  • Number of input ranges -1 V ... +1 V
    0
  • Number of input ranges -2.5 V ... +2.5 V
    0
  • Number of input ranges -10 V ... +10 V
    1
  • Number of input ranges 0 mV ... 60 mV
    1
  • Number of input ranges 0 mV ... 200 mV
    0
  • Number of input ranges 0 mV ... 500 mV
    1
  • Number of input ranges 0 V ... 2 V
    0
  • Number of input ranges 0 V ... 5 V
    1
  • Number of input ranges 0 V ... 20 V
    0
  • Number of input ranges 0 V ... 30 V
    0
  • Number of input ranges 2 V ... 10 V
    1
  • Number of input ranges +10 V ... -10 V
    1
  • Number of input ranges 5 V ... 1 V
    0
  • Number of input ranges 10 V ... 2 V
    0
  • Number of input ranges 0 mA ... 10 mA
    0
  • Number of input ranges 4 mA ... 20 mA
    0
  • Number of input ranges -10 mA ... +10 mA
    0
  • Number of input ranges 20 mA ... 0 mA
    0
  • Number of output ranges -60 mV ... +60 mV
    0
  • Number of output ranges -300 mV ... +300 mV
    0
  • Number of output ranges -1 V ... +1 V
    0
  • Number of output ranges -2.5 V ... +2.5 V
    0
  • Number of output ranges -10 V ... +10 V
    1
  • Number of output ranges 0 mV ... 60 mV
    0
  • Number of output ranges 0 mV ... 200 mV
    0
  • Number of output ranges 0 mV ... 500 mV
    0
  • Number of output ranges 0 V ... 2 V
    0
  • Number of output ranges 0 V ... 5 V
    1
  • Number of output ranges 0 V ... 20 V
    0
  • Number of output ranges 0 V ... 30 V
    0
  • Number of output ranges 2 V ... 10 V
    1
  • Number of output ranges +10 V ... -10 V
    1
  • Number of output ranges 5 V ... 1 V
    0
  • Number of output ranges 10 V ... 2 V
    0
  • Number of output ranges 0 mA ... 10 mA
    1
  • Number of output ranges 4 mA ... 20 mA
    1
  • Number of output ranges -10 mA ... +10 mA
    1
  • Number of output ranges 20 mA ... 0 mA
    0
  • Number of channels
    1
  • Inherently safe according to EN 60947-5-6 NAMUR
    No
  • Galvanic separation between input and output
    Yes
  • Galvanic separation between supply voltage and all other current circuits
    Yes
  • Width
    6 mm
  • Load
    600 ... 1000 Ω
  • Temperature drift
    0.01 %/K
  • Mounting method
    Snap mounting support rail

Detalles del fabricante

  • Fabricante
    WAGO GmbH & Co. KG
  • Dirección
    32423 Minden Hansastraße 27 Niemcy
  • Email
    wago.elwag@wago.com

Empaquetado a granel

una especie de paquete Torebka Torebka
Cantidad 1 uds. 1 uds.
Peso (kg) 0,054 0,054
Volumen (m3) 0,005 0,005
Ancho (m) 0,135 0,135
Longitud (m) 0,230 0,230
Profundidad (m) 0,175 0,175
