I/O module MH-IO32-3

local index:
API082FIFQ
Catalog No:
MH-IO32-3
EAN code:
5908312593461
Manufacturer: F&F
Central shutdown: NO
Frequency [Hz]: 50
Rain sensor: NO
Price:
411,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

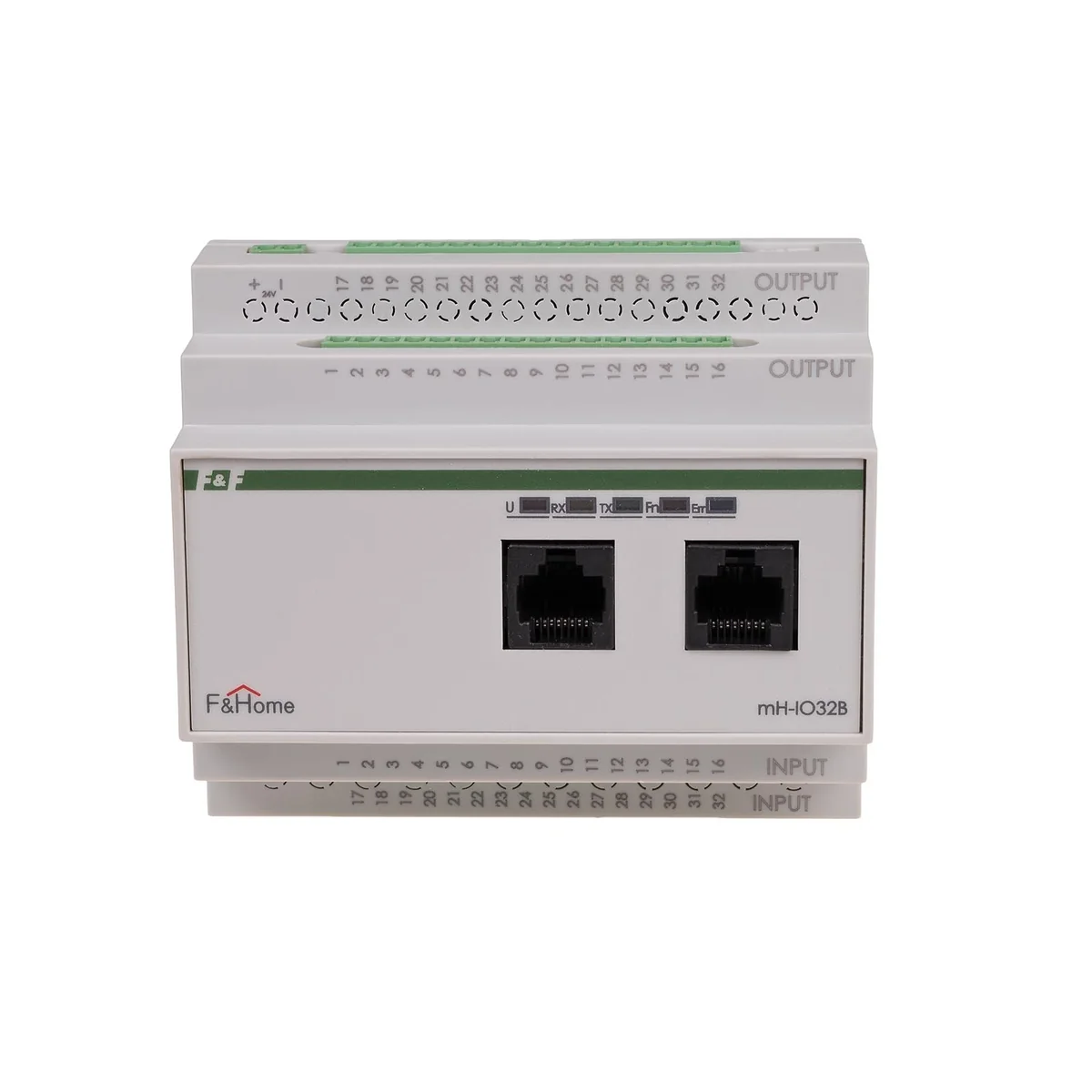

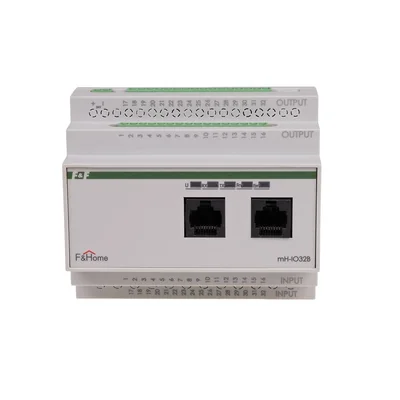

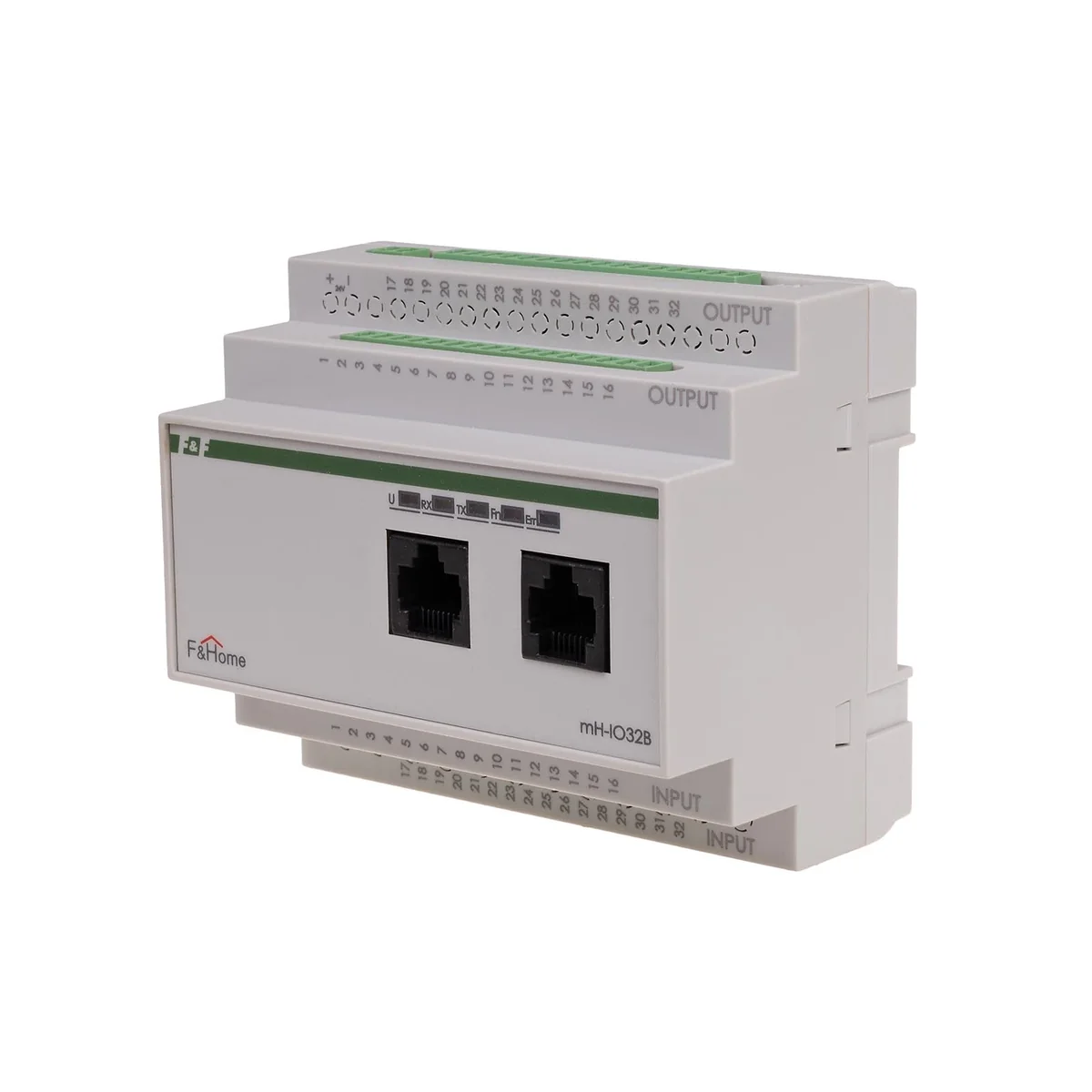

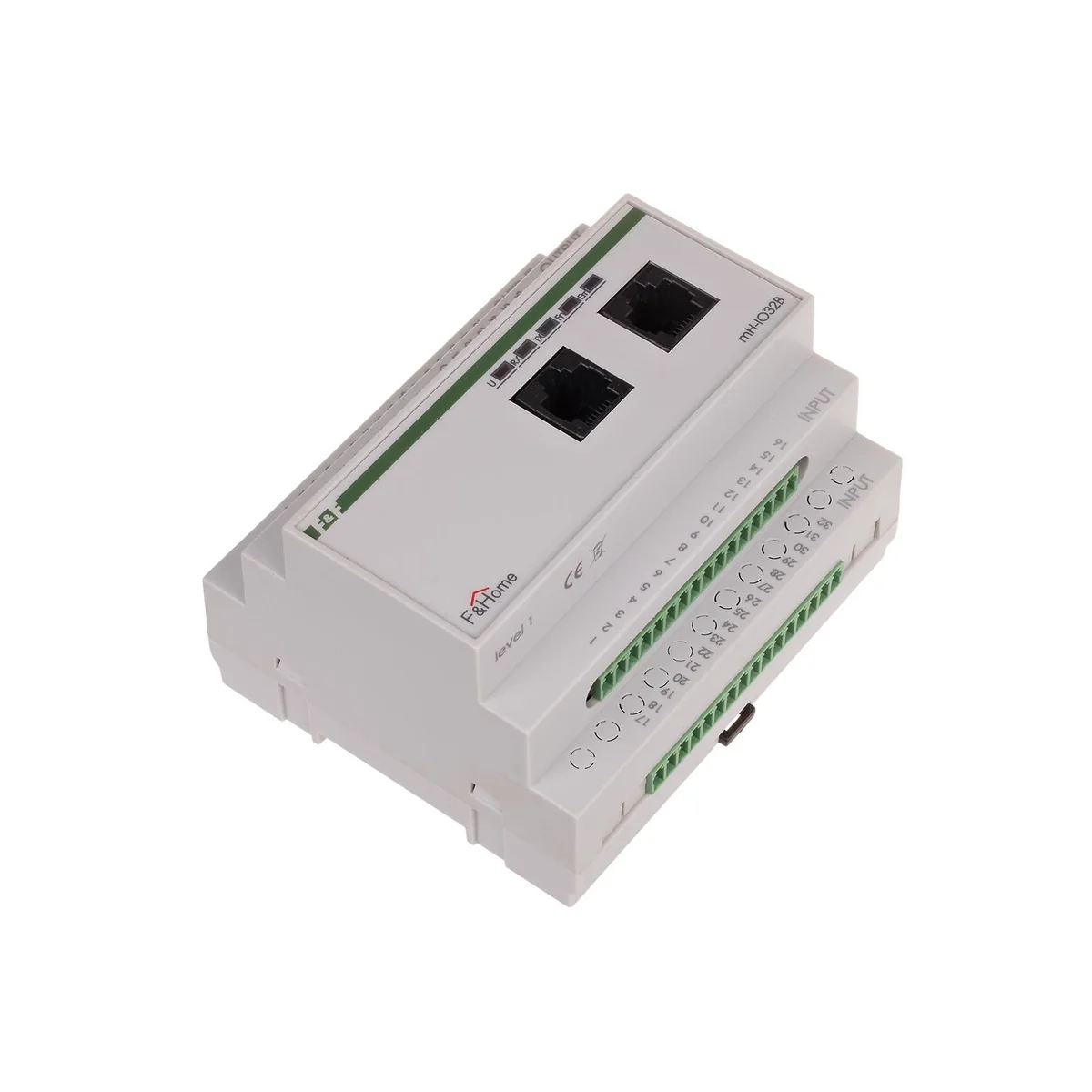

The mH-IO32 input/output module is the basic module of the F&Home system, equipped with 32 binary inputs and 32 binary outputs (operating on the on-off principle). The module is mounted in the switchgear (occupies a field of 6 modules) and is supplied with 24V DC voltage. Buttons located on the building, connected via UTP cables, are brought to the inputs of the module. The module manages the lighting and other receivers on an on-off basis via mH-R8x8 or mH-R2x16 relay executive modules. The control takes place fully on the low voltage 24V line, which ensures full safety and the possibility of any arrangement of control buttons in the building. The mH-IO32 module communicates with touch panels via the CAN line.

Technical data

  • Central shutdown
    NO
  • Rain sensor
    NO
  • Depth [mm]
    65
  • Number of modules
    6
  • Dimmer power [W]
    350
  • Rated voltage [V]
    24
  • Rated current [A]
    8
  • Weekly programme
    NO
  • Family
    F&HOME
  • Presence simulation
    NO
  • Height [mm]
    90
  • Package width [mm]
    105
  • Number of modules
    6
  • Frequency [Hz]
    50
  • Panic function
    NO
  • Number of channels
    32
  • Number of contacts
    1NO 0NC
  • Installation
    On the TH-35 rail
  • stair lighting
    NO
  • Astronomical program
    NO
  • Group switch
    NO
  • Level of security
    IP20
  • Width [mm]
    105
  • Package height [mm]
    90
  • Package weight [kg]
    0.25
  • PKWIU
    26.30.23.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Mounting method
    Other
  • With bus connection
    Yes
  • Number of input channels
    32
  • Number of inputs
    32
  • Max. number of switching contacts
    28
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Other
  • Width in number of modular spacings
    6
  • With LED indication
    Yes
  • Number of switch inputs
    28
  • Number of output channels
    32
  • Rated operating voltage
    20 ... 26 V

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,260
Width (m) 0,104
Length (m) 0,119
Depth (m) 0,075
