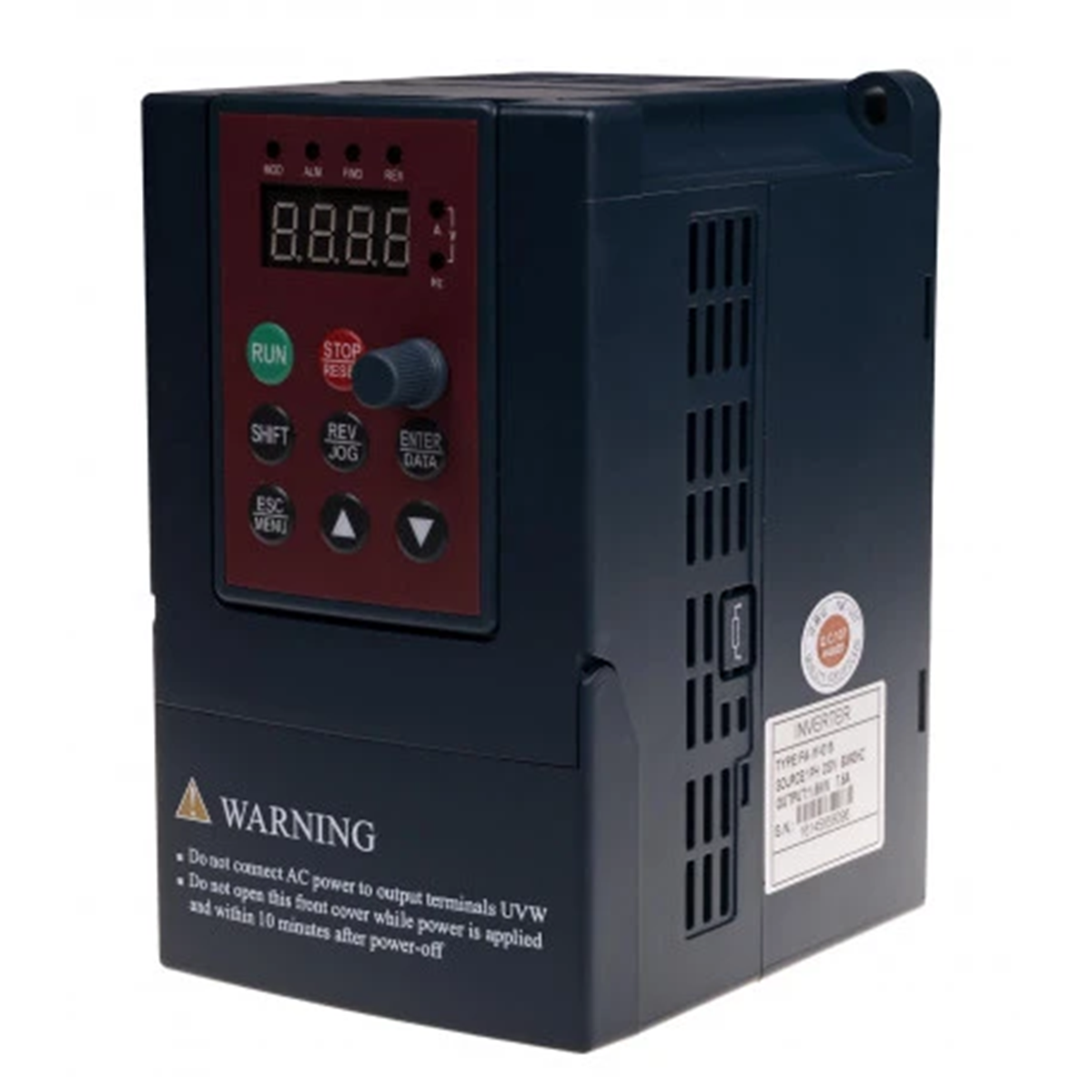

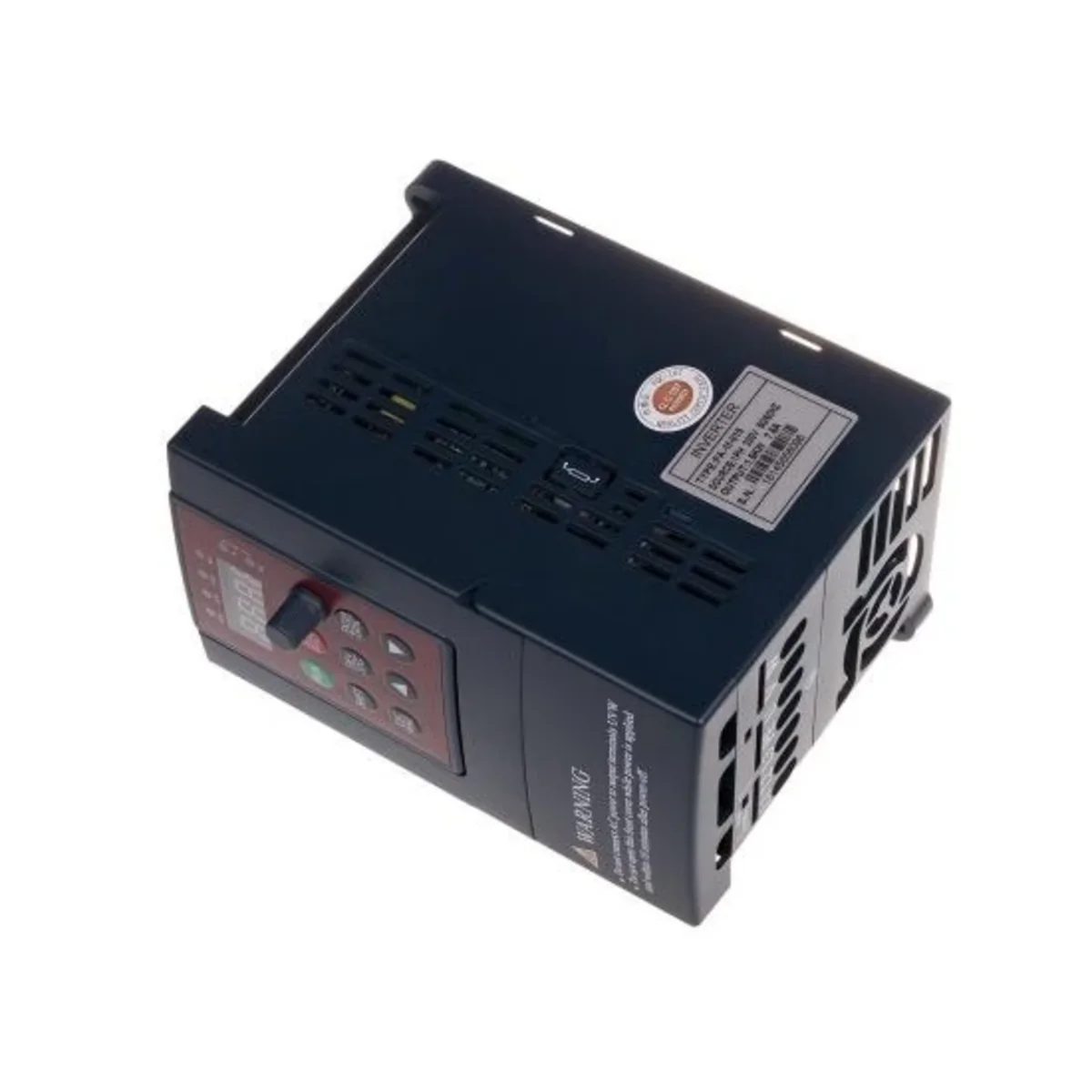

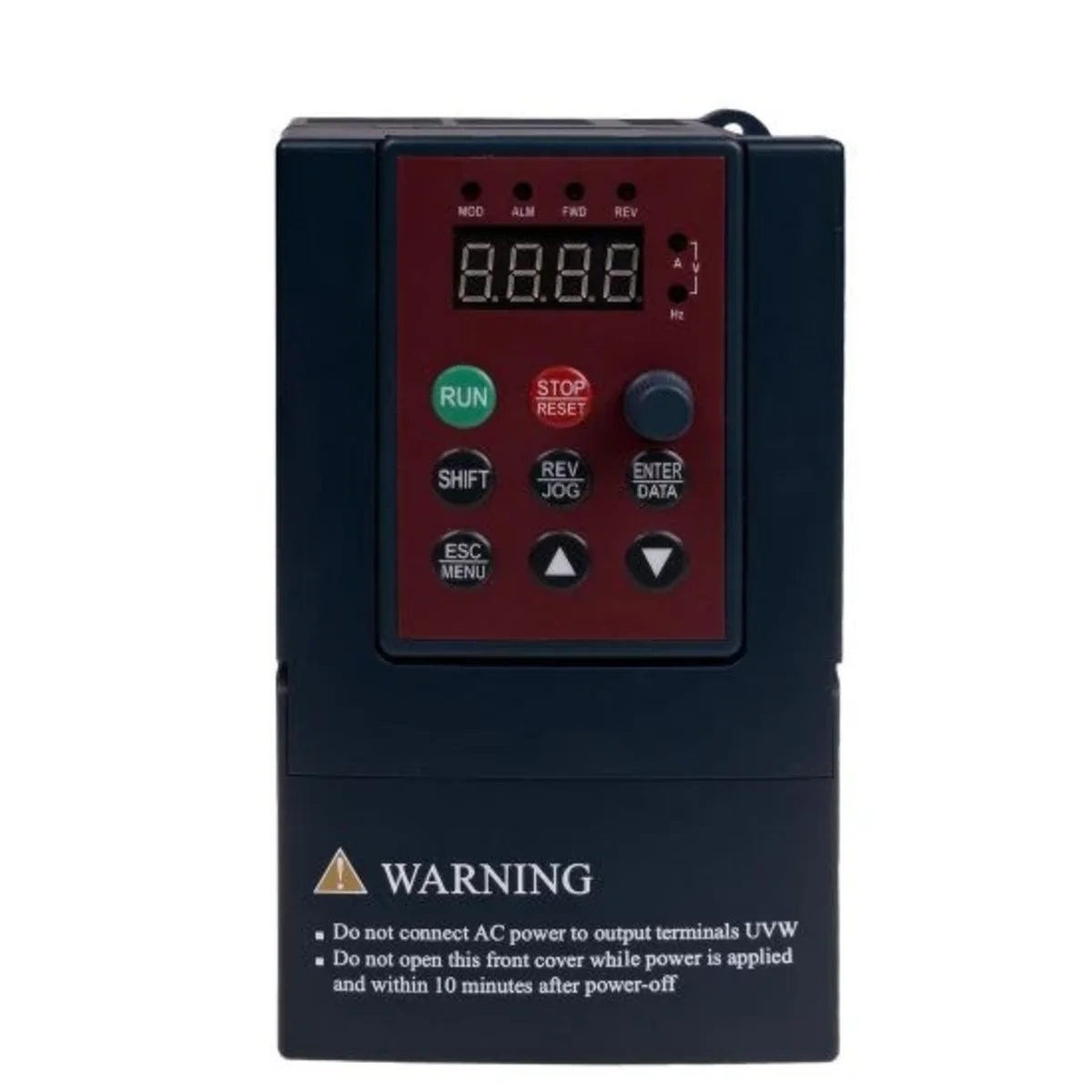

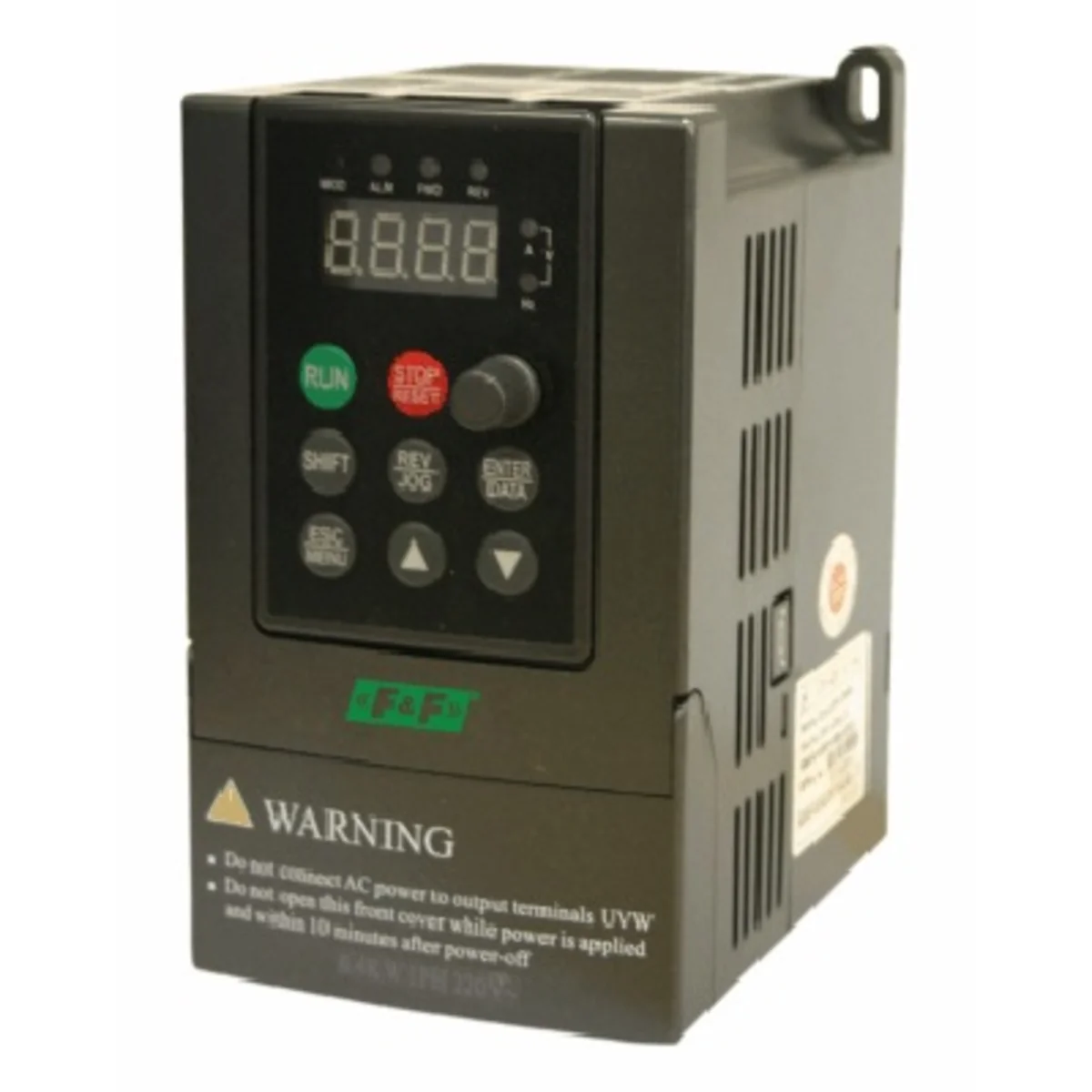

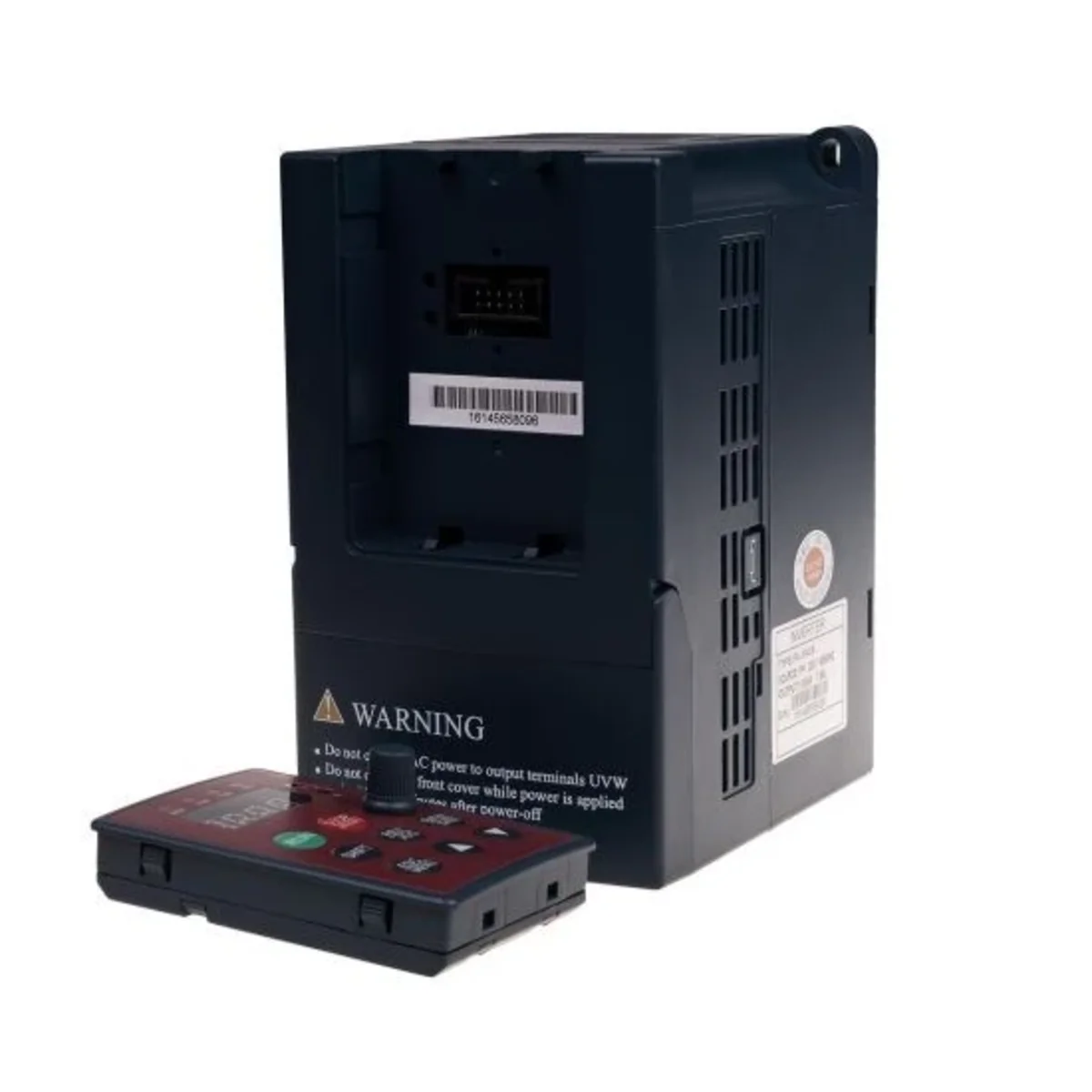

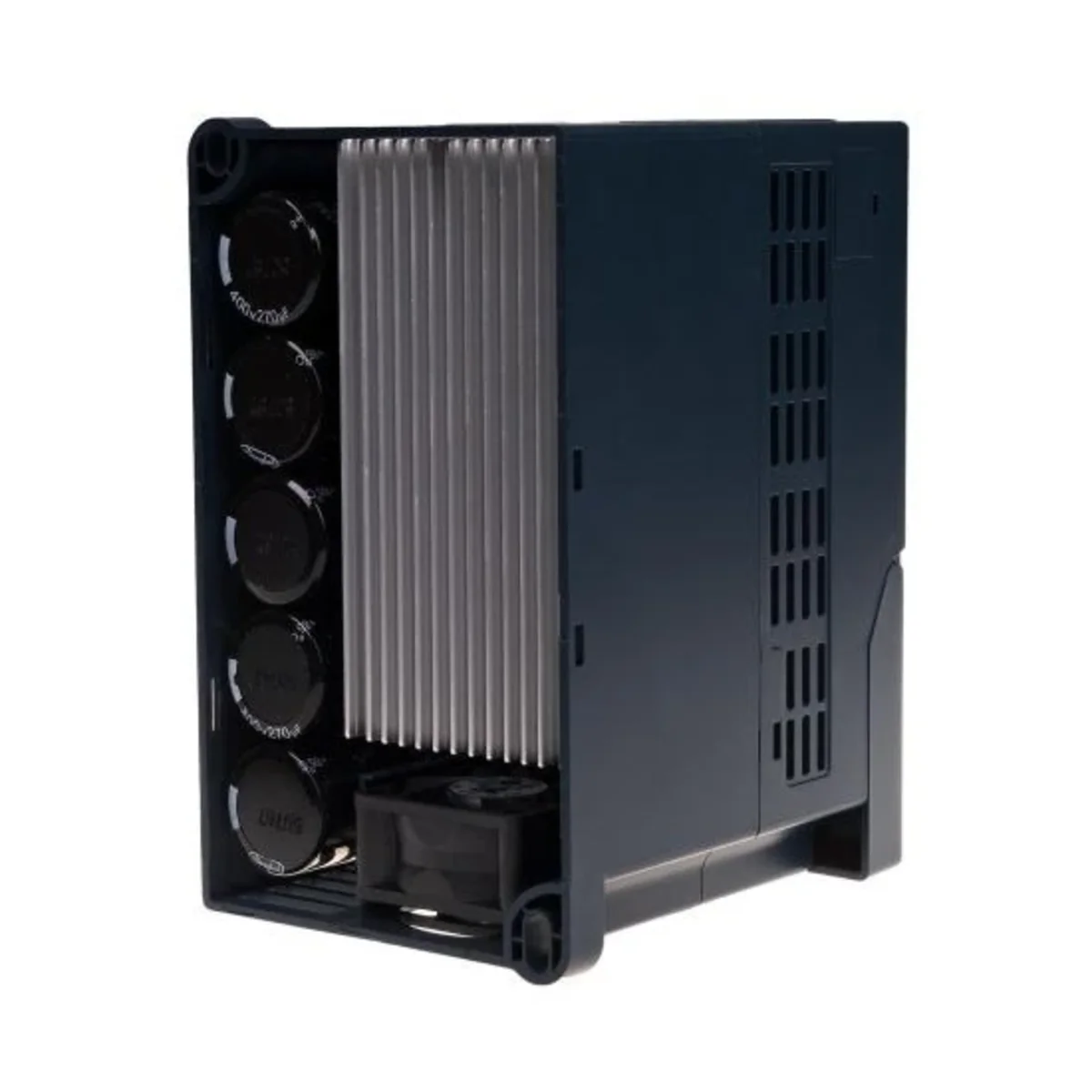

Inverter for single-phase motors 22kW 230V FA-1F022

local index:
APE063FIFQ
Catalog No:
FA-1F022
EAN code:
5908312590767
Manufacturer: F&F
Maximum power [kW]: 2.2
Input voltage [V]: 230
Price:
434,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

FA-1f series inverter designed to control single-phase AC motors with an auxiliary starting capacitor

Technical data

  • Maximum power [kW]
    2.2
  • PKWIU
    27.11.50.0
  • Input voltage [V]
    230

Other technical data

  • Mains frequency
    50 Hz
  • Number of phases output
    1
  • Nominal output current I2N
    16 A
  • Max. output at linear load at rated output voltage
    2.2 kW
  • Relative symmetric net voltage tolerance
    15 %
  • Application in industrial area permitted
    Yes
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    Yes
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces USB
    0
  • Number of HW-interfaces other
    0
  • Integrated breaking resistance
    No
  • Type of converter
    U converter
  • Height
    230 mm
  • Depth
    155 mm
  • Number of phases input
    1
  • Max. output frequency
    400 Hz
  • Max. output at quadratic load at rated output voltage
    2.2 kW
  • Relative symmetric net frequency tolerance
    5 %
  • With control element
    Yes
  • Application in domestic- and commercial area permitted
    Yes
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces parallel
    0
  • With optical interface
    No
  • 4-quadrant operation possible
    No
  • Degree of protection (IP)
    IP20
  • Width
    155 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,155
Length (m) 0,230
Depth (m) 0,155
