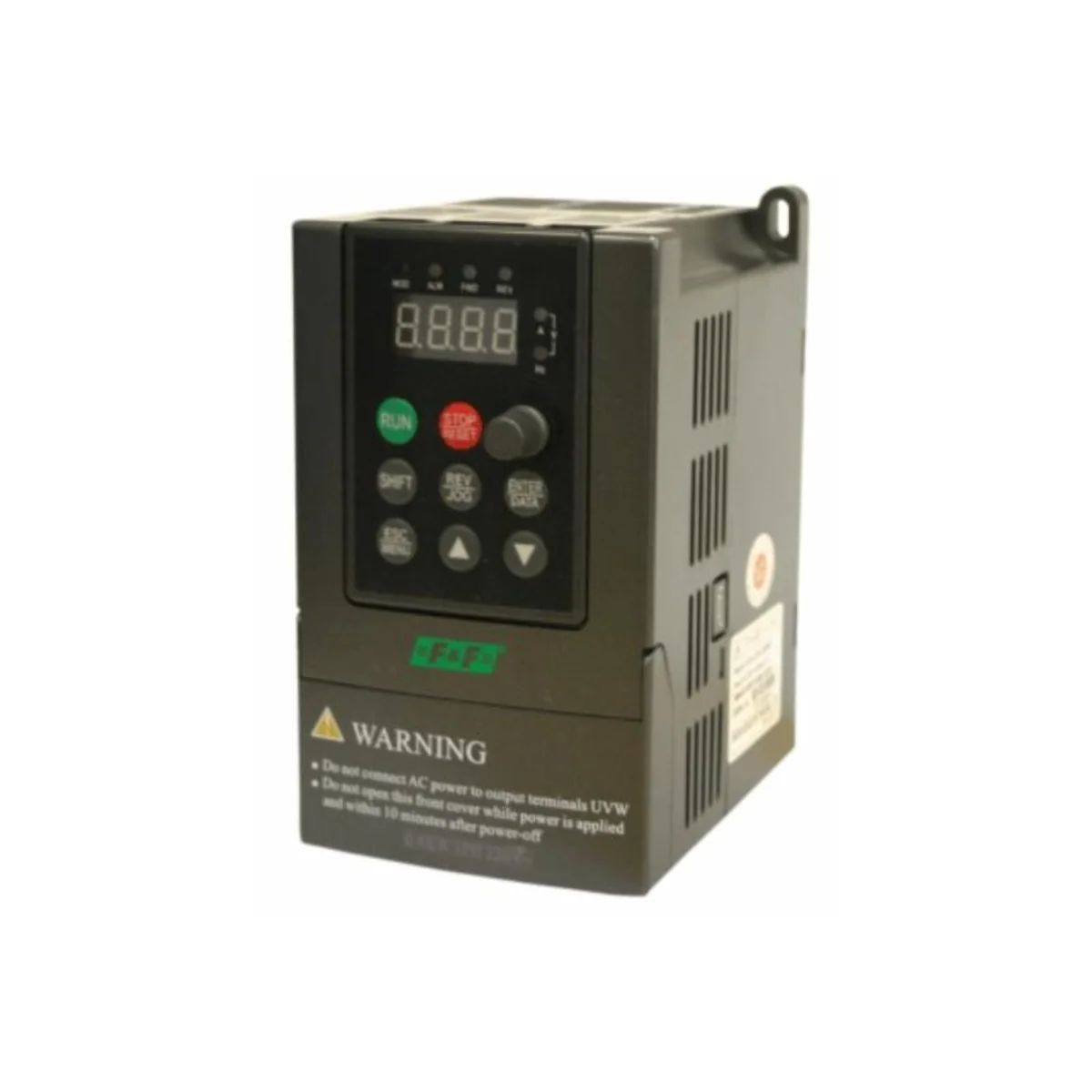

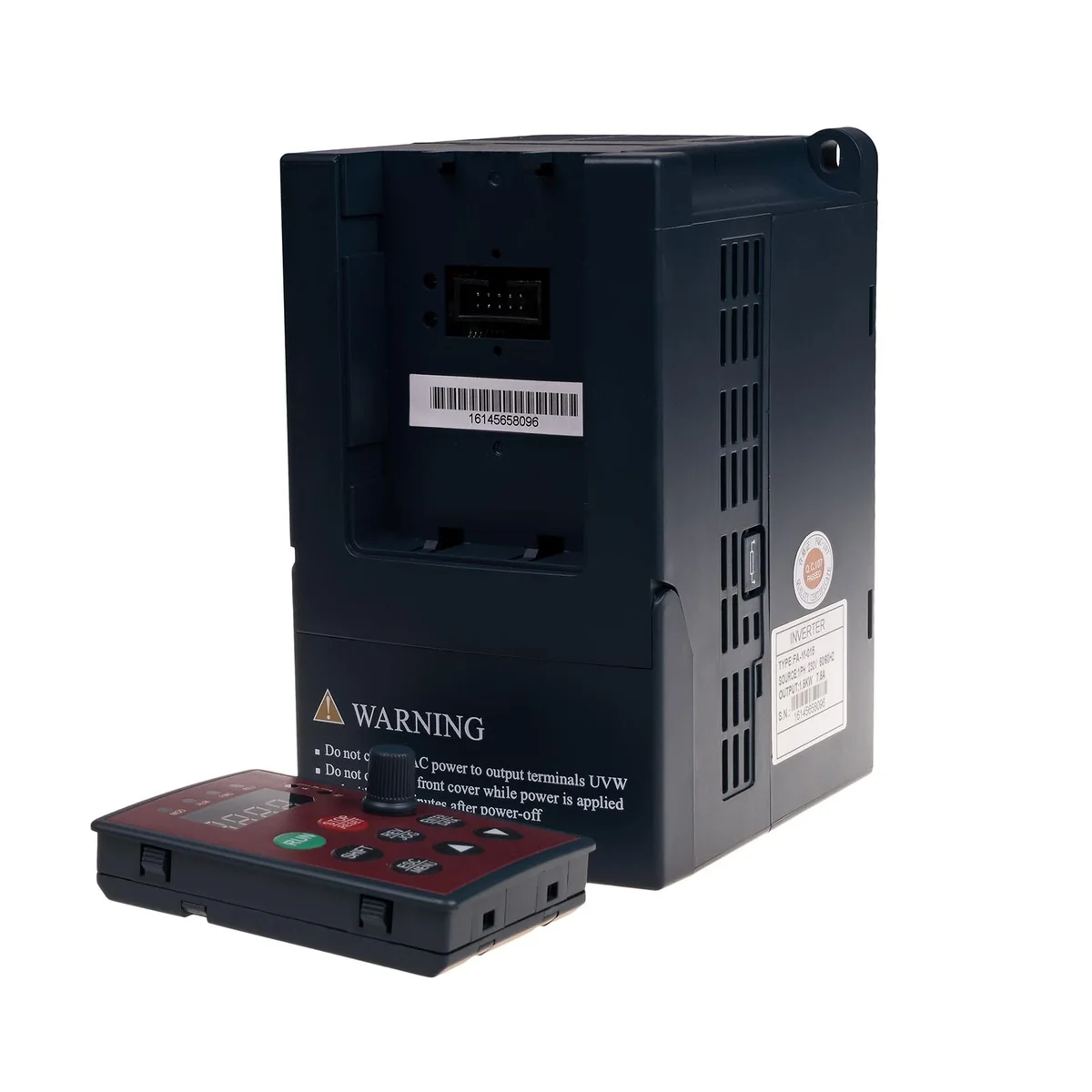

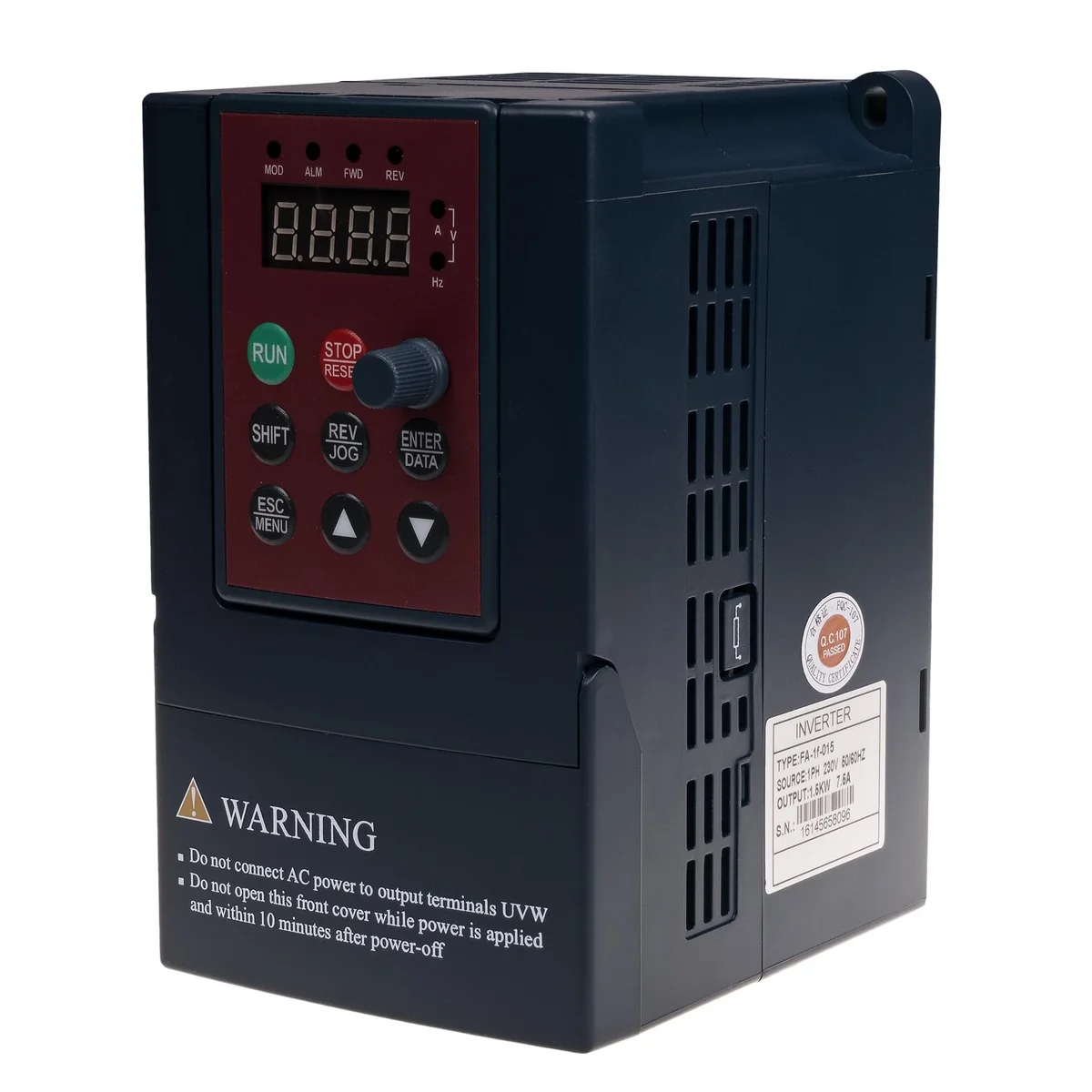

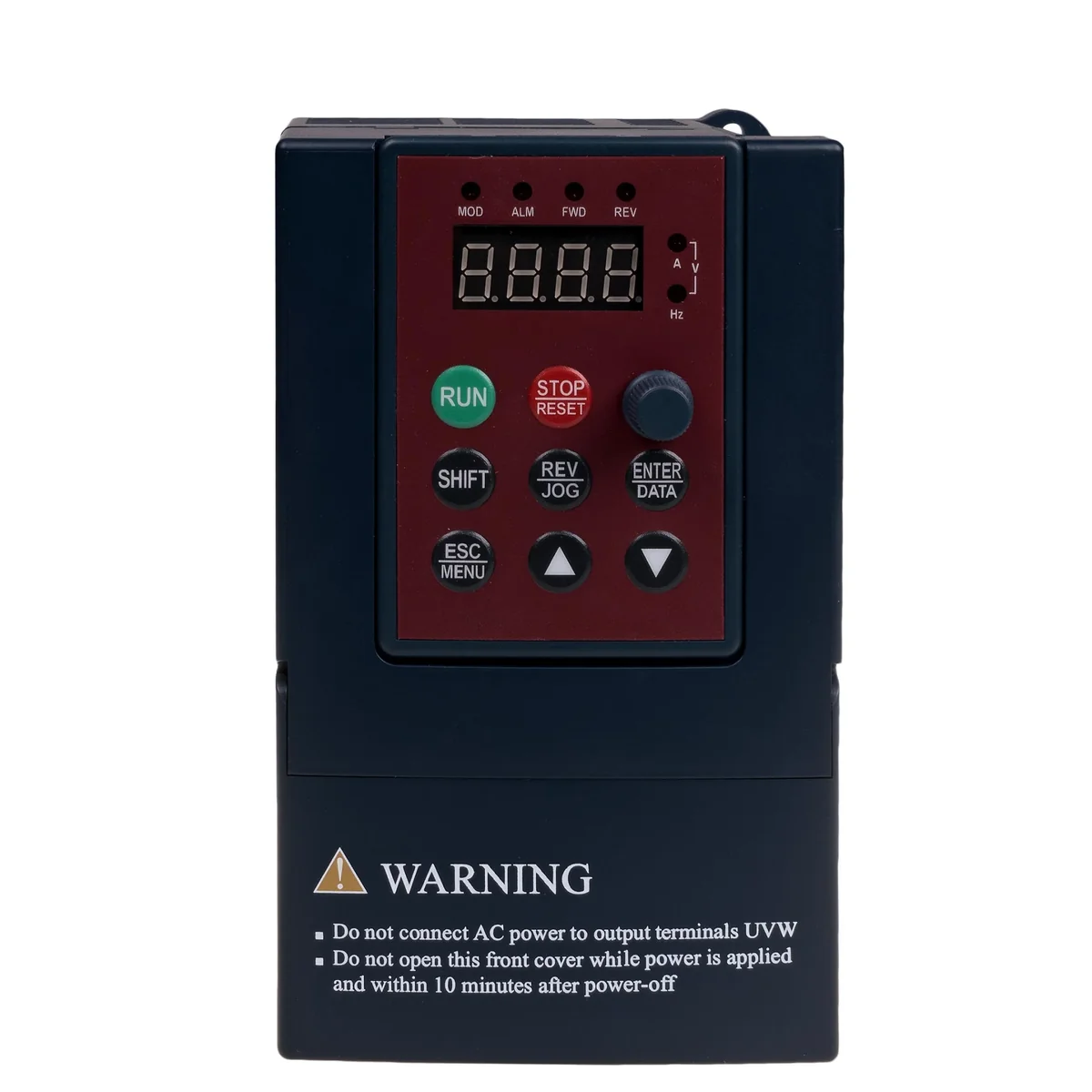

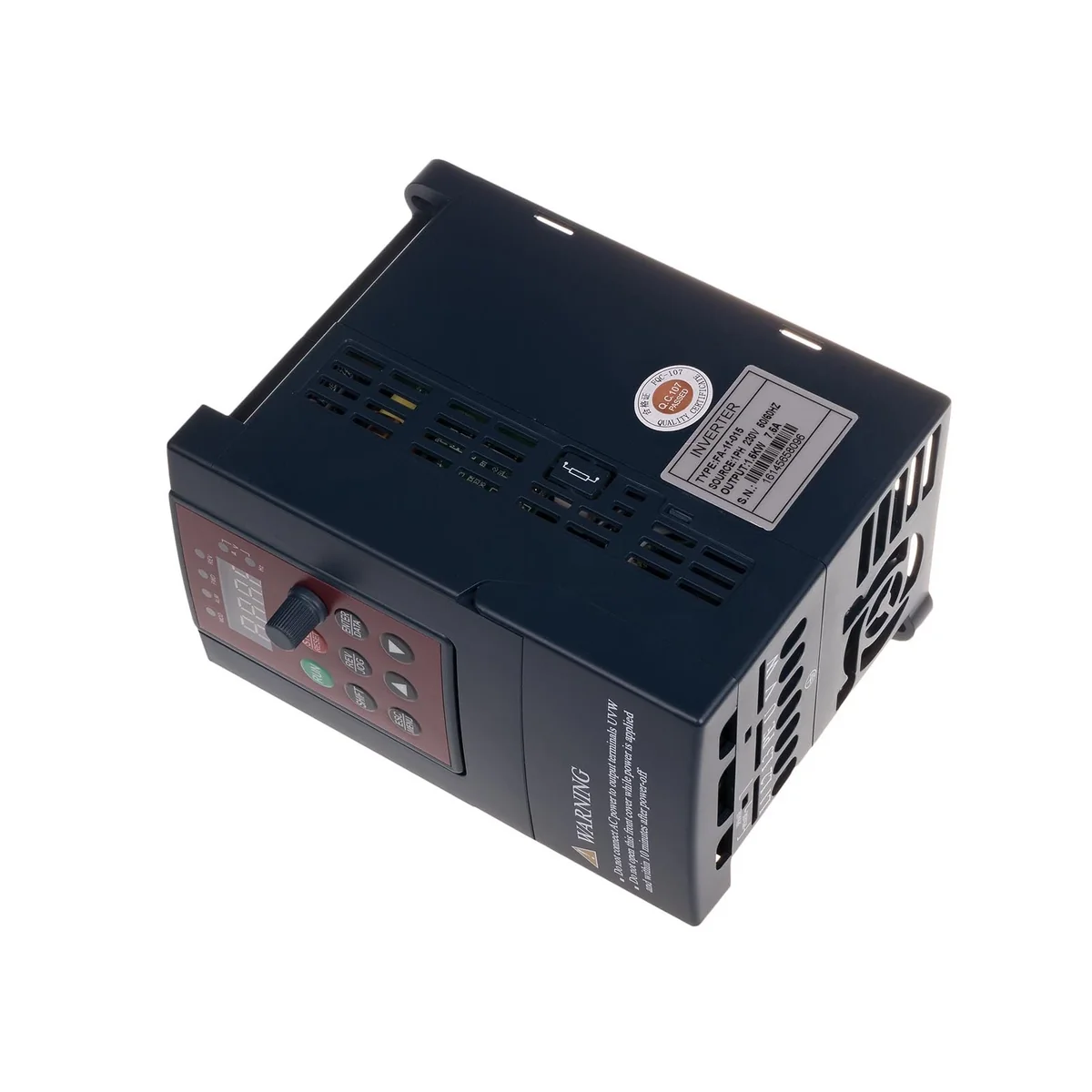

Inverter for single-phase motors 04kW 230V FA-1F004
local index:
APE060FIFQ
Catalog No:
FA-1F004
EAN code:
5908312590736
Click on the photo to enlarge
Manufacturer:
F&F
Maximum power [kW]:
0.4
Input voltage [V]:
230
See full description
Price:
257,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Files to download
Product description
FA-1f series inverter designed to control single-phase AC motors with an auxiliary starting capacitor
Technical data
Maximum power [kW]
0.4
PKWIU
27.11.50.0
Input voltage [V]
230
Other technical data
Mains frequency
50 Hz
Number of phases output
1
Nominal output current I2N
4 A
Max. output at linear load at rated output voltage
0.4 kW
Relative symmetric net voltage tolerance
15 %
Application in industrial area permitted
Yes
Supporting protocol for TCP/IP
No
Supporting protocol for CAN
No
Supporting protocol for ASI
No
Supporting protocol for Modbus
Yes
Supporting protocol for DeviceNet
No
Supporting protocol for LON
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for SafetyBUS p
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces USB
0
Number of HW-interfaces other
0
Integrated breaking resistance
No
Type of converter
U converter
Height
141.5 mm
Depth
112.5 mm
Number of phases input
1
Max. output frequency
400 Hz
Max. output at quadratic load at rated output voltage
0.4 kW
Relative symmetric net frequency tolerance
5 %
With control element
Yes
Application in domestic- and commercial area permitted
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Data-Highway
No
Supporting protocol for SUCONET
No
Supporting protocol for PROFINET IO
No
Supporting protocol for SERCOS
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for other bus systems
No
Number of interfaces PROFINET
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
With optical interface
No
4-quadrant operation possible
No
Degree of protection (IP)
IP20
Width
85 mm
Bulk packaging
A kind of package
Sztuka
Quantity
1 pcs.
Width (m)
0,085
Length (m)
0,141
Depth (m)
0,112
Files to download
FF_RoHS_2022.pdf
FF_RoHS_2022.pdf
