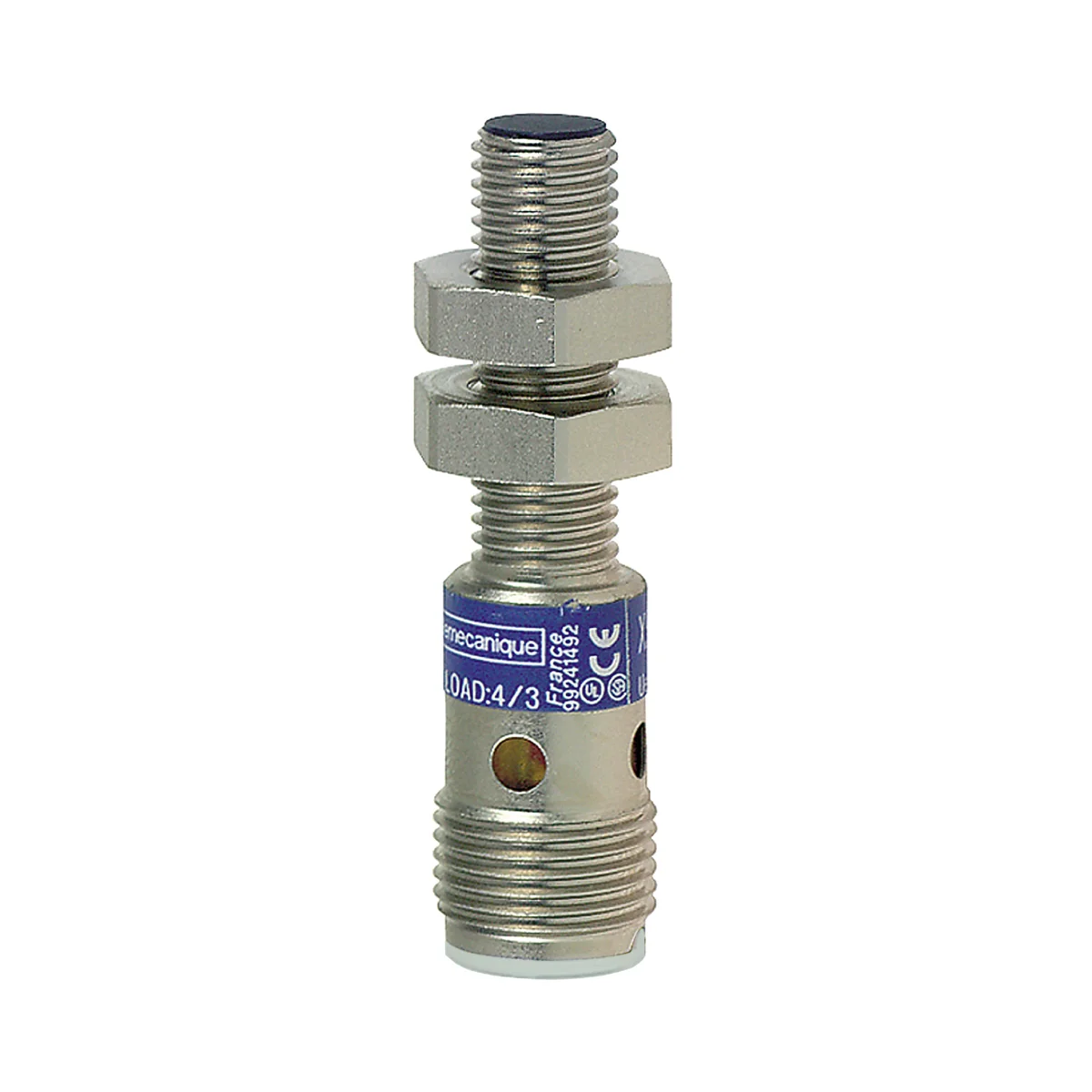

Inductive sensor M8 1NO 12-48V DC M12 connector XS508B1DAM12
Índice local:
API317SCHN
Número de catálogo:
XS508B1DAM12
Código EAN:
3389110144154
Fabricante:
SCHNEIDER ELECTRIC
Material: stainless steel
Precio:
518,19 zł
gross / uds.
(IVA incluido 23%)
Añadir a solicitud de presupuesto
Imprimir
Pregunta por el producto
Descripción del producto
Inductive sensor M8 1NO 12-48V DC M12 connector
Datos técnicos
-
Materialstainless steel
-
PKWIU26.51.66.0
Otros datos técnicos
-
Length of sensor61 mm
-
Mechanical mounting condition for sensorConcise
-
Suitable for safety functionsNo
-
Type of electric connectionConnector M12
-
Number of contact energized outputs with signalling function0
-
Number of protected contact energized outputs0
-
Type of interfaceNone
-
Construction type housingCylinder, screw-thread
-
CascadableNo
-
Performance level according to EN ISO 13849-1None
-
Supply voltage12 ... 48 V
-
Voltage typeAC/DC
-
With monitoring function downstream switching devicesNo
-
Compression-resistantNo
-
Explosion safety category for dustNone
-
Diameter sensor8 mm
-
Switching distance1.5 mm
-
Type of switch functionNormally open contact
-
Number of semiconductor outputs with signalling function1
-
Number of protected semiconductor outputs1
-
Type of actuationMetallic Target
-
Type of interface for safety communicationNone
-
Coating housingOther
-
SIL according to IEC 61508None
-
Max. output current at protected output100 mA
-
Rated control supply voltage DC12 ... 48 V
-
Switching frequency4000 Hz
-
Housing materialMetal
-
Explosion safety category for gasNone
-
Interference resistance to magnetic fieldsImmune against magnetic DC-field
Detalles del fabricante
-
FabricanteSchneider Electric Polska Sp. z o.o.
-
Dirección02-673 Warszawa ul. Konstruktorska 12
-
NIF5220011965
