Inductive sensor M30 1NO 24-240V AC/DC cable 2m XS2M30MA250
Místní index:
API292SCHN
Katalogové číslo.:
XS2M30MA250
EAN kód:
3389110918205
Výrobce:
SCHNEIDER ELECTRIC
Material: Metal
Cena:
539,63 zł
gross / kusů.
(včetně DPH 23%)
Přidat do žádosti o cenovou nabídku
Vytisknout
Dotaz na výrobek
Popis produktu

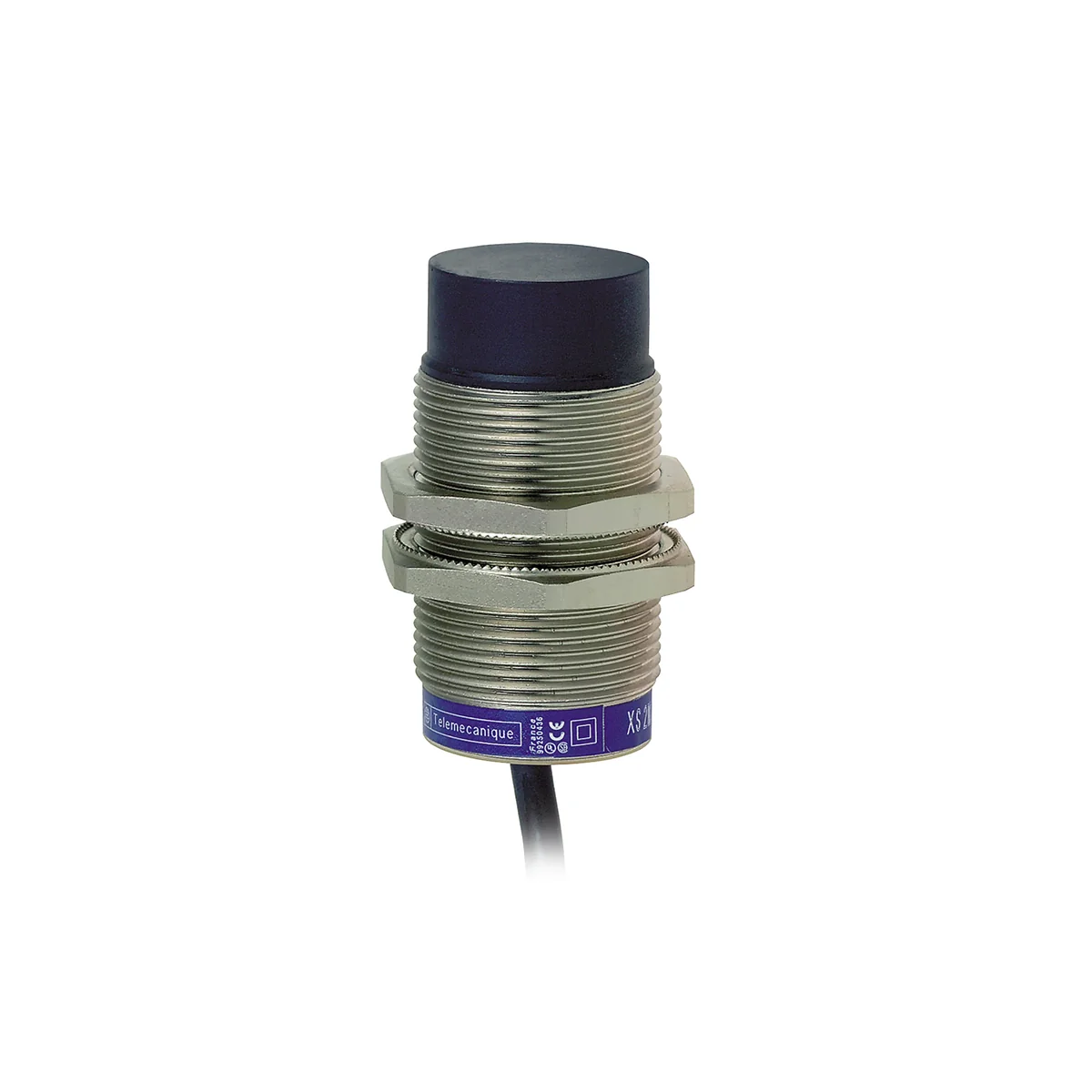

Inductive sensor M30 1NO 24-240V AC/DC cable 2m
Technické údaje
-
MaterialMetal
-
PKWIU26.51.66.0
Další technické údaje
-
Length of sensor63 mm
-
Mechanical mounting condition for sensorNot flat
-
Suitable for safety functionsNo
-
Type of electric connectionCable radial
-
Number of contact energized outputs with signalling function0
-
Number of protected contact energized outputs0
-
Type of interfaceNone
-
Construction type housingCylinder, screw-thread
-
CascadableNo
-
Performance level according to EN ISO 13849-1None
-
Supply voltage24 ... 240 V
-
Rated control supply voltage AC 60 Hz24 ... 240 V
-
Voltage typeAC/DC
-
With monitoring function downstream switching devicesNo
-
Compression-resistantNo
-
Explosion safety category for dustNone
-
Diameter sensor30 mm
-
Switching distance15 mm
-
Type of switch functionNormally open contact
-
Number of semiconductor outputs with signalling function1
-
Number of protected semiconductor outputs1
-
Type of actuationMetallic Target
-
Type of interface for safety communicationNone
-
Coating housingNickel-plated
-
SIL according to IEC 61508None
-
Max. output current at protected output200 mA
-
Rated control supply voltage AC 50 Hz24 ... 240 V
-
Rated control supply voltage DC24 ... 210 V
-
Switching frequency1000 Hz
-
Housing materialMetal
-
Explosion safety category for gasNone
-
Interference resistance to magnetic fieldsImmune against magnetic DC- and AC-field
