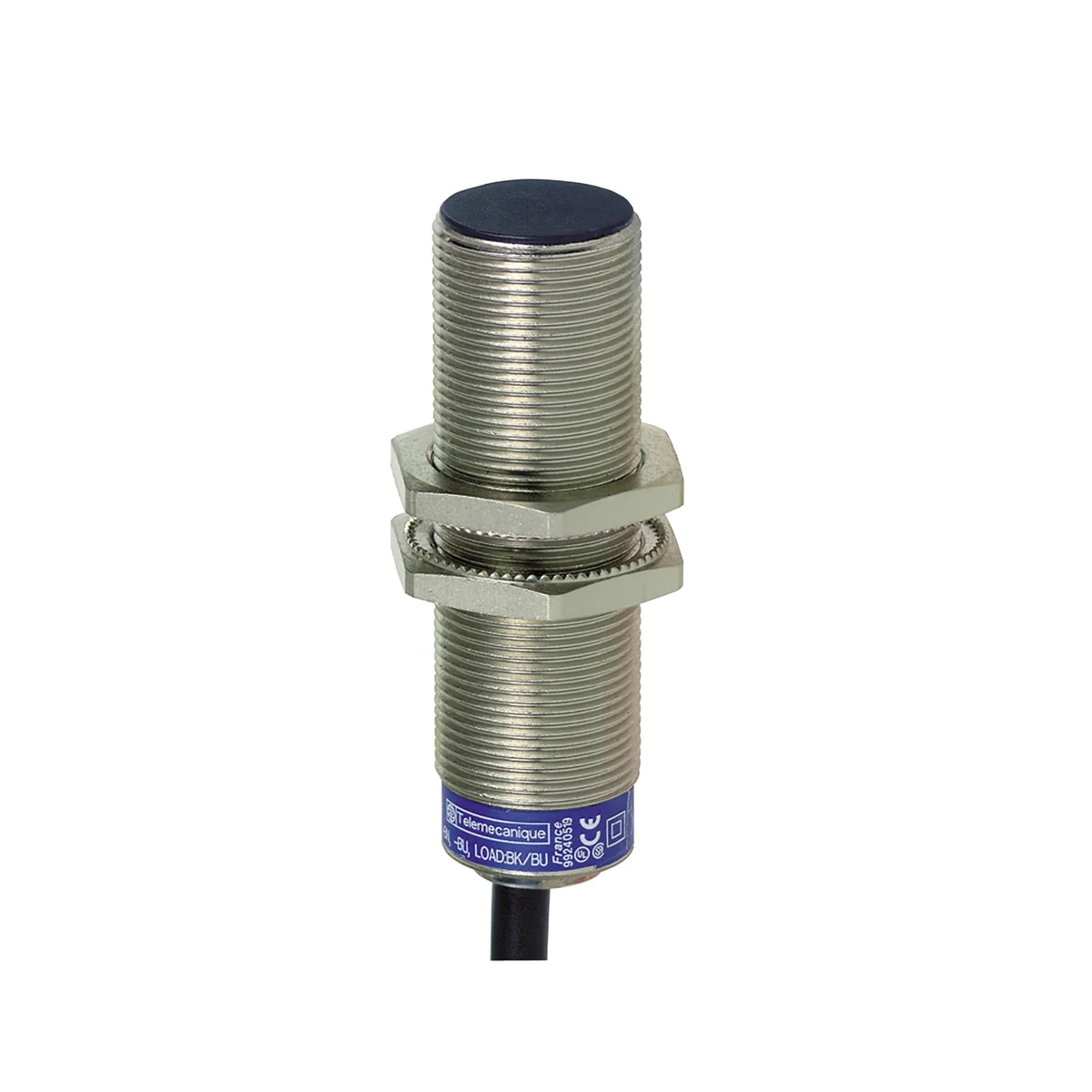

Inductive sensor M18 1NC 12-24V DC cable 2m XS1M18AB120
Indice locale:
API496SCHN
Numero di catalogo:
XS1M18AB120
Codice EAN:
3389110332780
Produttore:
SCHNEIDER ELECTRIC
Material: Metal
Prezzo:
1 386,90 zł
gross / pezzi
(inclusa IVA 23%)
Aggiungi alla richiesta di preventivo
Stampa
Chiedi informazioni sul prodotto
Descrizione del prodotto
Inductive sensor M18 1NC 12-24V DC cable 2m
Dati tecnici
-
MaterialMetal
-
PKWIU26.51.66.0
Altri dati tecnici
-
Length of sensor53 mm
-
Mechanical mounting condition for sensorConcise
-
Suitable for safety functionsNo
-
Type of electric connectionCable radial
-
Number of contact energized outputs with signalling function0
-
Number of protected contact energized outputs0
-
Type of interfaceNone
-
Construction type housingCylinder, screw-thread
-
CascadableNo
-
Performance level according to EN ISO 13849-1None
-
Supply voltage10 ... 36 V
-
Voltage typeAC/DC
-
With monitoring function downstream switching devicesNo
-
Compression-resistantNo
-
Explosion safety category for dustNone
-
Diameter sensor18 mm
-
Switching distance5 mm
-
Type of switch functionBreaker contact
-
Number of semiconductor outputs with signalling function1
-
Number of protected semiconductor outputs0
-
Type of actuationMetallic Target
-
Type of interface for safety communicationNone
-
Coating housingNickel-plated
-
SIL according to IEC 61508None
-
Max. output current at protected output20 mA
-
Rated control supply voltage DC12 ... 24 V
-
Switching frequency500 Hz
-
Housing materialMetal
-
Explosion safety category for gasNone
-
Interference resistance to magnetic fieldsImmune against magnetic DC- and AC-field
