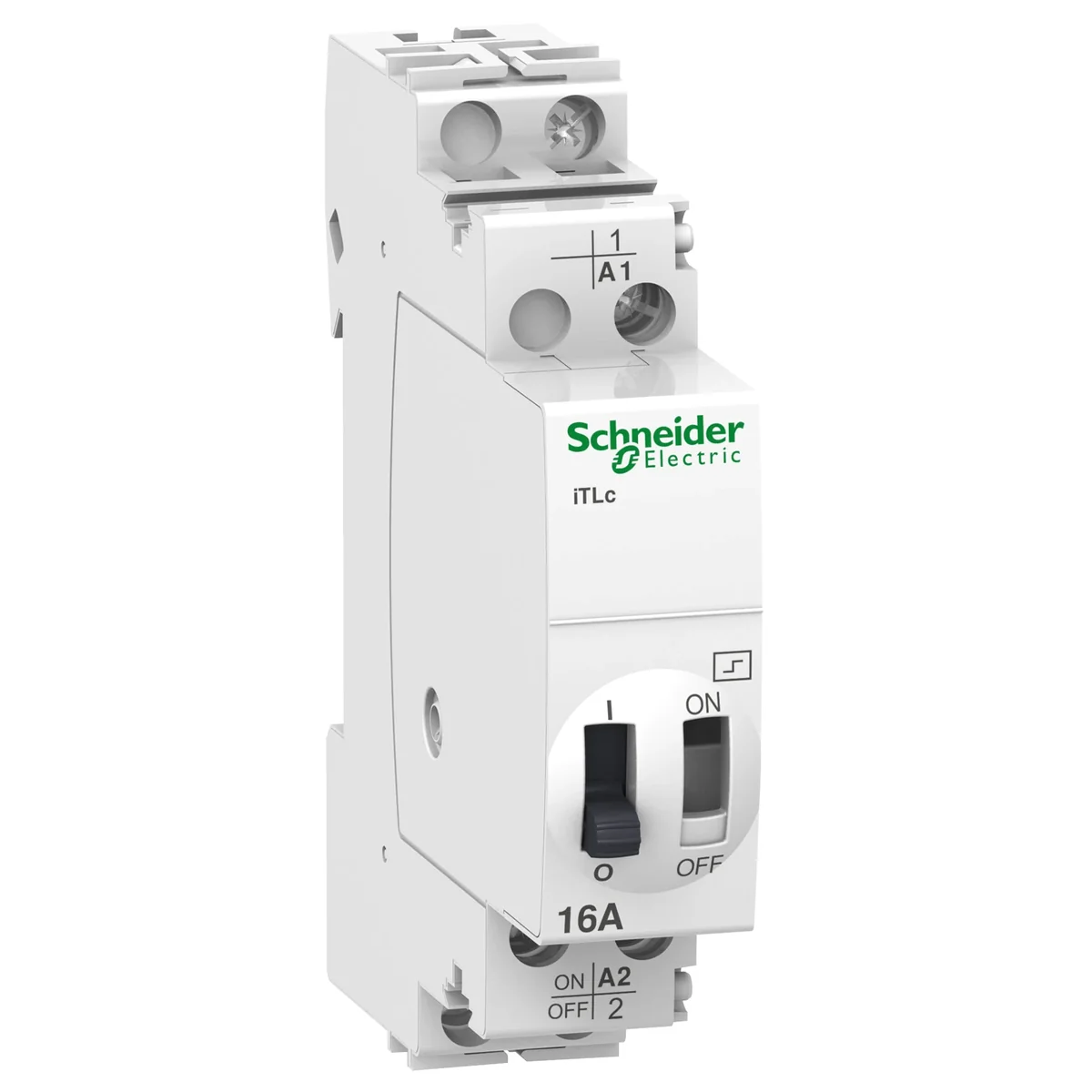

Impulse relay with central control iTLc-16-10-230 16A 1NO 230 VAC A9C33811

local index:
APE066SCHN
Catalog No:
A9C33811
EAN code:
3606480092077
Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 84
Price:
44,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Impulse relay with central control iTLc-16-10-230 16A 1NO 230 VAC

Technical data

  • Height [mm]
    84
  • PKWIU
    27.12.24.0

Other technical data

  • Function
    Mechanical for centralized control
  • Width in number of modular spacings
    1
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Type of control voltage 1
    AC
  • Rated switch current
    16 A
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    1300 VA
  • Max. load fluorescent lamp (parallel compensated)
    900 VA
  • Mounting method
    DIN rail
  • Built-in depth
    43.5 mm
  • Number of contacts as normally closed contact
    0
  • Control voltage 1
    230 ... 240 V
  • Frequency control voltage 1
    50 ... 60 Hz
  • Supply voltage
    24 ... 250 V
  • Max. incandescent lamp load
    1600 W
  • Max. load fluorescent lamp (Duo circuit)
    2000 VA
  • Max. switching current (cos phi = 0.6)
    16 A
