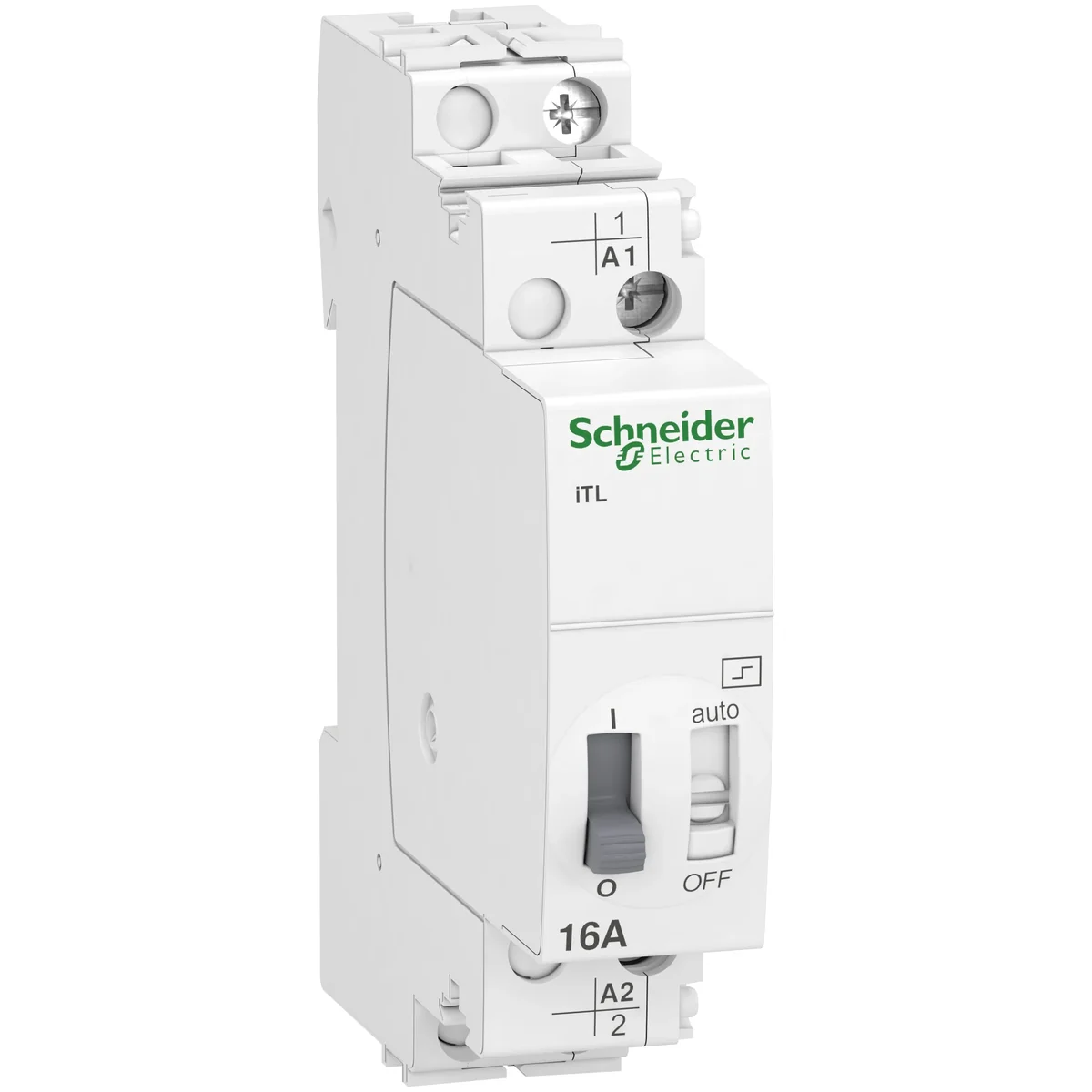

Impulse relay Acti9 iTL-16-10-230 16A 1NO 230VAC/110VDC A9C30811
local index:
APE038SCHN
Catalog No:
A9C30811
EAN code:
3606480088957
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Control voltage [V]:
230
Rated current [A]:
16
See full description
Price:
20,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Impulse relay Acti9 iTL-16-10-230 16A 1NO 230VAC/110VDC
Technical data
Control voltage [V]
230
PKWIU
27.12.24.0
Rated current [A]
16
Other technical data
Function
Mechanical switch
Width in number of modular spacings
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Type of control voltage 1
AC
Control voltage 2
110 ... 110 V
Rated switch current
16 A
Voltage type (supply voltage)
AC
Max. load fluorescent lamp
1300 VA
Max. load fluorescent lamp (parallel compensated)
900 VA
Mounting method
DIN rail
Built-in depth
43.5 mm
Number of contacts as normally closed contact
0
Control voltage 1
230 ... 240 V
Frequency control voltage 1
50 ... 60 Hz
Type of control voltage 2
DC
Supply voltage
24 ... 250 V
Max. incandescent lamp load
1600 W
Max. load fluorescent lamp (Duo circuit)
2000 VA
Max. switching current (cos phi = 0.6)
16 A
Files to download
ENVPEP110302EN.pdf
