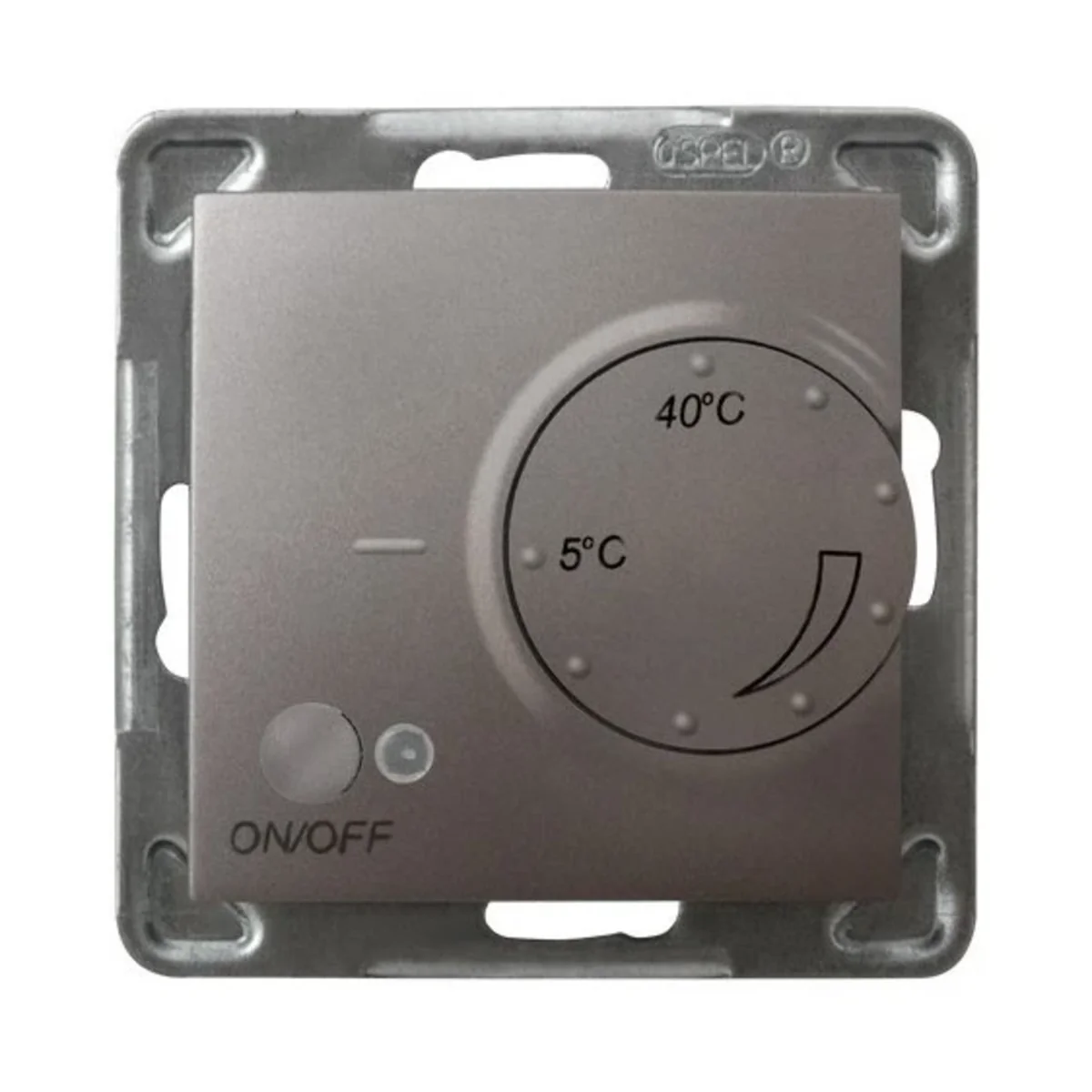

IMPRESJA Temperature regulator titanium, without frame RTP-1Y/M/23

Índice local:
APT004OSPE
Número de catálogo:
RTP-1Y/M/23
Código EAN:
5907577439293
Fabricante: OSPEL
Color: Silver
Material: Plastic
Installation: Flush-mounted
Precio:
115,04 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 2 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

The temperature controller with an underfloor sensor is designed to regulate the temperature in a room with electric or water underfloor heating. As standard, the regulator is equipped with an underfloor temperature sensor.

Incandescent load: 3200W, inductive: 750W.

Datos técnicos

  • Color
    Silver
  • Installation
    Flush-mounted
  • Family
    IMPRESSION
  • Level of security
    IP20
  • Accurate color
    Titanium
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Mounting method
    Thread clamps
  • Type
    Temperature regulators
  • PKWIU
    27.33.13.0

Otros datos técnicos

  • Model
    Other
  • With receiver
    No
  • Suitable for heating
    Yes
  • Number of cooler outputs
    0
  • Adjustable differential
    No
  • With sound indicator
    No
  • Mounting method
    Flush-mounted
  • With display
    No
  • With tap water circuit
    No
  • Max. contact load
    10 A
  • Degree of protection (NEMA)
    Other
  • Colour
    Other

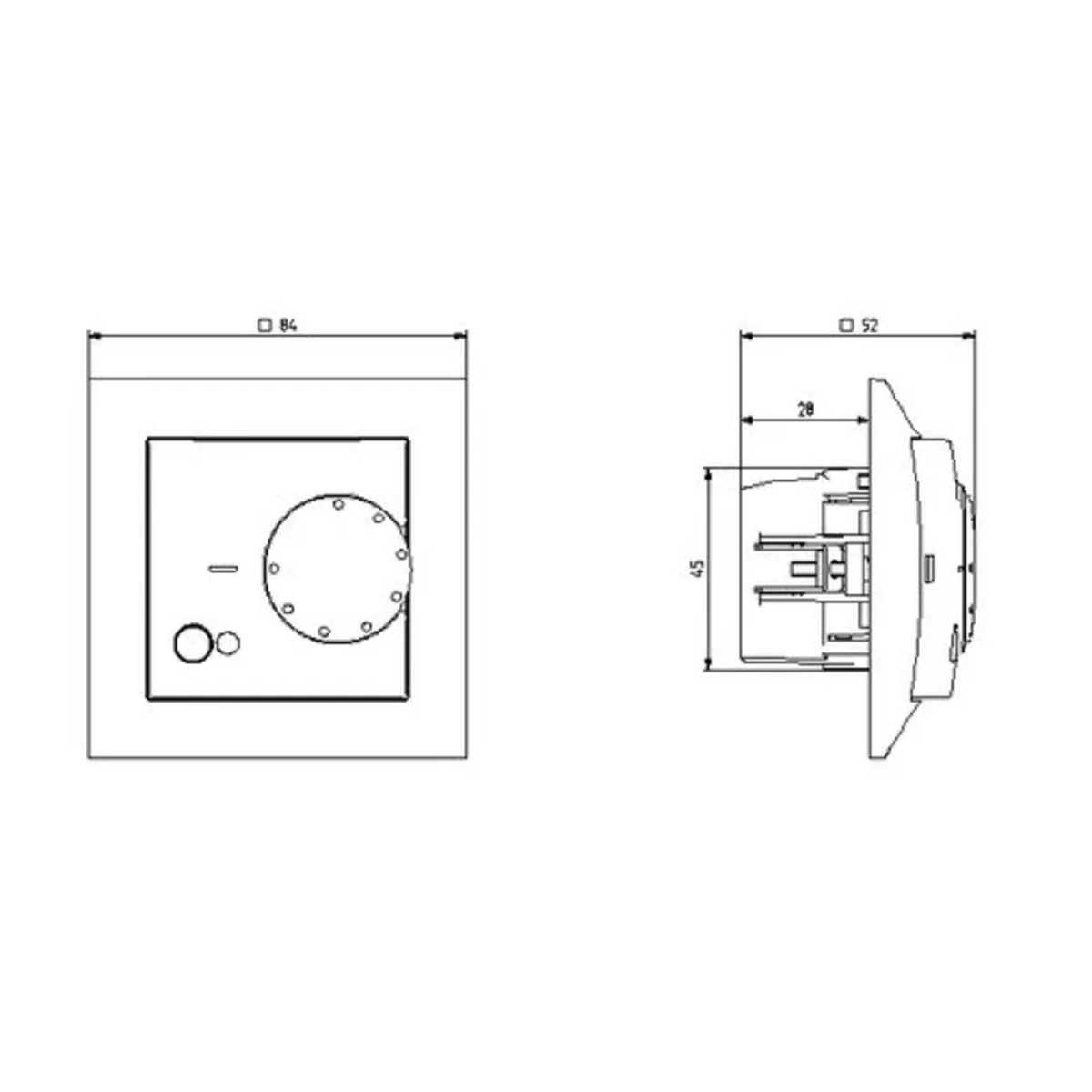

  • Height
    71 mm
  • Depth
    52 mm
  • Type of power supply
    230 V AC
  • External sensor
    Yes
  • Number of heater outputs
    1
  • Differential value
    0 ... 0.5 K
  • Temperature readable
    No
  • Sensor/feeler type
    Resistance sensor
  • Number of modules (module system)
    1
  • Operation
    Button
  • Max. contact voltage
    230 V
  • Degree of protection (IP)
    IP20
  • Explosion-proof
    No
  • RAL-number
    7048
  • Width
    71 mm

Detalles del fabricante

  • Fabricante
    OSPEL S.A.
  • Dirección
    42-436 Wierbka Główna 128 Polska

Empaquetado a granel

una especie de paquete Pudełko
Cantidad 5 uds.
Ancho (m) 0,162
Longitud (m) 0,237
Profundidad (m) 0,090
