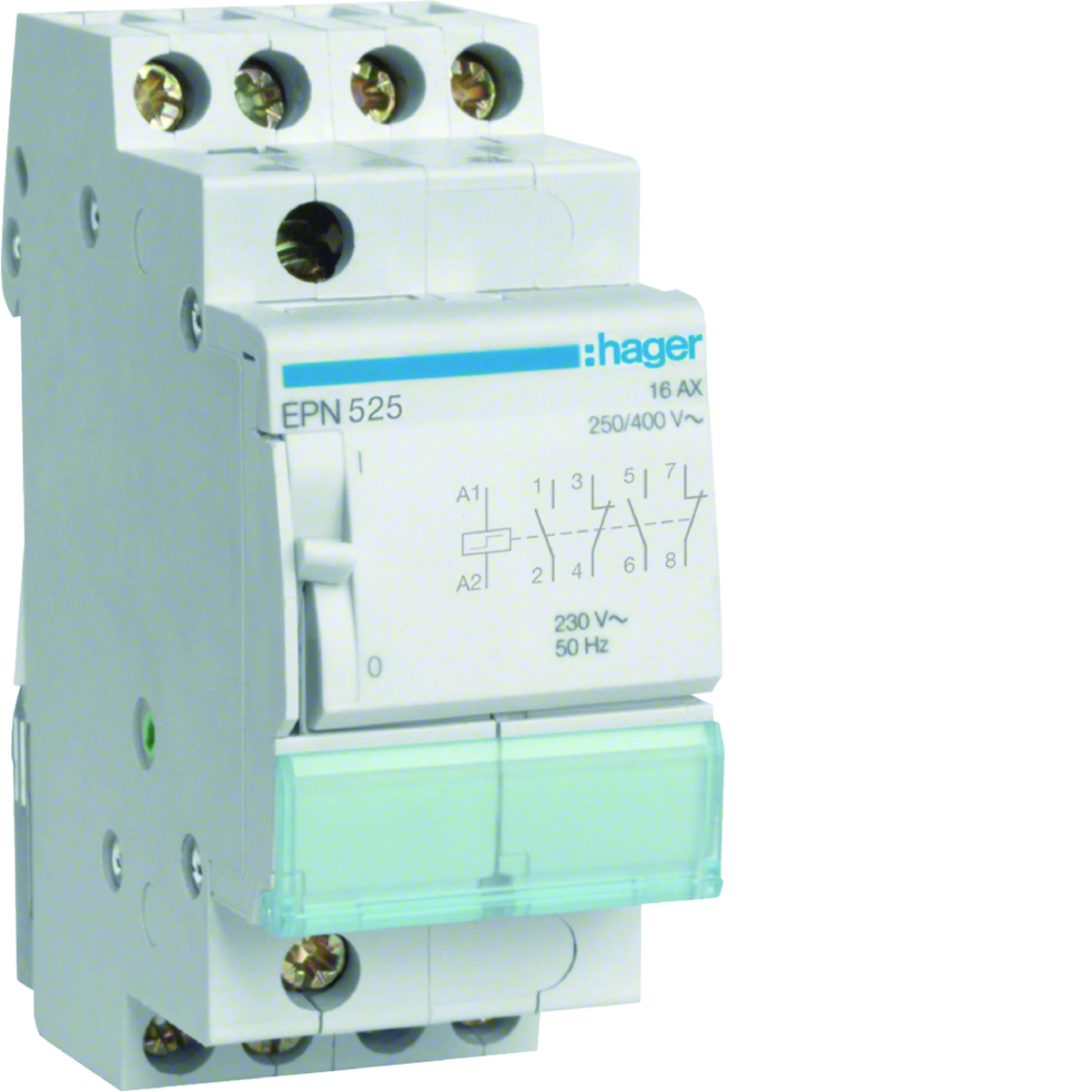

imp. breaker 230V 2Z+2R/16A EPN525

local index:
APP028HAGE
Catalog No:
EPN525
EAN code:
3250612369485
Manufacturer: HAGER
Number of modules: 2
AC control voltage [V]: 230
DC control voltage [V]: 110
Price:
51,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

imp. breaker 230V,2Z+2R/16A
• for controlling circuits up to 16 A
• can be switched on and off centrally
• possibility to connect auxiliary contacts
• power-on indicator and manual override
• after a power failure, the contacts return to the starting position (without state memory).

Technical data

  • Number of modules
    2
  • DC control voltage [V]
    110
  • Contact
    2Z+2R
  • PKWIU
    27.12.24.0
  • AC control voltage [V]
    230
  • Rated voltage [V]
    230
  • Number of modules
    2

Other technical data

  • Function
    Mechanical switch
  • Width in number of modular spacings
    35
  • Number of contacts as normally open contact
    2
  • Number of contacts as change-over contact
    0
  • Type of control voltage 1
    AC
  • Control voltage 2
    110 ... 110 V
  • Frequency control voltage 2
    50 ... 60 Hz
  • Supply voltage
    250 ... 250 V
  • Max. switching current (cos phi = 0.6)
    16 A
  • Mounting method
    DIN rail
  • Built-in depth
    63 mm
  • Number of contacts as normally closed contact
    2
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 60 Hz
  • Type of control voltage 2
    DC
  • Rated switch current
    16 A
  • Voltage type (supply voltage)
    AC

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,260 0,279 17,120 433,880
Width (m) 0,095 0,080 0,315 0,800
Length (m) 0,080 0,040 0,215 1,050
Depth (m) 0,040 0,095 0,360 1,200
