imp. breaker 230V 2Z/16A EPN520

Name: imp. breaker 230V 2Z/16A
Brand: HAGER
SKU: APP027HAGE
Price: 31.86 PLN
Availability: InStock

local index:

APP027HAGE

Catalog No:

EPN520

EAN code:

3250612369539

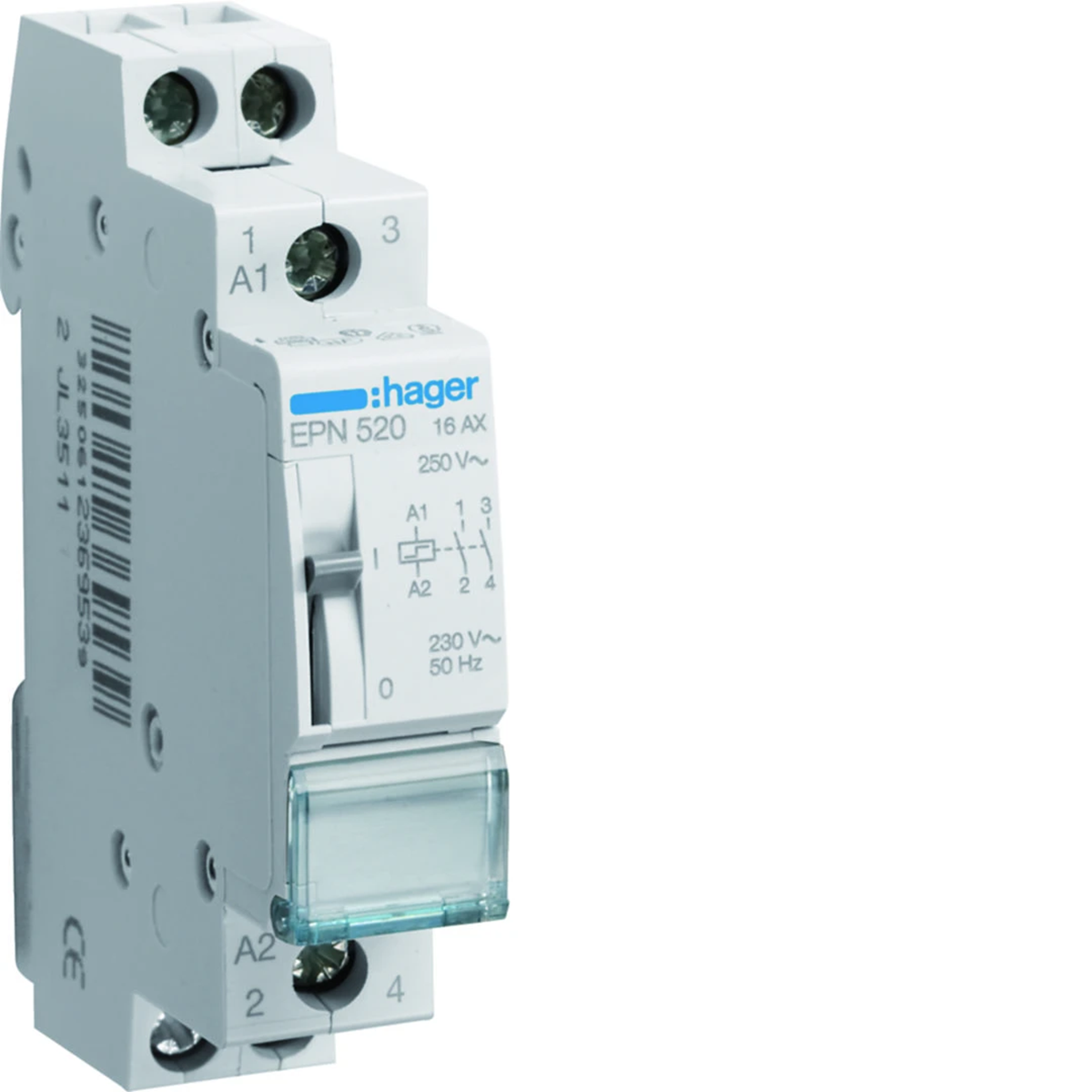

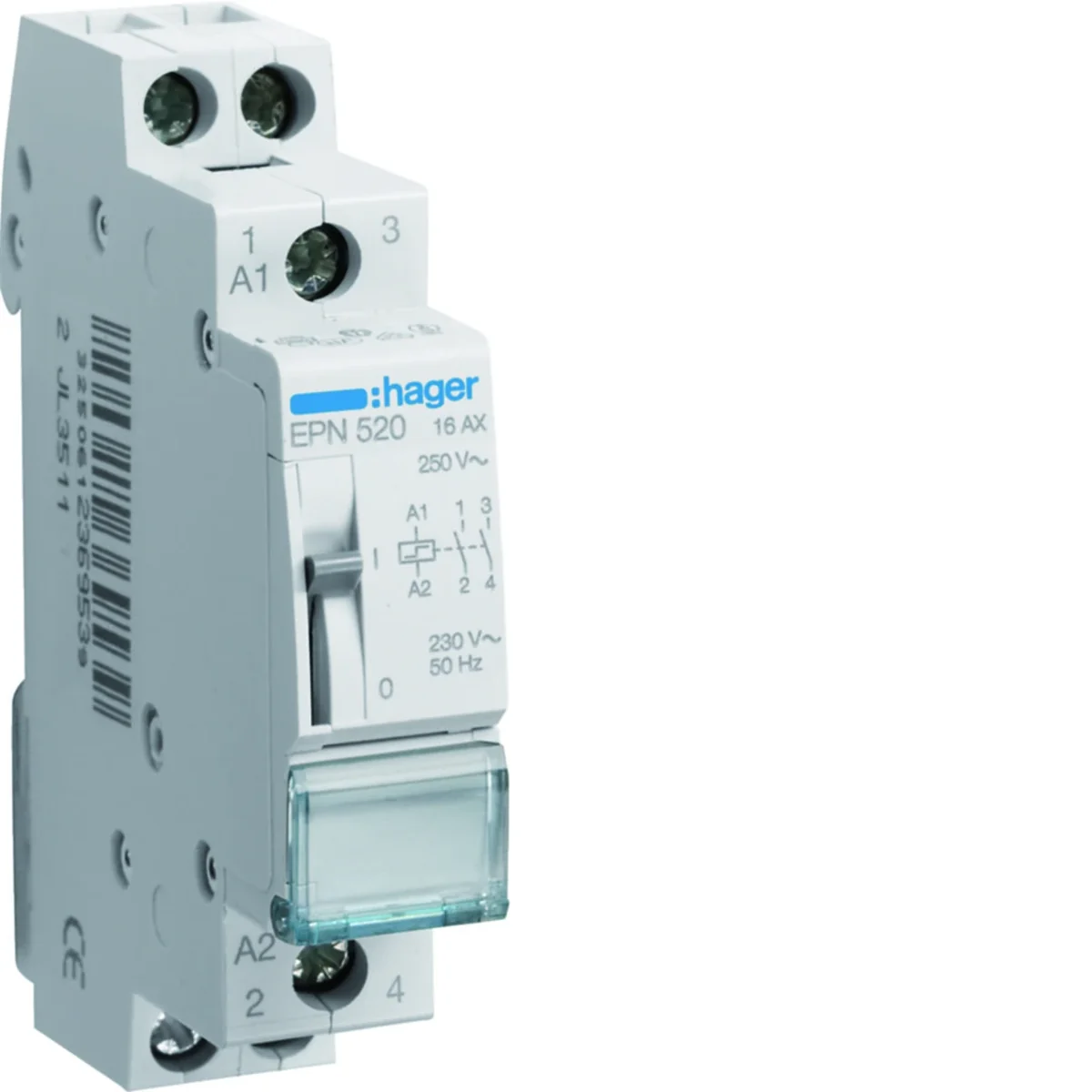

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 63

Number of modules: 1

AC control voltage [V]: 230

See full description

Price:

31,86 €

gross / pcs.

(including VAT 23%)

Accessible 18 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

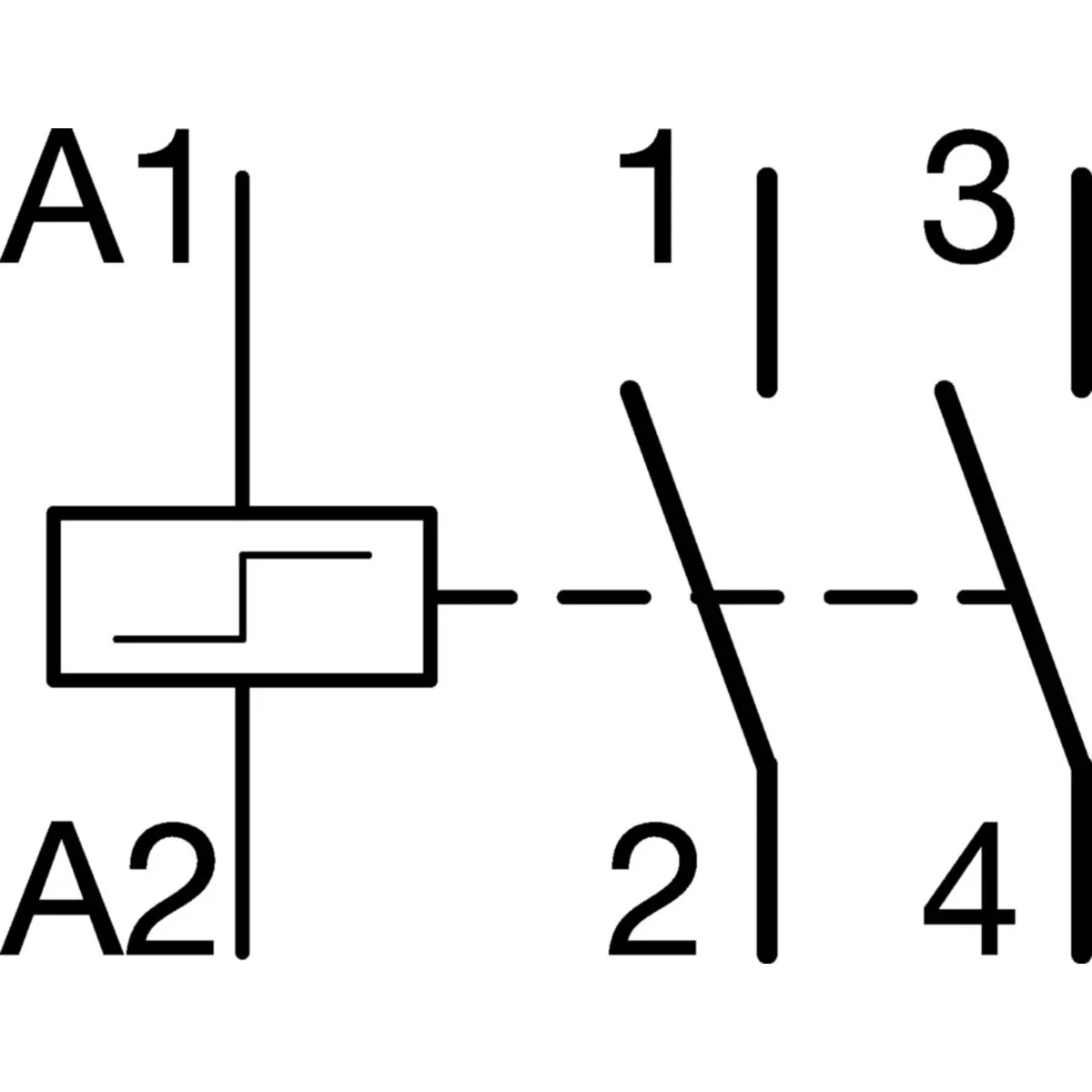

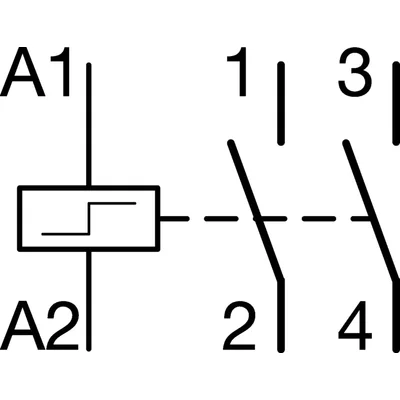

imp. breaker 230V, 2Z/16A
• for controlling circuits up to 16 A
• can be switched on and off centrally
• possibility to connect auxiliary contacts
• power-on indicator and manual override
• after a power failure, the contacts return to the starting position (without state memory).

Technical data

Depth [mm]

63
AC control voltage [V]

230
Rated voltage [V]

230
Power dissipation [W]

2.4
Height [mm]

83
PKWIU

27.12.24.0

Number of modules

1
DC control voltage [V]

110
Rated current [A]

16
Width [mm]

17.5
Number of modules

1

Other technical data

Function

Mechanical switch
Width in number of modular spacings

17.5
Number of contacts as normally open contact

2
Number of contacts as change-over contact

0
Type of control voltage 1

AC
Control voltage 2

110 ... 110 V
Frequency control voltage 2

50 ... 60 Hz
Supply voltage

250 ... 250 V
Max. switching current (cos phi = 0.6)

16 A

Mounting method

DIN rail
Built-in depth

63 mm
Number of contacts as normally closed contact

0
Control voltage 1

230 ... 230 V
Frequency control voltage 1

50 ... 60 Hz
Type of control voltage 2

DC
Rated switch current

16 A
Voltage type (supply voltage)

AC

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	108 pcs.	2592 pcs.
Weight (kg)	0,128	0,141	15,644	398,456
Width (m)	0,100	0,075	0,300	0,800
Length (m)	0,080	0,025	0,225	1,050
Depth (m)	0,025	0,090	0,400	1,200
