imp. breaker 230V 1Z/16A EPN510

Name: imp. breaker 230V 1Z/16A
Brand: HAGER
SKU: APP021HAGE
Price: 26.97 PLN
Availability: InStock

local index:

APP021HAGE

Catalog No:

EPN510

EAN code:

3250612369614

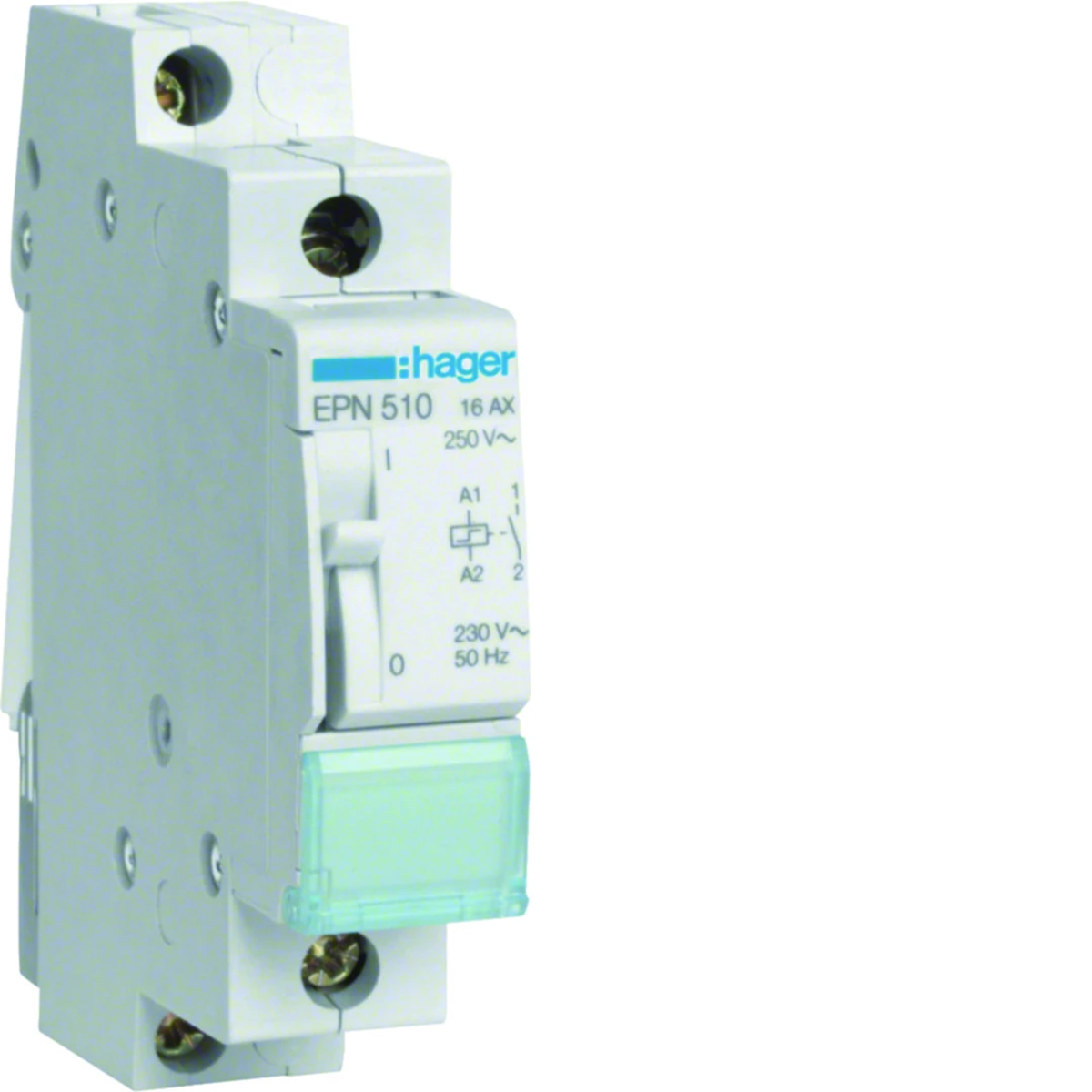

Click on the photo to enlarge

Manufacturer: HAGER

Rated voltage [V]: 230

See full description

Price:

26,97 €

gross / pcs.

(including VAT 23%)

Accessible 37 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

imp. breaker 230V, 1Z/16A• for controlling circuits up to 16 A
• can be switched on and off centrally
• possibility to connect auxiliary contacts
• power-on indicator and manual override
• after a power failure, the contacts return to the starting position (without state memory).

Technical data

Rated voltage [V]

230

PKWIU

27.12.24.0

Other technical data

Function

Mechanical switch
Width in number of modular spacings

17.5
Number of contacts as normally open contact

1
Number of contacts as change-over contact

0
Type of control voltage 1

AC
Control voltage 2

110 ... 110 V
Frequency control voltage 2

50 ... 60 Hz
Supply voltage

250 ... 250 V
Max. switching current (cos phi = 0.6)

16 A

Mounting method

DIN rail
Built-in depth

63 mm
Number of contacts as normally closed contact

0
Control voltage 1

230 ... 230 V
Frequency control voltage 1

50 ... 60 Hz
Type of control voltage 2

DC
Rated switch current

16 A
Voltage type (supply voltage)

AC

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	1 pcs.	108 pcs.	2592 pcs.
Weight (kg)	0,130	14,785	377,840
Width (m)	0,075	0,315	0,800
Length (m)	0,025	0,215	1,050
Depth (m)	0,090	0,370	1,200
