imp. breaker 230V 1Z/16A electronic 1 NO EPN410

Name: imp. breaker 230V 1Z/16A electronic 1 NO
Brand: HAGER
SKU: APP029HAGE
Price: 91.66 PLN

local index:

APP029HAGE

Catalog No:

EPN410

EAN code:

3250612369287

imp. breaker 230V 1Z/16A electronic 1 NO

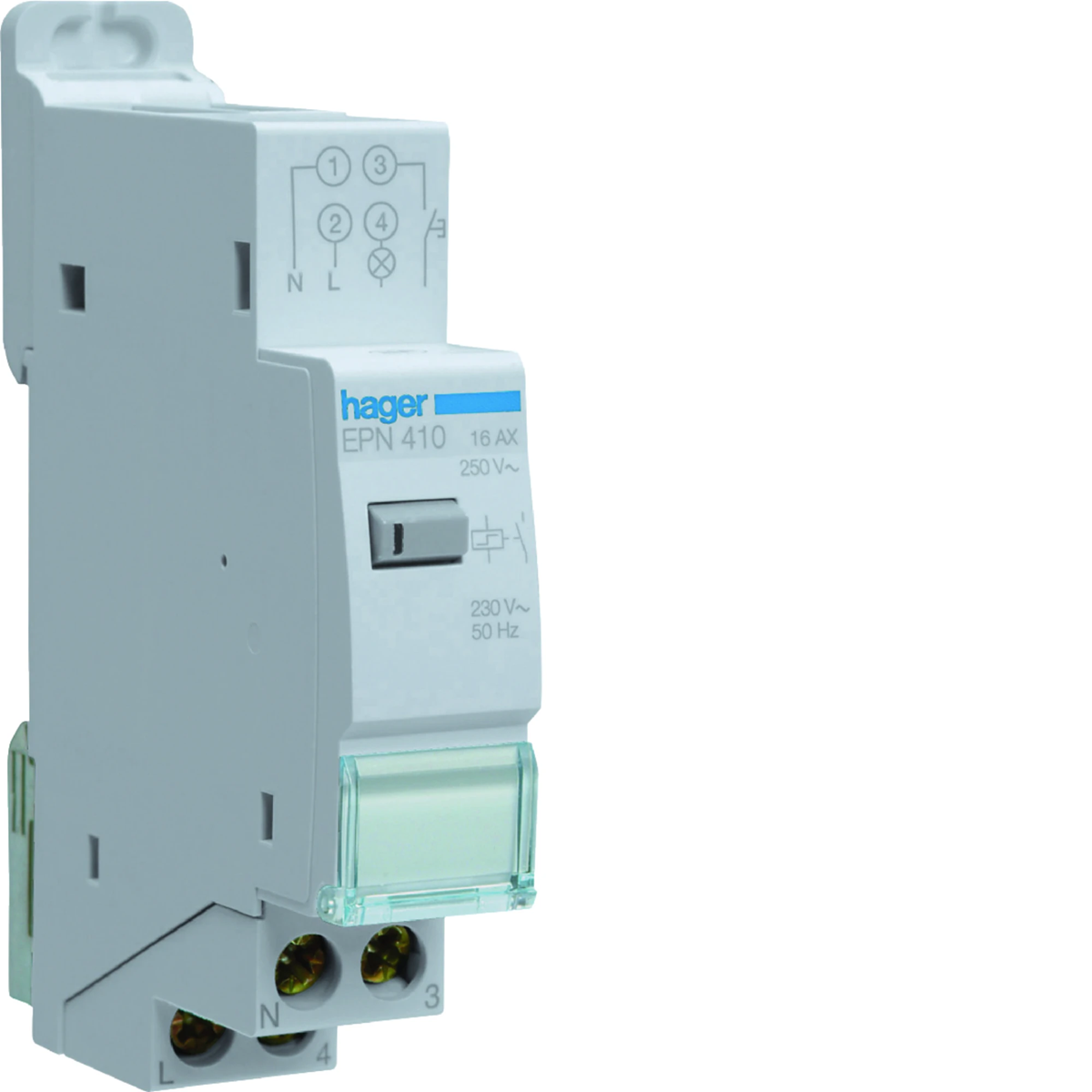

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 60

Number of modules: 1

Maximum input power [VA]: 5

See full description

Price:

91,66 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Electronic bistable relays for use in installations where a silent switching process is important.
• low noise
• standards:
PN-EN 60669-1
PN-EN 60669-2-1
PN-EN 60669-2-2
• for impulse control of lighting circuits up to 16 A
• 230 V inputs and outputs are bridged in the device
• in the case of devices with different control voltages, there is a galvanic separation between low and low voltages (> 4 kV)
• devices with high continuous current for illuminated buttons (up to 100 mA)
• devices with adjustable disconnection delay
• low inrush and hold current
• accessories: auxiliary contacts EPN 051 and EPN 053

Technical data

Depth [mm]

60
Maximum input power [VA]

5
Rated current [A]

16
Width [mm]

18
Number of modules

1

Number of modules

1
Rated voltage [V]

230
Power dissipation [W]

1.2
Height [mm]

85
PKWIU

27.12.24.0

Other technical data

Function

Electronic switch
Width in number of modular spacings

18
Number of contacts as normally open contact

1
Number of contacts as change-over contact

0
Type of control voltage 1

AC
Control voltage 2

0 ... 0 V
Frequency control voltage 2

50 ... 60 Hz
Supply voltage

250 ... 250 V
Max. incandescent lamp load

1500 W
Max. load fluorescent lamp (Duo circuit)

600 VA
Max. switching current (cos phi = 0.6)

16 A

Mounting method

DIN rail
Built-in depth

60 mm
Number of contacts as normally closed contact

0
Control voltage 1

230 ... 230 V
Frequency control voltage 1

50 ... 60 Hz
Type of control voltage 2

AC
Rated switch current

16 A
Voltage type (supply voltage)

AC
Max. load fluorescent lamp

280 VA
Max. load fluorescent lamp (parallel compensated)

300 VA

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	108 pcs.	2592 pcs.
Weight (kg)	0,071	0,080	9,355	247,520
Width (m)	0,018	0,080	0,315	0,800
Length (m)	0,087	0,025	0,215	1,098
Depth (m)	0,065	0,095	0,360	1,200
