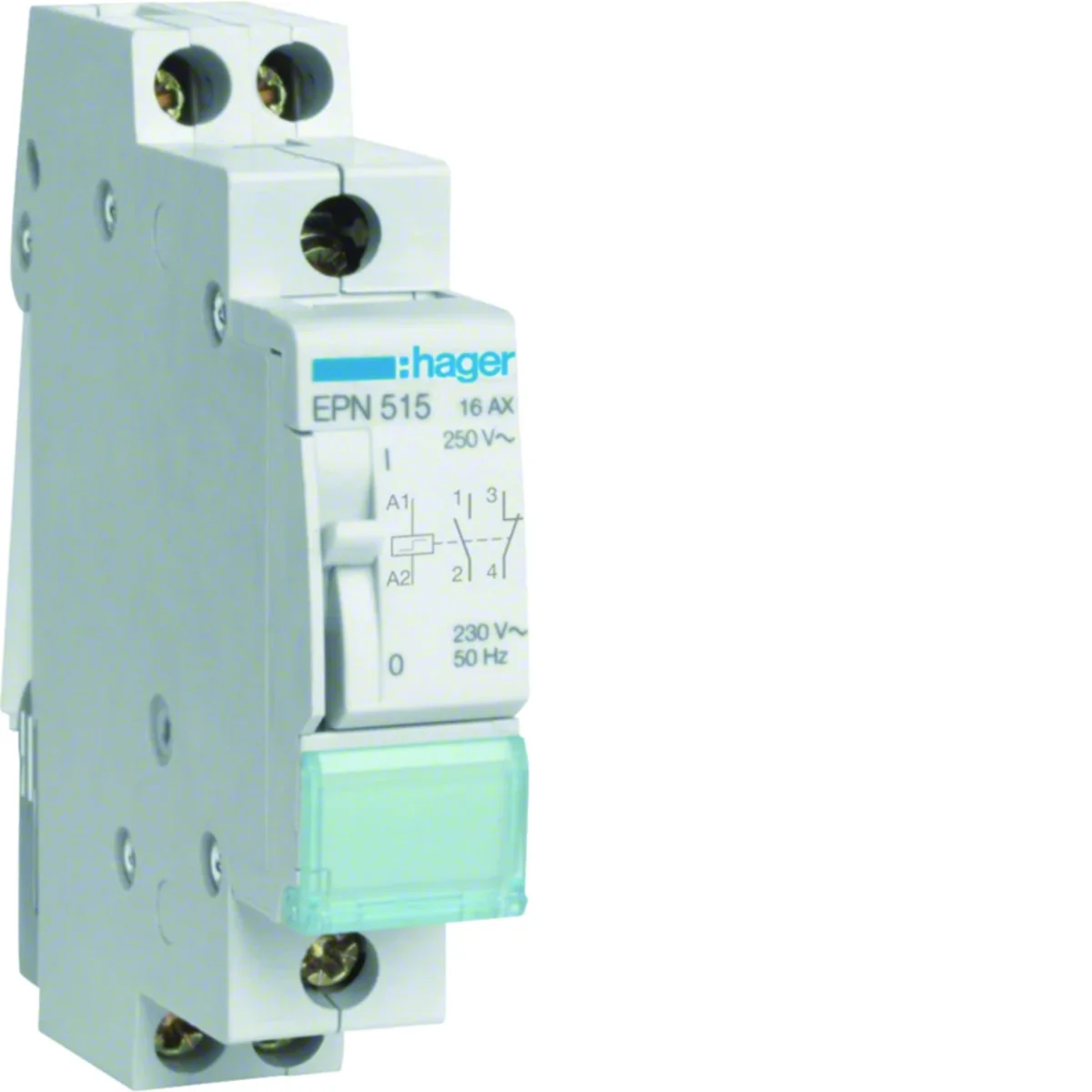

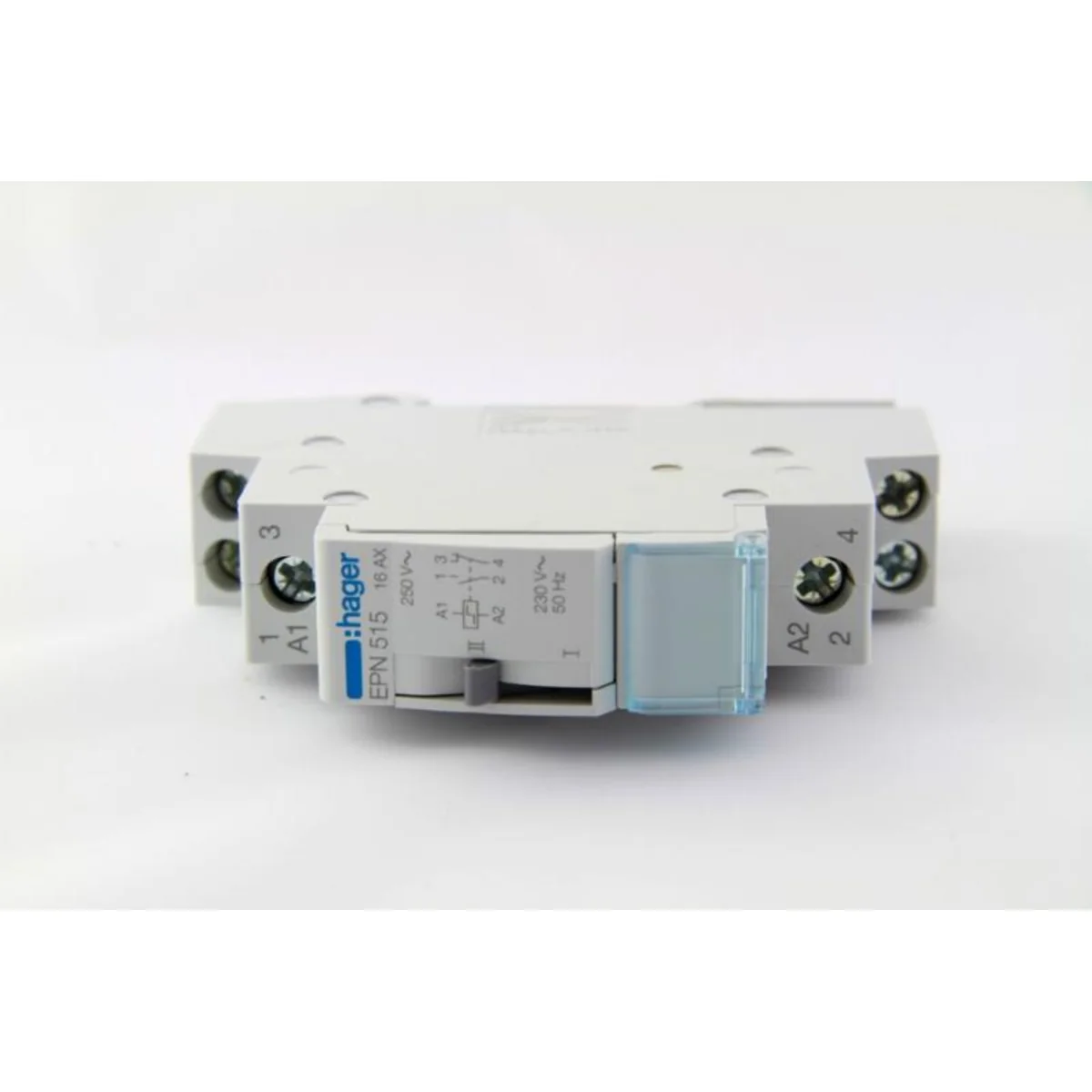

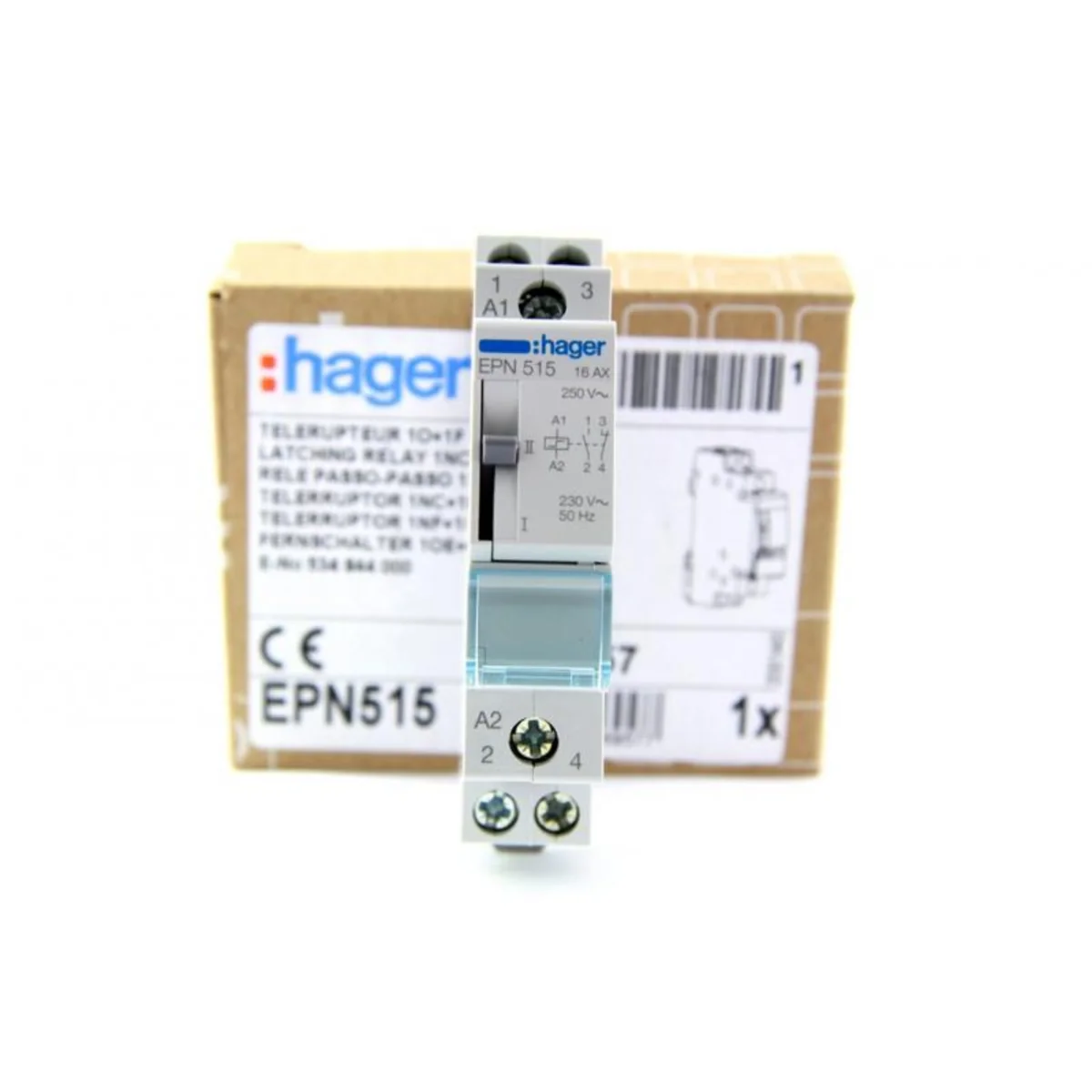

imp. breaker 230V 1NC+1R/16A EPN515

Name: imp. breaker 230V 1NC+1R/16A
Brand: HAGER
SKU: APP023HAGE
Price: 32.51 PLN
Availability: InStock

local index:

APP023HAGE

Catalog No:

EPN515

EAN code:

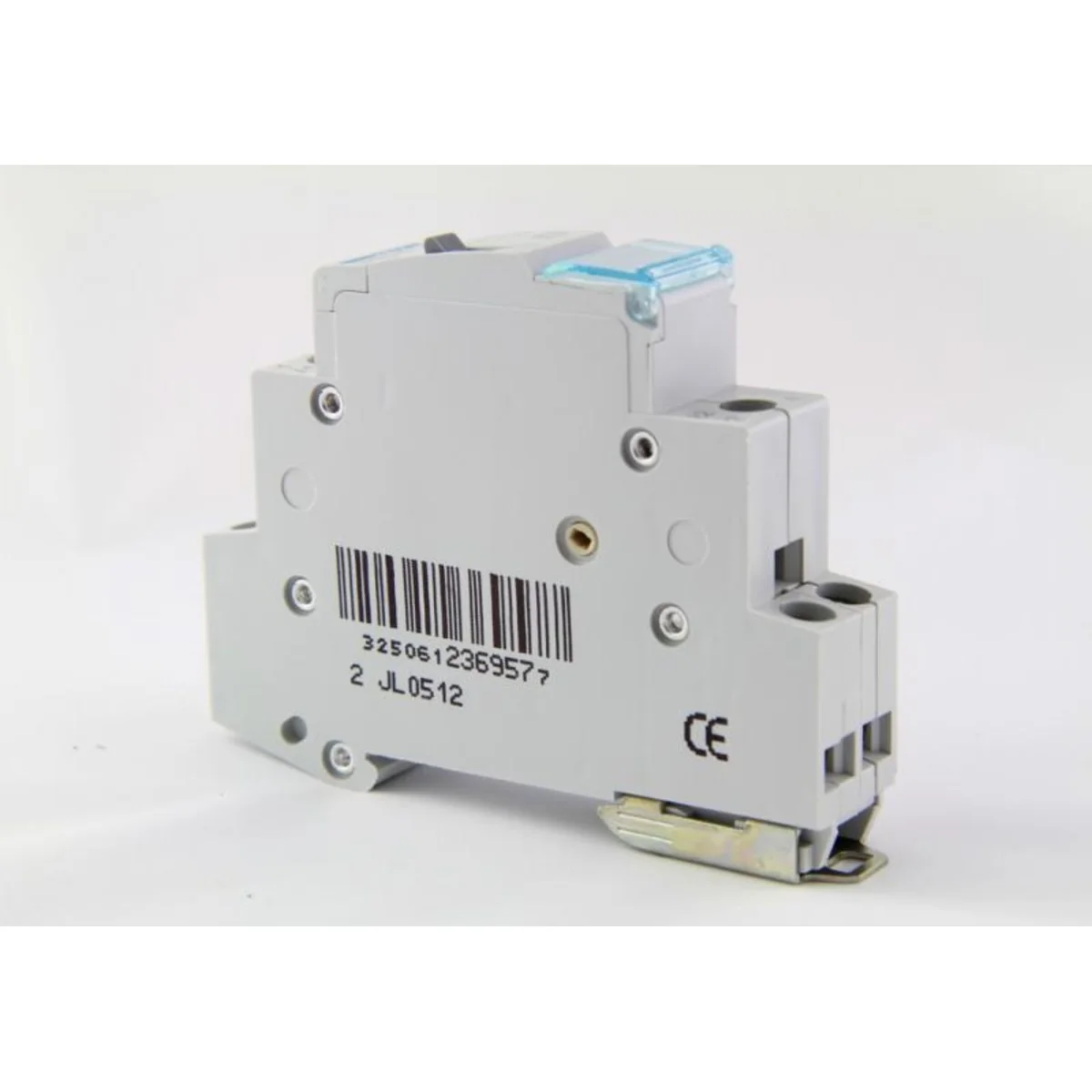

3250612369577

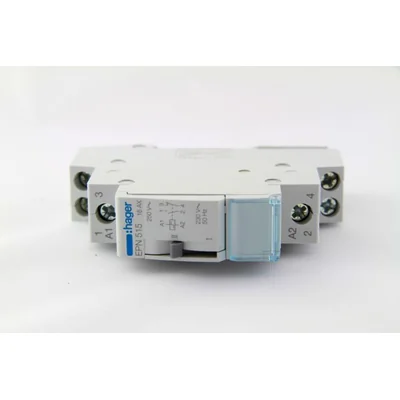

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 63

AC control voltage [V]: 230

DC control voltage [V]: 110

See full description

Price:

32,51 €

gross / pcs.

(including VAT 23%)

Accessible 24 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

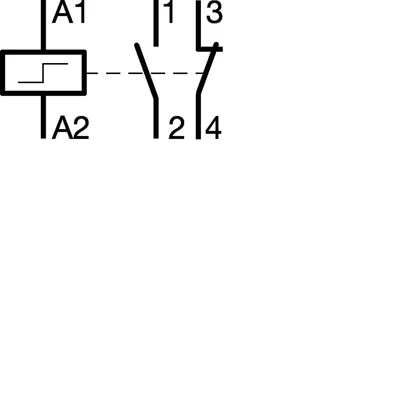

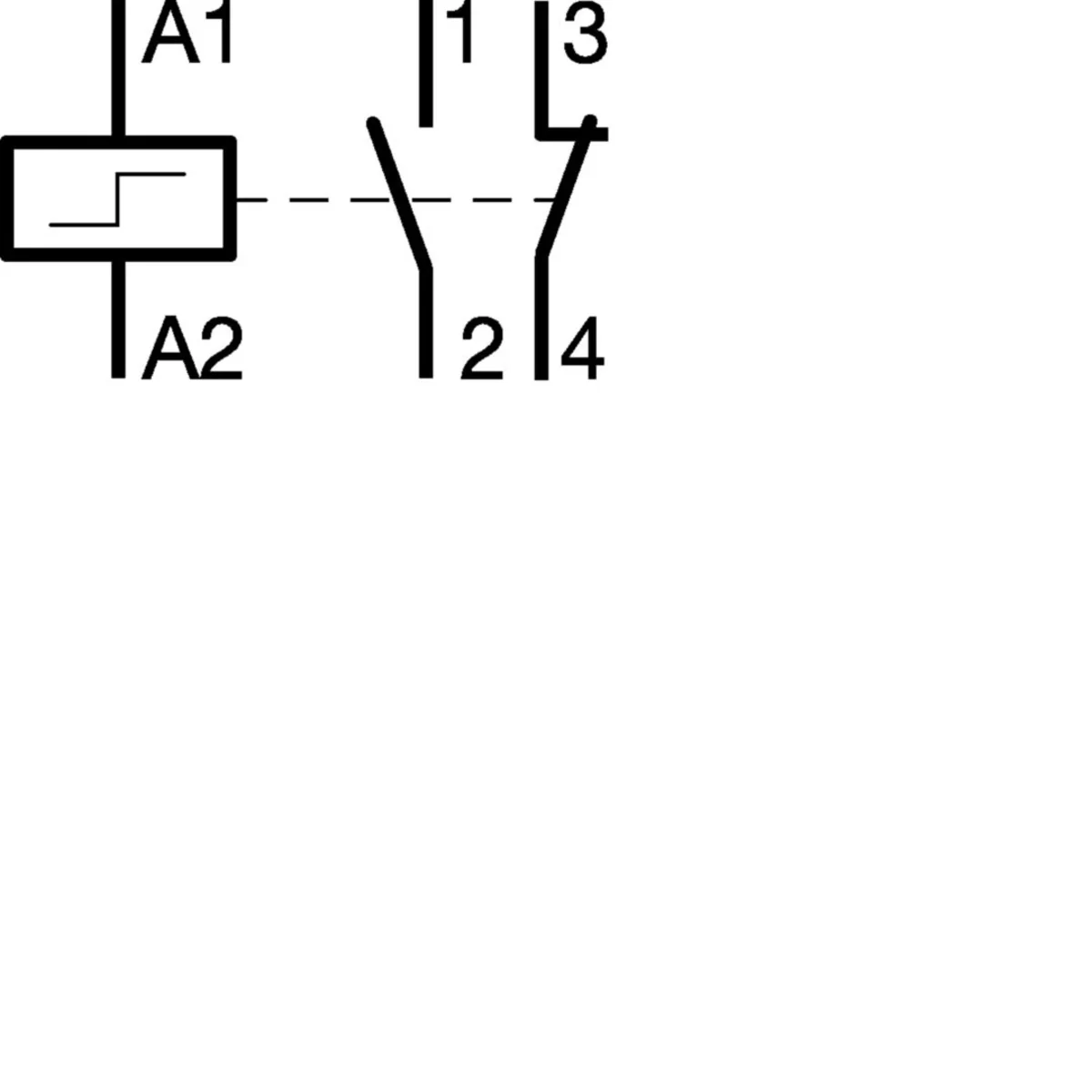

imp. breaker 230V, 1NC+1R/16A
• for controlling circuits up to 16 A
• can be switched on and off centrally
• possibility to connect auxiliary contacts
• power-on indicator and manual override
• after a power failure, the contacts return to the starting position (without state memory).

Technical data

Depth [mm]

63
DC control voltage [V]

110
Rated current [A]

16
Width [mm]

17.5
PKWIU

27.12.24.0

AC control voltage [V]

230
Rated voltage [V]

230
Power dissipation [W]

1.2
Height [mm]

83

Other technical data

Function

Mechanical switch
Width in number of modular spacings

17.5
Number of contacts as normally open contact

1
Number of contacts as change-over contact

0
Type of control voltage 1

AC
Control voltage 2

110 ... 110 V
Frequency control voltage 2

50 ... 60 Hz
Supply voltage

250 ... 250 V
Max. switching current (cos phi = 0.6)

16 A

Mounting method

DIN rail
Built-in depth

63 mm
Number of contacts as normally closed contact

1
Control voltage 1

230 ... 230 V
Frequency control voltage 1

50 ... 60 Hz
Type of control voltage 2

DC
Rated switch current

16 A
Voltage type (supply voltage)

AC

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	108 pcs.	2592 pcs.
Weight (kg)	0,128	0,140	15,715	400,160
Width (m)	0,009	0,075	0,315	0,800
Length (m)	0,008	0,020	0,215	1,050
Depth (m)	0,002	0,095	0,370	1,200
