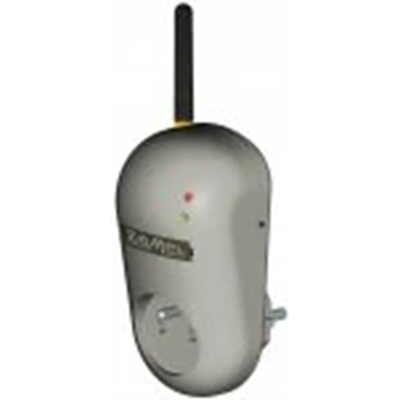

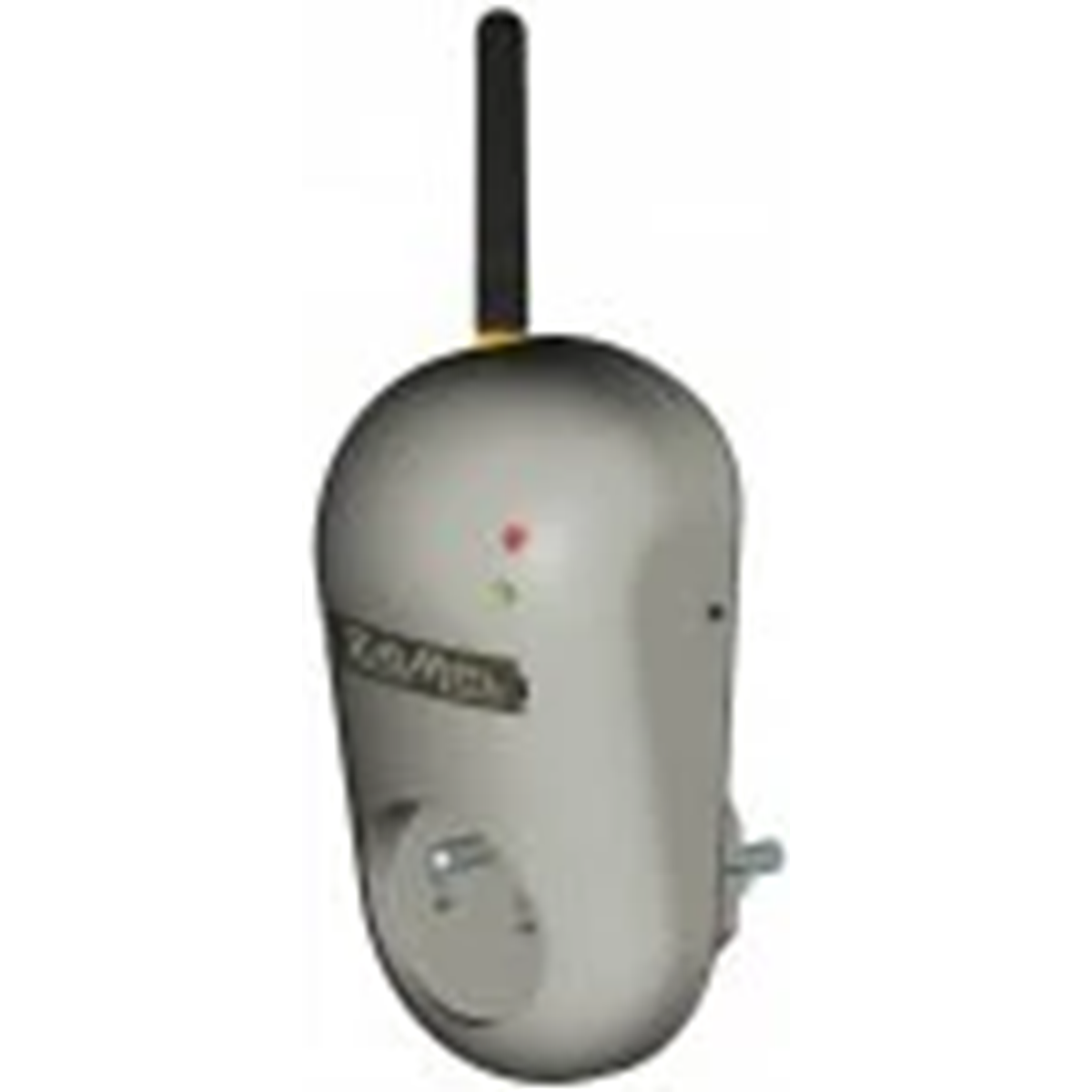

GSM remote switch type: GRG-01 EXF10000003

The GSM remote switch is used to control lighting, heating, etc. using a GSM telephone (SMS or / and incoming phone call). Mounted to a 230 V~ wall socket, it has the ability to remotely restart (change the state of the relay for a given time) of the connected device. The device has a wide range of security features, such as a list of allowed numbers, access password, etc. The operating range of the device is limited only by the GSM network infrastructure. The device does not have an operator lock (SIMLOCK).

Technical data:

• rated supply voltage: 230 V~
• optical indication of supply voltage: LED, green
• rated power consumption: 0.5 W / 2.5 W (GSM operation)
• GSM frequency : 900 / 1800 / 1900 MHz
• operating range: limited by the structure of the GSM network
• GSM status signaling: LED, two-color (green)
• optical status signaling relay: LED, two-color (red)
• parameters of output contacts: 1 NO (make) 16 A / 250 V~ AC1 4000 VA
• operating temperature: -10 ÷ ; +55 °C
• working position: any
• enclosure mounting: 230 V power socket~
• IP rating: 20
• protection class: II
• overvoltage category: II
• pollution degree: 2
• surge voltage: 1 kV
• dimensions: 160 x 66 x 90 mm


Advantages:

• convenient control of hard-to-reach devices (ventilation, heating, others)
• easy installation directly in a standard 230 V plug socket~
• optical signaling of operation (power supply, relay status, GSM modem status)
• low power consumption power, the possibility of continuous operation
• three operating modes (switching on, switching off, restart - changing the position of the relay contacts for a specified time)
