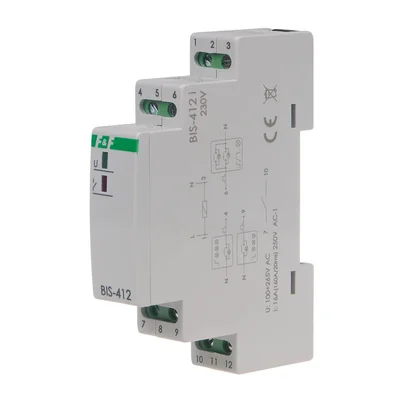

Group bistable relay BIS-412-LED

local index:
APE048FIFQ
Catalog No:
BIS-412-LED
EAN code:
5908312598343
Manufacturer: F&F
Number of contacts: 1NO 0NC
Tripping delay [s]: 0.1/0.2
Level of security: IP20
Price:
25,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 21 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electronic bistable impulse relays enable switching on or off lighting or other device from several different points by means of parallel connected, momentary (bell) control switches. The receiver is switched on after a current pulse caused by pressing any momentary (bell) button connected to the relay. After the next pulse, the receiver will turn off. The relay does not have a "memory" of the contact position, i.e. in the event of a power failure and its return, the relay contact will be switched off. This makes it impossible to automatically turn on the controlled receivers without supervision after a long-term power failure.

Technical data

  • Number of contacts
    1NO 0NC
  • Level of security
    IP20
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.2
  • Standby power consumption [W]
    0.15
  • PKWIU
    27.12.23.0
  • Tripping delay [s]
    0.1/0.2
  • Contact activation signaling
    red LED
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • Power consumption in the on state [W]
    0.6
  • Control impulse
    110/265V AC <20mA

Other technical data

  • Function
    Electronic switch
  • Width in number of modular spacings
    1
  • Control voltage 1
    100 ... 265 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    100 ... 265 V
  • Max. switching current (cos phi = 0.6)
    16 A
  • Mounting method
    DIN rail
  • Built-in depth
    0 mm
  • Type of control voltage 1
    AC
  • Rated switch current
    16 A
  • Voltage type (supply voltage)
    AC
  • Suitable for manual operation
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,080
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
