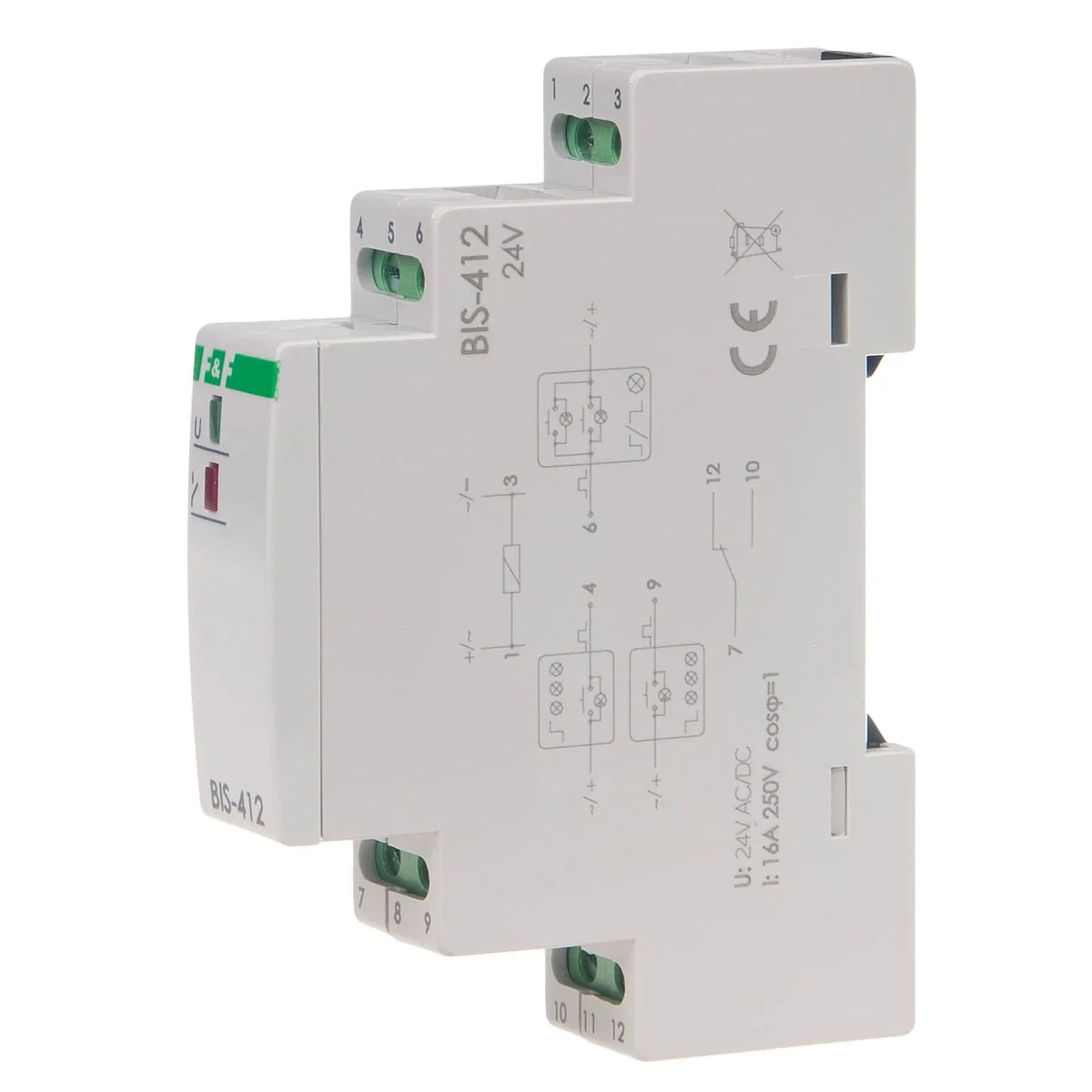

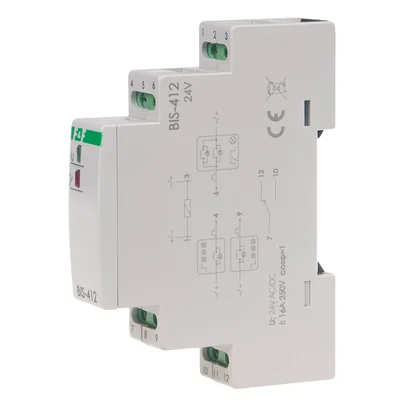

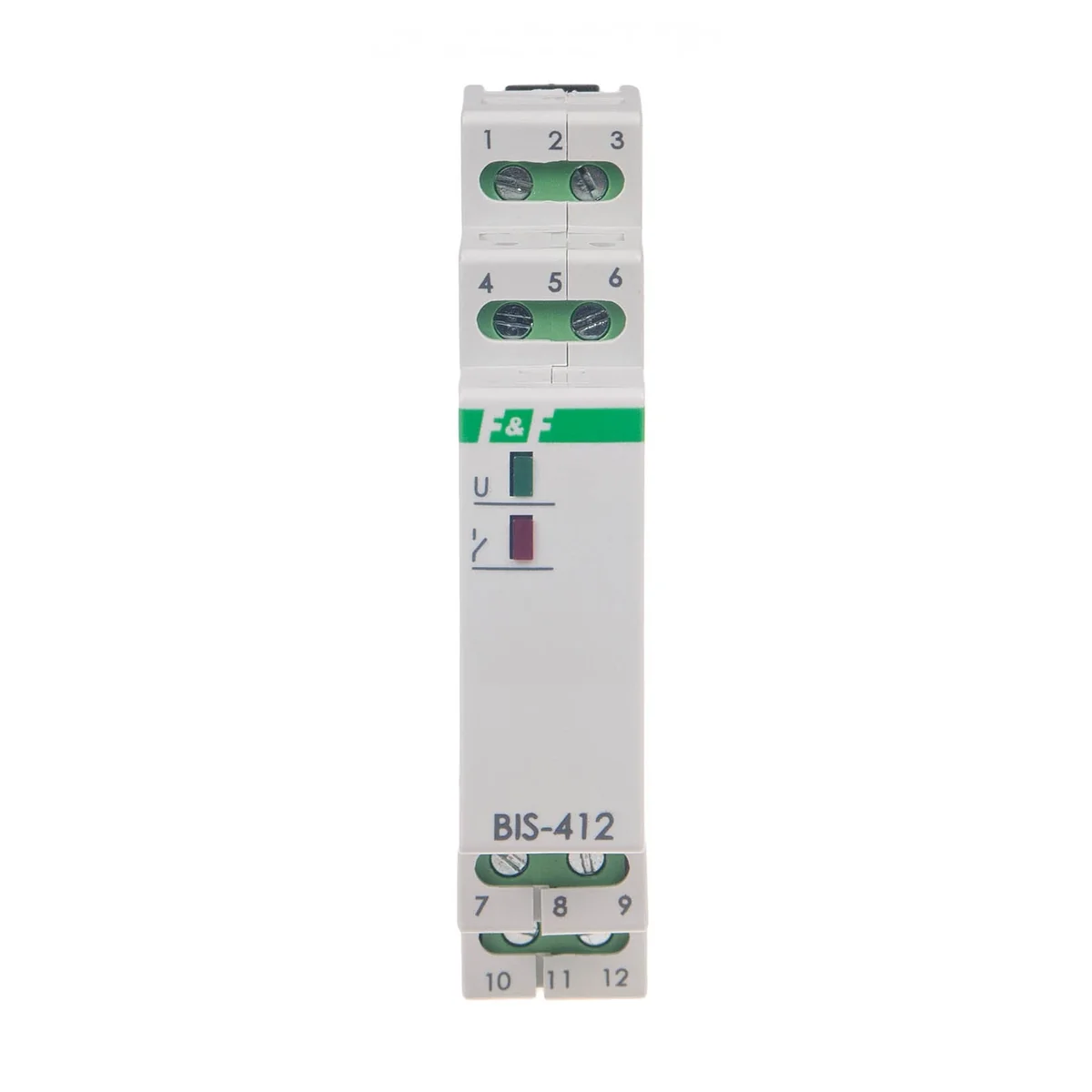

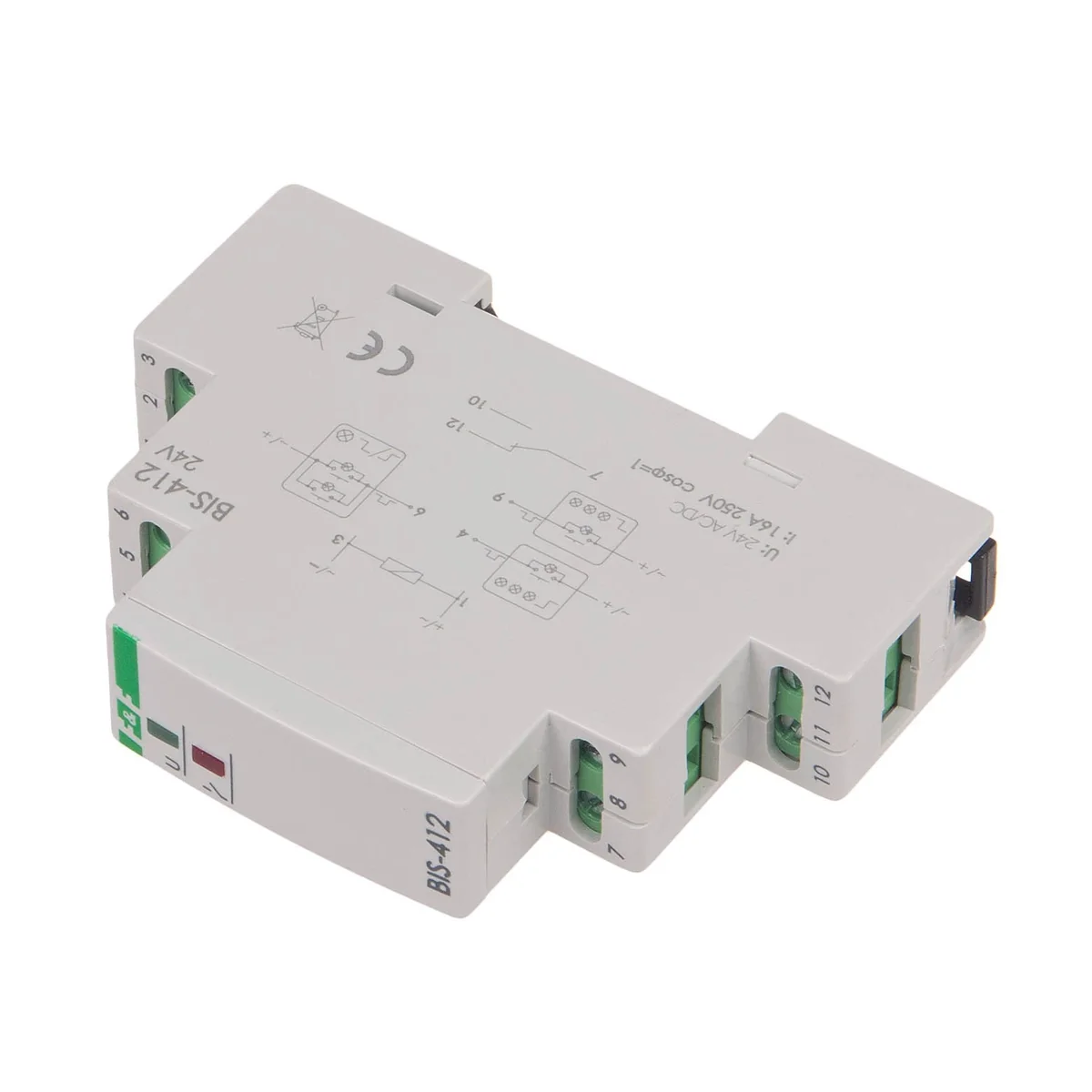

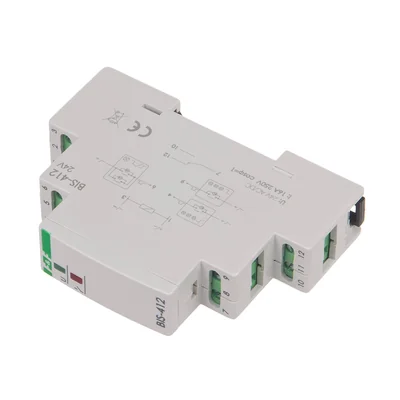

Group bistable relay BIS-412-24V

local index:
APP103FIFQ
Catalog No:
BIS-412-24V
EAN code:
5908312591436
Manufacturer: F&F
Number of contacts: 0NO 0NC
Power [W]: 0.8
Installation: On the TH-35 rail
Price:
24,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use:
The BIS-412 electronic bistable impulse relay is designed for group operation. A single relay allows  for switching on and off the controlled receiver after each current impulse caused by pressing the momentary (bell) button of the local control. The group system allows you to switch on or off with the central control buttons all receivers connected to individual relays. Operation:
Local control
The receiver is switched on after a current impulse caused by pressing one, any momentary button   ;  from the local control group. The relay contact is switched to position 7-10. After the next pulse, the receiver will be turned off (the contact returns to position 7-12).
Central control
OFF  ALL - after a current pulse caused by pressing the momentary button    all receivers will be switched off (regardless of their status - off or on) individually controlled by individual relays. A contact in each relay will be switched to position   7-12.
ON  ALL - after  current pulse caused by pressing the momentary button    all receivers will be switched on (regardless of their status - off or on) individually controlled by individual relays. A contact in each relay will switch to position 7-10. NOTE!
BIS-411 230V can work with illuminated switches.

Tripping delay [s]0.1-0.2



Technical data

  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • Control pulse current [mA]
    <1
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Power supply BIS-412 [V]
    24
  • Package width [mm]
    20
  • PKWIU
    27.12.23.0
  • Power [W]
    0.8
  • Tripping delay [s]
    0.1-0.2
  • load current [A]
    <16
  • Contact activation signaling
    red LED
  • Working temperature [°C]
    -25-50
  • Power [V]
    24
  • Package height [mm]
    150
  • Package weight [kg]
    0.1

Other technical data

  • Function
    Electronic switch
  • Control voltage 1
    24 ... 24 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    24 ... 24 V
  • Max. incandescent lamp load
    600 W
  • Max. load fluorescent lamp (Duo circuit)
    300 VA
  • Suitable for manual operation
    No
  • Mounting method
    DIN rail
  • Type of control voltage 1
    AC
  • Rated switch current
    5 A
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    300 VA
  • Max. load fluorescent lamp (parallel compensated)
    200 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,071
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
