FW-RC5 transmitter FW-RC5

local index:
APL011FIFQ
Catalog No:
FW-RC5
EAN code:
5908312599357
Manufacturer: F&F
Battery: CR2032
Power type: Battery
Family: F&WAVE
Price:
25,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

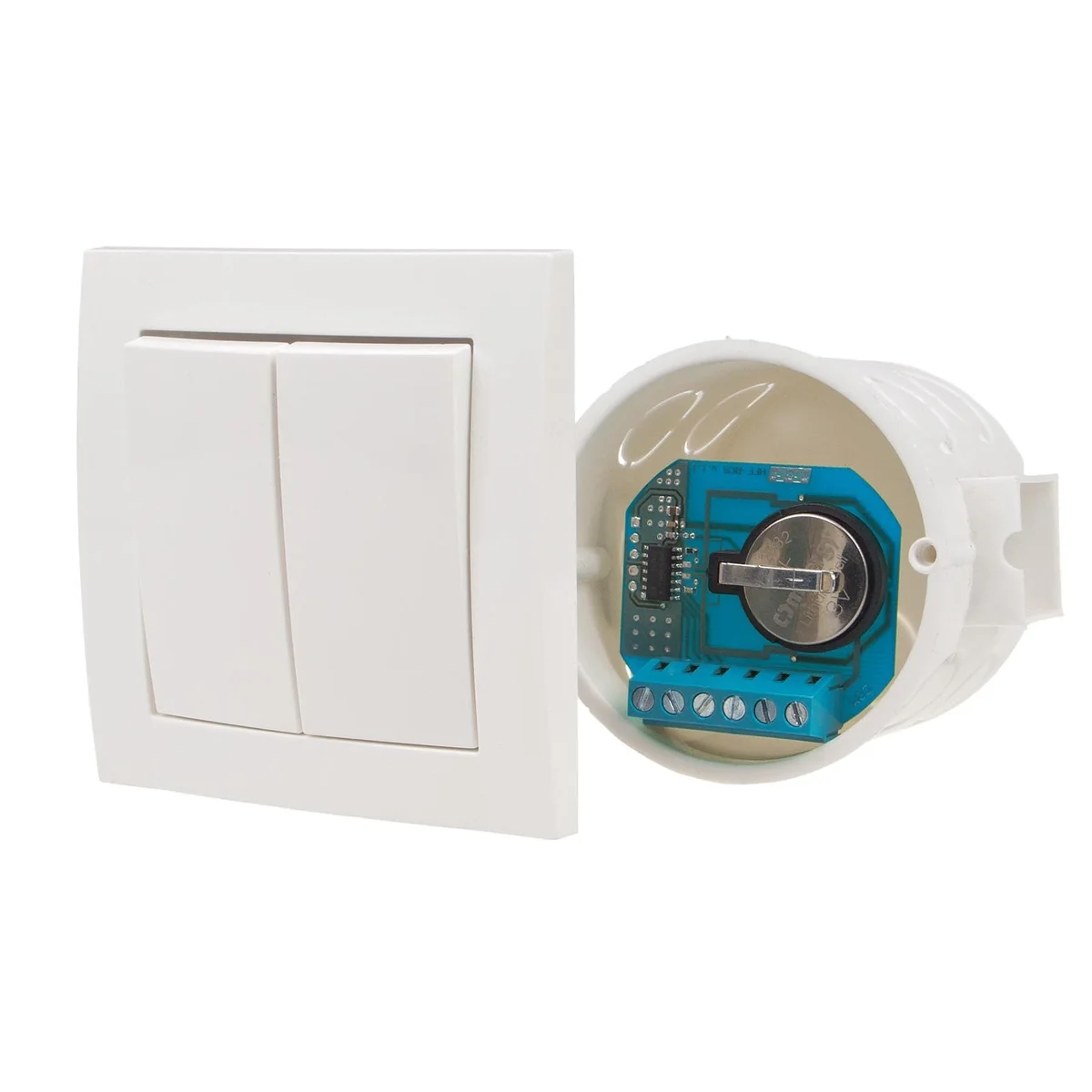

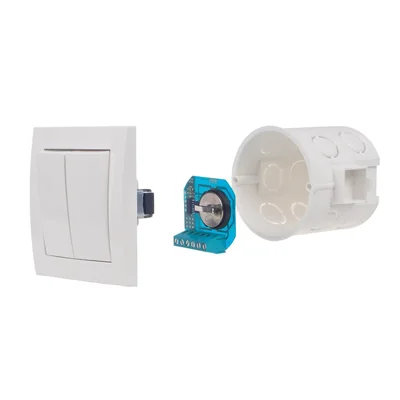

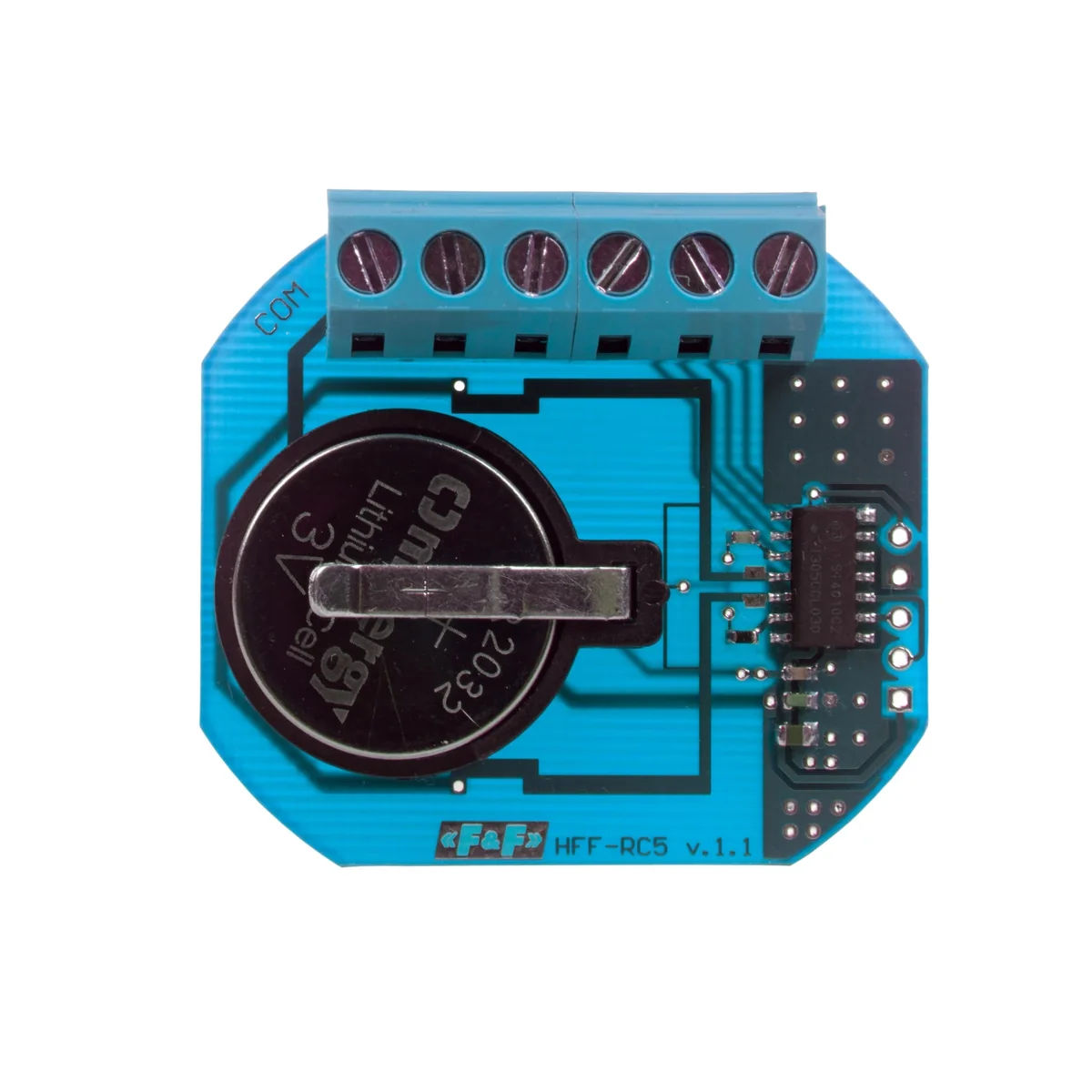

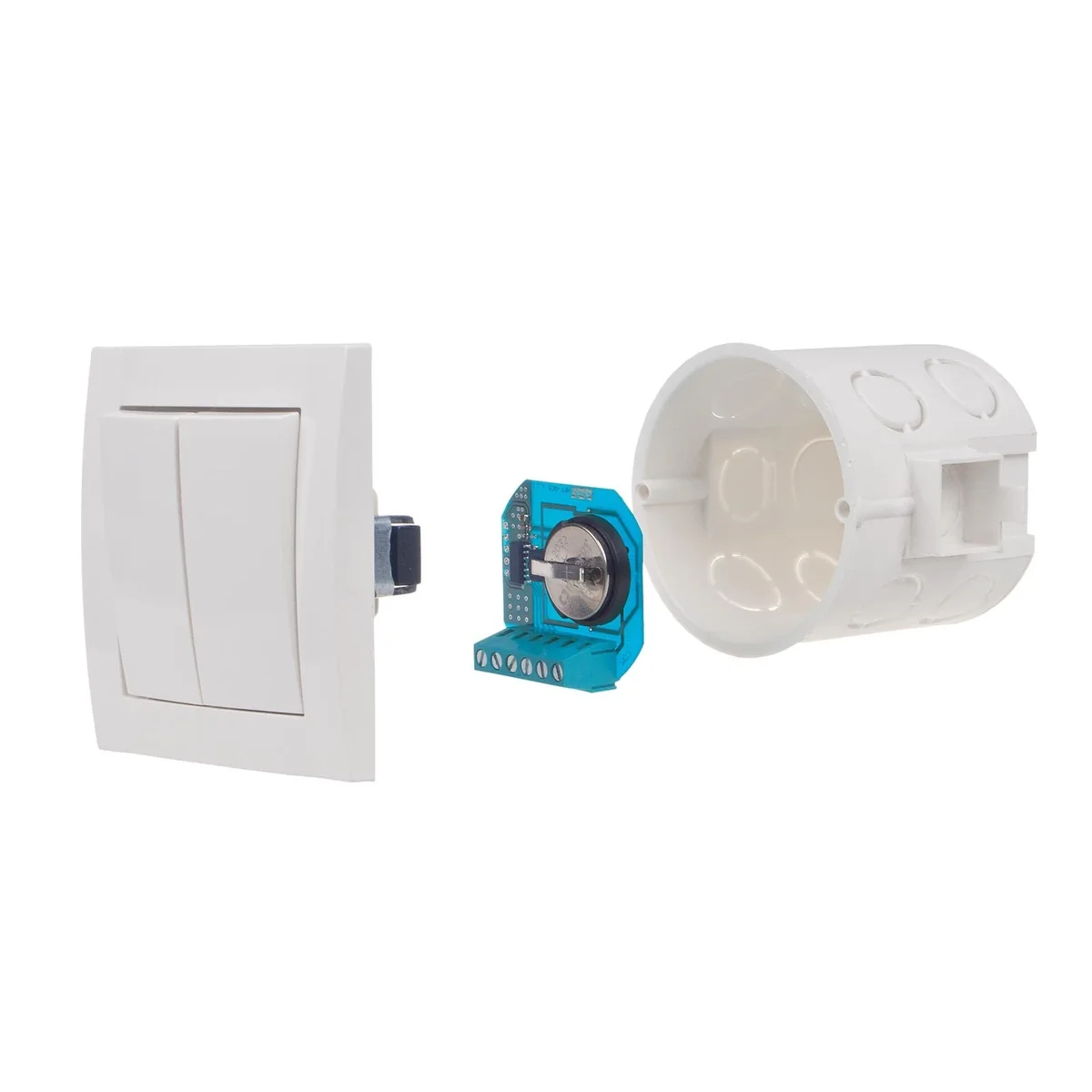

5-channel transmitter. For flush-mounted box Ø60 (for wall switch).


Features



  • 5-button remote control;


  • Cooperation with F&Wave remote control receivers;


  • Ability to control any number of receivers;


  • S1, S2,S3 input functionalities:


    •   turn on/off (bistable switch) with receivers FW-R1P, FW-R1D, FW-R2P, FW-R2D, FW-D1P, FW-D1D, FW-LED2P, FW-LED2D;


    • raise/lower the roller shutter with FW-STR1P, FW-STR1D receivers;


    • dim/brighten the light with FW-D1P, FW-D1D, FW-LED2P, FW-LED2D receivers;




    • ON input always turns on paired receivers and/or raises the blind;
    • < br/>

    • OFF input always disables paired receivers and/or lowers the blind;


    • Small housing size;


    • Screw terminals for easy mounting in a Ø60 flush-mounted box .


    Specifications






























    < /tr>









    power supply

    3V DC

    power consumption


          button pressed

    20mA

    Standby

    15nA

    battery

    CR2032

    battery life

    about 15 hours of broadcasting

    (remote button pressed)

    operating temperature

    -25÷50°C

    radio frequency

    868 MHz

    dimensions

    45, 5×40×8mm





    Range

    In open space, without interfering factors, the range of radio-controlled devices oscillates within 100 m.  In built-up conditions and in the presence of sources of interference ( power lines, transmitters, etc.) the actual range may be less. The range can be improved by direct retransmission of modules within each other's range.

Technical data

  • Battery
    CR2032
  • Family
    F&WAVE
  • Power
    3VDC
  • Power type
    Battery
  • Dimensions [mm]
    45.5x40x8
  • PKWIU
    26.30.12.0

Other technical data

  • Radio frequency
    868 MHz
  • Rolling code system
    Yes
  • Number of commands
    5
  • Flush-mounted radio transmitter
    Yes
  • With radio coding device
    Yes
  • Modulation
    FM
  • Range
    100 m
  • With manual radio transmitter
    No
  • Surface mounted radio transmitter
    No
  • Current supply
    Battery

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
