Frequency converter ATV630 3 phase 380/480VAC 50/60Hz 55kW 106A IP21 ATV630D55N4

local index:
API142SCHN
Catalog No:
ATV630D55N4
EAN code:
3606480701443

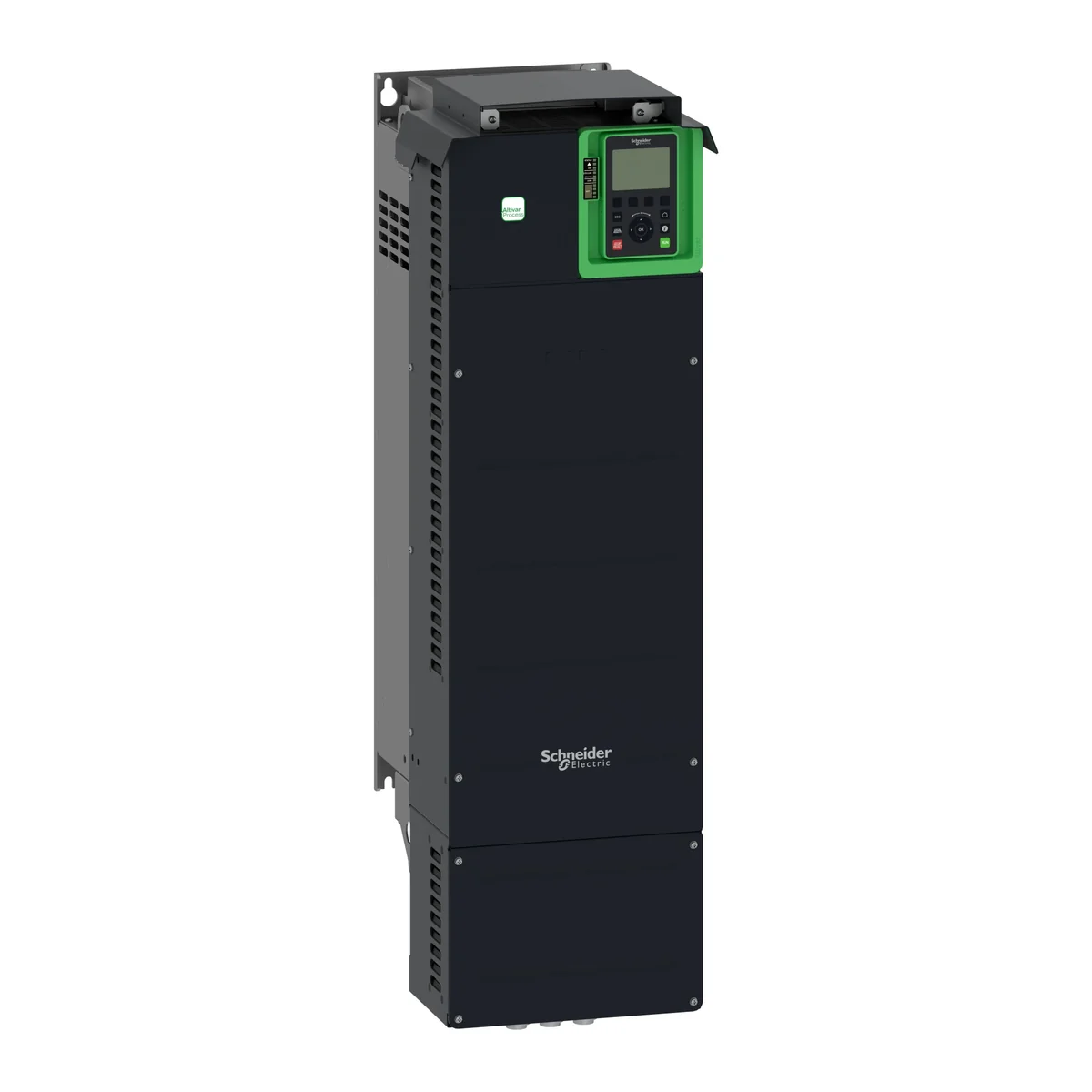

Frequency converter ATV630 3 phase 380/480VAC 50/60Hz 55kW 106A IP21
Frequency converter ATV630 3 phase 380/480VAC 50/60Hz 55kW 106A IP21

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC
Level of security: IP21
See full description
Price:
5833,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Files to download

Product description

Frequency converter ATV630 3 phase 380/480VAC 50/60Hz 55kW 106A IP21

Technical data

  • Level of security
    IP21
  • PKWIU
    27.90.41.0

Other technical data

  • Mains voltage
    380 ... 480 V
  • Number of phases input
    3
  • Max. output frequency
    500 Hz
  • Nominal output current I2N
    106 A
  • Max. output at linear load at rated output voltage
    55 kW
  • Relative symmetric net voltage tolerance
    10 %
  • Number of analogue inputs
    3
  • Number of digital inputs
    6
  • Application in industrial area permitted
    Yes
  • Supporting protocol for TCP/IP
    Yes
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    Yes
  • Supporting protocol for DeviceNet
    Yes
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Supporting protocol for other bus systems
    No
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces parallel
    0
  • With optical interface
    Yes
  • Integrated breaking resistance
    No
  • Type of converter
    U converter
  • Height
    922 mm
  • Depth
    323 mm
  • Mains frequency
    50/60 Hz
  • Number of phases output
    3
  • Max. output voltage
    480 V
  • Max. output at quadratic load at rated output voltage
    55 kW
  • Relative symmetric net frequency tolerance
    5 %
  • Number of analogue outputs
    2
  • Number of digital outputs
    0
  • With control element
    Yes
  • Application in domestic- and commercial area permitted
    Yes
  • Supporting protocol for PROFIBUS
    Yes
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    Yes
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    Yes
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for BACnet
    No
  • Number of HW-interfaces industrial Ethernet
    1
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces USB
    0
  • Number of HW-interfaces other
    0
  • With PC connection
    No
  • 4-quadrant operation possible
    Yes
  • Degree of protection (IP)
    IP21
  • Width
    290 mm
