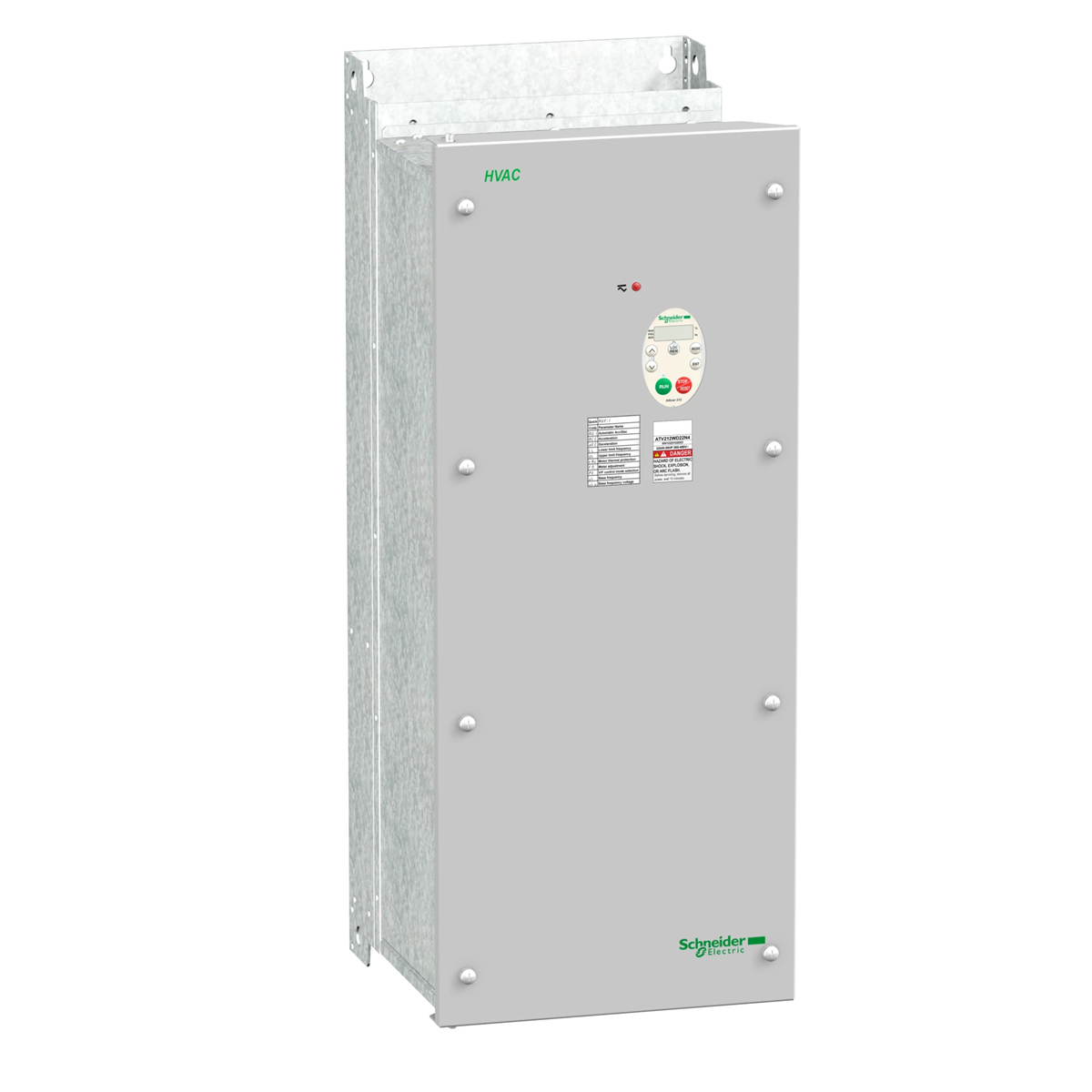

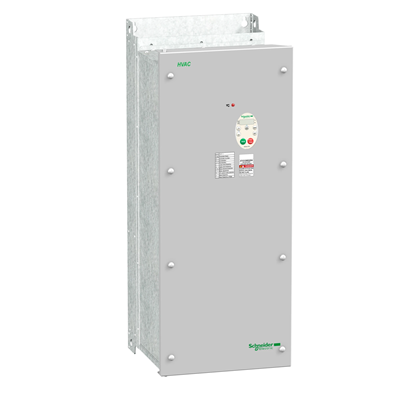

Frequency converter ATV212 3 phase 380/480VAC 50/60Hz 22kW 43.5A IP55 ATV212WD22N4C

local index:
API019SCHN
Catalog No:
ATV212WD22N4C
EAN code:
3606480322754
Manufacturer: SCHNEIDER ELECTRIC
Engine power [kW]: 22
Rated voltage [V]: 400
Level of security: IP55
Price:
3582,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Frequency converter ATV212 3 phase 380/480VAC 50/60Hz 22kW 43.5A IP55

Technical data

  • Engine power [kW]
    22
  • Level of security
    IP55
  • Rated voltage [V]
    400
  • PKWIU
    27.90.41.0

Other technical data

  • Mains voltage
    380 ... 480 V
  • Number of phases input
    3
  • Max. output frequency
    200 Hz
  • Nominal output current I2N
    43.5 A
  • Max. output at linear load at rated output voltage
    22 kW
  • Relative symmetric net voltage tolerance
    10 %
  • Number of analogue inputs
    2
  • Number of digital inputs
    3
  • Application in industrial area permitted
    Yes
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    Yes
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    Yes
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Supporting protocol for other bus systems
    Yes
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces parallel
    0
  • With optical interface
    No
  • Integrated breaking resistance
    No
  • Type of converter
    U converter
  • Height
    720 mm
  • Depth
    315 mm
  • Mains frequency
    50/60 Hz
  • Number of phases output
    3
  • Max. output voltage
    480 V
  • Max. output at quadratic load at rated output voltage
    22 kW
  • Relative symmetric net frequency tolerance
    5 %
  • Number of analogue outputs
    1
  • Number of digital outputs
    0
  • With control element
    Yes
  • Application in domestic- and commercial area permitted
    Yes
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for BACnet
    No
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces USB
    0
  • Number of HW-interfaces other
    0
  • With PC connection
    Yes
  • 4-quadrant operation possible
    No
  • Degree of protection (IP)
    IP55
  • Width
    284 mm
