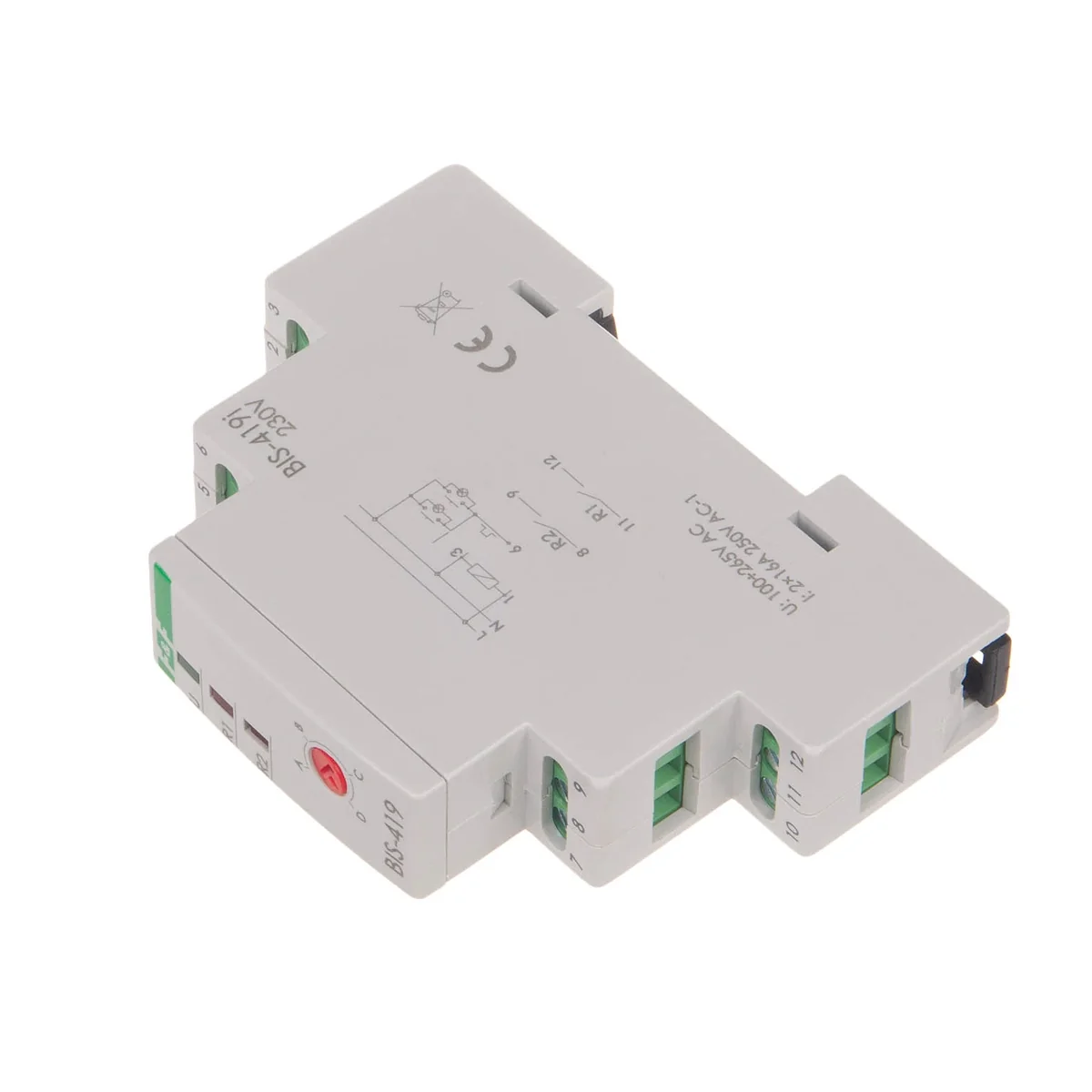

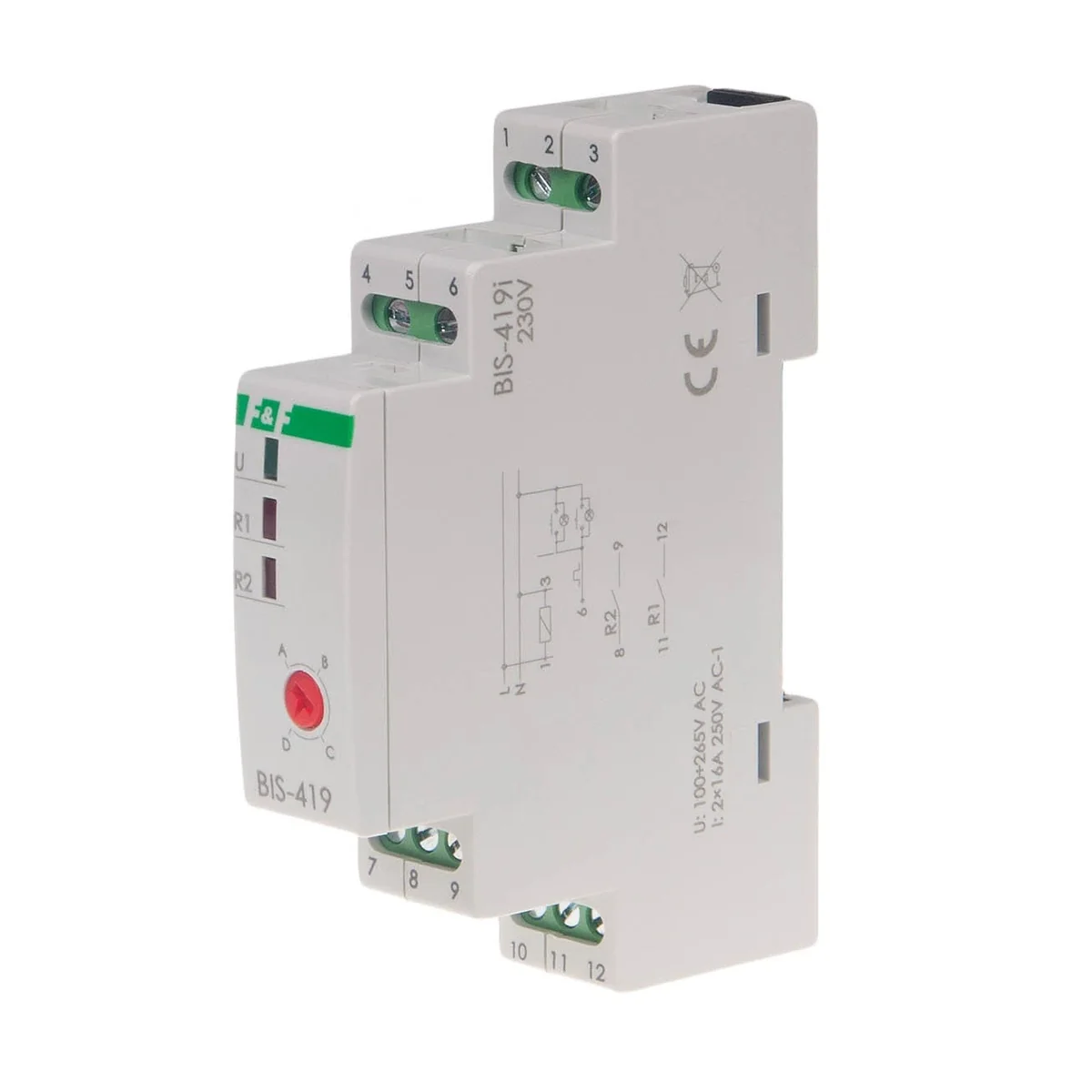

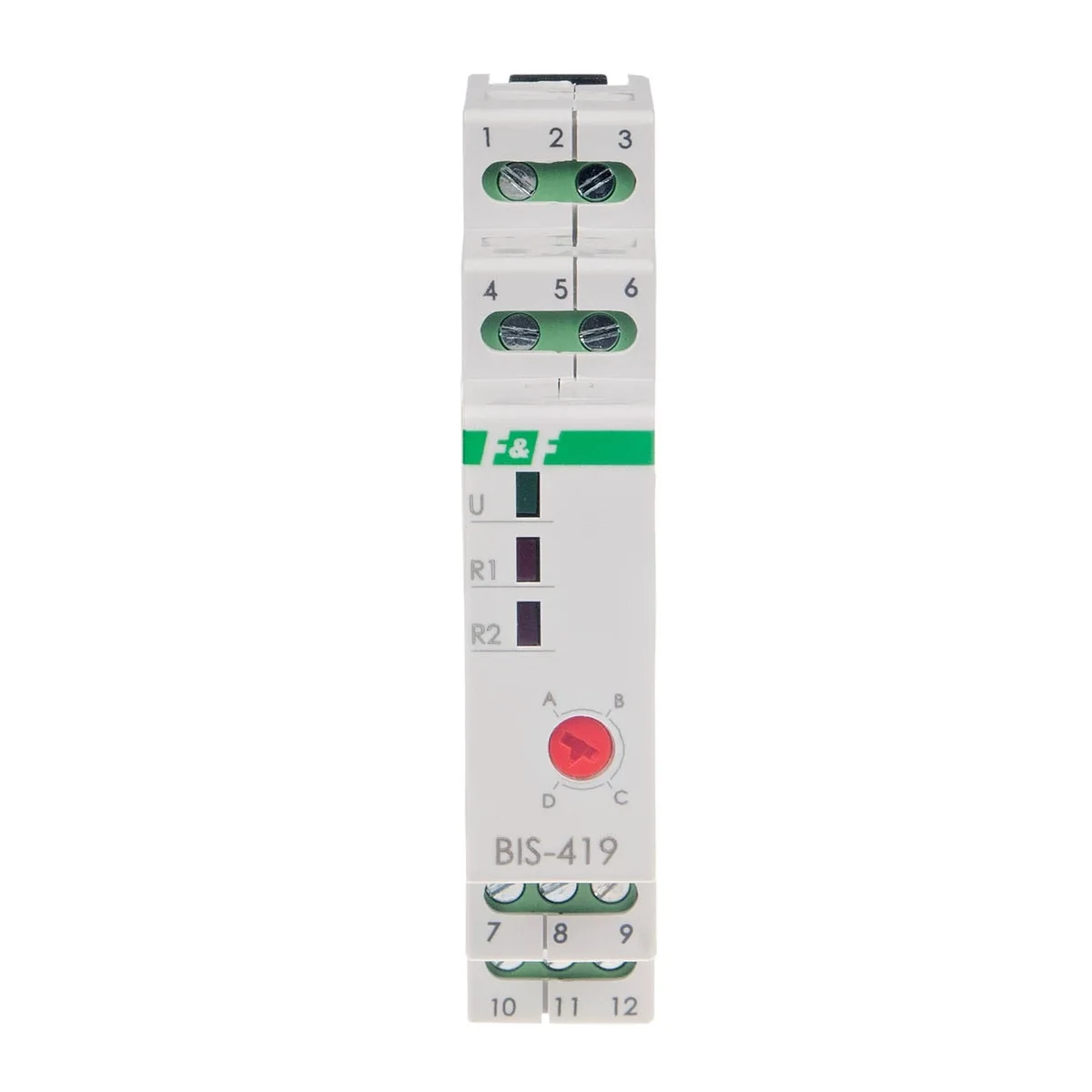

Four-function sequential bistable relay BIS-419-LED

local index:
APP002FIFQ
Catalog No:
BIS-419-LED
EAN code:
5908312598497
Price:
32,53 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Electronic bistable impulse relays enable switching on or off lighting or other device from several different points by means of parallel connected, momentary (bell) control switches. The receiver is switched on after a current pulse caused by pressing any momentary (bell) button connected to the relay. After the next pulse, the receiver will turn off. The relay does not have a "memory" of the contact position, i.e. in the event of a power failure and its return, the relay contact will be switched off. This makes it impossible to automatically turn on the controlled receivers without supervision after a long-term power failure.

Technical data

  • Number of contacts
    0NO 0NC
  • Control pulse current [mA]
    <5
  • Level of security
    IP20
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.2
  • Standby power consumption [W]
    0.15
  • Tripping delay [s]
    0.1-0.2
  • load current [A]
    2x16
  • Signaling
    LED green/red
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • Power consumption in the on state [W]
    0.9

Other technical data

  • Function
    Electronic switch
  • Width in number of modular spacings
    1
  • Control voltage 1
    100 ... 230 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    100 ... 230 V
  • Max. incandescent lamp load
    3000 W
  • Max. load fluorescent lamp (Duo circuit)
    1500 VA
  • Max. switching current (cos phi = 0.6)
    8 A
  • Mounting method
    DIN rail
  • Built-in depth
    0 mm
  • Type of control voltage 1
    AC
  • Rated switch current
    8 A
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    1500 VA
  • Max. load fluorescent lamp (parallel compensated)
    1500 VA
  • Suitable for manual operation
    no
