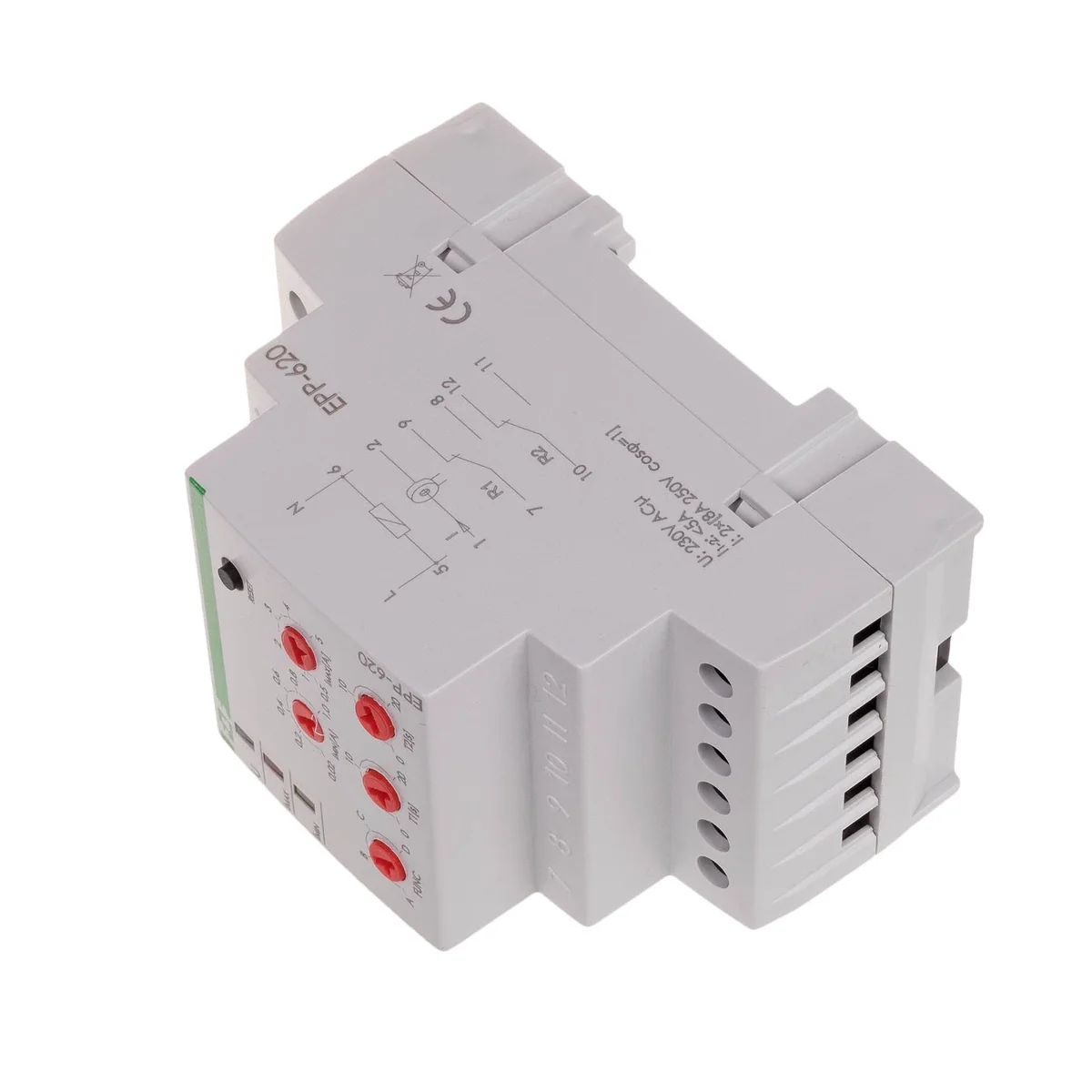

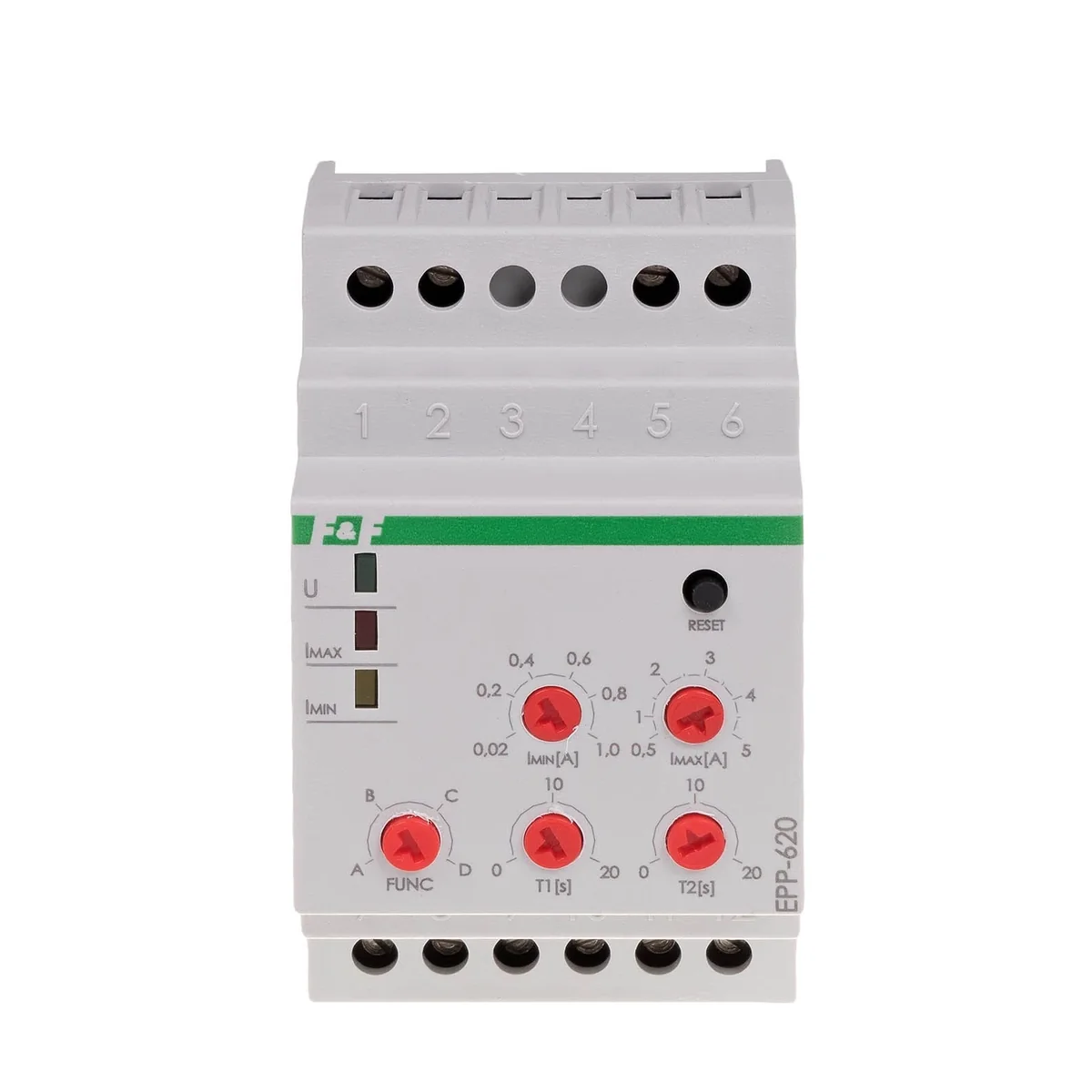

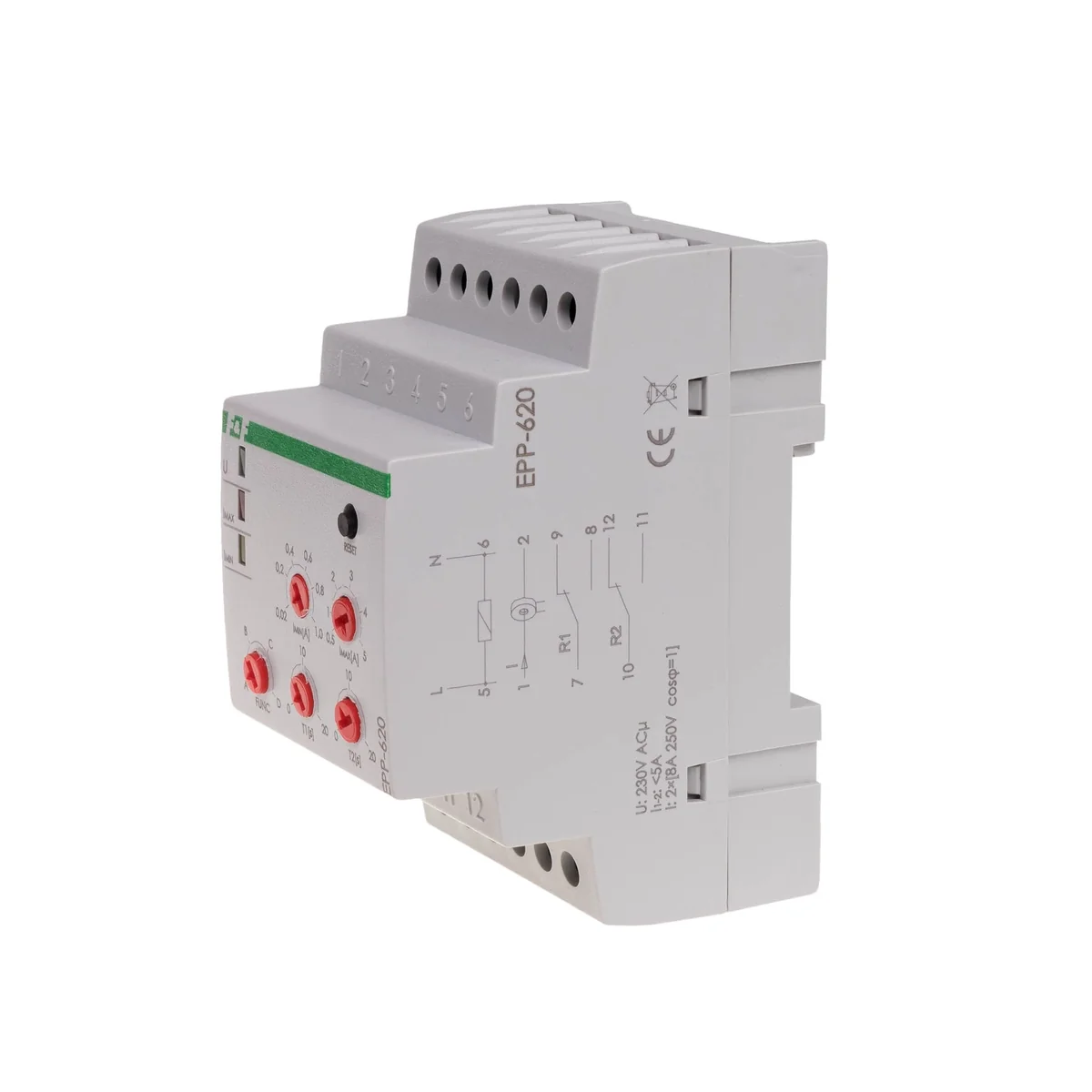

Four-function current relay EPP-620

local index:
APN117FIFQ
Catalog No:
EPP-620
EAN code:
5908312594260
Manufacturer: F&F
Power recovery time [s]: 0.5
Return hysteresis [%]: 10
Number of contacts: 0NO 0NC
Price:
89,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


The current relay is used to control the current value in the measured circuit with the function of switching contacts in case of exceeding the current value above and below the set threshold values.












< br/>




< /tr>




Switching current - adjustable Imin [A]

0.02-1

Switching current - adjustable Imax [A]

0.5-5

Trigger time T1 and T2 - adjustable [s]

0-20

R1 and R2 load current [A]

2x16




Technical data

  • Power recovery time [s]
    0.5
  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • Measuring input current [A]
    <5
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.15
  • Return hysteresis [%]
    10
  • Power [W]
    0.4
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Dimensions
    3 modules (52.5mm)
  • Package width [mm]
    60
  • PKWIU
    27.12.24.0

Other technical data

  • Type of electric connection
    Screw connection
  • Single-phase under current possible
    No
  • Single-phase overcurrent possible
    No
  • Single-phase hysteresis possible
    No
  • Contains function DC-voltage under current
    No
  • Function DC-current hysteresis
    No
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Current measuring range
    0 ... 5 A
  • Number of contacts as normally open contact
    0
  • Width
    52.5 mm
  • Depth
    65 mm
  • With detachable clamps
    No
  • Three-phase under current possible
    Yes
  • Three-phase overcurrent possible
    Yes
  • Three-phase hysteresis possible
    Yes
  • Contains function DC-voltage overcurrent
    No
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    2
  • Height
    90 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,160
Width (m) 0,056
Length (m) 0,095
Depth (m) 0,070
