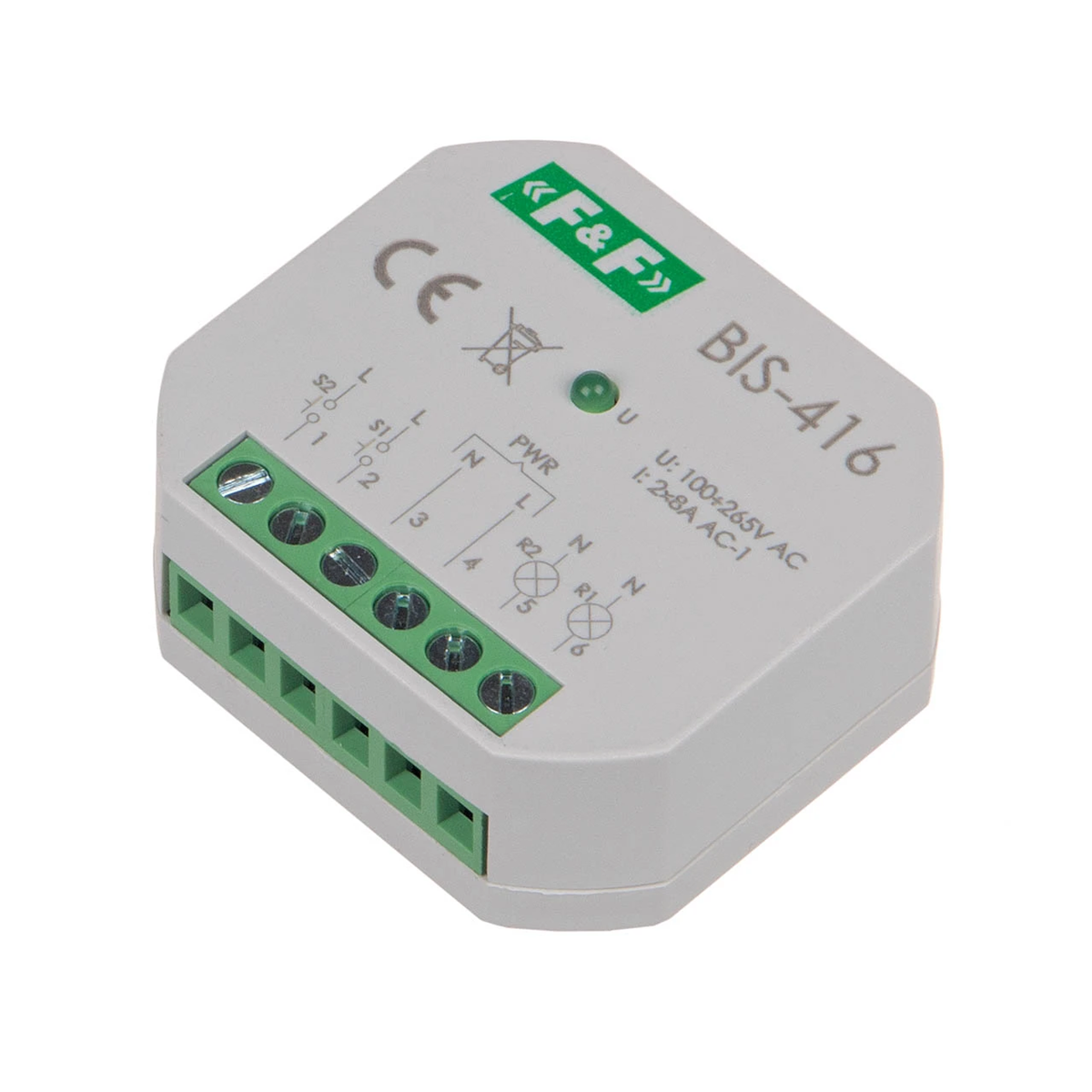

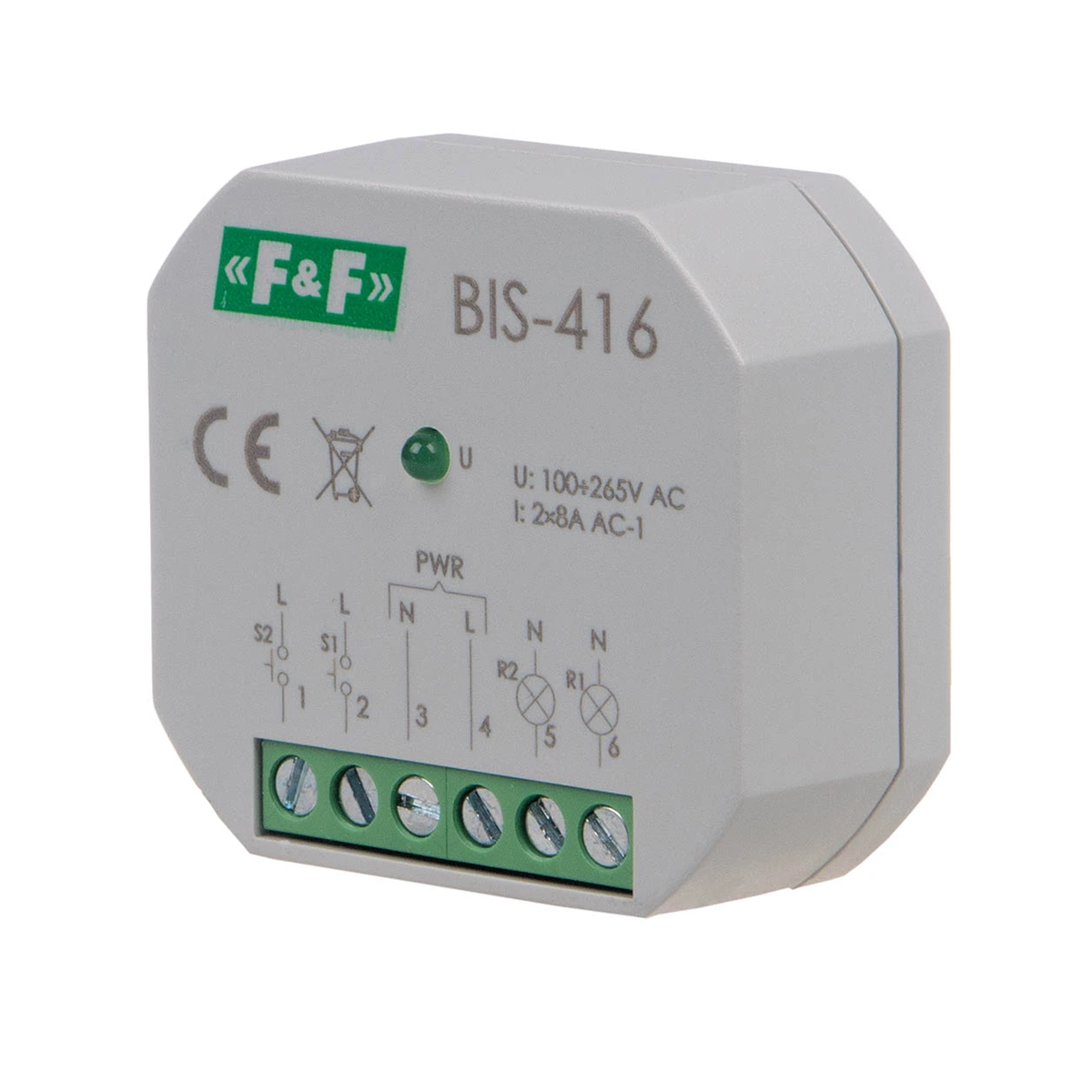

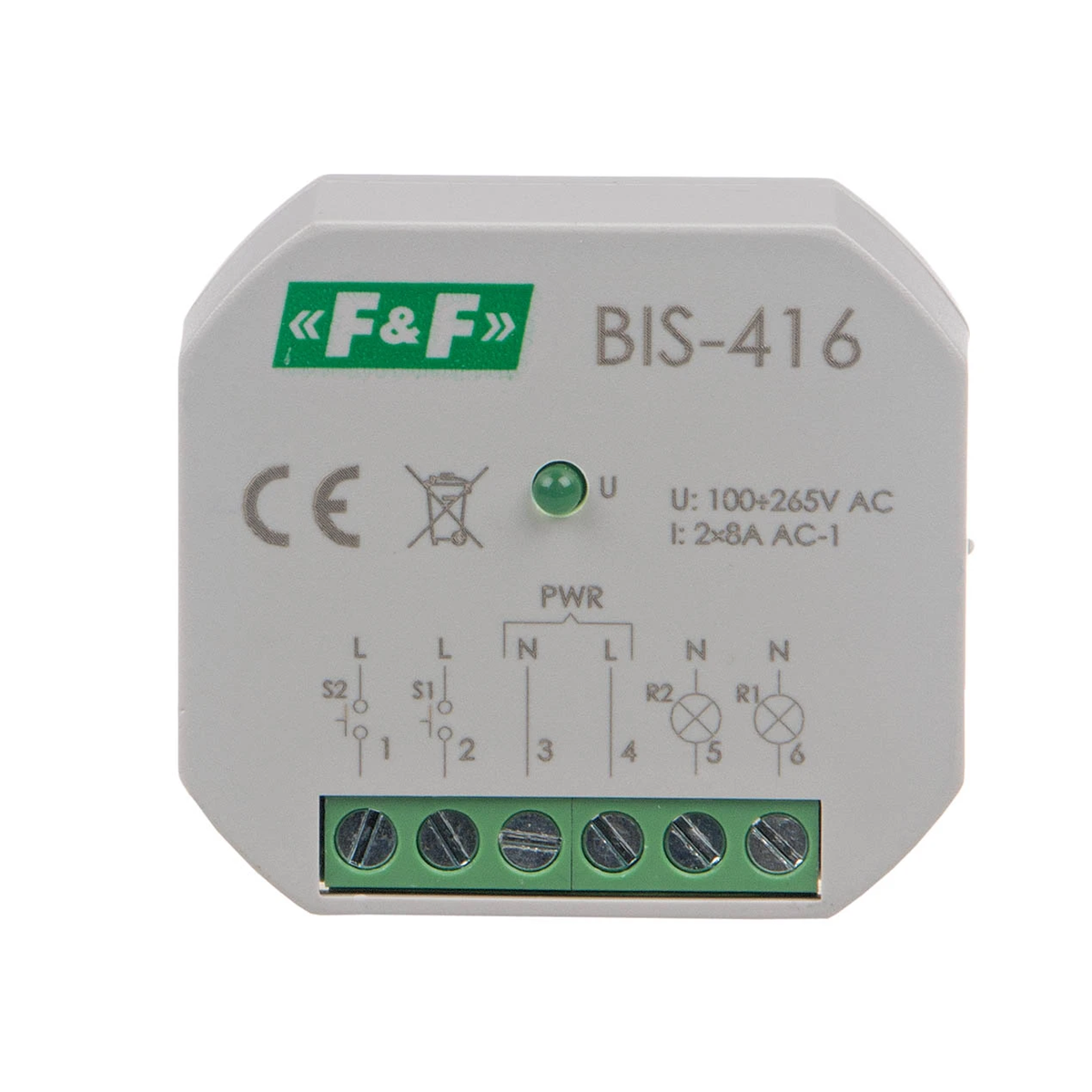

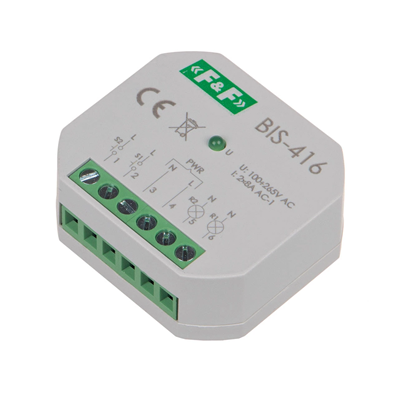

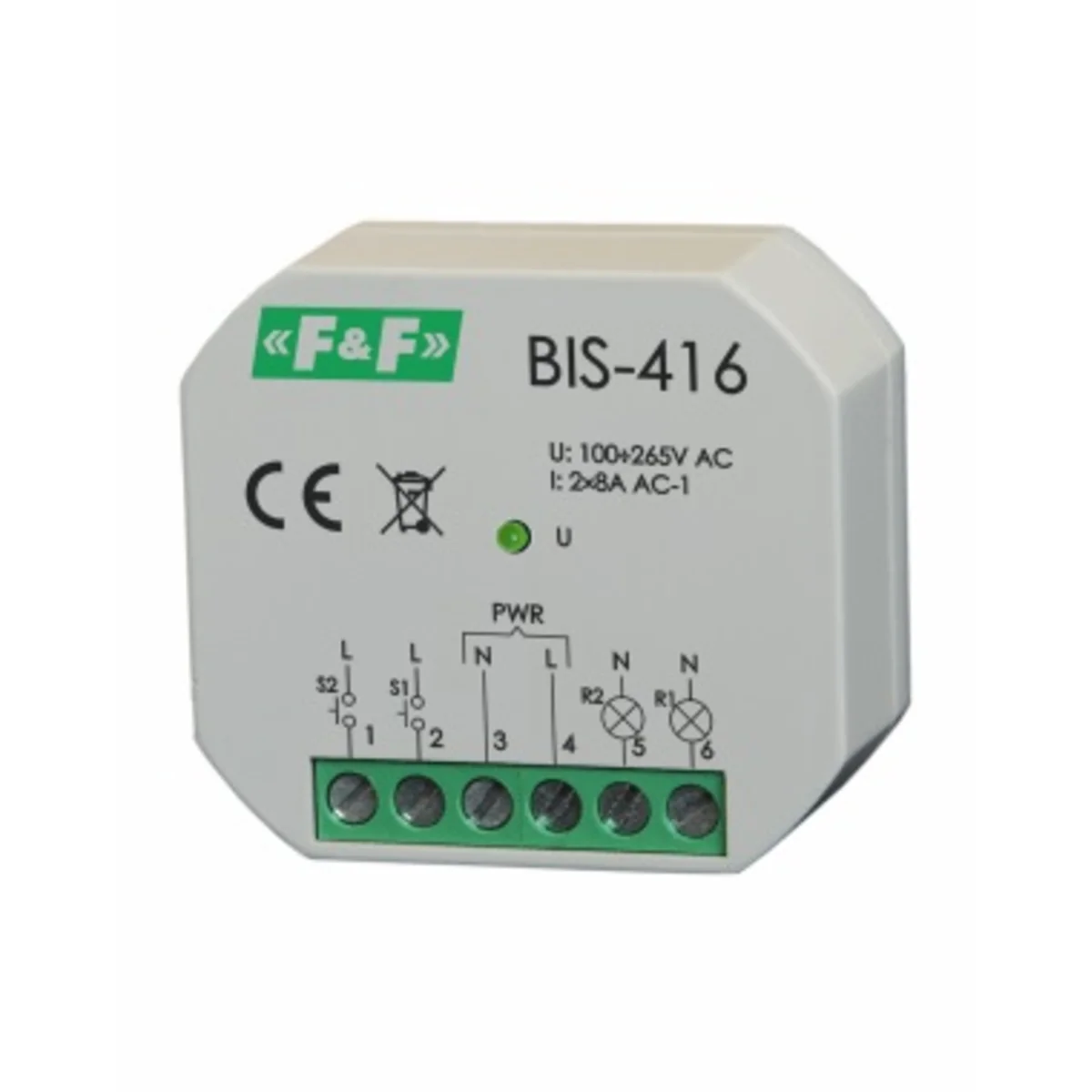

Flush-mounted bistable relay, two independent control circuits BIS-416

local index:
APE045FIFQ
Catalog No:
BIS-416
EAN code:
5908312598275
Manufacturer: F&F
Maximum switching capacity for bulbs [W]: 3000
Control voltage [V]: 100/230
Rated current [A]: 8
Price:
27,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 24 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electronic bistable impulse relays enable switching on or off lighting or other device from several different points by means of parallel connected, momentary (bell) control switches. The receiver is switched on after a current pulse caused by pressing any momentary (bell) button connected to the relay. After the next pulse, the receiver will turn off. The relay does not have a "memory" of the contact position, i.e. in the event of a power failure and its return, the relay contact will be switched off. This makes it impossible to automatically turn on the controlled receivers without supervision after a long-term power failure.

Technical data

  • Maximum switching capacity for bulbs [W]
    3000
  • Rated current [A]
    8
  • Package height [mm]
    150
  • Package weight [kg]
    0.2
  • Rated inrush current [A]
    8
  • Control voltage [V]
    100/230
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • Maximum switching capacity for fluorescent lamps [VA]
    750
  • PKWIU
    27.12.23.0

Other technical data

  • Function
    Electronic switch
  • Width in number of modular spacings
    1
  • Control voltage 1
    100 ... 230 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    100 ... 230 V
  • Max. incandescent lamp load
    3000 W
  • Max. load fluorescent lamp (Duo circuit)
    750 VA
  • Max. switching current (cos phi = 0.6)
    8 A
  • Mounting method
    DIN rail
  • Built-in depth
    0 mm
  • Type of control voltage 1
    AC
  • Rated switch current
    8 A
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    750 VA
  • Max. load fluorescent lamp (parallel compensated)
    750 VA
  • Suitable for manual operation
    No

Bulk packaging

A kind of package Sztuka Karton
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,050 -
Width (m) 0,026 -
Length (m) 0,095 -
Depth (m) 0,070 -
