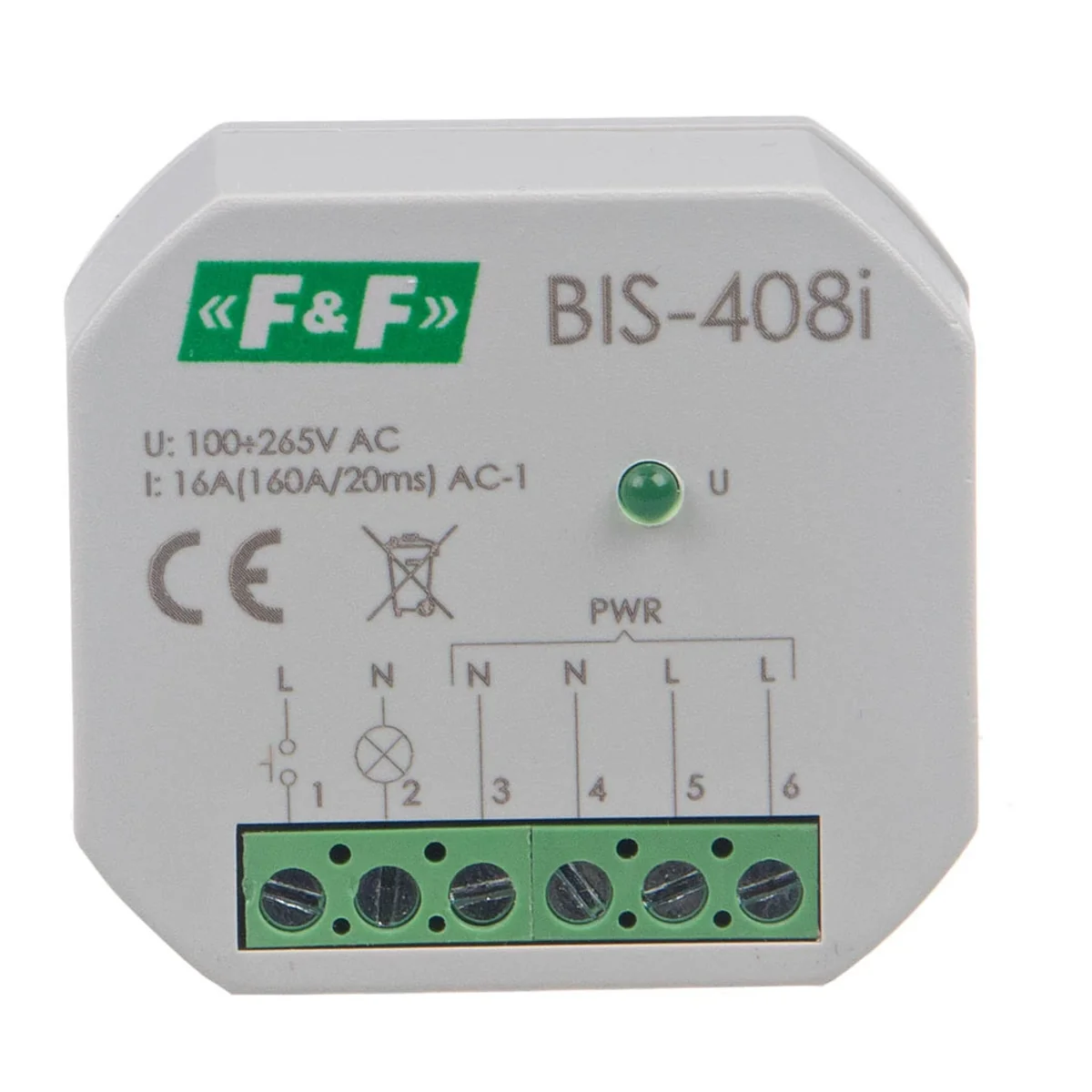

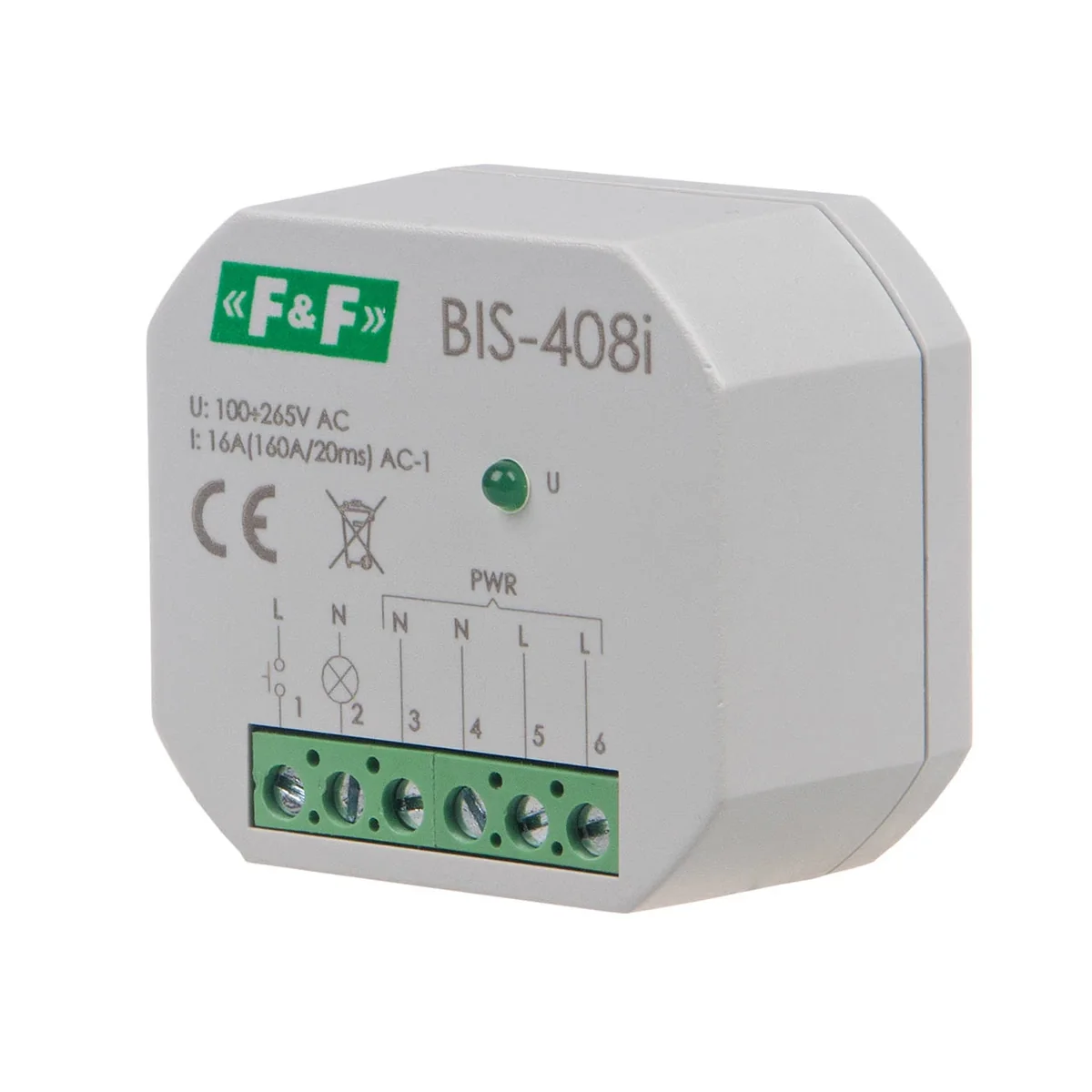

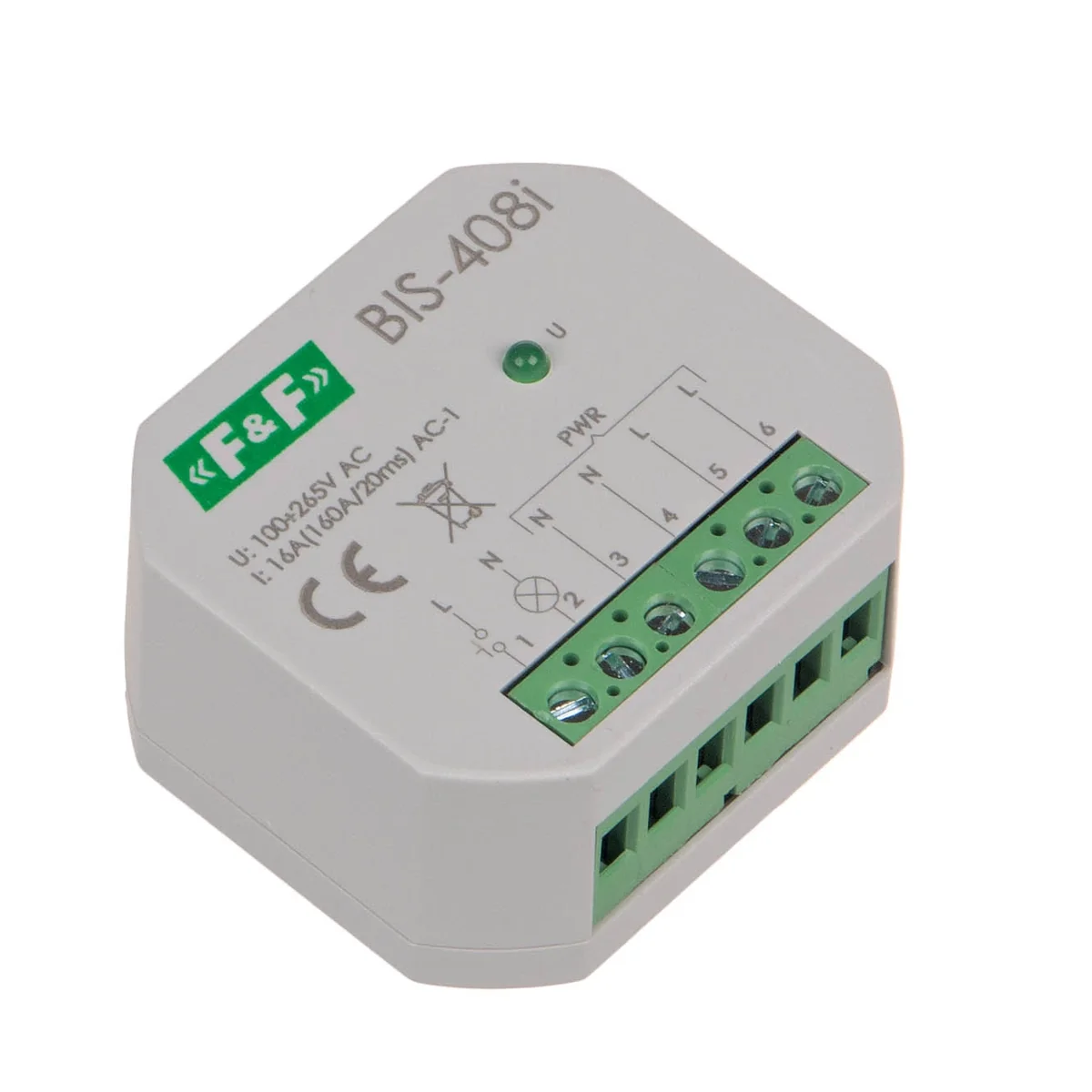

Flush-mounted bistable relay for illuminated buttons with inrush relay BIS-408-LED
local index:
APE013FIFQ
Catalog No:
BIS-408-LED
EAN code:
5908312598299
Manufacturer:
F&F
Maximum switching capacity for bulbs [W]: 3000
Tripping delay [s]: 0.1/0.2
load current [A]: <16A
Price:
23,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The electronic bistable impulse relay allows you to switch on the lighting or other device from several different points by means of control buttons connected in parallel.
Technical data
-
Maximum switching capacity for bulbs [W]3000
-
load current [A]<16A
-
Level of securityIP20
-
Working temperature [°C]-25-50
-
Package height [mm]25
-
Package weight [kg]0.2
-
Maximum switching capacity for fluorescent lamps [VA]1500
-
Standby power consumption [W]0.15
-
Tripping delay [s]0.1/0.2
-
Rated current [A]8
-
Power indicationLED green
-
Power [V]100/265
-
Package width [mm]50
-
Control pulse current [A]<5
-
Power consumption in the on state [W]0.6
-
PKWIU27.12.23.0
Other technical data
-
FunctionElectronic switch
-
Width in number of modular spacings1
-
Control voltage 1100 ... 230 V
-
Frequency control voltage 150 ... 50 Hz
-
Supply voltage100 ... 230 V
-
Max. incandescent lamp load3000 W
-
Max. load fluorescent lamp (Duo circuit)1500 VA
-
Max. switching current (cos phi = 0.6)8 A
-
Mounting methodFlush-mounted
-
Built-in depth25 mm
-
Type of control voltage 1AC
-
Rated switch current16 A
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp1500 VA
-
Max. load fluorescent lamp (parallel compensated)1500 VA
-
Suitable for manual operationNo
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,060 |
| Width (m) | 0,031 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
