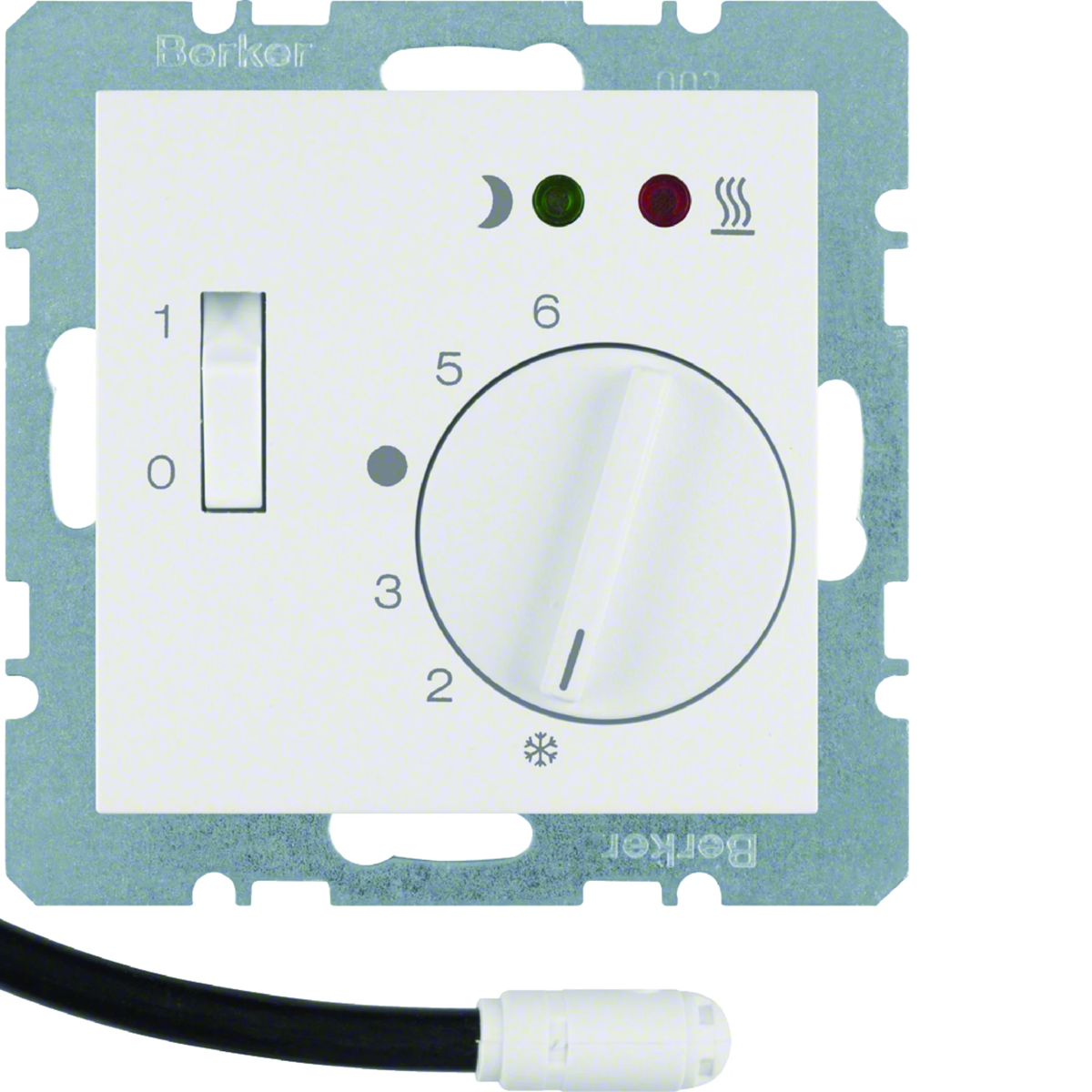

Floor temperature controller with NO contact, central element and connector Snow-white B. Square 20348989

local index:
APT001BERK
Catalog No:
20348989
EAN code:
4011334310020
Manufacturer: BERKER
Color: White
Material: Plastic
Rated voltage [V]: 230
Price:
234,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Description:

  • 10 - 50°C, 50/60 Hz;
  • Rated voltage 250 V~;
  • Rated current 10 A ;
  • switching temperature difference approx. 1°C;
  • night temperature reduction approx. 5°C;
  • sensor cable length 4 m
  • When the set temperature is reached, the contact opens.

  • printed
  • adjustment knob with range limitation temperature control
  • with a connector
  • with LEDs indicating heating and night mode
  • with a separate connection for night mode
  • complete with floor temperature sensor
  • e.g. for valve actuators closed when de-energised
  • only for screw fixing via carrier plate
  • with plug-in terminals

 Note:Neutral is required

Technical data

  • Color
    White
  • Rated voltage [V]
    230
  • Family
    B.SQUARE
  • Level of security
    IP20
  • Height [mm]
    71
  • Type of material
    Plastic
  • PKWIU
    26.51.70.0
  • Material
    Plastic
  • Rated current [A]
    10
  • Switching temperature difference [K]
    0.5
  • Width [mm]
    71
  • Temperature range [°C]
    >5
  • Accurate color
    White

Other technical data

  • Thermal feedback
    Series
  • Temperature readable
    No
  • Mounting method
    Flush-mounted
  • RAL-number
    9010
  • Width
    71 mm
  • Class of the temperature control
    I
  • Differential value
    1 ... 1 K
  • Sensor/feeler type
    Bimetal
  • Degree of protection (IP)
    IP20
  • Height
    71 mm
  • Depth
    60 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 22 pcs. 704 pcs.
Weight (kg) 0,225 0,254 6,024 212,769
Width (m) 0,058 0,098 0,300 0,800
Length (m) 0,060 0,089 0,225 1,050
Depth (m) 0,058 0,105 0,400 1,200
