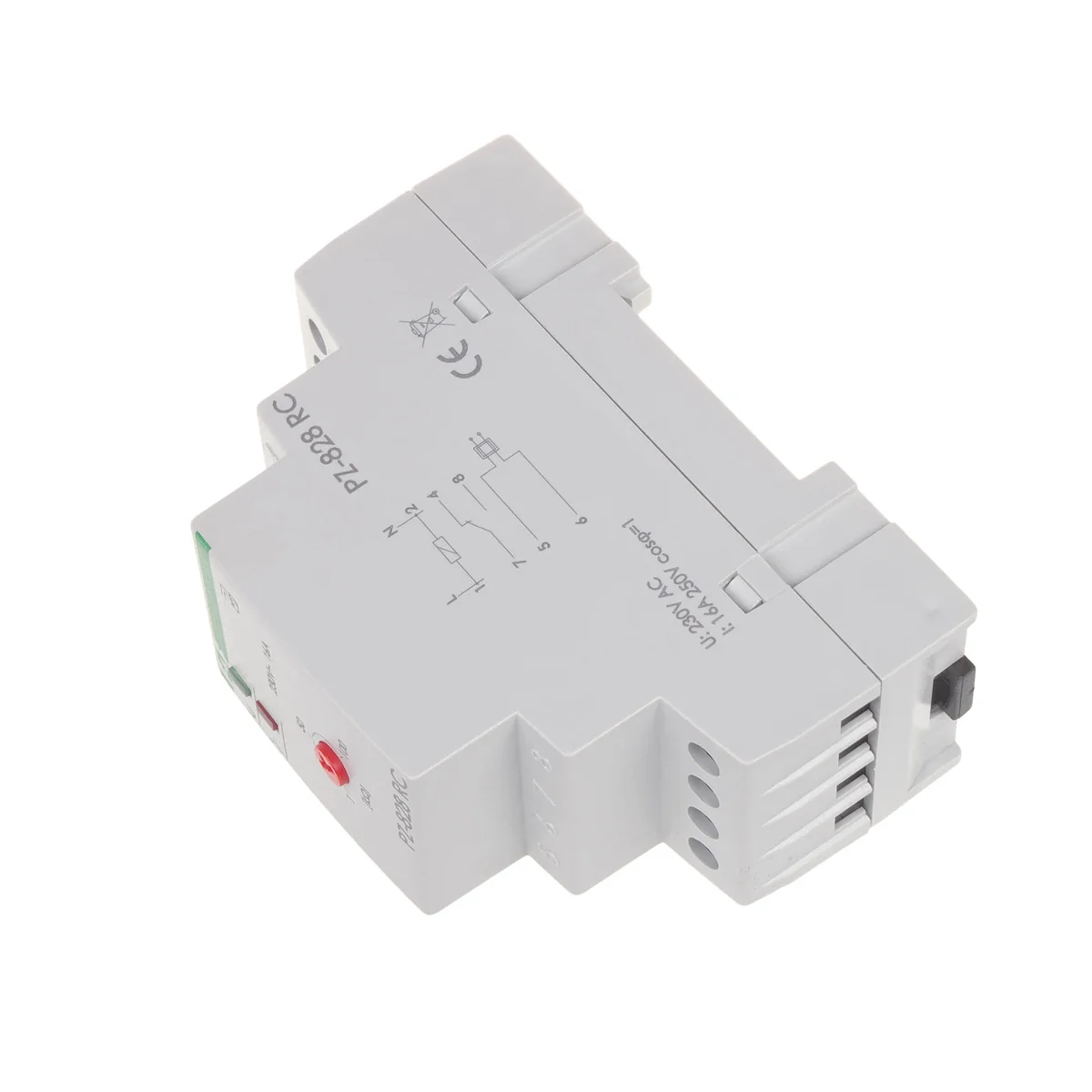

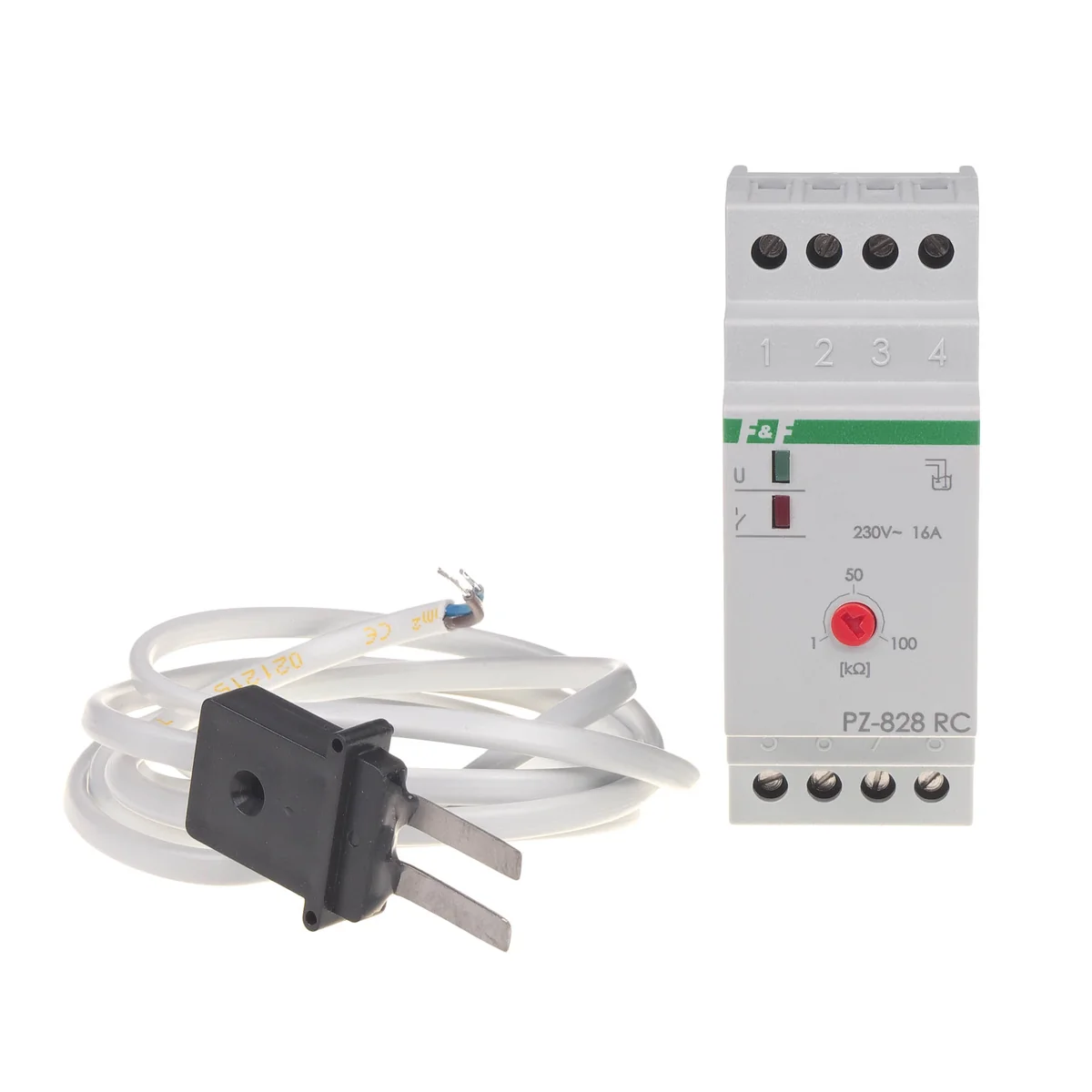

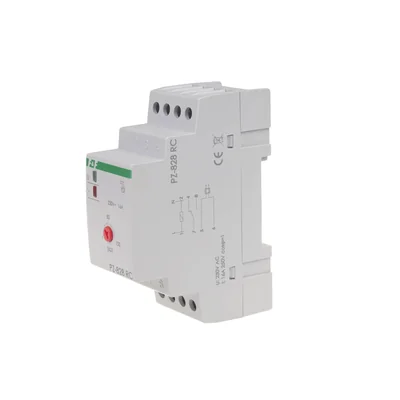

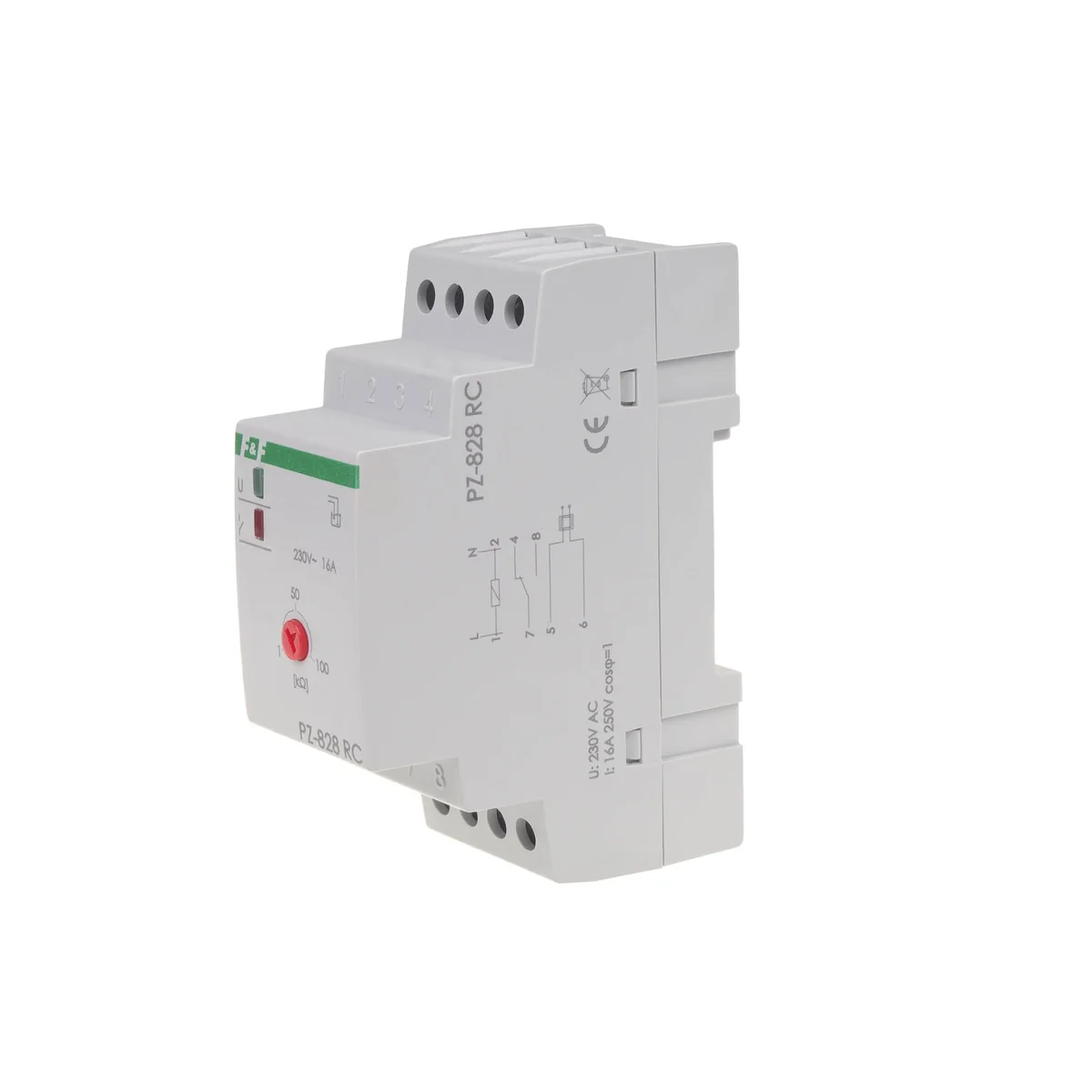

Flooding transmitter with adjustable probe sensitivity PZ-828 RC PZ-828RC

local index:
APE021FIFQ
Catalog No:
PZ-828RC
EAN code:
5908312591474
Manufacturer: F&F
Depth [mm]: 5
Power [W]: 1.1
Installation: On the TH-35 rail
Price:
42,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 17 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Single-state relays are used to detect the presence of electrically conductive liquids at the level of the mounted flood probe. When dry, the relay contact remains in position 7-4. When the probe is flooded with liquid (i.e. the probe electrodes are short-circuited), the relay contact is switched to position 7-8. After the liquid level drops (the probe electrodes are opened), the relay contact returns to position 7-4.

Technical data

  • Depth [mm]
    5
  • Installation
    On the TH-35 rail
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Dimensions
    2 modules (35mm)
  • Package height [mm]
    thirty
  • Package weight [kg]
    0, 2
  • PKWIU
    26.51.70.0
  • Power [W]
    1.1
  • Electrode voltage [V]
    6
  • load current [A]
    16
  • Width [mm]
    20
  • Height [mm]
    thirty
  • Package width [mm]
    40
  • Sensitivity [kΩ]
    1-100

Other technical data

  • Type of electric connection
    Screw connection
  • Number of inputs for electrodes
    1
  • Number of contacts as change-over contact
    1
  • Voltage type for actuating
    AC
  • Response value sensitivity adjustable
    yes
  • Physical measurement principle
    Conductive

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,250
Width (m) 0,056
Length (m) 0,095
Depth (m) 0,070
