SCHNEIDER ELECTRIC

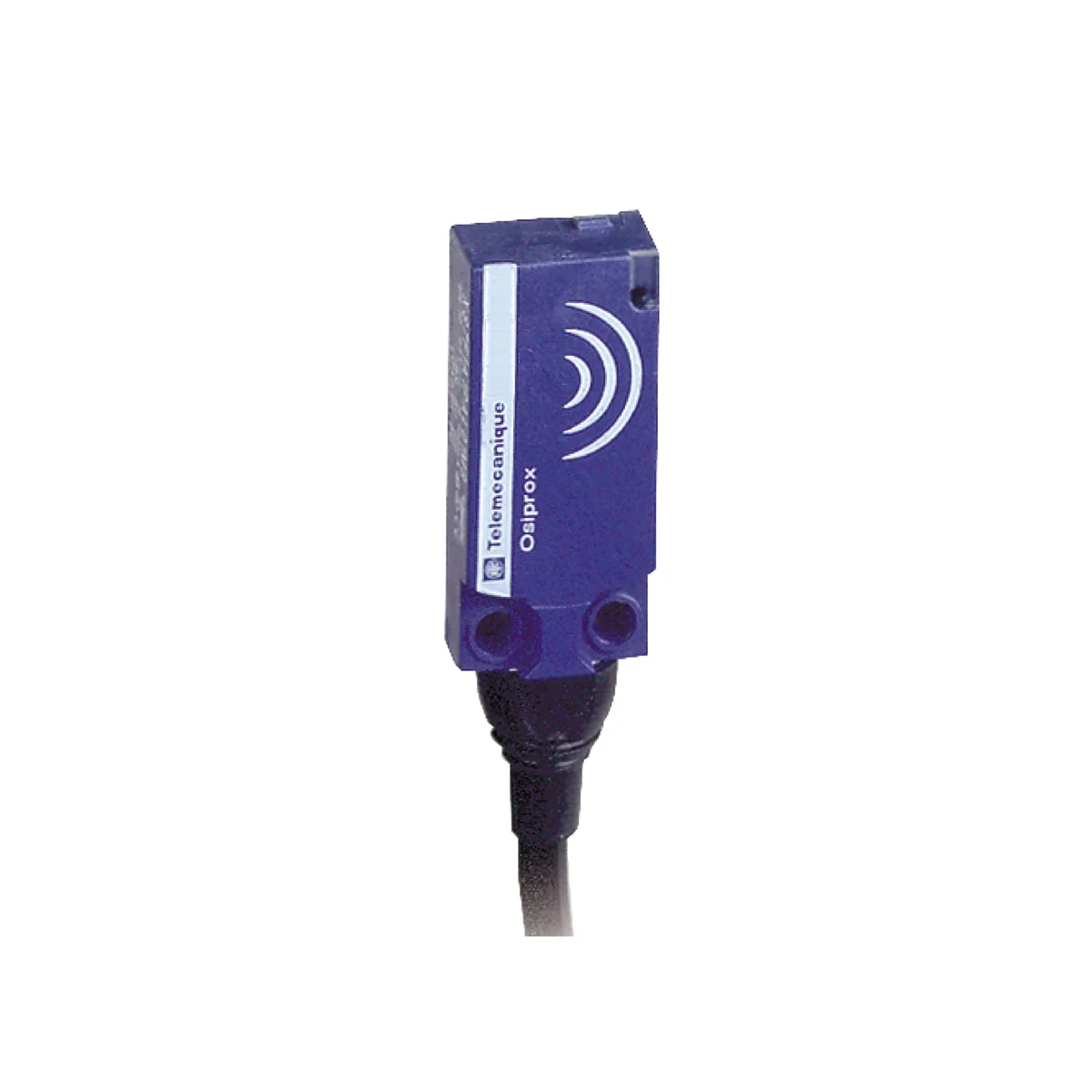

Flat inductive sensor 1NO 12-24V DC cable 2m XS7F1A1DAL2

local index:
API455SCHN
Catalog No:
XS7F1A1DAL2
EAN code:
3389110140378
Price:
140,48 €
gross / pcs.
including VAT 23%
Availability:
Lack
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Flat inductive sensor 1NO 12-24V DC cable 2m

Technical data

  • Material
    Plastic

Other technical data

  • Width sensor
    15 mm
  • Length of sensor
    8 mm
  • Switching distance
    5 mm
  • Type of switch function
    Normally open contact
  • Number of semiconductor outputs with signalling function
    1
  • Number of protected semiconductor outputs
    1
  • Type of actuation
    Metallic Target
  • Type of interface for safety communication
    None
  • Coating housing
    Other
  • SIL according to IEC 61508
    None
  • Max. output current at protected output
    100 mA
  • Rated control supply voltage DC
    12 ... 24 V
  • Switching frequency
    5000 Hz
  • Housing material
    Plastic
  • Explosion safety category for gas
    None
  • Interference resistance to magnetic fields
    Immune against magnetic DC-field
  • Height of sensor
    32 mm
  • Mechanical mounting condition for sensor
    Concise
  • Suitable for safety functions
    no
  • Type of electric connection
    Cable radial
  • Number of contact energized outputs with signalling function
    0
  • Number of protected contact energized outputs
    0
  • Type of interface
    None
  • Construction type housing
    Cuboid
  • Cascadable
    no
  • Performance level according to EN ISO 13849-1
    None
  • Supply voltage
    12 ... 24 V
  • Voltage type
    AC/DC
  • With monitoring function downstream switching devices
    no
  • Compression-resistant
    no
  • Explosion safety category for dust
    None
