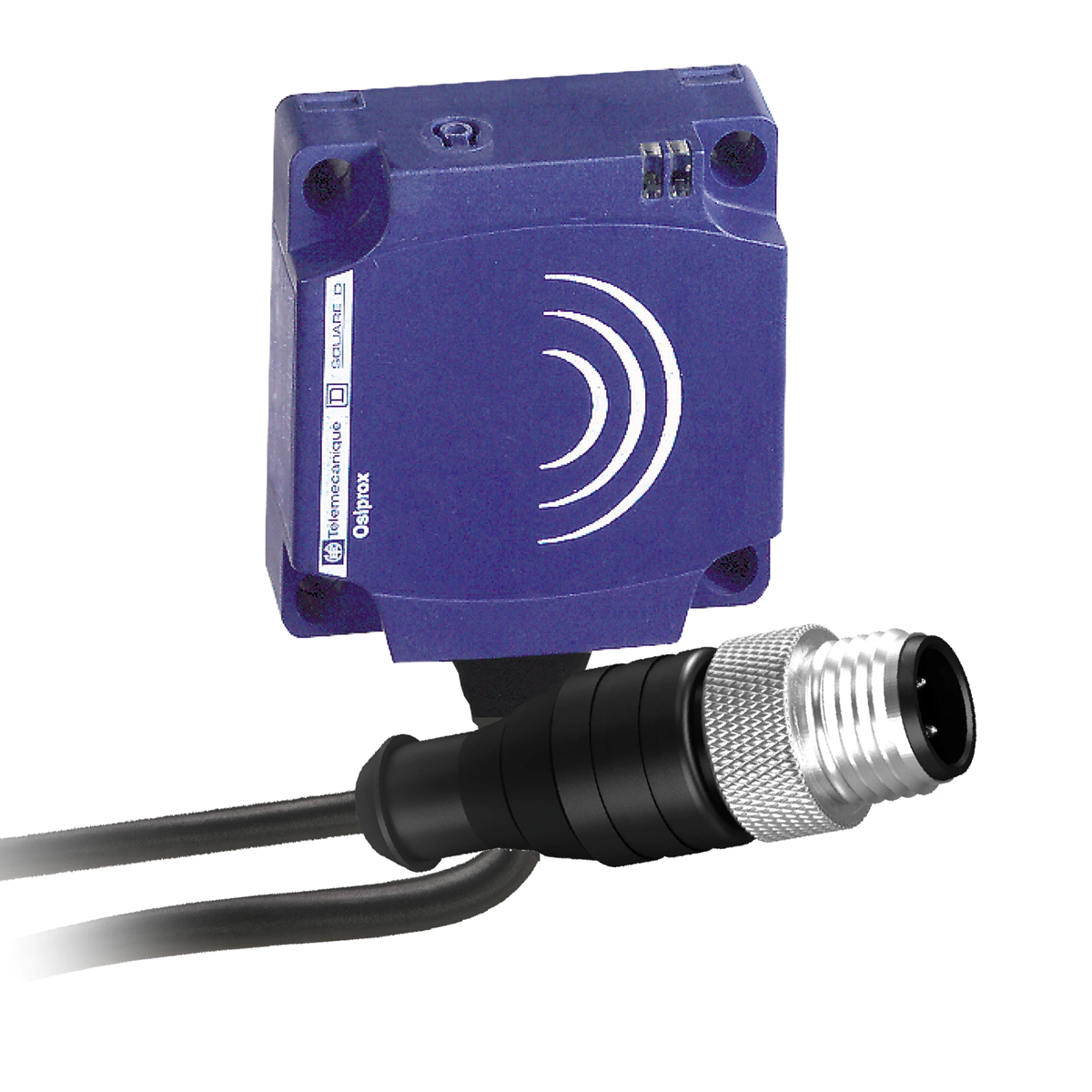

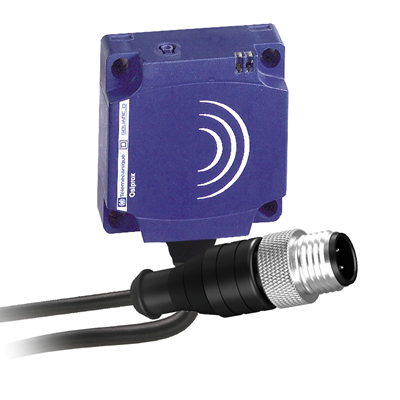

Flat inductive sensor 1NC 24-240V AC/DC connector 1/2"20 UNF XS8C1A1MBL01U20

local index:
API221SCHN
Catalog No:
XS8C1A1MBL01U20
EAN code:
3389110142921
Manufacturer: SCHNEIDER ELECTRIC
Material: Plastic
Price:
232,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Flat inductive sensor 1NC 24-240V AC/DC connector 1/2"20 UNF

Technical data

  • Material
    Plastic
  • PKWIU
    26.51.66.0

Other technical data

  • Width sensor
    40 mm
  • Length of sensor
    15 mm
  • Switching distance
    15 mm
  • Type of switch function
    Breaker contact
  • Number of semiconductor outputs with signalling function
    1
  • Number of protected semiconductor outputs
    0
  • Type of actuation
    Metallic Target
  • Type of interface for safety communication
    None
  • Coating housing
    Other
  • SIL according to IEC 61508
    None
  • Max. output current at protected output
    200 mA
  • Rated control supply voltage AC 50 Hz
    24 ... 240 V
  • Rated control supply voltage DC
    24 ... 240 V
  • Switching frequency
    1000 Hz
  • Housing material
    Plastic
  • Explosion safety category for gas
    None
  • Interference resistance to magnetic fields
    Immune against magnetic DC- and AC-field
  • Height of sensor
    40 mm
  • Mechanical mounting condition for sensor
    Not flat
  • Suitable for safety functions
    no
  • Type of electric connection
    Connector 1/2 inch
  • Number of contact energized outputs with signalling function
    0
  • Number of protected contact energized outputs
    0
  • Type of interface
    None
  • Construction type housing
    Cuboid
  • Cascadable
    no
  • Performance level according to EN ISO 13849-1
    None
  • Supply voltage
    24 ... 240 V
  • Rated control supply voltage AC 60 Hz
    24 ... 240 V
  • Voltage type
    AC/DC
  • With monitoring function downstream switching devices
    no
  • Compression-resistant
    no
  • Explosion safety category for dust
    None
