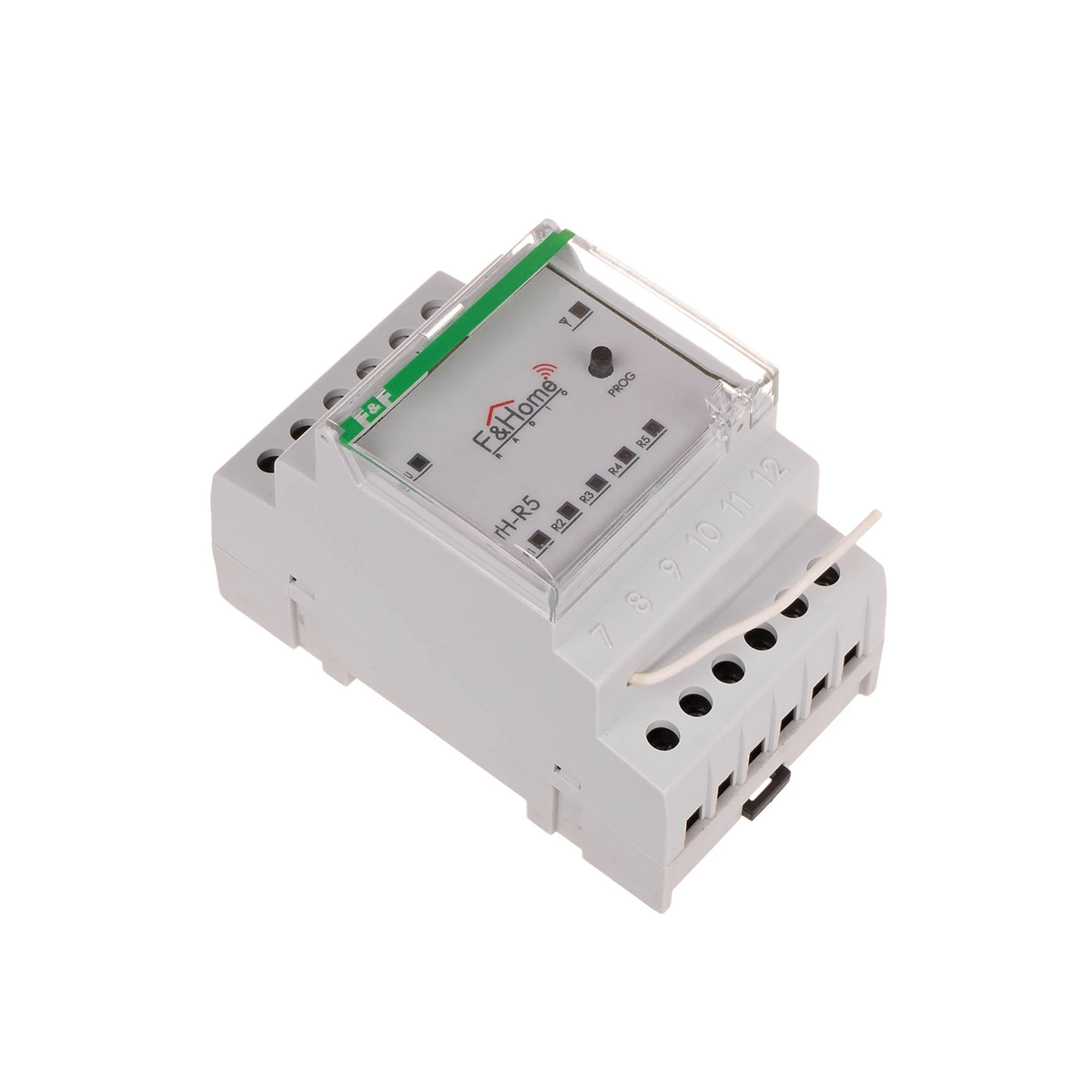

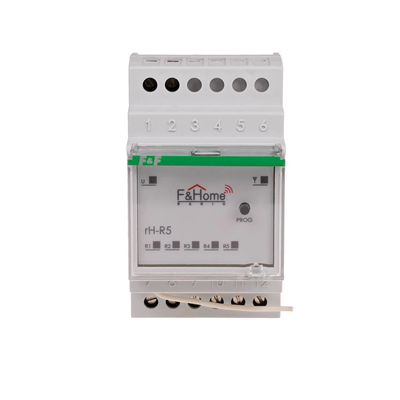

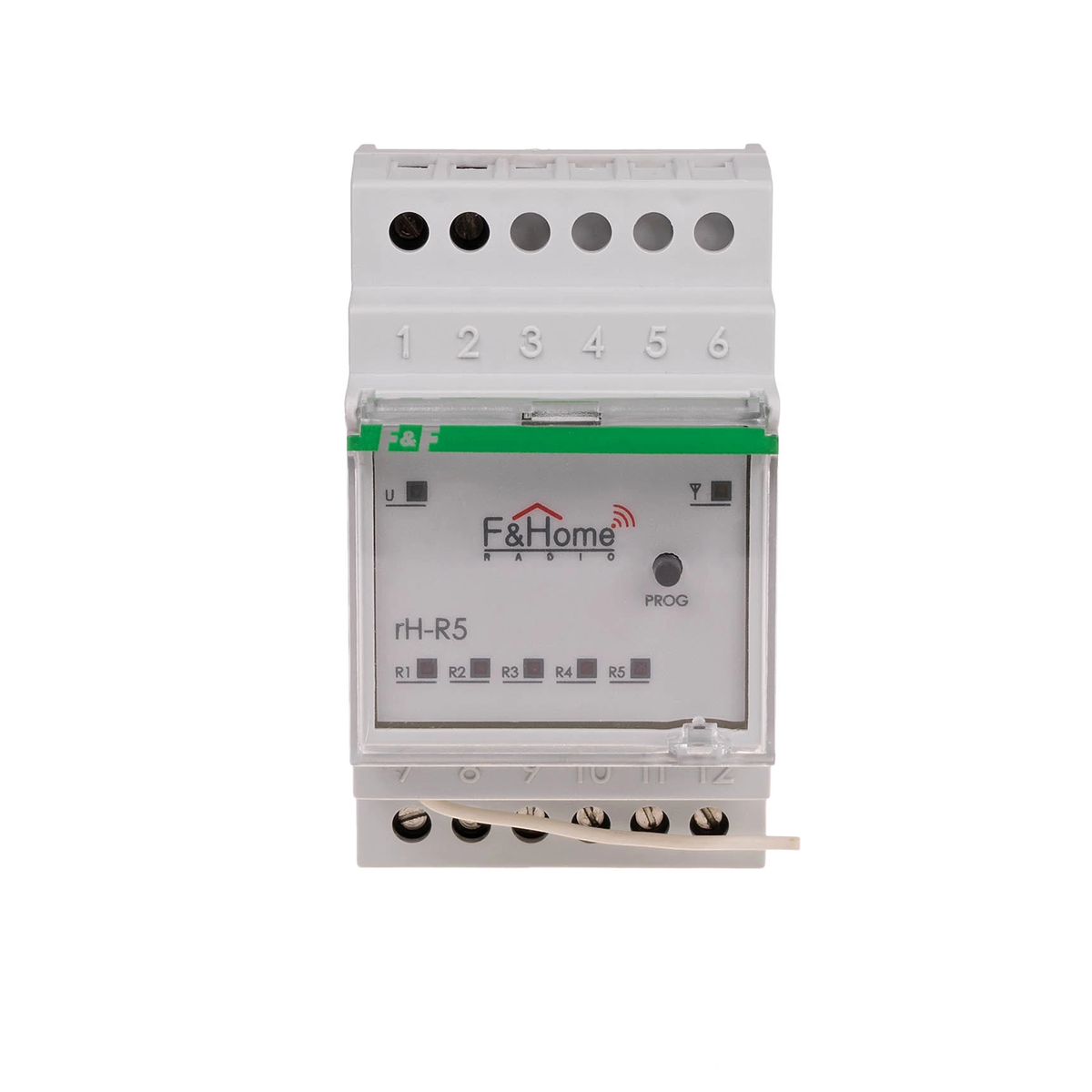

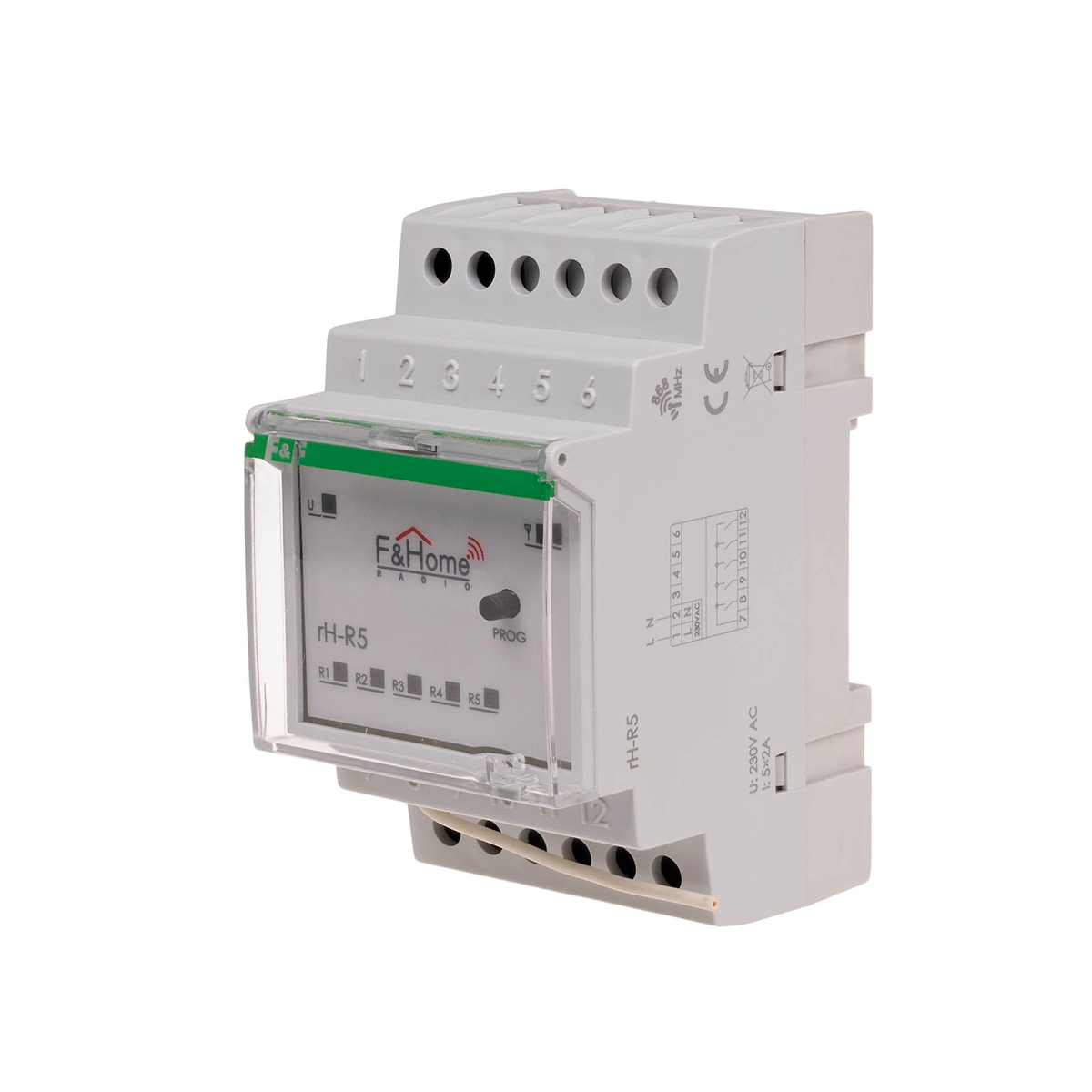

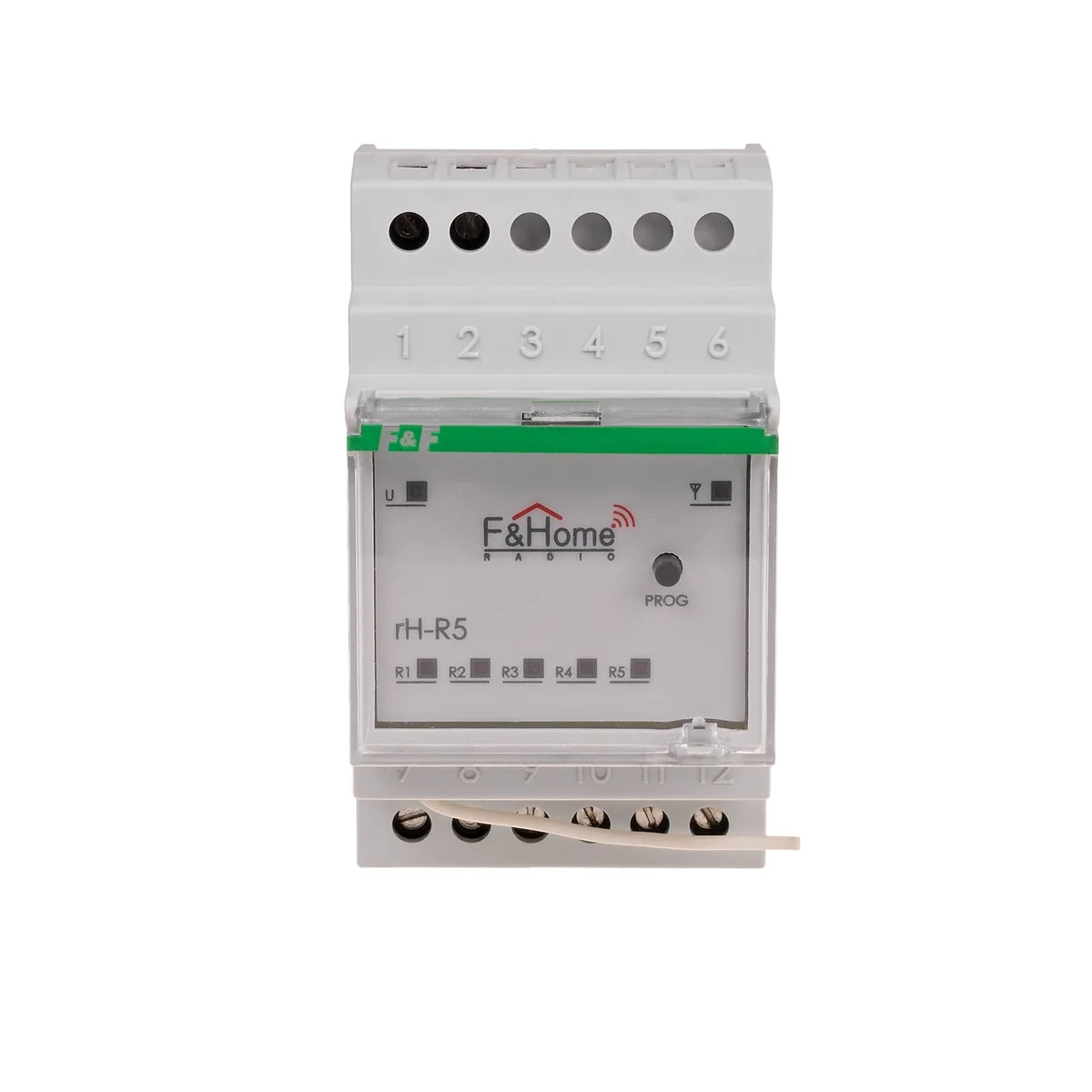

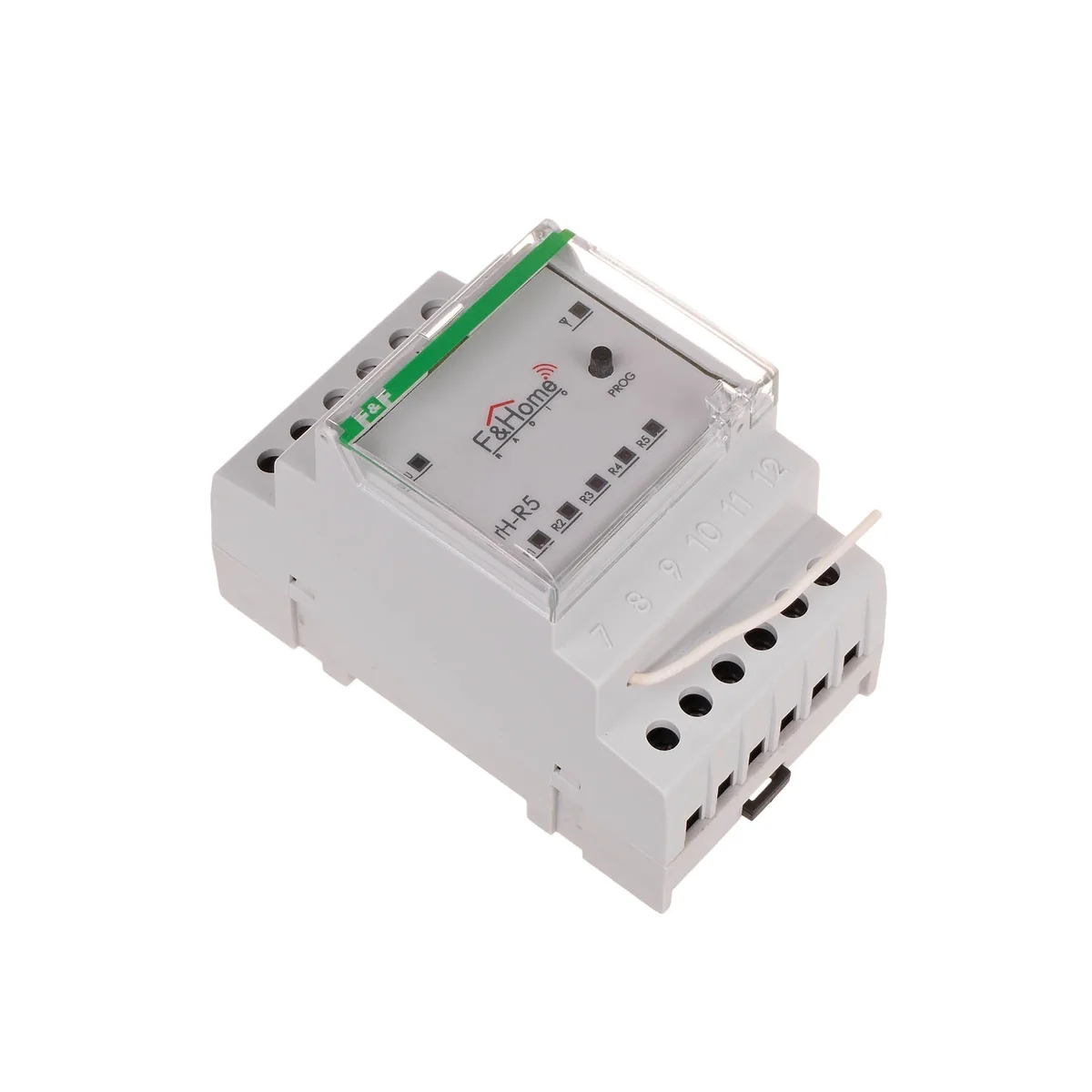

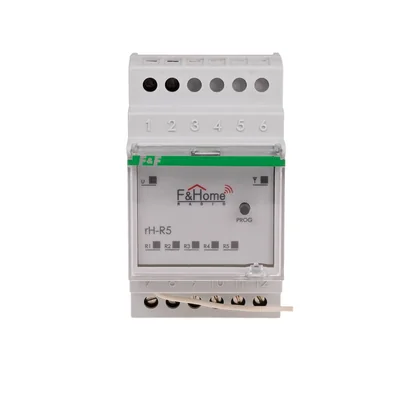

Five-channel relay for DIN rail RH-R5

local index:
APL112FIFQ
Catalog No:
RH-R5
EAN code:
5908312596530
Manufacturer: F&F
Depth [mm]: 65
Number of channels: 5
Number of modules: 6
Price:
136,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The five-channel relay rH-R5 contains five relays for switching electric circuits from a common power supply. Communication with the server takes place via radio. The load of the relay contacts can be resistive, inductive or capacitive, both in DC and AC circuits. All relays have one output of the NO contact connected to a common wire. The built-in temperature sensor protects the module against the effects of overheating. Pressing the button on the housing for less than 1s will switch on or off all relays simultaneously.

Technical data

  • Depth [mm]
    65
  • Number of modules
    6
  • Rated voltage [V]
    24
  • Family
    F&HOME RADIO
  • Height [mm]
    89
  • Package width [mm]
    105
  • Number of modules
    6
  • Number of channels
    5
  • Installation
    On the TH-35 rail
  • Rated current [A]
    24
  • Width [mm]
    105
  • Package height [mm]
    89
  • Package weight [kg]
    0.1
  • PKWIU
    27.12.24.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • Model
    Base module
  • Number of outputs
    5
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Other
  • Width in number of modular spacings
    3
  • With LED indication
    Yes
  • Output voltage
    12 ... 250 V

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,220
