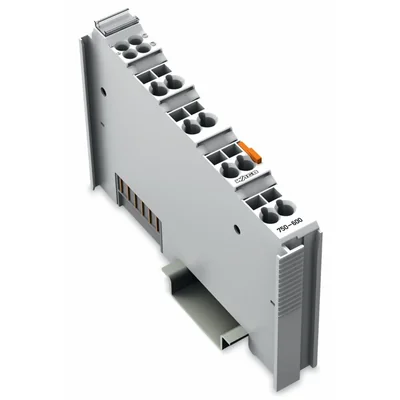

Final module 750-600

local index:
API045WAGO
Catalog No:
750-600
EAN code:
4045454073985
Manufacturer: WAGO ELWAG
Number of outputs: 4
Insulation [V]: 500
Color: Gray
Price:
21,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

4-channel analog output module 0 - 10 V

Technical data

  • Number of outputs
    4
  • Color
    Gray
  • Vibration resistance
    According to IEC 60068-2-6
  • Series
    750
  • Conformity mark
    CE
  • Insulation [V]
    500
  • Signal voltage [V]
    0 - 10
  • Shock resistance
    According to IEC 60068-2-27
  • Internal maximum current consumption [mA]
    125
  • Accurate color
    light gray

Other technical data

  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces USB
    0
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • System accessory
    Yes
  • Type of electric connection
    Spring clamp connection
  • With power supply module
    No
  • Remote module
    Yes
  • Bus diagnosis possible
    No
  • Wall mounting/direct mounting
    No
  • Rack-assembly possible
    No
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 3G
  • Width
    12 mm
  • Depth
    100 mm
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces wireless
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • Degree of protection (IP)
    IP20
  • With potential separation
    No
  • Suitable as segment module
    Yes
  • Fieldbus connection over separate bus coupler possible
    No
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    ATEX dust-ex-protection, Cat. 3D
  • Height
    64 mm

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,047
Volume (m3) 0,000
Width (m) 0,020
Length (m) 0,104
Depth (m) 0,074
