External hermetic probe of the twilight automaton SONDA-AZ

local index:
APP008FIFQ
Catalog No:
SONDA-AZ
EAN code:
5908312591986
Manufacturer: F&F
Level of security: IP65
Package height [mm]: thirty
Package width [mm]: 120
Price:
7,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 18 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

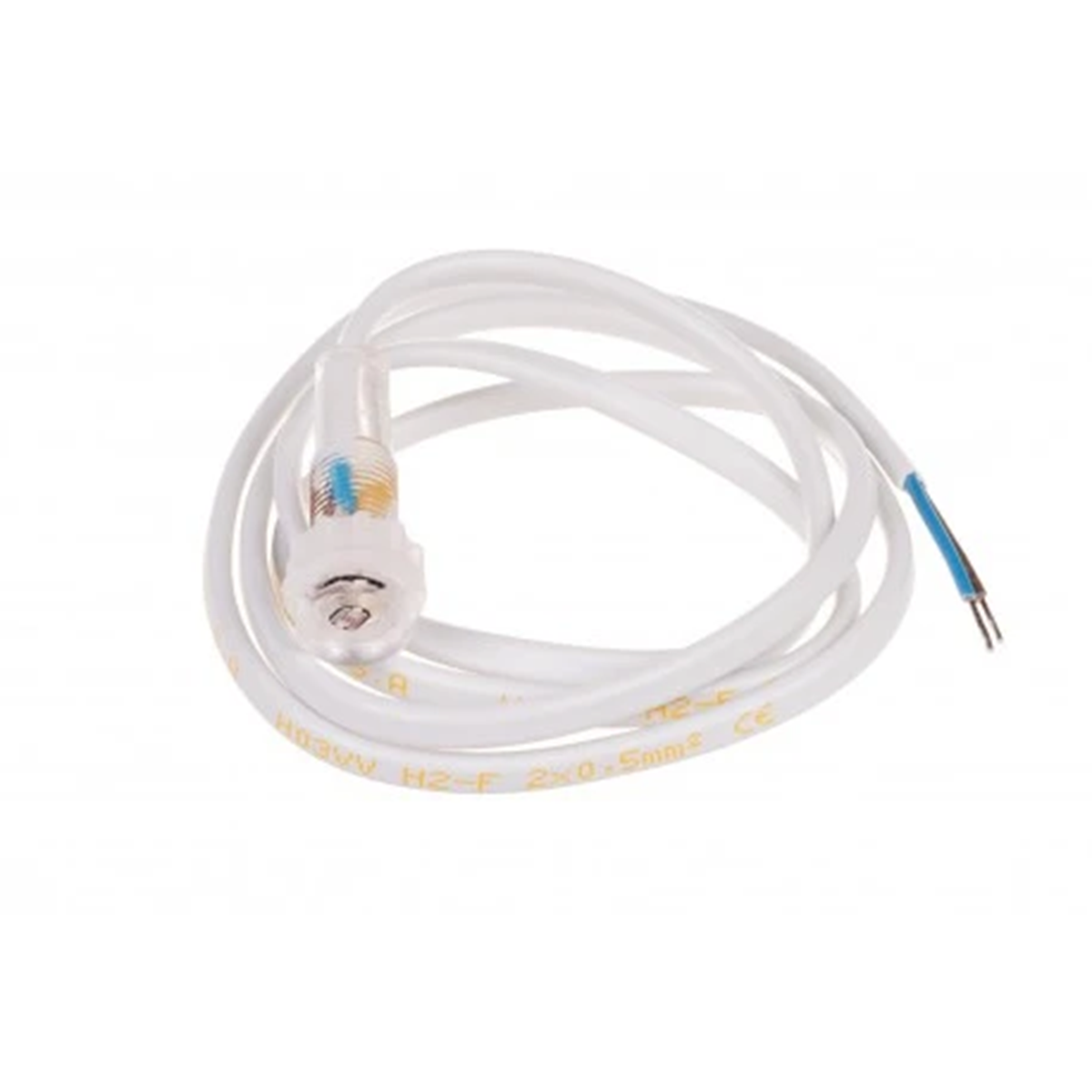

Small, easy-to-install photosensitive sensor comes standard with a 1-meter 2×0.5mm² round cable with the possibility of extension (wiring connection should be made in a hermetic box or in a place isolated from atmospheric influences). Used in sets  AZH-S, AZ-B,   AZ-B UNI, AZ-112.
Also available separately. The probe should be installed in a place not illuminated by a switched (or other) light source.
The connection cable of the probe should not be led close to the parallel cable that is under mains voltage or conducts high currents.

Technical data

  • Level of security
    IP65
  • Package width [mm]
    120
  • PKWIU
    26.11.22.0
  • Package height [mm]
    thirty
  • Package weight [kg]
    0, 1

Other technical data

  • Bus system KNX
    no
  • Bus system radio frequent
    no
  • Bus system Powernet
    no
  • Mounting method
    Flush-mounted
  • Type of sensor
    Separate light sensor/cable
  • Number of channels
    1
  • Degree of protection (IP)
    IP67
  • Bus system KNX-RF (Radio Frequent)
    no
  • Bus system LON
    no
  • Other bus systems
    Other
  • With LED indication
    no
  • With bus connection
    no
  • Setting
    2 ... 1000 lx

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,028
Width (m) 0,070
Length (m) 0,100
Depth (m) 0,015
