External hermetic probe of the PLUS twilight automaton SONDA-AZ-PLUS

local index:
APT038FIFQ
Catalog No:
SONDA-AZ-PLUS
EAN code:
5908312591993
Manufacturer: F&F
Level of security: IP65
Package height [mm]: thirty
Package width [mm]: 120
Price:
9,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

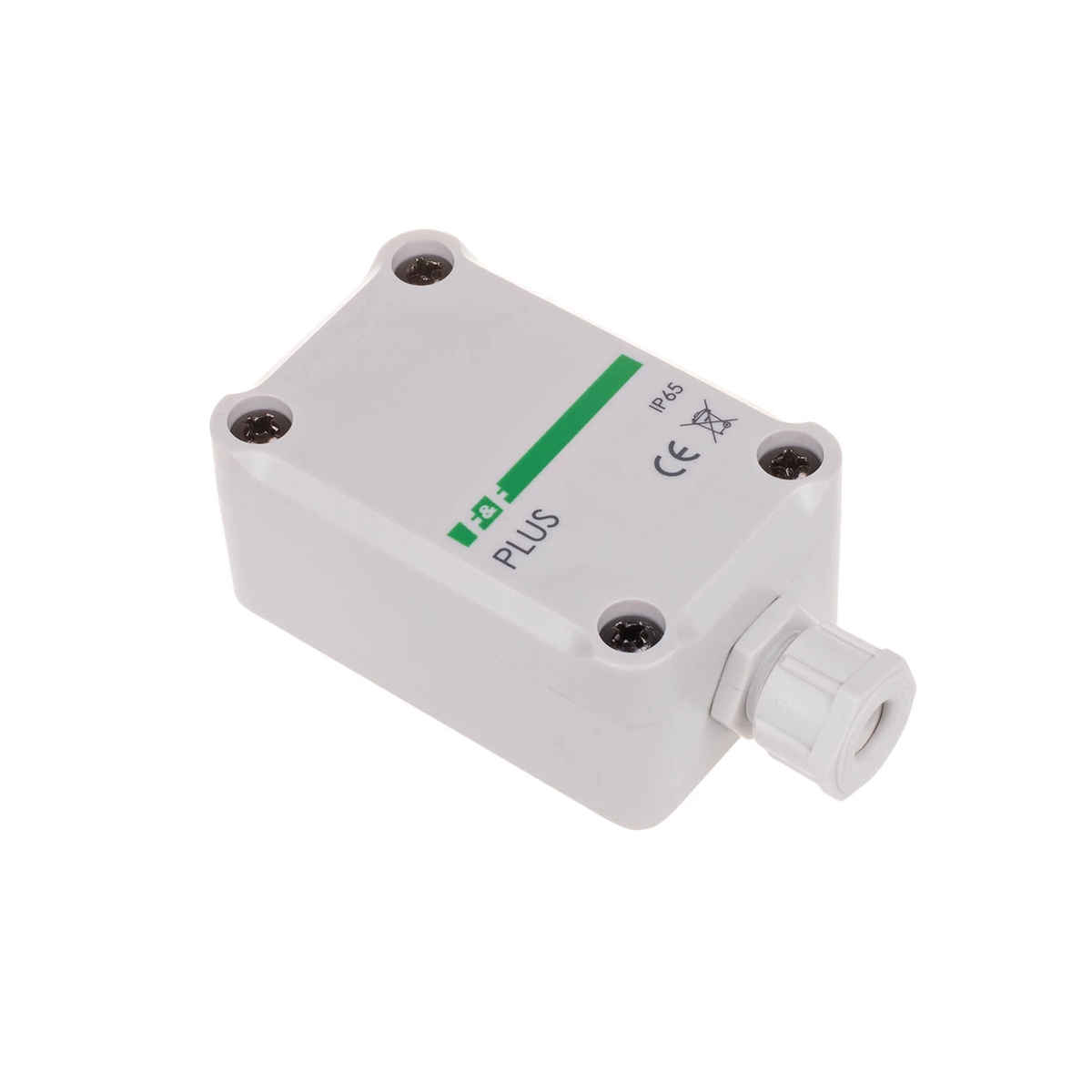

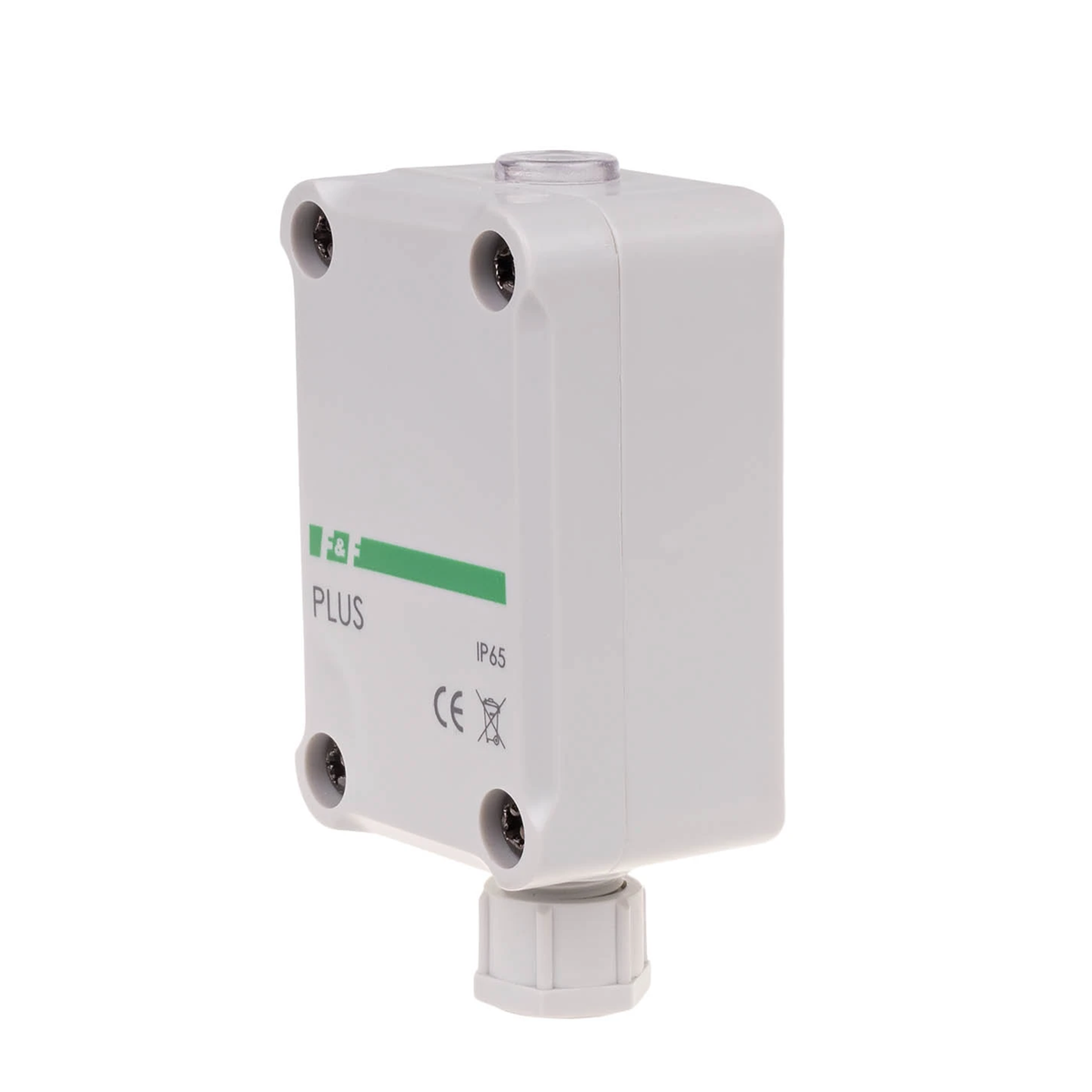

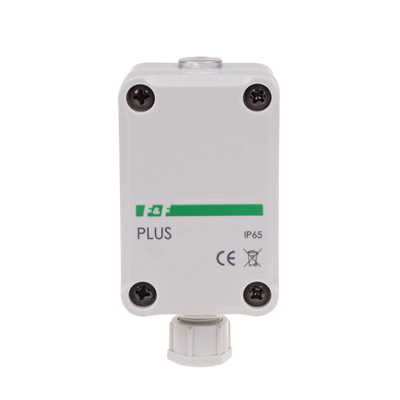

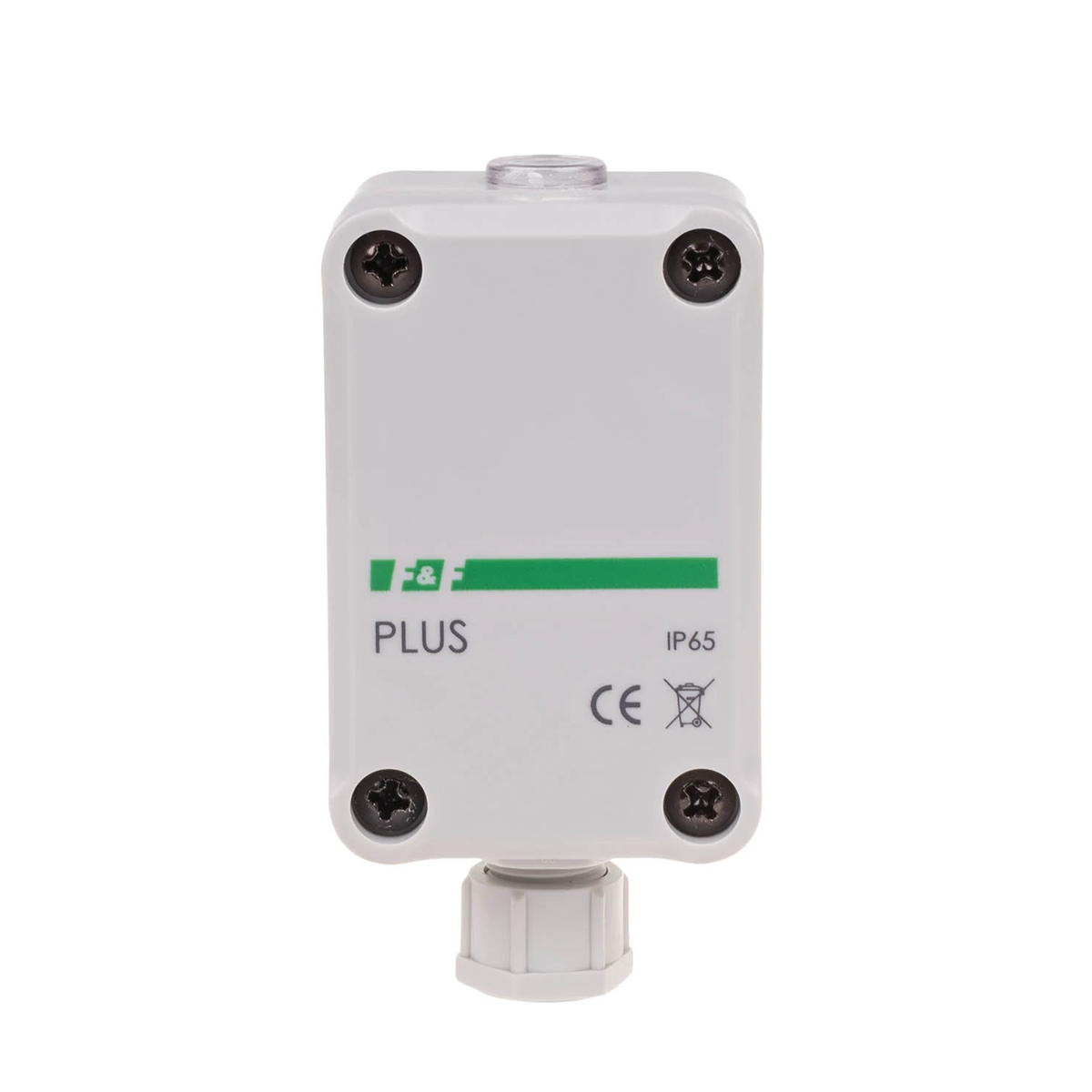

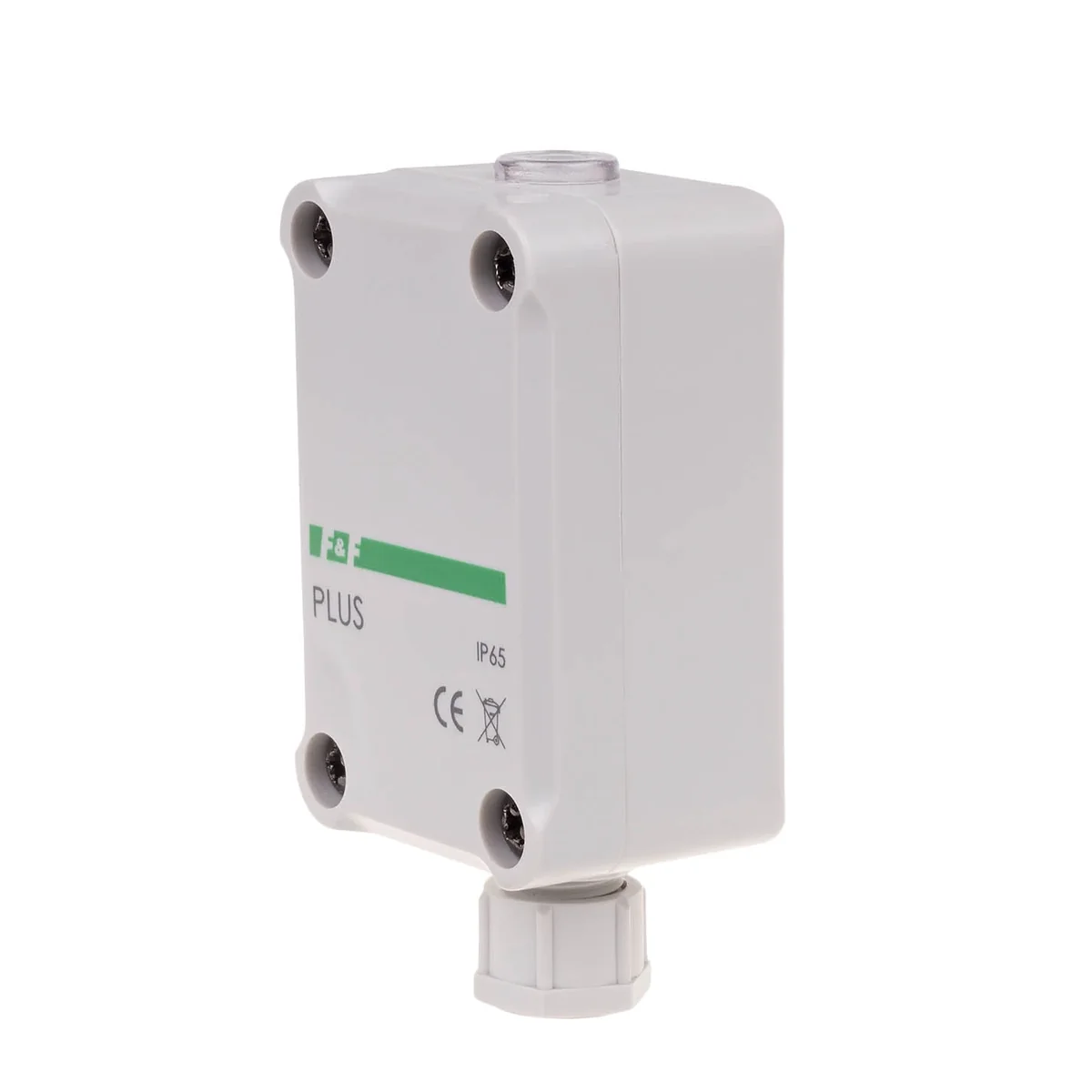

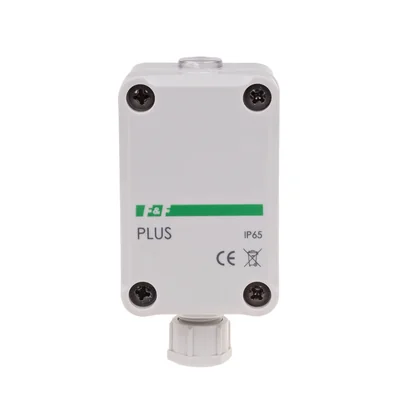

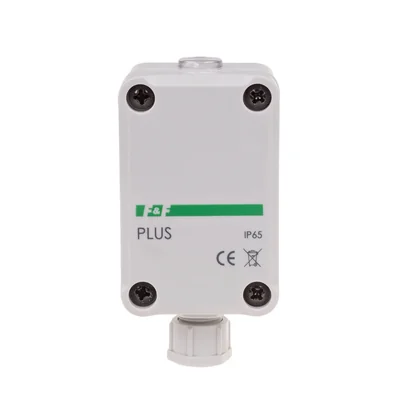

A photosensitive sensor in a special, small-sized, plastic box connected through a PG7 gland with any length of round cable max. Ø7 (e.g. 2×0.5mm²). A box with a special sealing flange, fixed to the base with two screws, closed with a cover with a silicone gasket with four screws.

Used in sets  AZH-S PLUS, AZ-B PLUS,  AZ-B PLUS UNI, AZ-112 PLUS. Also available separately.

Technical data

  • Level of security
    IP65
  • Package width [mm]
    120
  • PKWIU
    26.11.22.0
  • Package height [mm]
    thirty
  • Package weight [kg]
    0.1

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Mounting method
    Flush-mounted
  • Type of sensor
    Separate light sensor/cable
  • Number of channels
    1
  • Degree of protection (IP)
    IP67
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Other
  • With LED indication
    No
  • With bus connection
    No
  • Setting
    2 ... 5000 lx

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,050
Width (m) 0,070
Length (m) 0,100
Depth (m) 0,025
