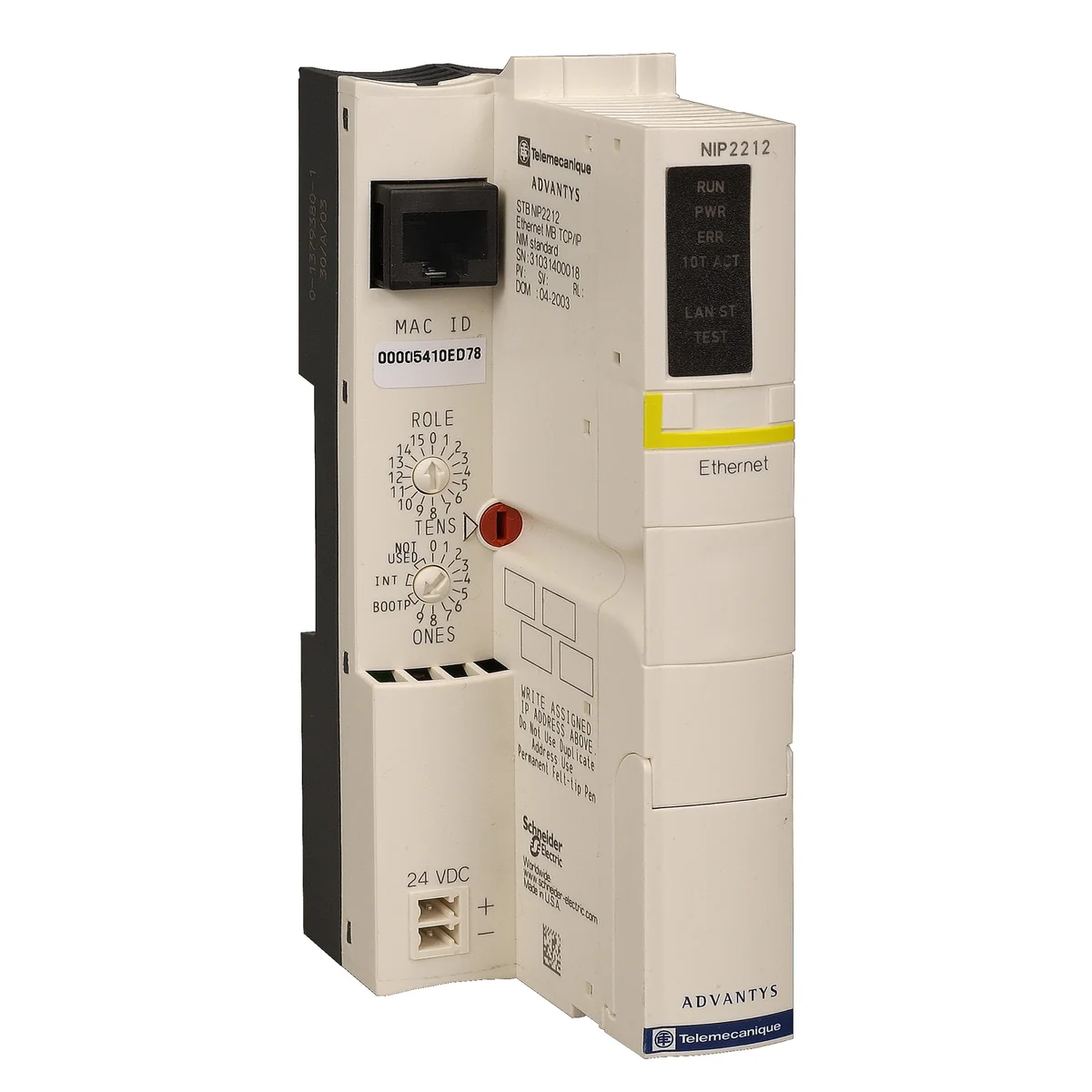

Ethernet communication module STBNIP2212

local index:
API177SCHN
Catalog No:
STBNIP2212
EAN code:
3595862055116
Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 40
Price:
599,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Ethernet communication module

Technical data

  • Height [mm]
    40
  • PKWIU
    26.20.16.0

Other technical data

  • Supply voltage DC
    24 ... 24 V
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • With potential separation
    Yes
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    Yes
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    40 mm
  • Voltage type (supply voltage)
    AC/DC
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for EtherNet/IP
    Yes
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • Fieldbus connection over separate bus coupler possible
    Yes
  • Wall mounting/direct mounting
    No
  • Rack-assembly possible
    Yes
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 3G
  • Width
    128.3 mm
  • Depth
    70 mm
