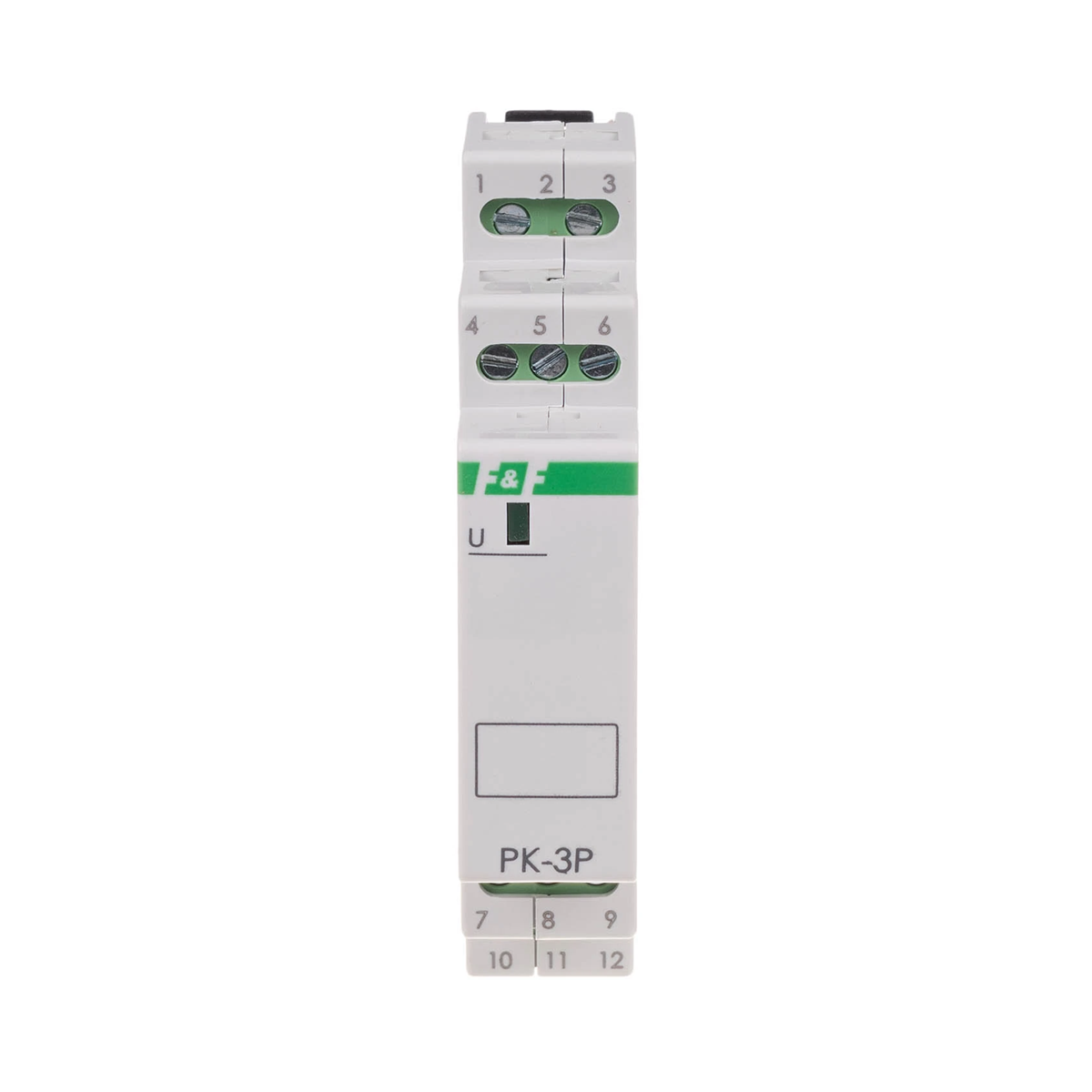

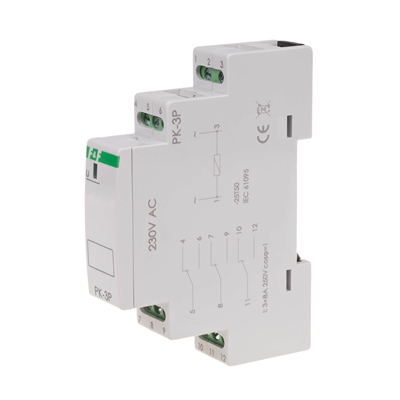

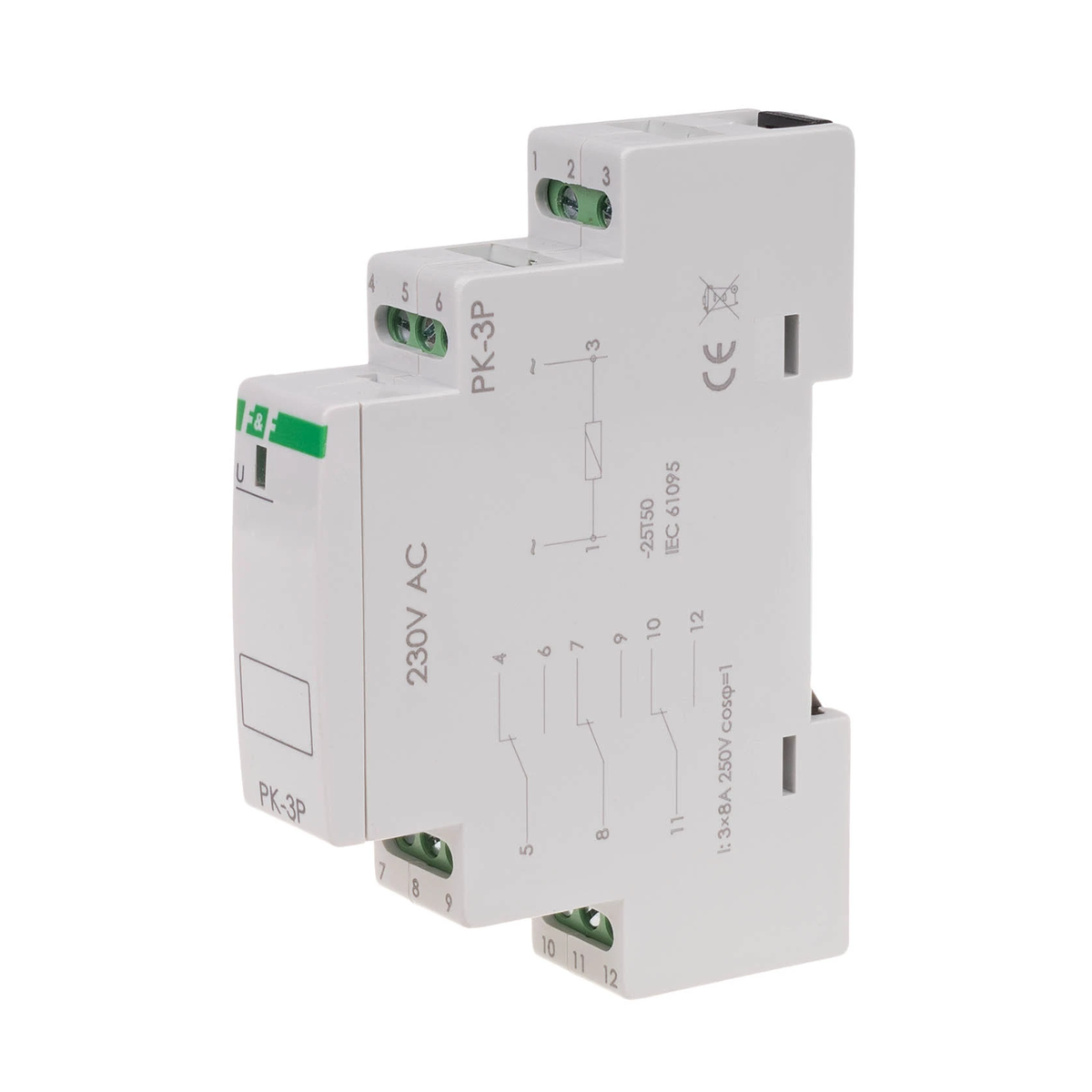

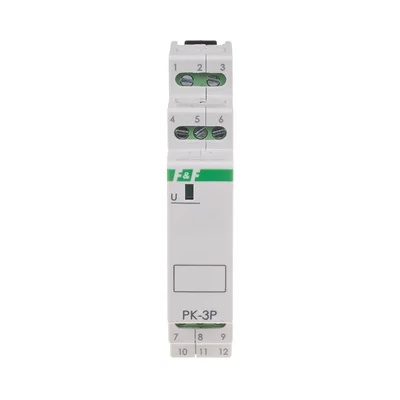

Electromagnetic relay PK-3P 230V PK-3P-230V
local index:
APE006FIFQ
Catalog No:
PK-3P-230V
EAN code:
5908312591900
Manufacturer:
F&F
Installation: On the TH-35 rail
Rated voltage [V]: 230
Rated insulation voltage [V]: 400
Price:
18,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay in a single-module housing for direct mounting on a TH-35 rail.
Technical data
-
InstallationOn the TH-35 rail
-
Rated insulation voltage [V]400
-
contact gap [kV]1.2
-
Working temperature [°C]-25-50
-
Package height [mm]150
-
Package weight [kg]0.1
-
PKWIU27.12.24.0
-
Rated voltage [V]230
-
Current consumption[mA]25
-
connection2.5mm screw terminals
-
Dimensions1 module (18mm)
-
Package width [mm]20
-
Separate current circuits [kV]3.6
Other technical data
-
Type of electric connectionScrew connection
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Type of switch contactOther
-
Height90 mm
-
With detachable clampsNo
-
Number of contacts as change-over contact3
-
Degree of protection (IP)IP20
-
Depth65 mm
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,076 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
